Model # TBF16ZJB Official GE top-mount refrigerator

Here are the diagrams and repair parts for Official GE TBF16ZJB top-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 246 parts  |
Light Switch WR23X193
#609

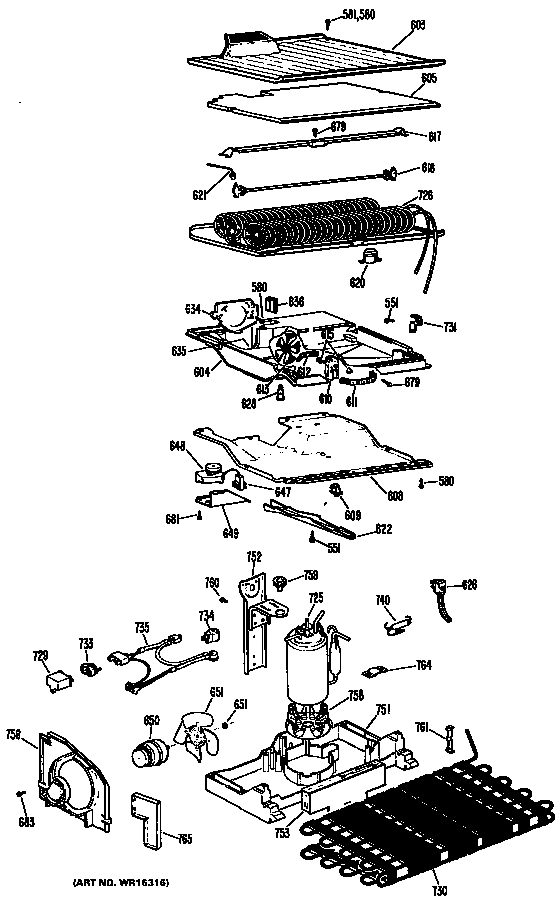

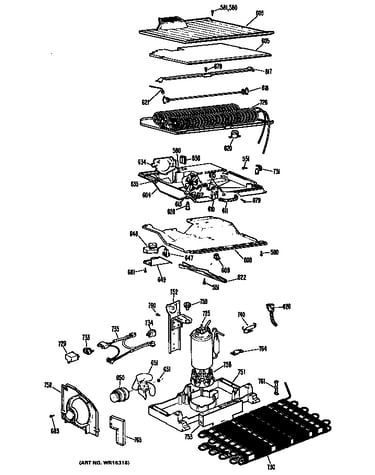

Unit diagram

Light switch

Part #WR23X193

Replaced by #WR23X37285

?
Manufacturer substitution
This part replaces WR23X193. Substitute parts can look different from the original.
$8.11
In Stock
Power Cord WR23X108
#626B

Unit diagram

Power cord

Part #WR23X108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Capacitor WR62X43
#729

Unit diagram

Refrigerator capacitor

Part #WR62X43

Replaced by #WR62X51

?
Manufacturer substitution
This part replaces WR62X43. Substitute parts can look different from the original.
This item is not returnable
$27.79 |
18% OFF Phone Price : $33.79
In Stock
Refrigerator Roller WR2X3594
#264A

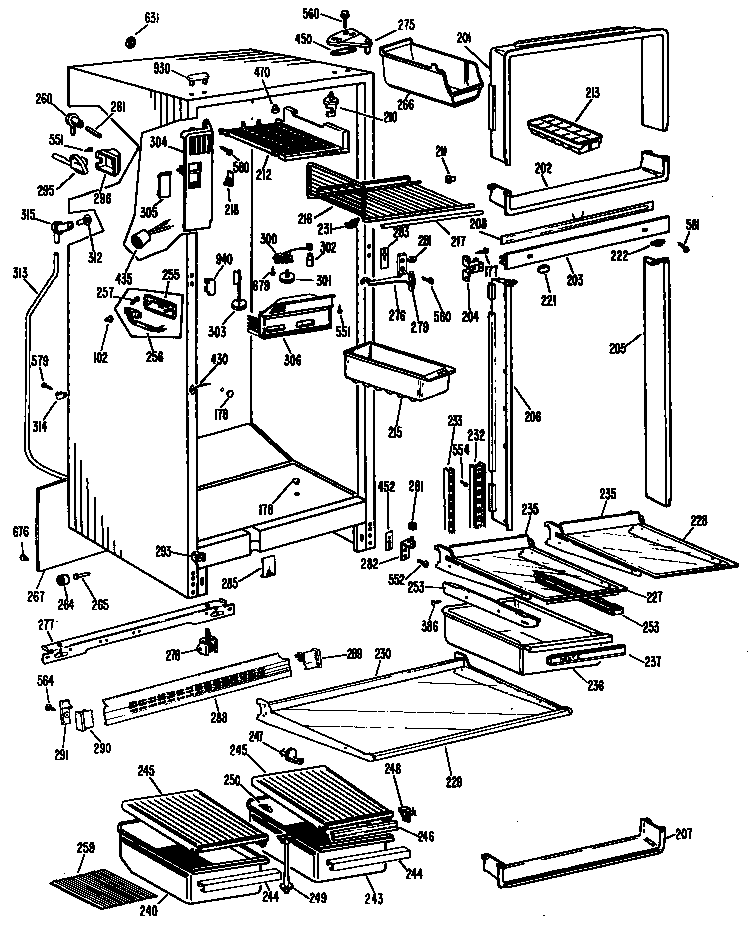

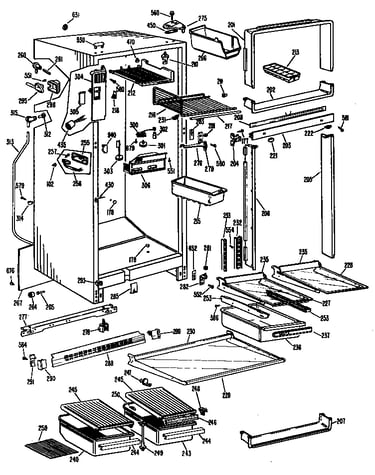

Cabinet/shelves diagram

Refrigerator roller

Part #WR2X3594

This item is not returnable
$21.62 |
22% OFF Phone Price : $27.62
In Stock
O D Panel Ff WR78X7649
#910

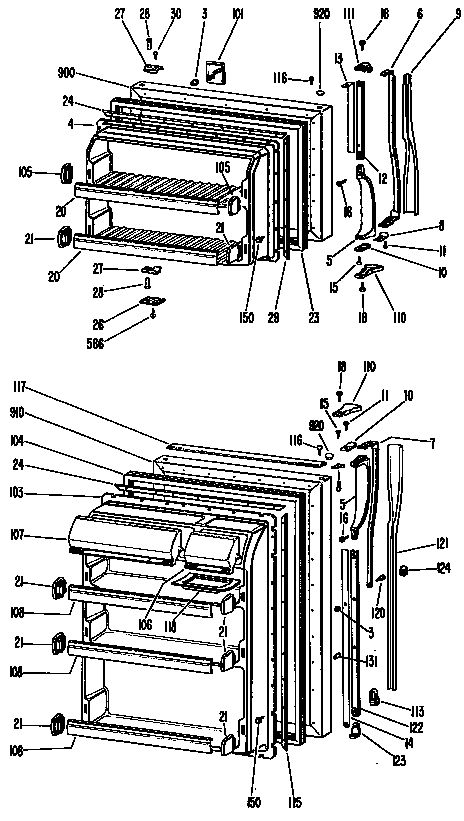

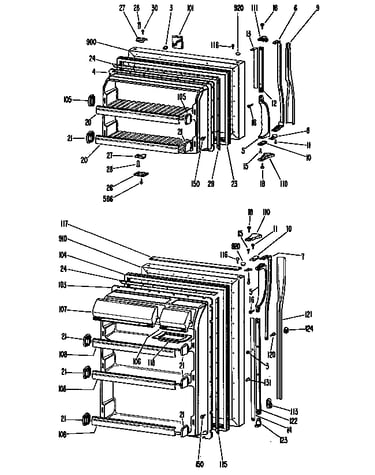

Doors diagram

O d panel ff

Part #WR78X7649

$107.49
In Stock
O D Panel Ff WR78X7650

#NI

All parts diagram

O d panel ff

Part #WR78X7650

$107.49
In Stock
Refrigerator Evaporator Cover Seal WR14X313
#726A

Unit diagram

Refrigerator evaporator cover seal

Part #WR14X313

$17.31 |
10% OFF Phone Price : $19.31
In Stock
Refrigerator Evaporator Fan Blade (replaces Swr2x3198, Swr60x114, Wr2x3198, Wr60x0114, Wr60x107, Wr60x113, Wr60x247, Wr60x55, Wr60x80) WR60X114
#613B

Unit diagram

Refrigerator evaporator fan blade (replaces swr2x3198, swr60x114, wr2x3198, wr60x0114, wr60x107, wr60x113, wr60x247, wr60x55, wr60x80)

Part #WR60X114

This item is not returnable
$15.03 |
12% OFF Phone Price : $17.03
In Stock
Freezer Liner Button Plug WR2X3139
#470

Cabinet/shelves diagram

Freezer liner button plug

Part #WR2X3139

This item is not returnable
$5.00
In Stock
Refrigerator Reflector WR38X1030
#230

Cabinet/shelves diagram

Refrigerator reflector

Part #WR38X1030

$10.99
In Stock
