Model # RE81F0 Official Whirlpool air conditioner

Here are the diagrams and repair parts for Official Whirlpool RE81F0 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
By Part

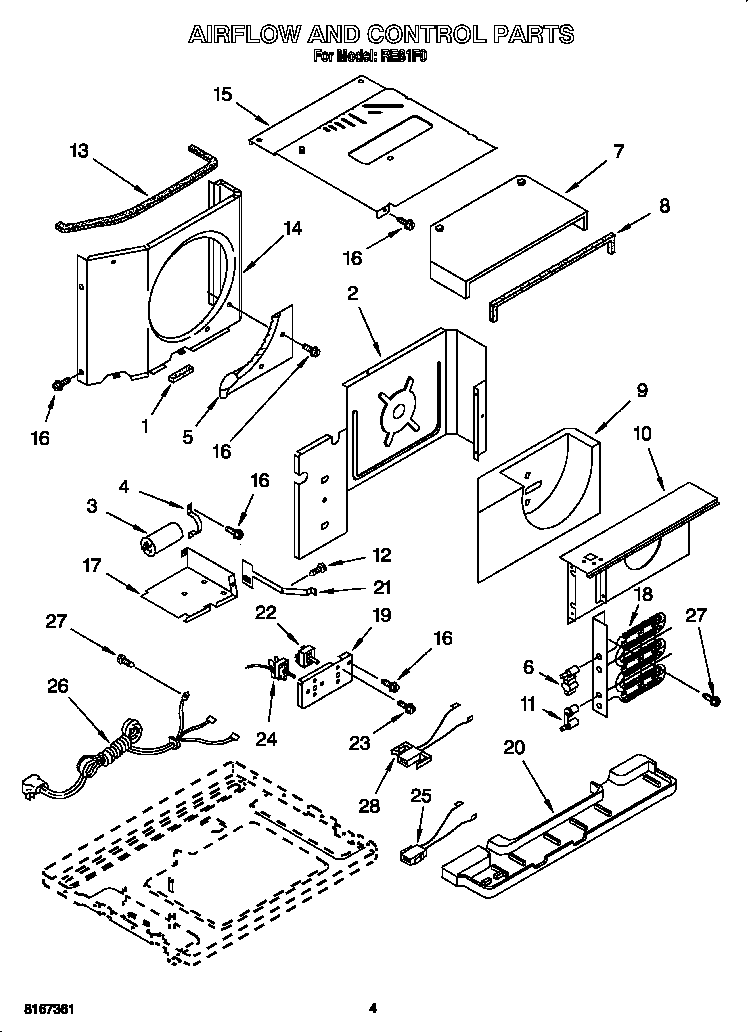

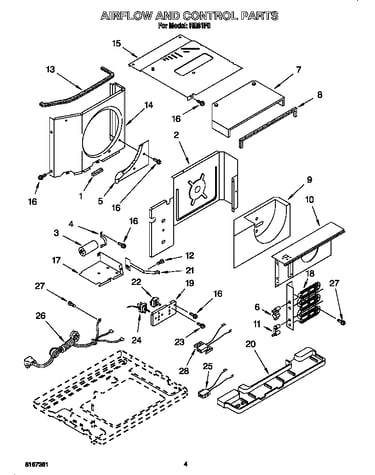

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forRE81F0 Air Conditioner

  • Capacitor 470168
    #16

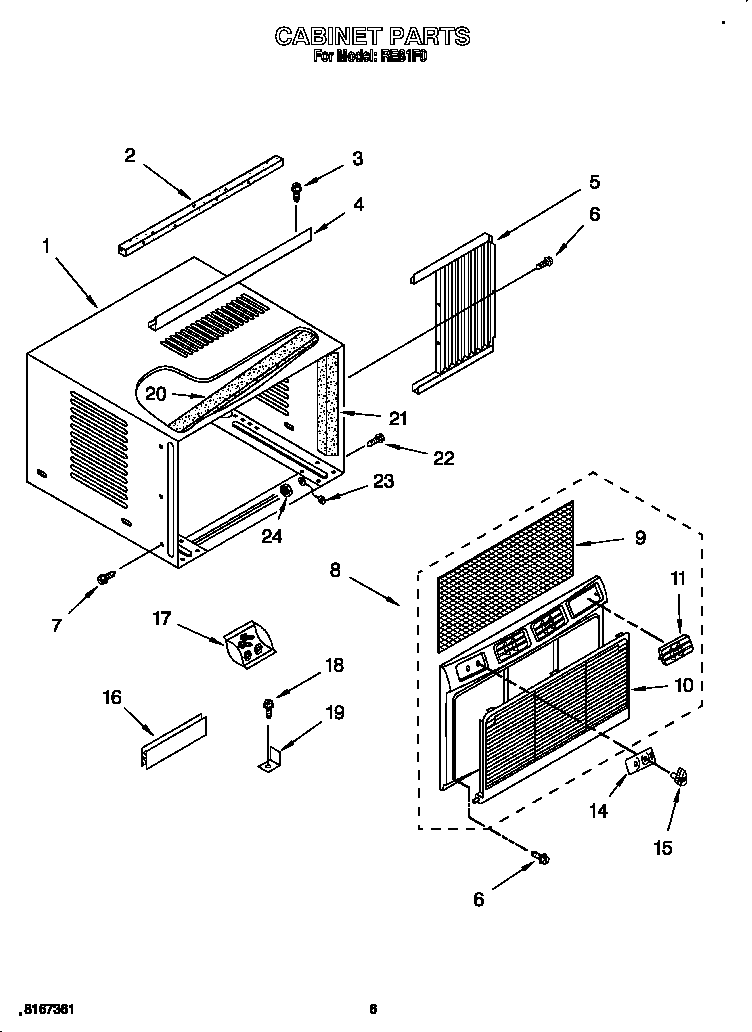

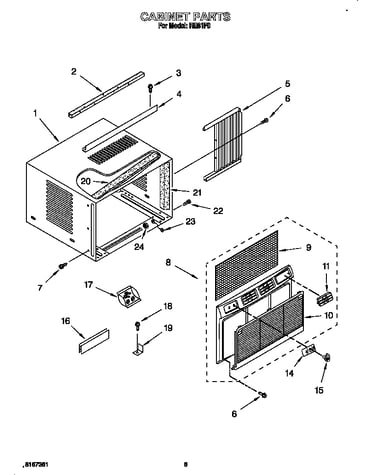

    Cabinet diagram

    Capacitor

    Part #470168

    Replaced by #212643

    ?
    Manufacturer substitution
    This part replaces 470168. Substitute parts can look different from the original.
    This item is not returnable
    $38.71
    19% OFF Was : $47.59
    In Stock

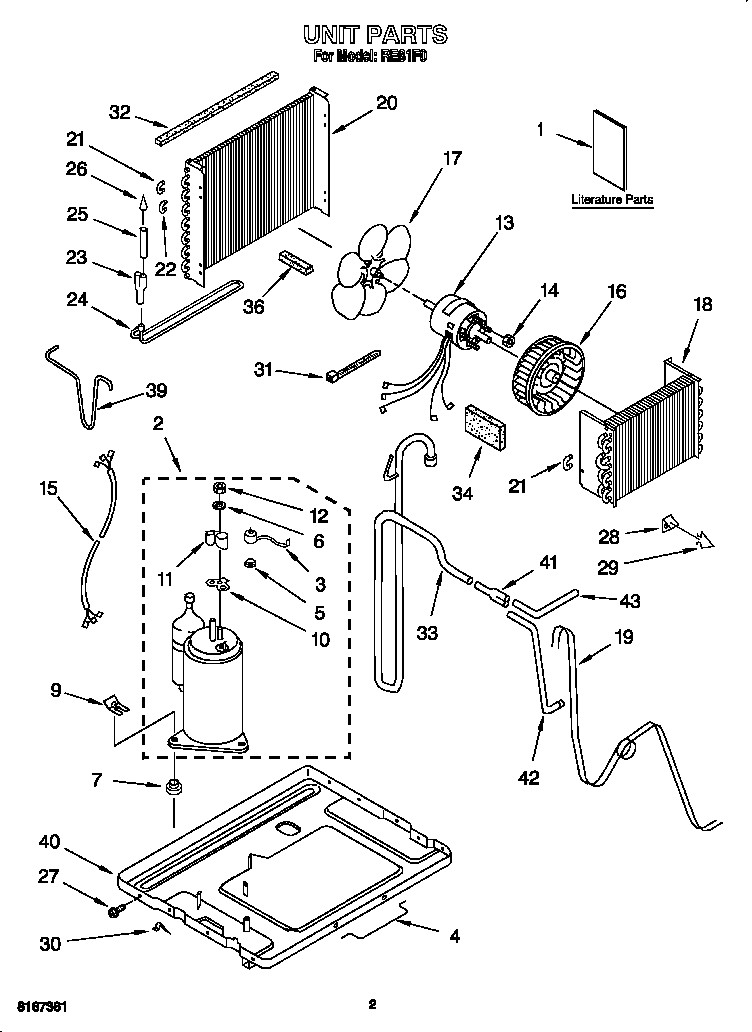

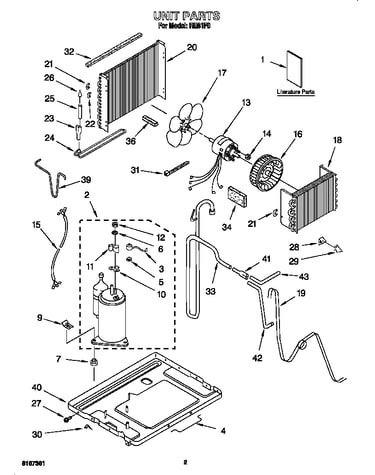

  • Valve Kit 978027
    #6D

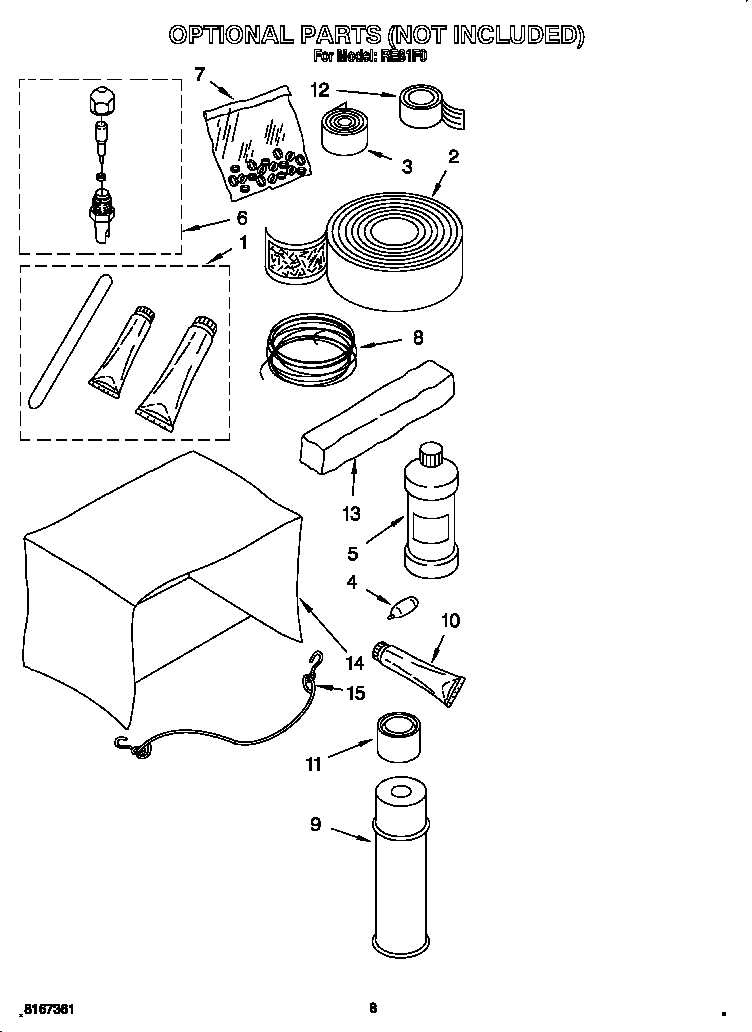

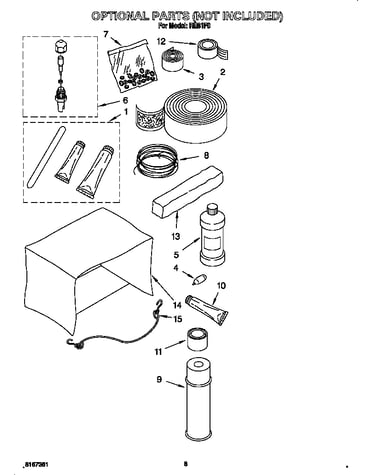

    Optional diagram

    Valve kit

    Part #978027

    In Stock
  • Cover 484067
    #14B

    Optional diagram

    Cover

    Part #484067

    In Stock
  • Valve Kit 978026
    #6C

    Optional diagram

    Valve kit

    Part #978026

    In Stock
  • Valve 876764
    #6A

    Optional diagram

    Valve

    Part #876764

    $32.87
    15% OFF Phone Price : $38.87
    In Stock
  • Ge Room Air Conditioner Outdoor Cover 484184
    #14D

    Optional diagram

    Ge room air conditioner outdoor cover

    Part #484184

    $51.25
    10% OFF Phone Price : $57.25
    In Stock
  • Cover 484066
    #14A

    Optional diagram

    Cover

    Part #484066

    In Stock
  • Sealer 212643
    #12

    Optional diagram

    Sealer

    Part #212643

    In Stock
  • Valve Kit 978030
    #6G

    Optional diagram

    Valve kit

    Part #978030

    In Stock
  • Screw, 8 X 1 488480
    Screw, 8 x 1

    Part #488480

    Replaced by #WP489069

    ?
    Manufacturer substitution
    This part replaces 488480. Substitute parts can look different from the original.
    This item is not returnable
    $4.33
    19% OFF Phone Price : $5.33
    In Stock
