Model # 10651152111 Official Kenmore Elite refrigerator
Here are the diagrams and repair parts for Official Kenmore Elite 10651152111 refrigerator, as well as links to manuals and error code tables, if available.
Owner’s manual
Error CodesBy Schematic
By Part

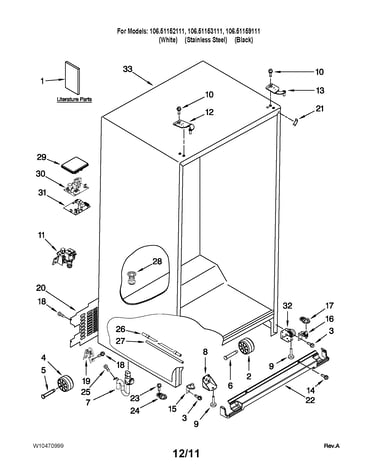

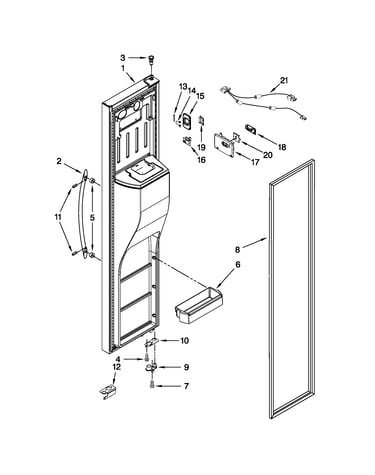

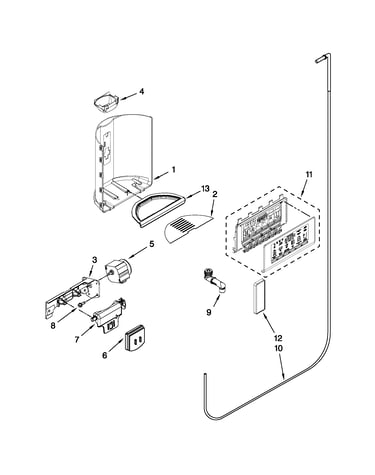

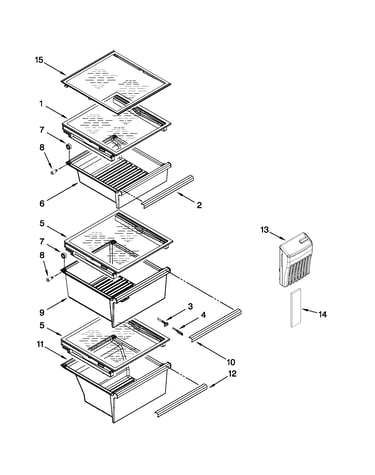

SELECT DIAGRAM
Browse Parts for
10651152111 Refrigerators
#11

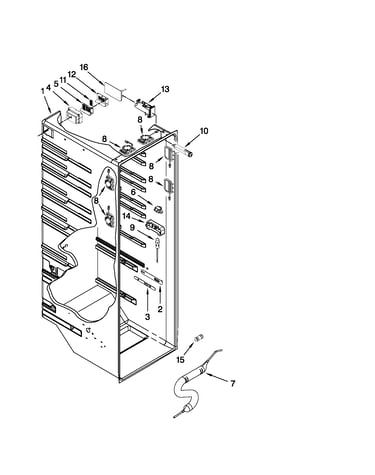

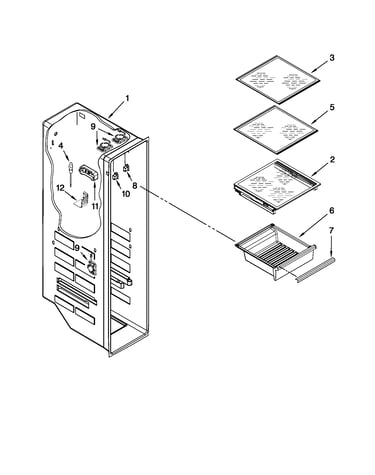

Refrigerator liner parts diagram
Refrigerator air filter
Part #W10335147
Replaced by #W10311524
?
Manufacturer substitution
This part replaces W10335147. Substitute parts can look different from the original.
Get free shipping with Automatic Reorder
$15.07 |
12% OFF Phone Price : $17.07
In Stock
#21

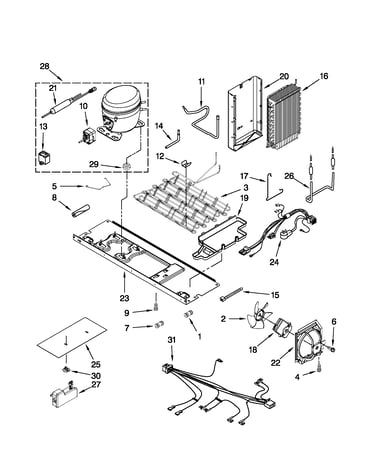

Unit parts diagram
Drier tube
Part #W10177049
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces W10177049. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#21A
Unit parts diagram
Drier w/dye
Part #2317845
Replaced by #WPW10143759
?
Manufacturer substitution
This part replaces 2317845. Substitute parts can look different from the original.
$20.87 |
22% OFF Phone Price : $26.87
In Stock
#4
Air flow parts diagram
Refrigerator defrost bi-metal
Part #W10260437
Replaced by #WPW10225581
?
Manufacturer substitution
This part replaces W10260437. Substitute parts can look different from the original.
$30.39 |
16% OFF Phone Price : $36.39
In Stock
#4

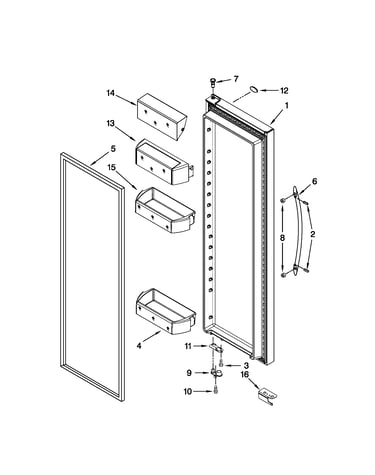

Refrigerator door parts diagram
Refrigerator door gallon bin
Part #W10335119
Replaced by #WPW10160952
?
Manufacturer substitution
This part replaces W10335119. Substitute parts can look different from the original.
This item is not returnable
$46.28 |
11% OFF Phone Price : $52.28
In Stock
#100

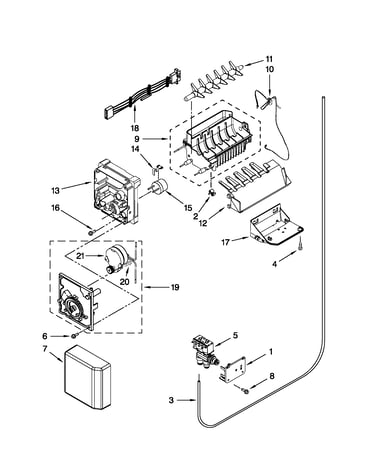

Icemaker parts diagram
Refrigerator ice maker
Part #W10251076
Replaced by #WPW10251076
?
Manufacturer substitution
This part replaces W10251076. Substitute parts can look different from the original.
$141.80 |
8% OFF Phone Price : $153.80
In Stock
#6
Refrigerator liner parts diagram
Refrigerator push-button switch
Part #C3680314
Replaced by #W11384469
?
Manufacturer substitution
This part replaces C3680314. Substitute parts can look different from the original.
$21.70 |
22% OFF Phone Price : $27.70
In Stock
#7
Air flow parts diagram
Refrigerator evaporator fan motor
Part #2315549
Replaced by #WP2315549
?
Manufacturer substitution
This part replaces 2315549. Substitute parts can look different from the original.
$136.88 |
8% OFF Phone Price : $148.88
In Stock
#10A
Unit parts diagram
Start device
Part #W10128791
Replaced by #WPW10197428
?
Manufacturer substitution
This part replaces W10128791. Substitute parts can look different from the original.
$43.48 |
12% OFF Phone Price : $49.48
In Stock
#10
Unit parts diagram
Refrigerator start relay
Part #W10197428
Replaced by #WPW10197428
?
Manufacturer substitution
This part replaces W10197428. Substitute parts can look different from the original.
$43.48 |
12% OFF Phone Price : $49.48
In Stock
