Model # ELFE763CBW0 Official Electrolux electric dryer

Here are the diagrams and repair parts for Official Electrolux ELFE763CBW0 electric dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

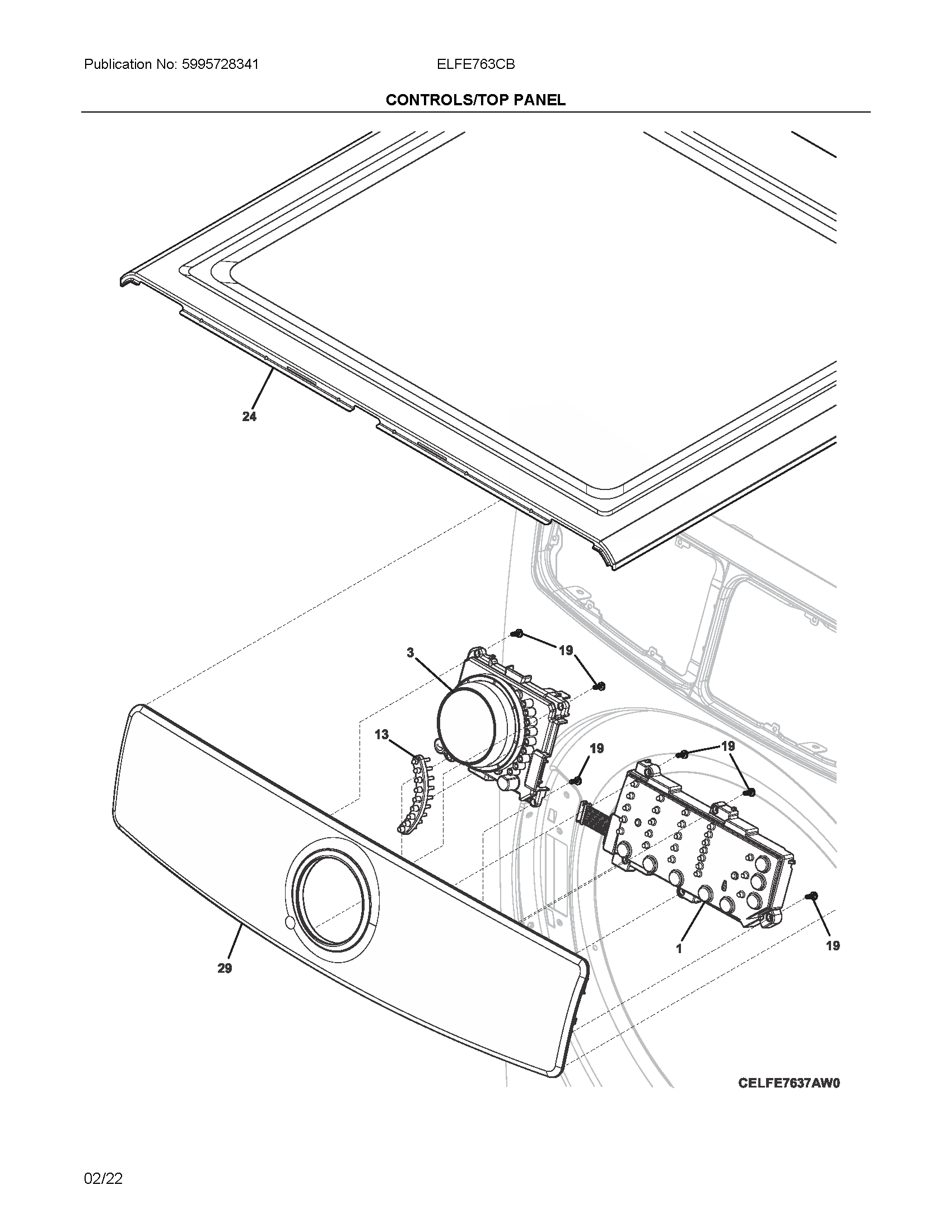

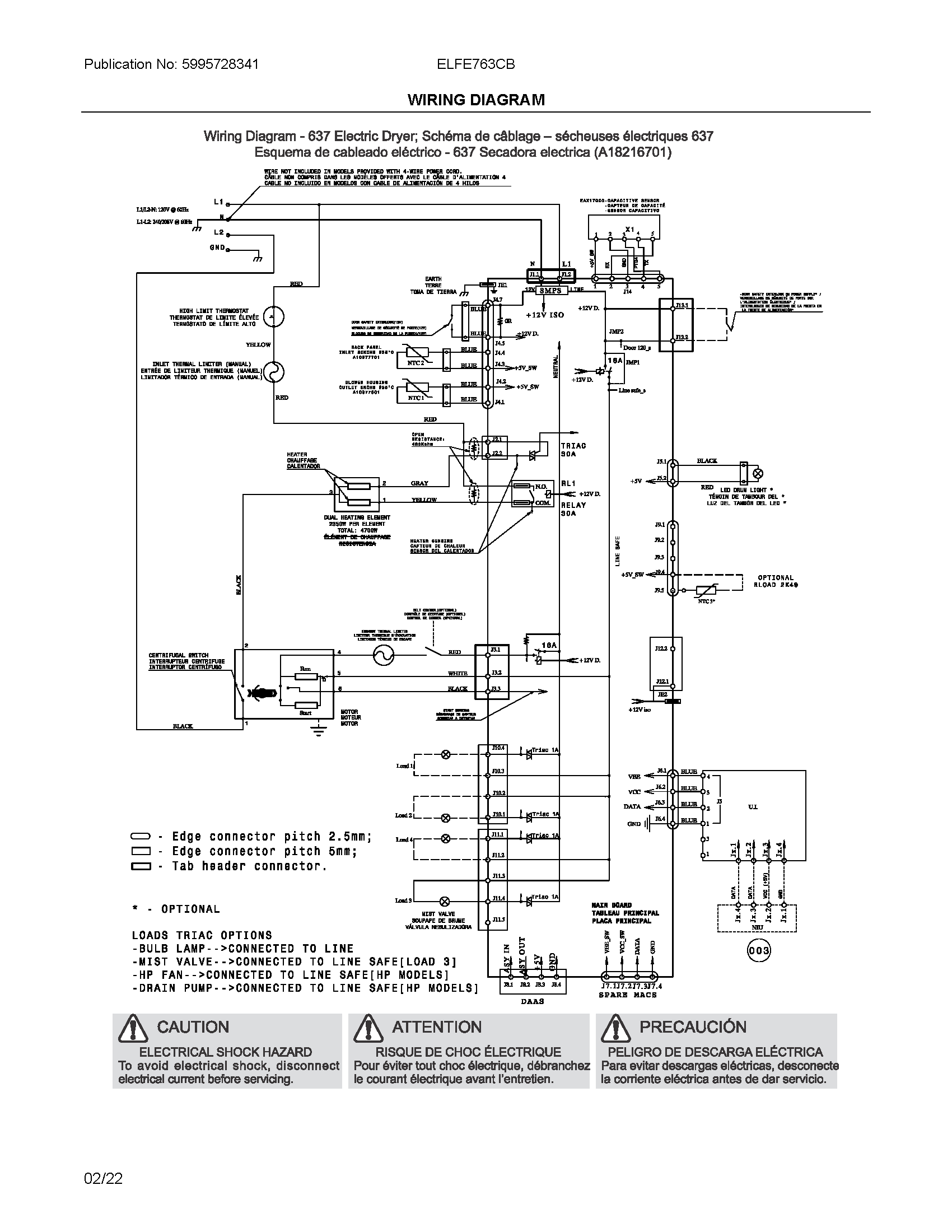

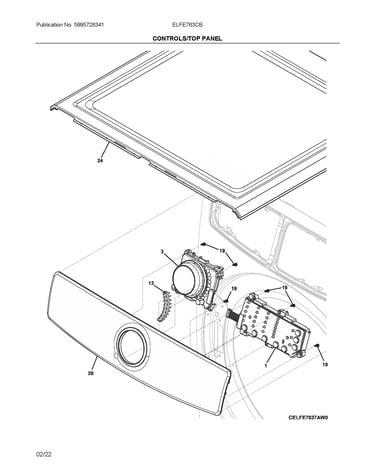

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 108 parts  |
White-westinghouse Dryer Drum Belt (replaces 137315300) 134719300
#25

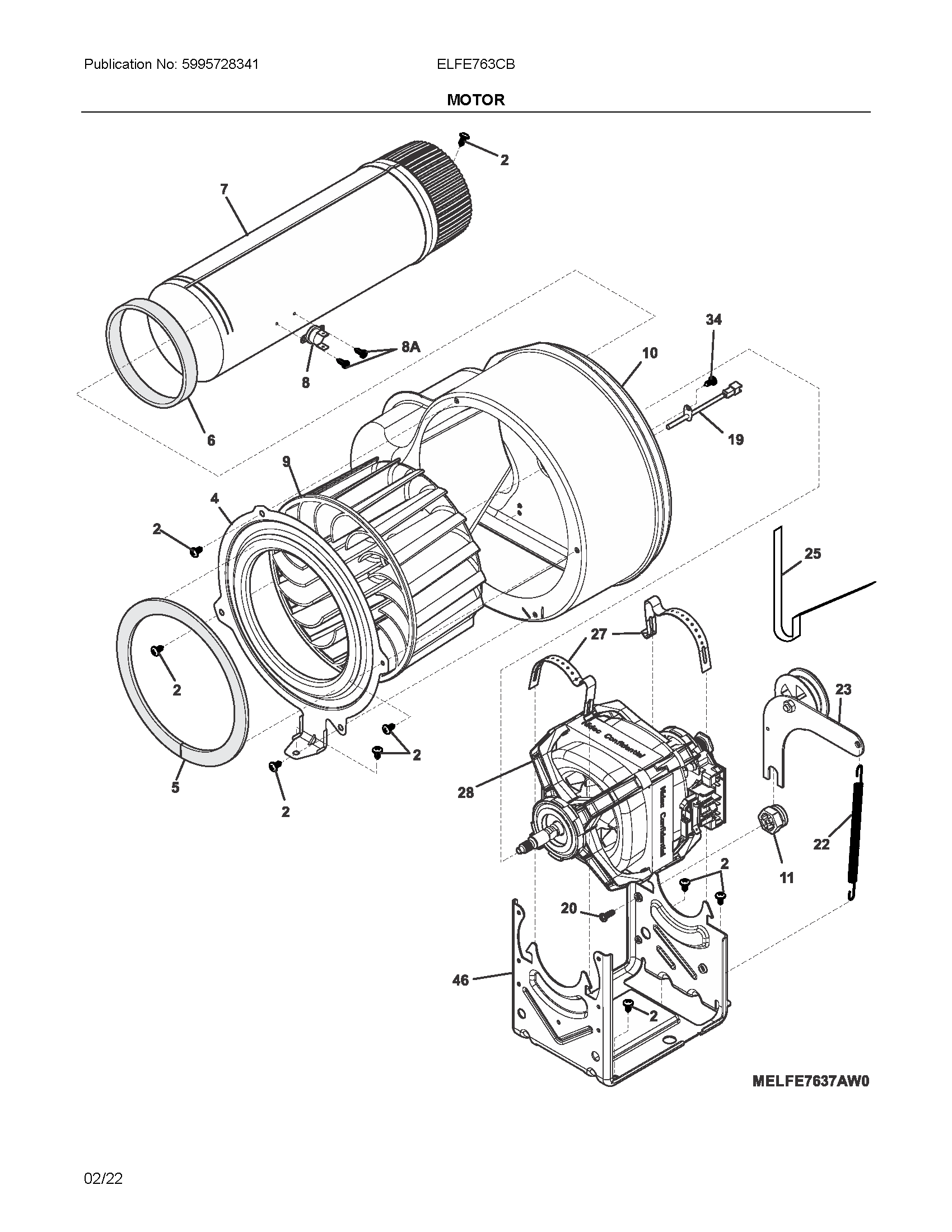

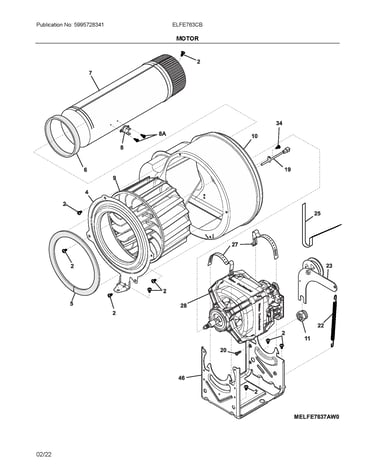

Motor diagram

White-westinghouse dryer drum belt (replaces 137315300)

Part #134719300

BEST SELLER
$55.79 |
10% OFF Phone Price : $61.79
In Stock
Dryer Idler Assembly (replaces 134793500, 134793512) 134793511
#23

Motor diagram

Dryer idler assembly (replaces 134793500, 134793512)

Part #134793511

BEST SELLER
$39.35 |
13% OFF Phone Price : $45.35
In Stock
Frigidaire Dryer Drive Motor And Pulley (replaces 134693302) 5304529782
#28

Motor diagram

Frigidaire dryer drive motor and pulley (replaces 134693302)

Part #5304529782

BEST SELLER
$174.78 |
6% OFF Phone Price : $186.78
In Stock
Dryer Inlet Thermal Limiter (replaces 137060800, 7137032600) 137032600
#8

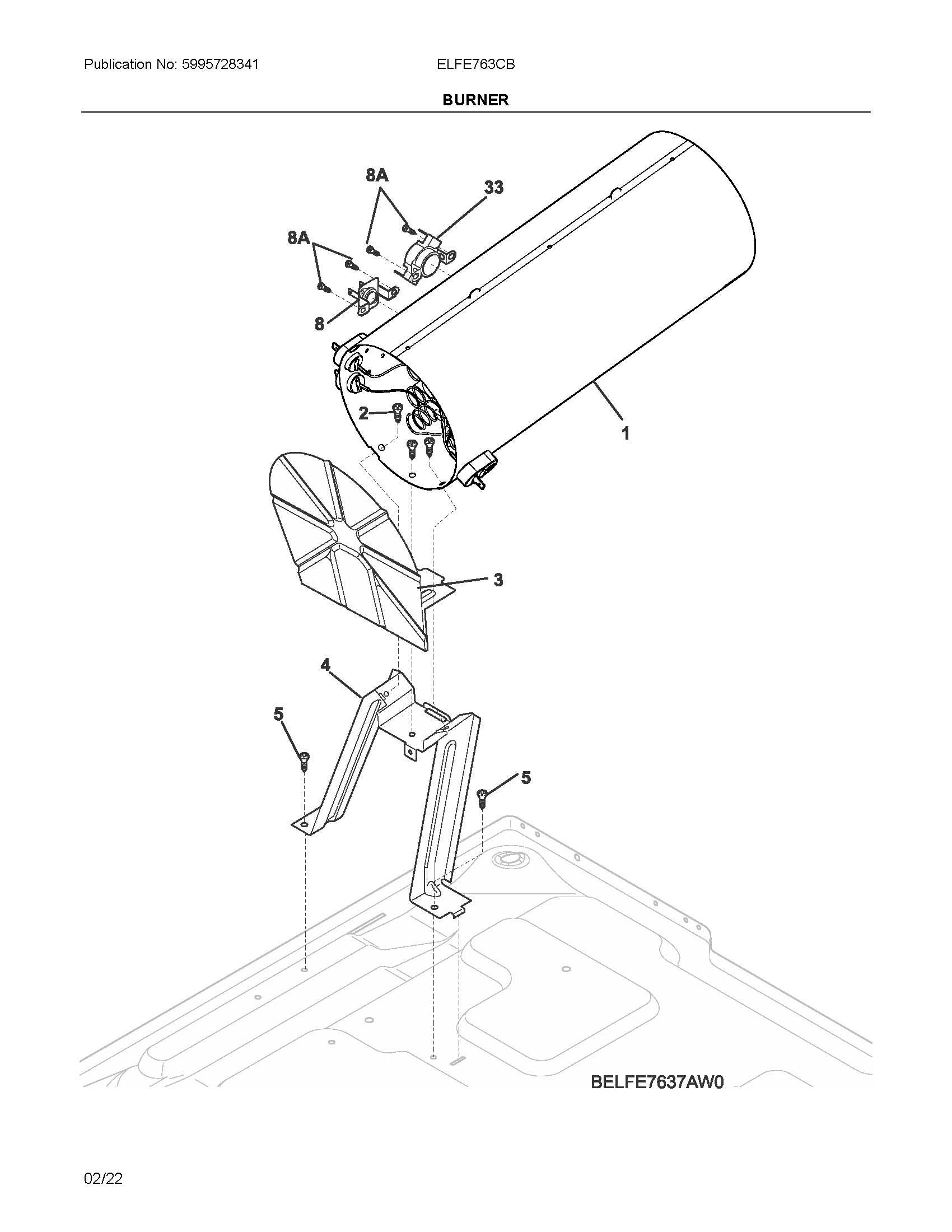

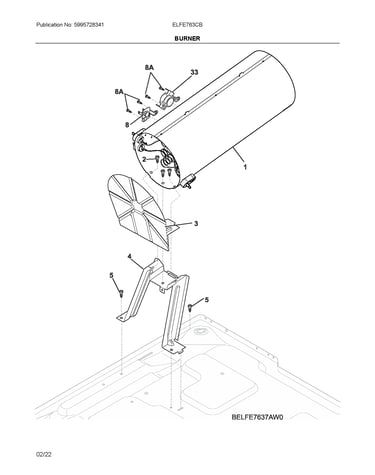

Burner diagram

Dryer inlet thermal limiter (replaces 137060800, 7137032600)

Part #137032600

BEST SELLER
$55.37 |
10% OFF Phone Price : $61.37
In Stock
Dryer Drum Support Roller 5304523152
Dryer drum support roller

Part #5304523152

BEST SELLER
$28.80 |
17% OFF Phone Price : $34.80
In Stock
Dryer Exhaust Thermal Limiter (replaces 134711400) 134711401
#8

Motor diagram

Dryer exhaust thermal limiter (replaces 134711400)

Part #134711401

BEST SELLER
$23.51 |
20% OFF Phone Price : $29.51
In Stock
Frigidaire Dryer Lint Screen (replaces 5304513574) 5304529766
#27

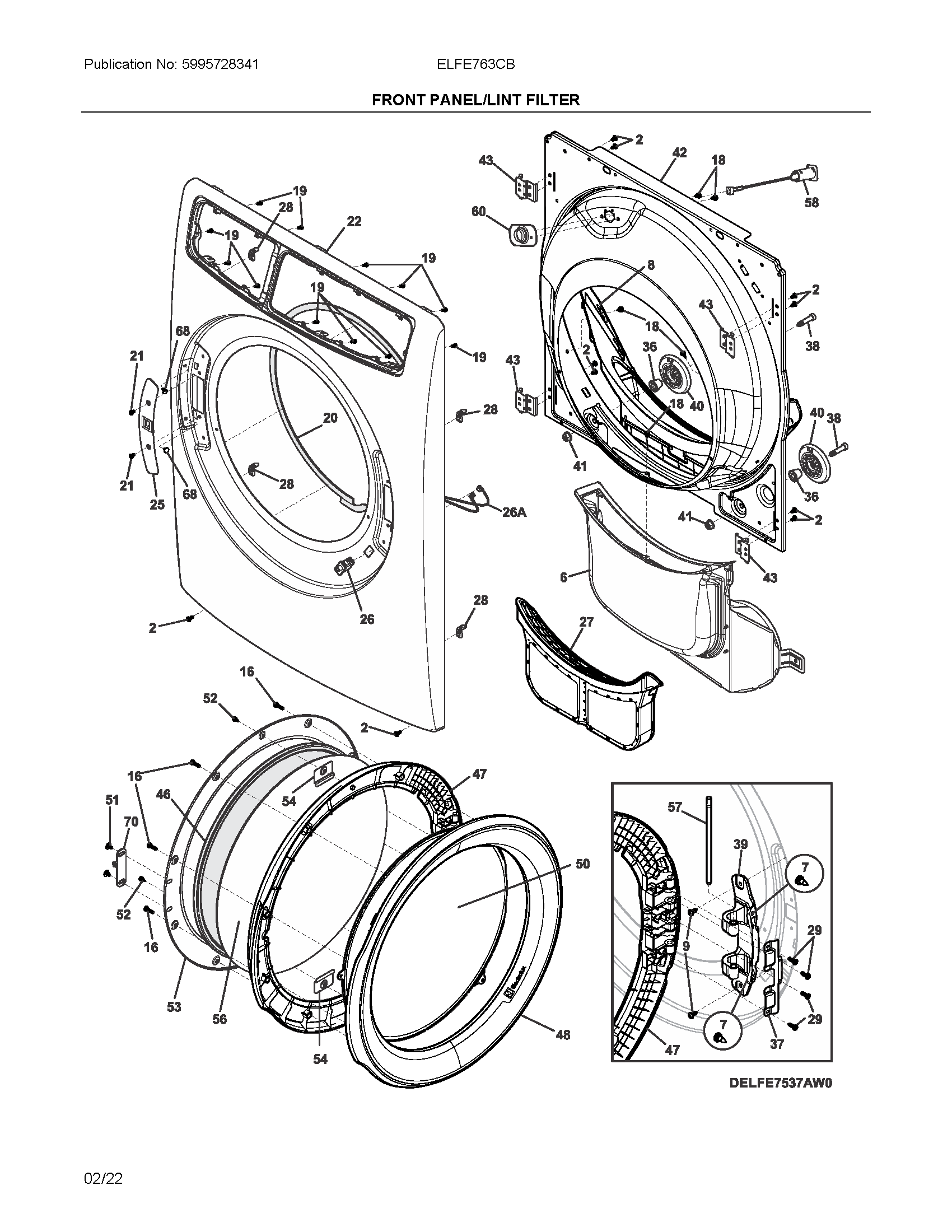

Front panel/lint filter diagram

Frigidaire dryer lint screen (replaces 5304513574)

Part #5304529766

BEST SELLER
$80.20 |
7% OFF Phone Price : $86.20
In Stock
Laundry Appliance Screw, #8-18 X 31/100-in 131168200
Laundry appliance screw, #8-18 x 31/100-in

Part #131168200

BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Dryer Screw 131477000
Dryer screw

Part #131477000

Replaced by #131168200

?
Manufacturer substitution
This part replaces 131477000. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Screw 5304521493
#NI

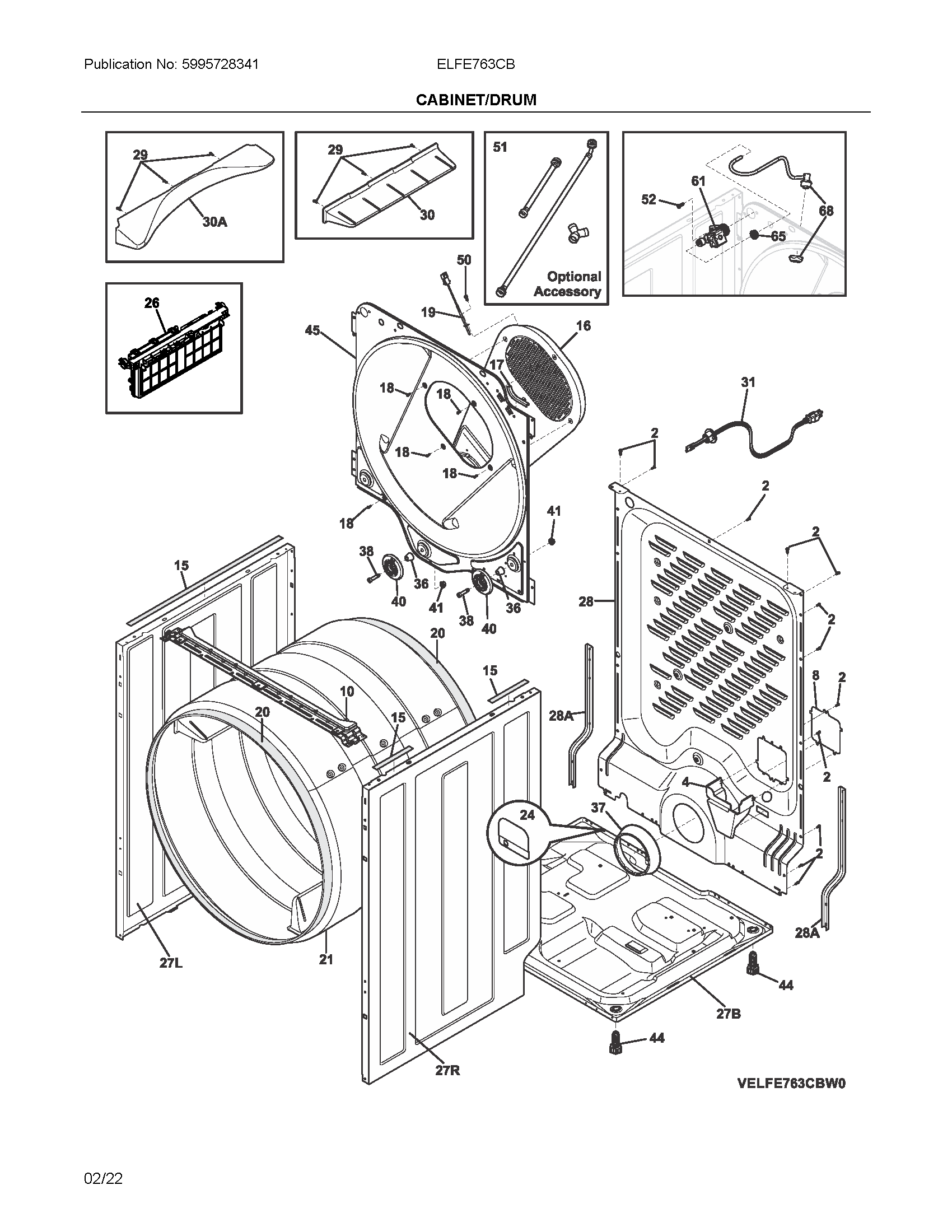

Cabinet/drum diagram

Screw

Part #5304521493

Replaced by #131168200

?
Manufacturer substitution
This part replaces 5304521493. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
