Model # 315212180 Official Craftsman miter saw

Here are the diagrams and repair parts for Official Craftsman 315212180 miter saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

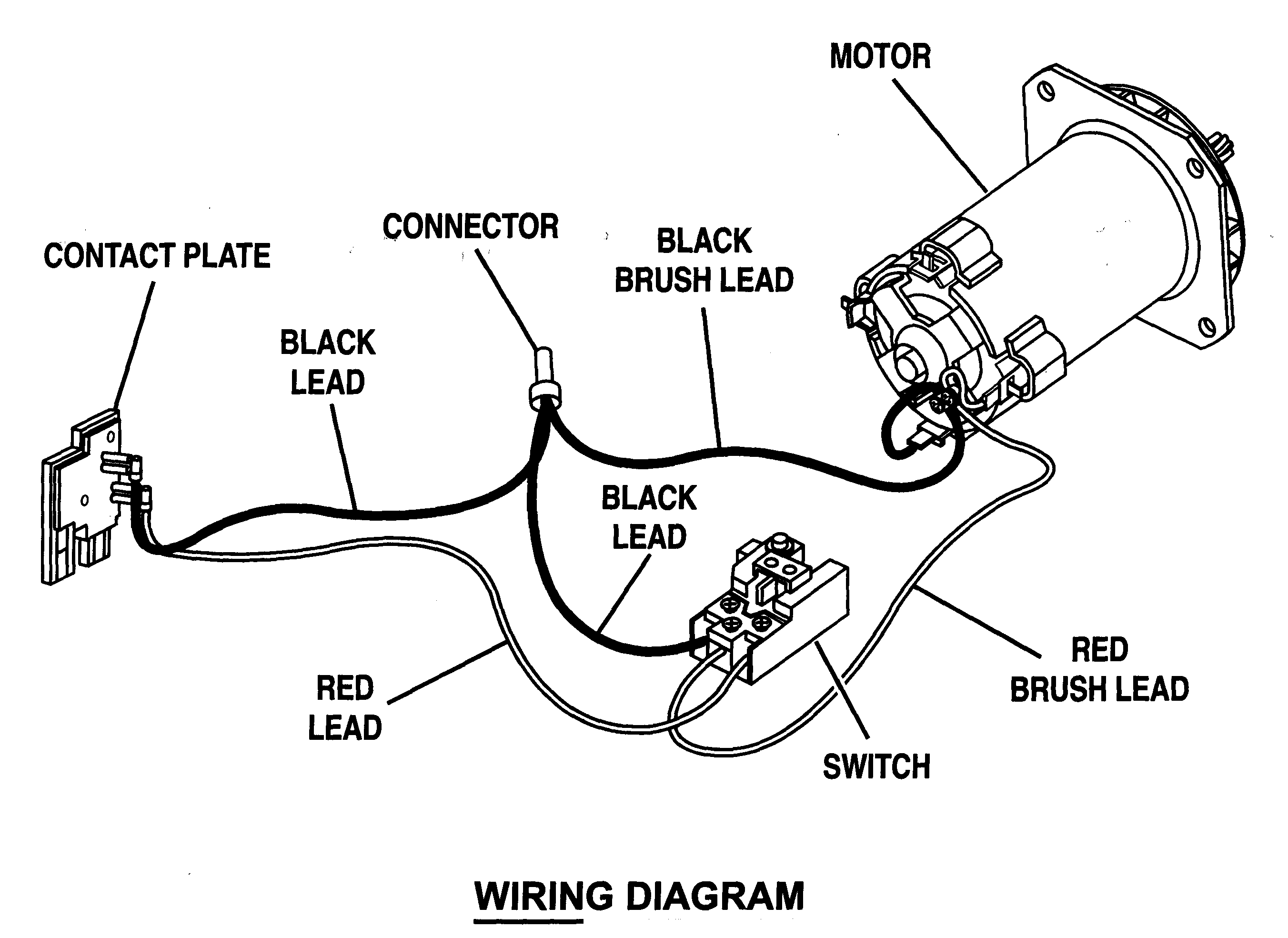

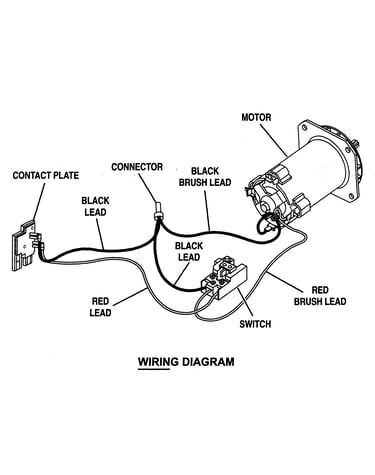

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 103 parts  |
Cover 5532701
#7

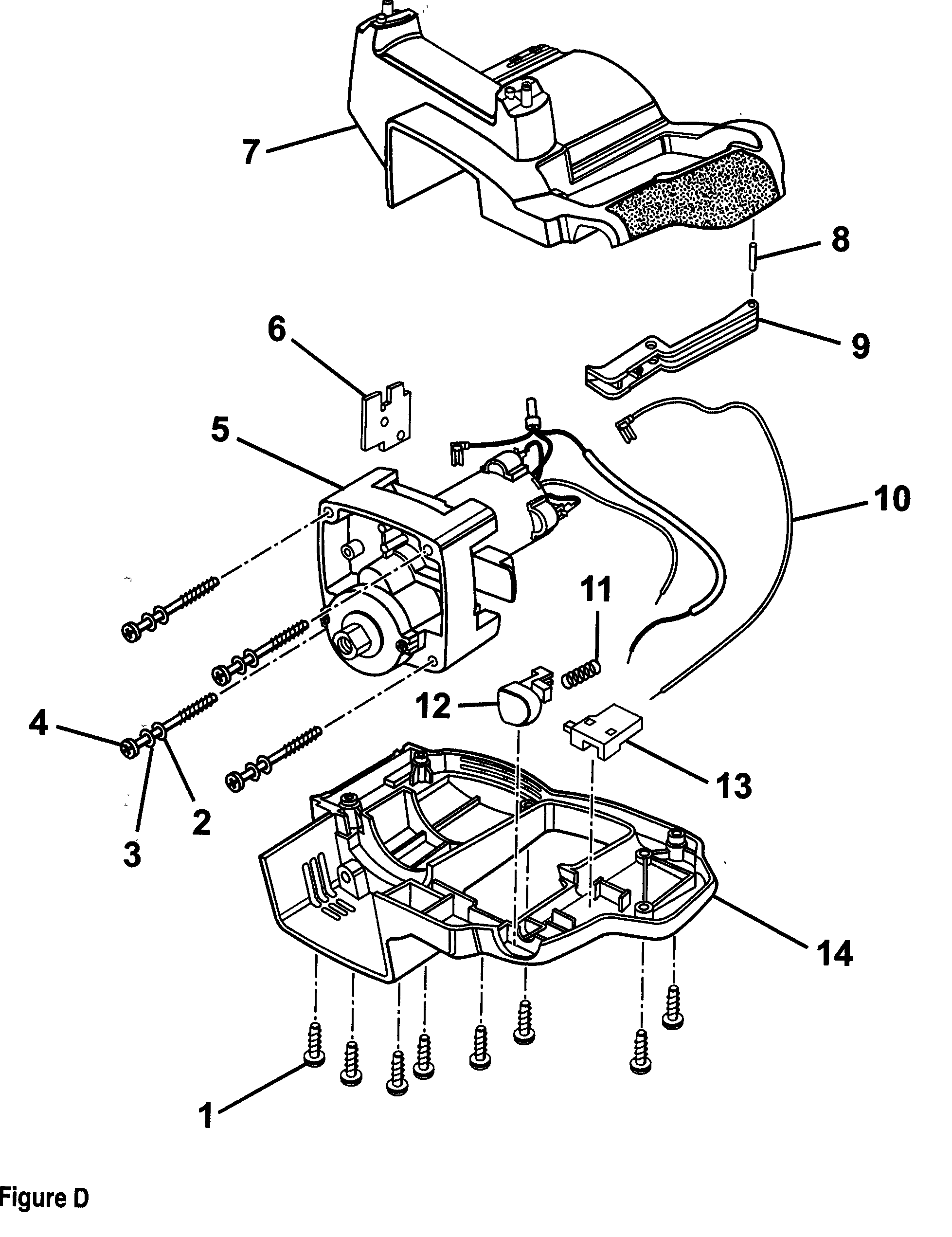

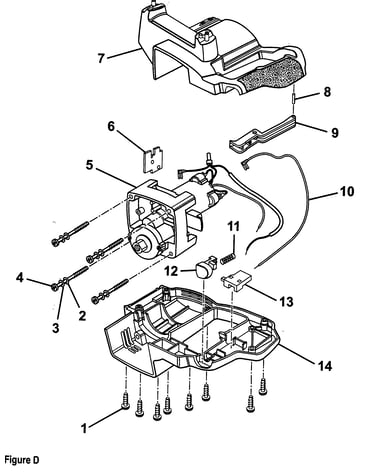

Motor assy diagram

Cover

Part #5532701

The manufacturer no longer makes this part, and there's no substitute part

Screw 160030-400
#20

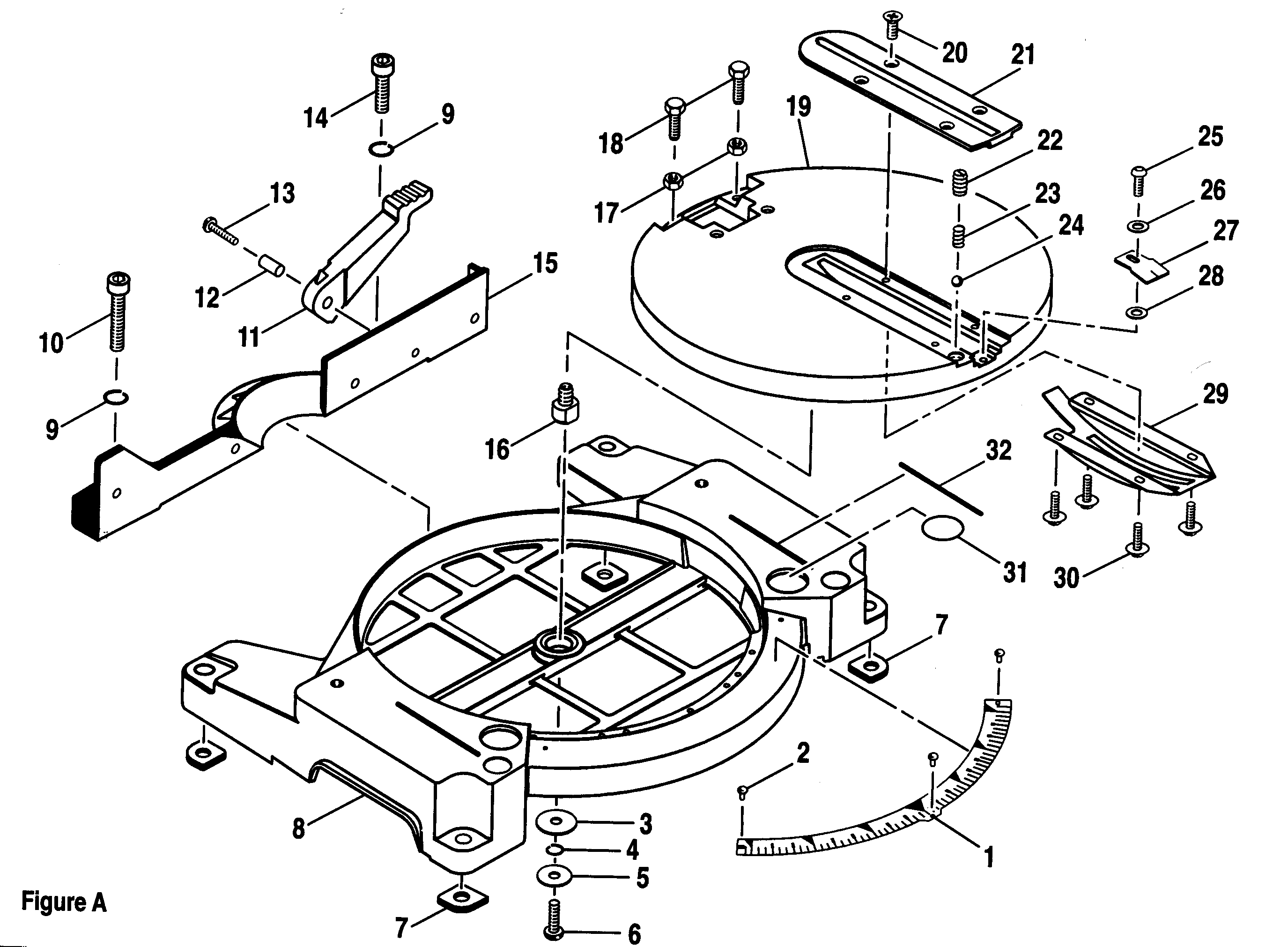

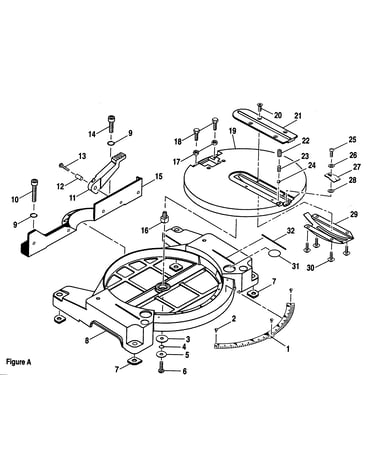

Base diagram

Screw

Part #160030-400

The manufacturer no longer makes this part, and there's no substitute part

Table 6447301
#19

Base diagram

Table

Part #6447301

The manufacturer no longer makes this part, and there's no substitute part

Spring 6881501
#23

Base diagram

Spring

Part #6881501

The manufacturer no longer makes this part, and there's no substitute part

Plate 980095-001
#35

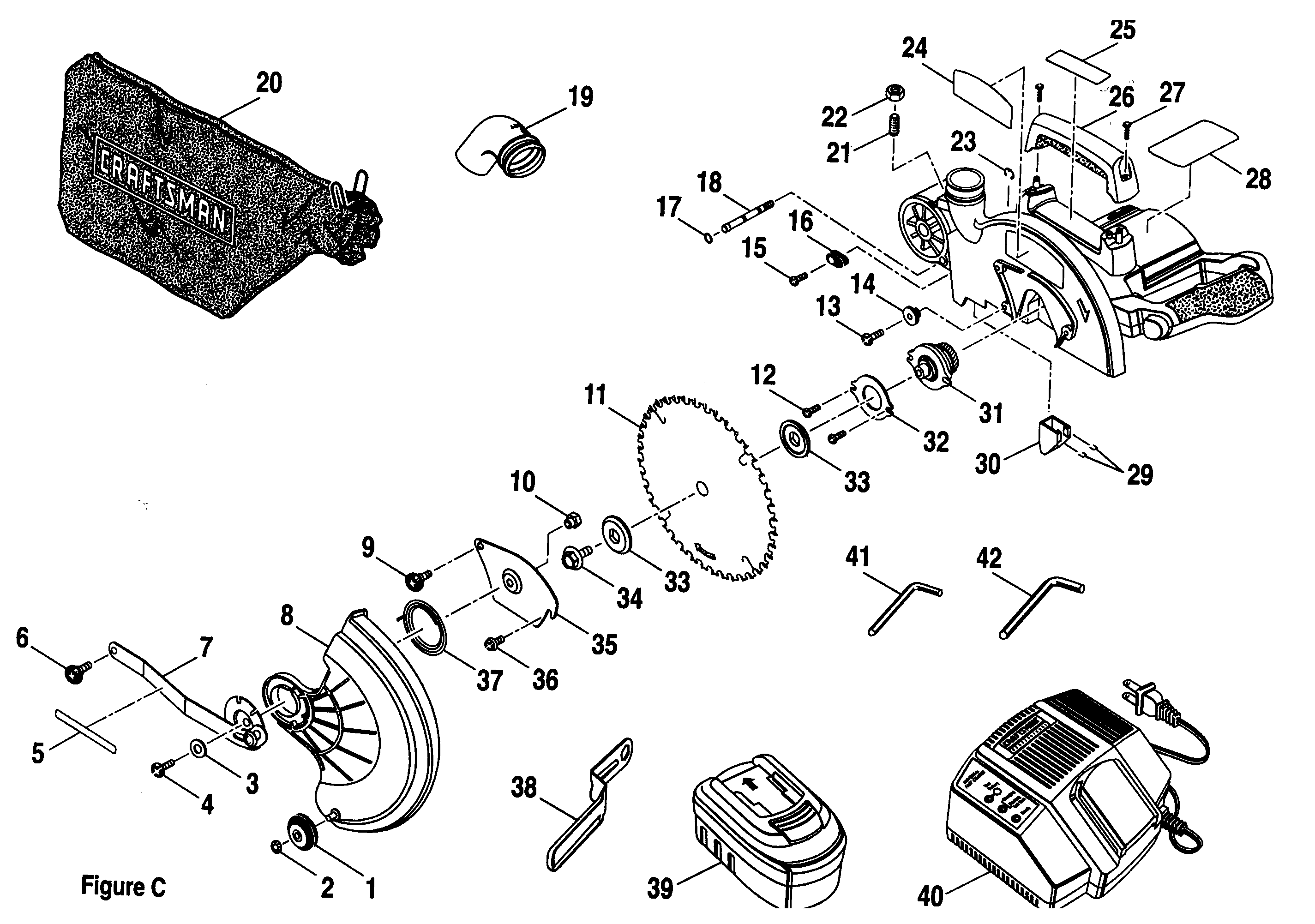

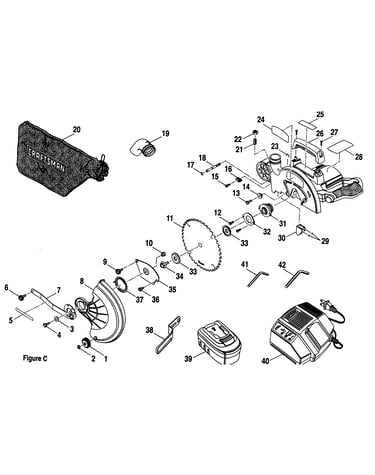

Arm assy diagram

Plate

Part #980095-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 589011-007
#3

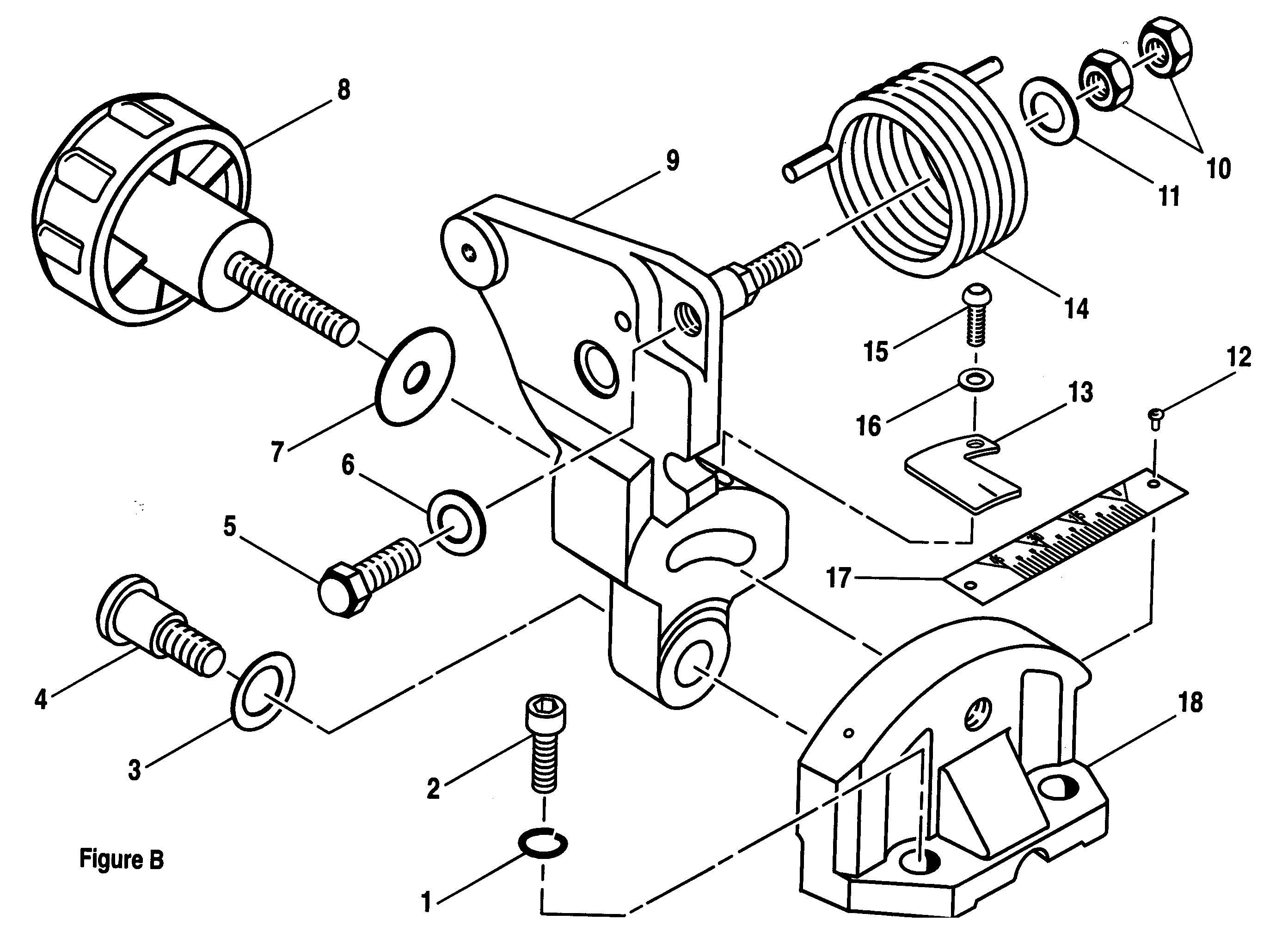

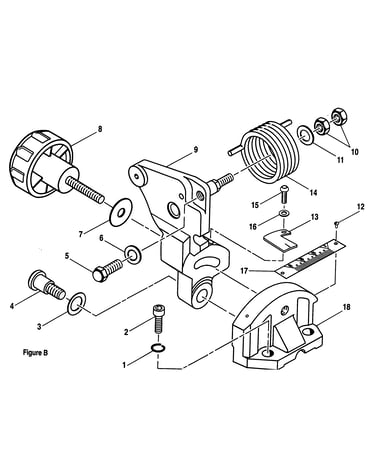

Gear assy diagram

Washer

Part #589011-007

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 9411535
#25

Arm assy diagram

Data plate

Part #9411535

The manufacturer no longer makes this part, and there's no substitute part

Lock Nut 6876501
#10

Arm assy diagram

Lock nut

Part #6876501

The manufacturer no longer makes this part, and there's no substitute part

Battery 981404-001
#39

Arm assy diagram

Battery

Part #981404-001

The manufacturer no longer makes this part, and there's no substitute part

Support 5532801
#14

Motor assy diagram

Support

Part #5532801

The manufacturer no longer makes this part, and there's no substitute part
