Model # MT7116XDQ0 Official Whirlpool microwave

Here are the diagrams and repair parts for Official Whirlpool MT7116XDQ0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

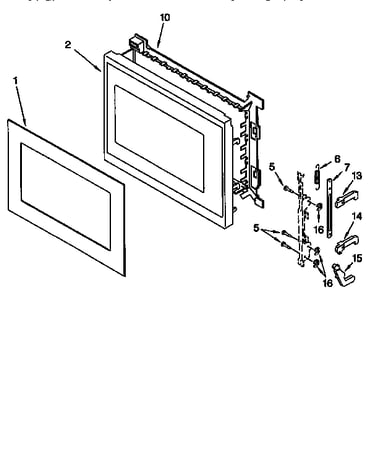

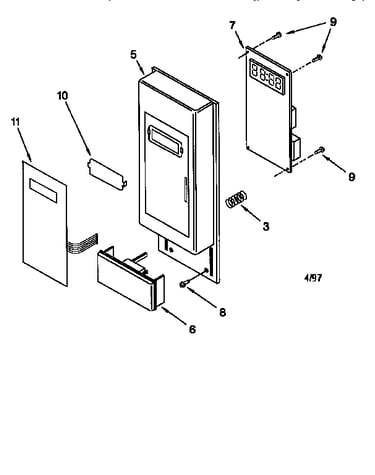

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Thermal Fuse 4393308
#15

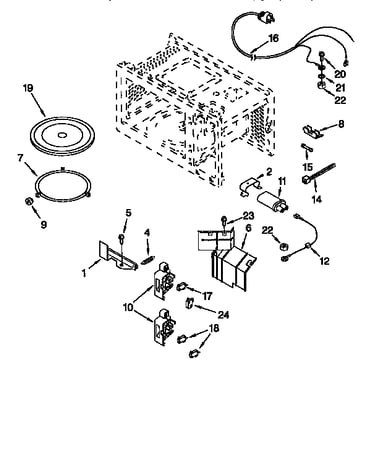

Interior diagram

Thermal fuse

Part #4393308

Replaced by #W11707984

?
Manufacturer substitution
This part replaces 4393308. Substitute parts can look different from the original.
$23.80
In Stock
Washer 4393278
Washer

Part #4393278

Replaced by #WP8533914

?
Manufacturer substitution
This part replaces 4393278. Substitute parts can look different from the original.
This item is not returnable
$5.09 |
16% OFF Phone Price : $6.09
In Stock
Screw 4393279
Screw

Part #4393279

Replaced by #8169480

?
Manufacturer substitution
This part replaces 4393279. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Interlock 4393312
#10

Interior diagram

Interlock

Part #4393312

The manufacturer no longer makes this part, and there's no substitute part

Clip 4393334
Clip

Part #4393334

The manufacturer no longer makes this part, and there's no substitute part

Nut 4393332
#17

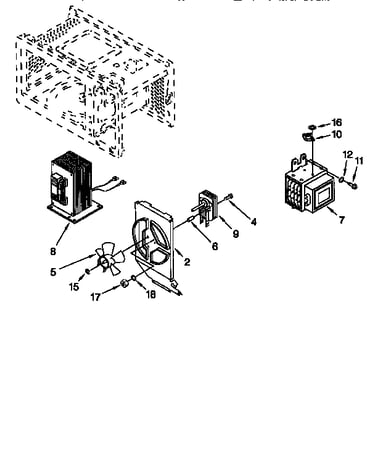

Magnetron and air flow diagram

Nut

Part #4393332

The manufacturer no longer makes this part, and there's no substitute part

Spacer 4393273
#7

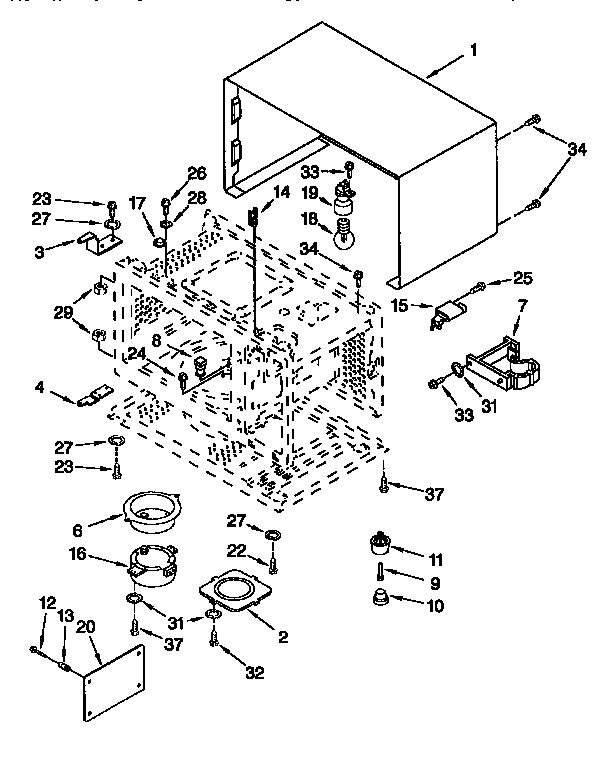

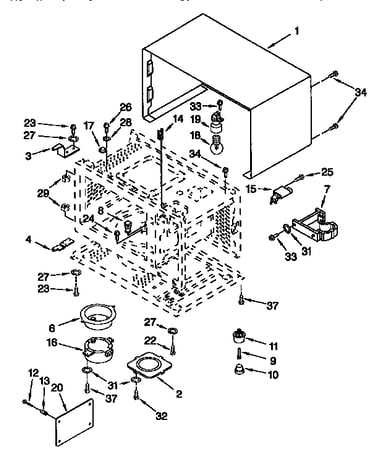

Cabinet diagram

Spacer

Part #4393273

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 4393299
#17

Cabinet diagram

Thermostat

Part #4393299

The manufacturer no longer makes this part, and there's no substitute part

Turntable Motor 4393285
#16

Cabinet diagram

Turntable motor

Part #4393285

The manufacturer no longer makes this part, and there's no substitute part

Door Hinge 4393297
#3

Cabinet diagram

Door hinge

Part #4393297

The manufacturer no longer makes this part, and there's no substitute part
