Samsung
Gas Cooktop

Model # NA36K7750TS/AA-00 Official Samsung gas cooktop

Here are the diagrams and repair parts for Official Samsung NA36K7750TS-AA-00 gas cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |
Range Surface Burner Igniter DG94-00540A
#7

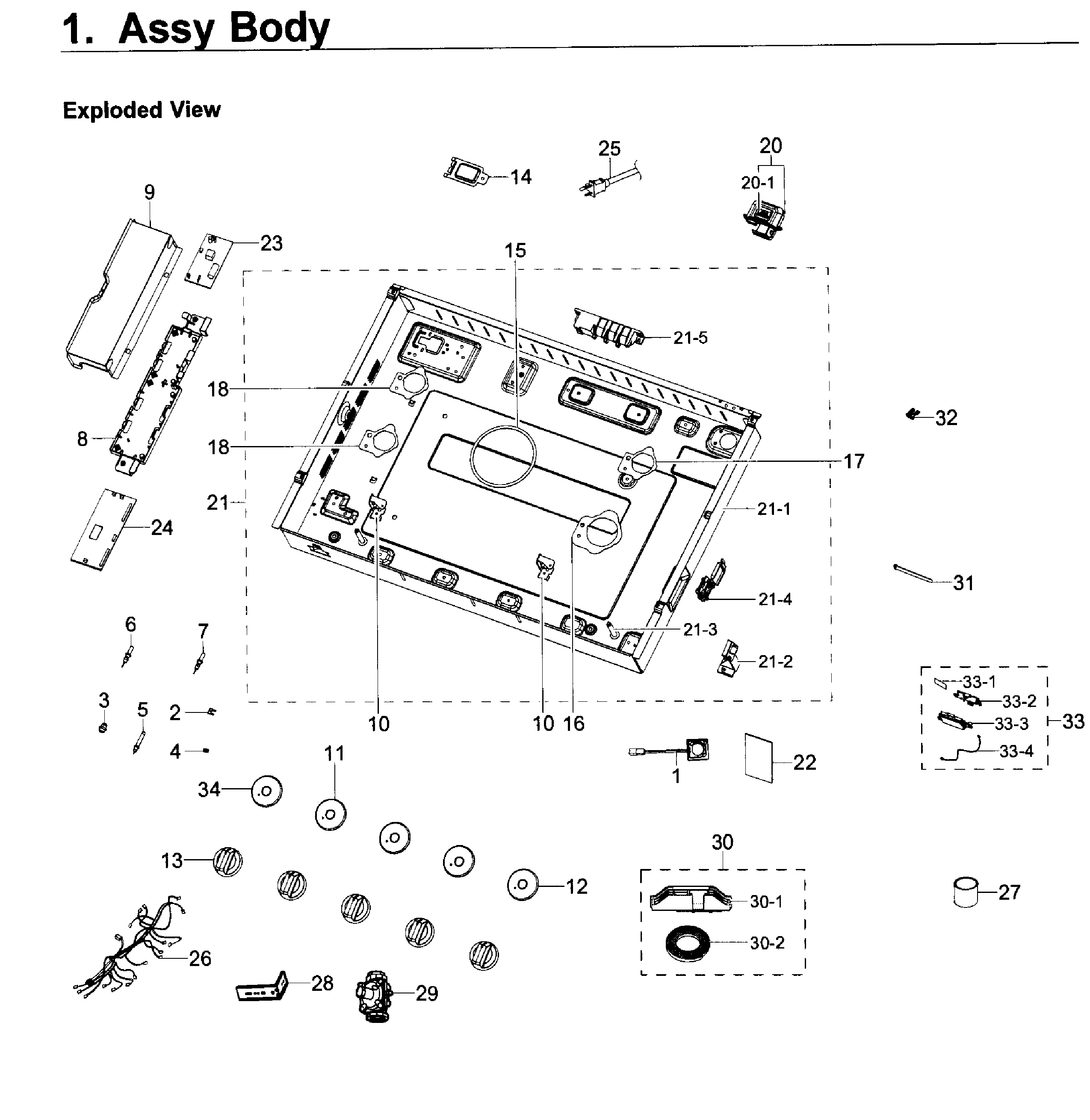

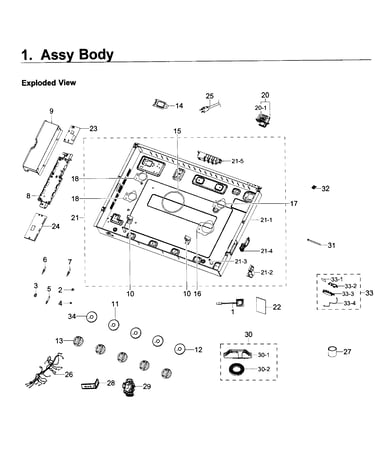

Body diagram

Range surface burner igniter

Part #DG94-00540A

BEST SELLER
This item is not returnable
$37.35 |
14% OFF Phone Price : $43.35
In Stock
Cooktop Control Panel DG64-00616A
#1-7

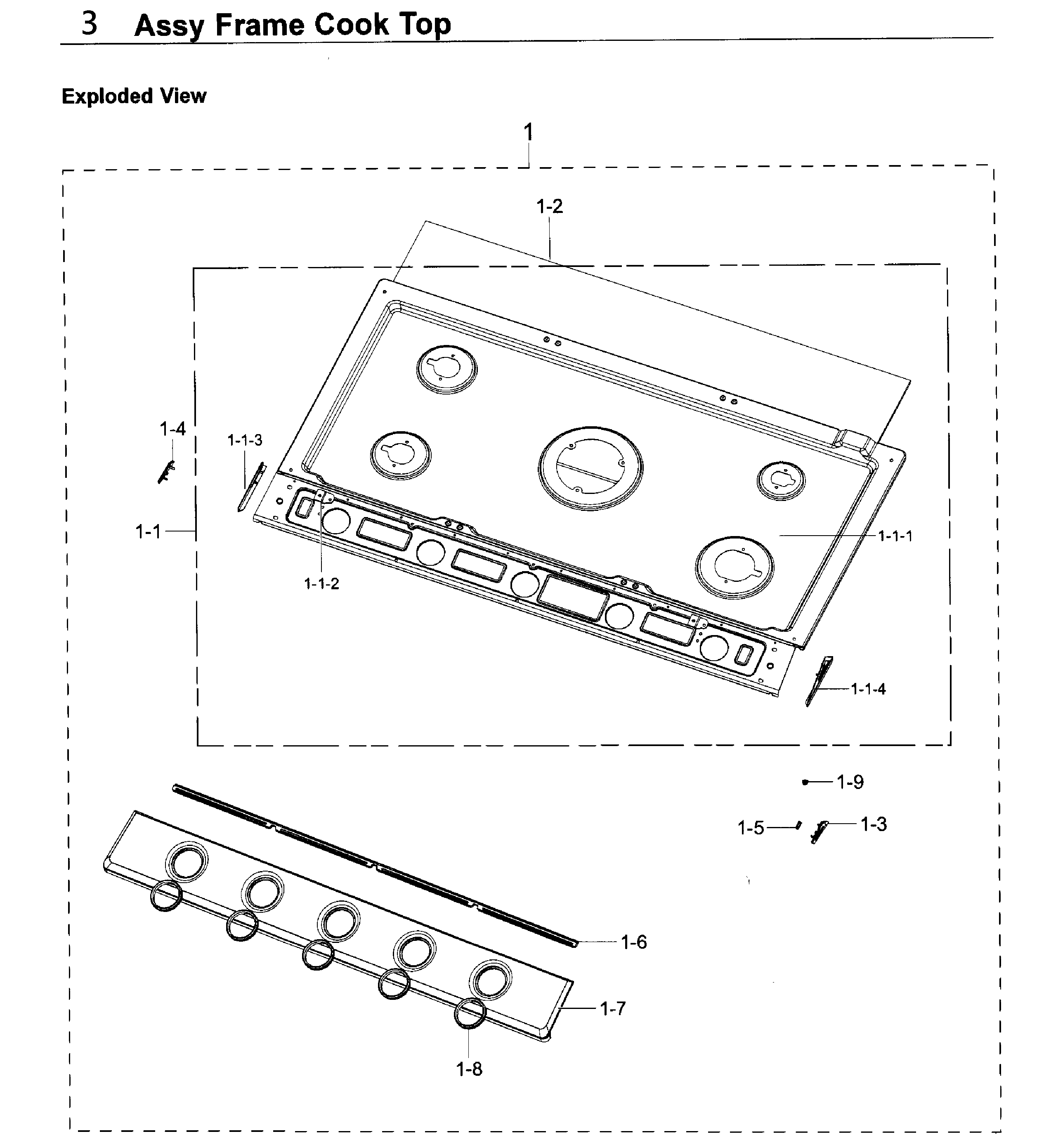

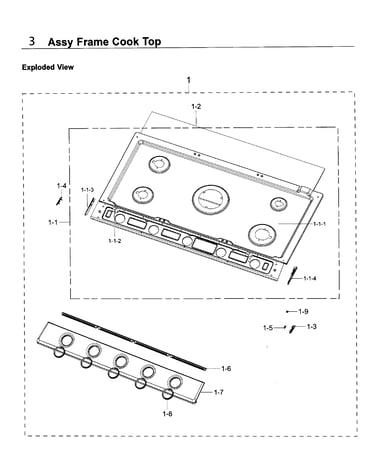

Frame diagram

Cooktop control panel

Part #DG64-00616A

BEST SELLER
$278.49 |
$12.00 OFF Phone Price : $290.49
In Stock
Range Spark Module (replaces Dg96-00221a) DG96-00297A
#21-5

Body diagram

Range spark module (replaces dg96-00221a)

Part #DG96-00297A

$88.76 |
6% OFF Phone Price : $94.76
In Stock
Cooktop Burner Valve DG94-01494A
#1-7

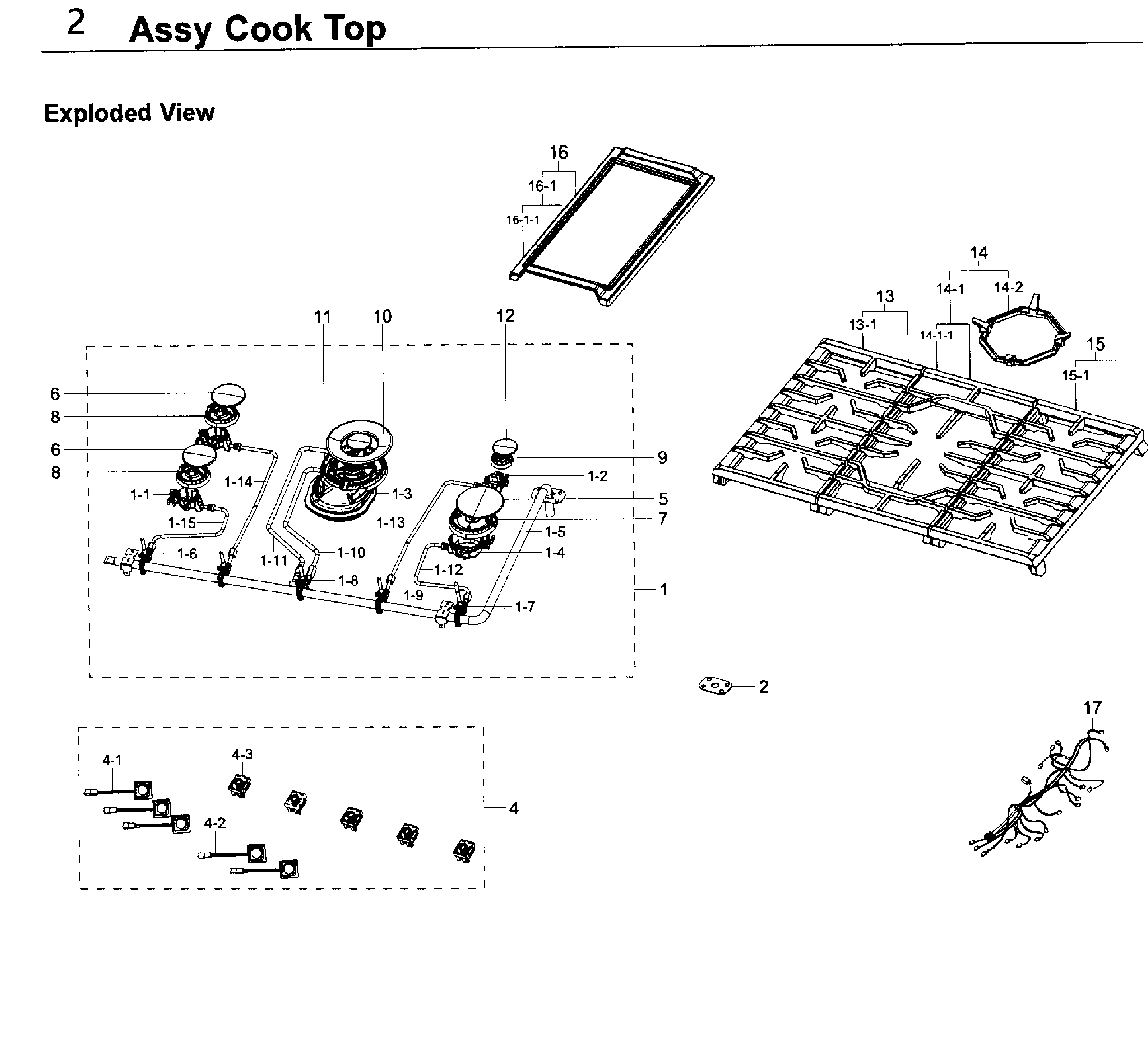

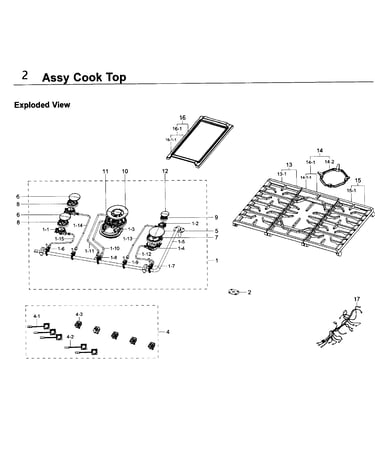

Cooktop diagram

Cooktop burner valve

Part #DG94-01494A

$79.45 |
7% OFF Phone Price : $85.45
In Stock
Range Surface Burner Igniter DG94-00539A
#6

Body diagram

Range surface burner igniter

Part #DG94-00539A

This item is not returnable
$30.75 |
16% OFF Phone Price : $36.75
In Stock
Range Surface Burner Cap DG62-00067A
#5

Cooktop diagram

Range surface burner cap

Part #DG62-00067A

$56.38 |
10% OFF Phone Price : $62.38
In Stock
Range Surface Burner Cap (replaces Dg62-0070a) DG62-00070A
#6

Cooktop diagram

Range surface burner cap (replaces dg62-0070a)

Part #DG62-00070A

$43.63 |
12% OFF Phone Price : $49.63
In Stock
Range Surface Burner Cap DG62-00122A
#10

Cooktop diagram

Range surface burner cap

Part #DG62-00122A

$93.20 |
6% OFF Phone Price : $99.20
In Stock
Cooktop Pressure Regulator DG94-01490A
#29

Body diagram

Cooktop pressure regulator

Part #DG94-01490A

$104.09 |
10% OFF Phone Price : $116.09
In Stock
Range Surface Burner Base DG62-00075B
#8

Cooktop diagram

Range surface burner base

Part #DG62-00075B

$40.27 |
13% OFF Phone Price : $46.27
In Stock
