Kenmore
Gas Range

Model # 3626121191 Official Kenmore gas freestanding range

Here are the diagrams and repair parts for Official Kenmore 3626121191 gas freestanding range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 155 parts  |
Igniter WB13K0001
#218

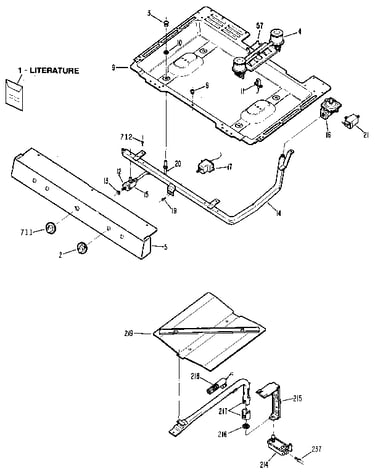

Burner section diagram

Igniter

Part #WB13K0001

Replaced by #WB2X9154

?
Manufacturer substitution
This part replaces WB13K0001. Substitute parts can look different from the original.
BEST SELLER
$86.63 |
6% OFF Phone Price : $92.63
Back Order
Door Gasket WB32K0003
#318

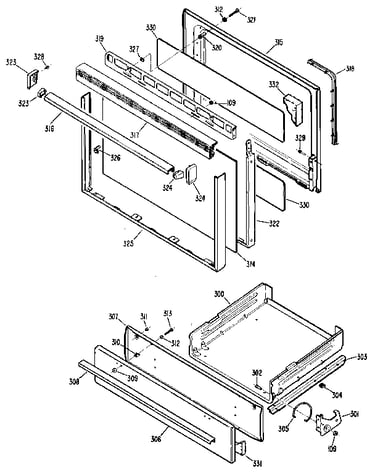

Door diagram

Door gasket

Part #WB32K0003

Replaced by #WB35X29720

?
Manufacturer substitution
This part replaces WB32K0003. Substitute parts can look different from the original.
$25.20 |
19% OFF Phone Price : $31.20
In Stock

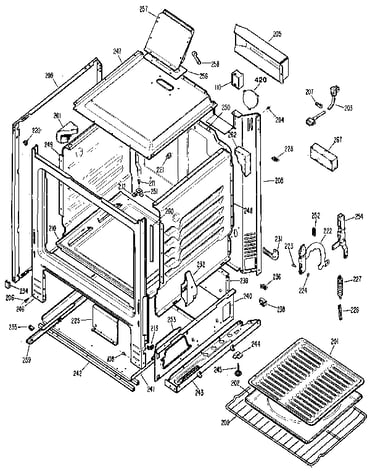

Oven Rack WB48K0004
#200

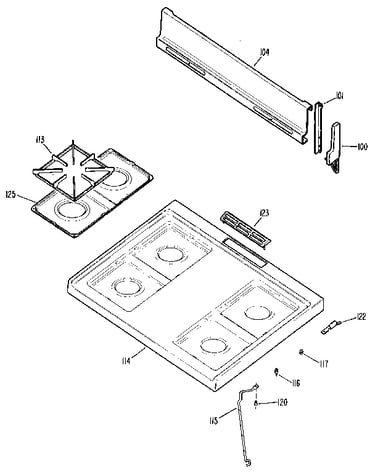

Main top section diagram

Oven rack

Part #WB48K0004

Replaced by #WB48T10095

?
Manufacturer substitution
This part replaces WB48K0004. Substitute parts can look different from the original.
$49.92 |
11% OFF Phone Price : $55.92
In Stock
Bumper WB02K0015
#311

Door diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Sprk Elec Tp WB19K0002
#11

Burner section diagram

Sprk elec tp

Part #WB19K0002

Replaced by #WB18X26988

?
Manufacturer substitution
This part replaces WB19K0002. Substitute parts can look different from the original.
$15.26 |
12% OFF Phone Price : $17.26
In Stock
Oven Door Gasket Seal WB32K0002
#260

Main top section diagram

Oven door gasket seal

Part #WB32K0002

Replaced by #WB32K2

?
Manufacturer substitution
This part replaces WB32K0002. Substitute parts can look different from the original.
$34.43 |
15% OFF Phone Price : $40.43
In Stock
Line Cord WB18K0001
#203

Main top section diagram

Line cord

Part #WB18K0001

Replaced by #WB18K10036

?
Manufacturer substitution
This part replaces WB18K0001. Substitute parts can look different from the original.
This item is not returnable
$20.49 |
23% OFF Phone Price : $26.49
In Stock
Valve Cover WB02K0024
#13

Burner section diagram

Valve cover

Part #WB02K0024

Replaced by #WB2K24

?
Manufacturer substitution
This part replaces WB02K0024. Substitute parts can look different from the original.
This item is not returnable
$27.25 |
18% OFF Phone Price : $33.25
In Stock
Screw WZ04X0345
#204

Main top section diagram

Screw

Part #WZ04X0345

Replaced by #WZ4X345D

?
Manufacturer substitution
This part replaces WZ04X0345. Substitute parts can look different from the original.
$12.84 |
13% OFF Phone Price : $14.84
In Stock
Mounting Screw WB01X5364
#108

Main top section diagram

Mounting screw

Part #WB01X5364

Replaced by #WB1X5364

?
Manufacturer substitution
This part replaces WB01X5364. Substitute parts can look different from the original.
$7.90 |
11% OFF Phone Price : $8.90
In Stock
