Model # C2133A Official Eureka commercial upright vacuum

Here are the diagrams and repair parts for Official Eureka C2133A commercial upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 81 parts  |
Vacuum Beater Bar Bearing And Holder 38138
#15

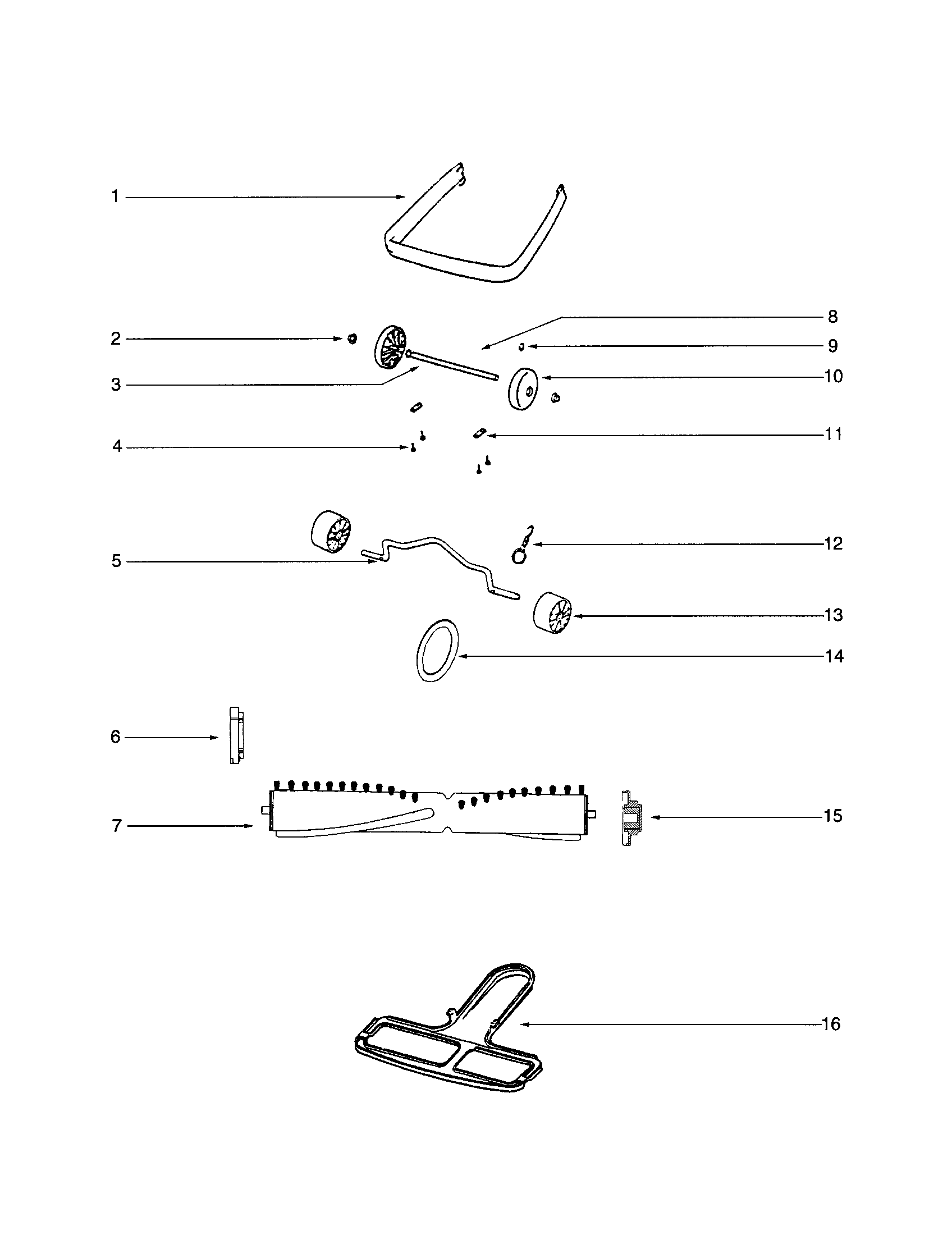

Guard/wheel and axle diagram

Vacuum beater bar bearing and holder

Part #38138

$8.49
In Stock
Kenmore Clamp 53201
#11

Guard/wheel and axle diagram

Kenmore clamp

Part #53201

The manufacturer no longer makes this part, and there's no substitute part

Switch Clip 37989
#23

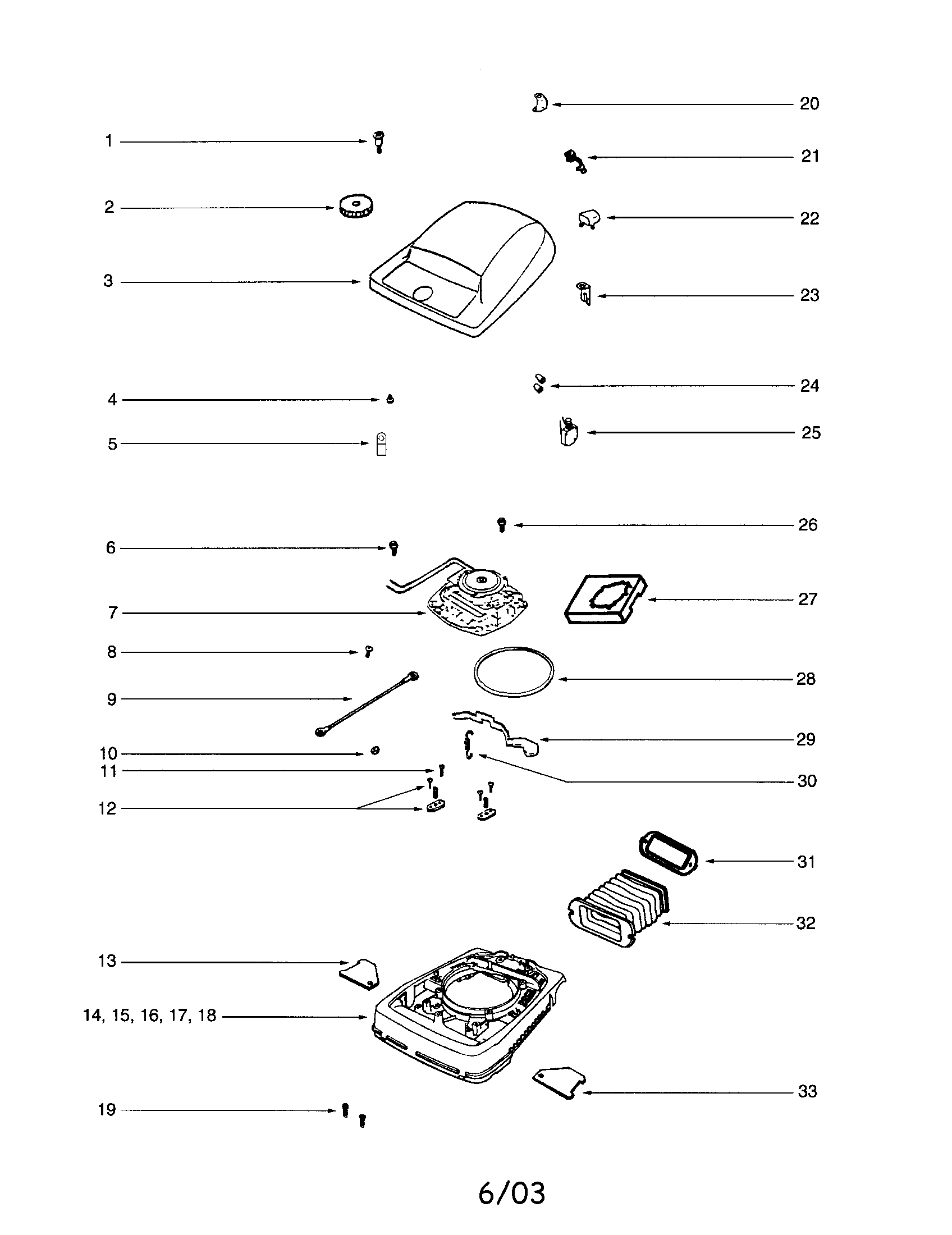

Hood/motor/base diagram

Switch clip

Part #37989

The manufacturer no longer makes this part, and there's no substitute part

Wire Clip 55015
#12

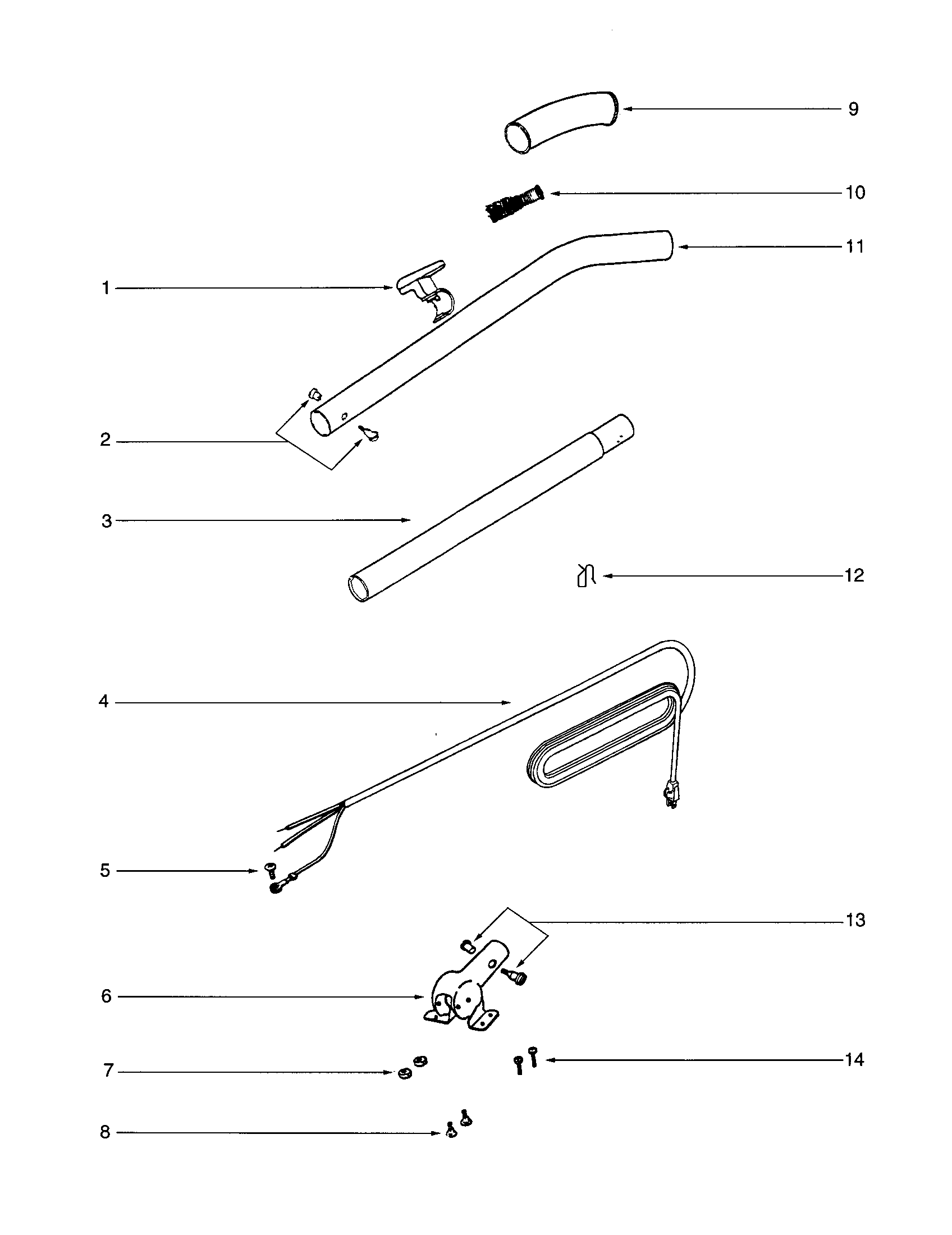

Handle/cord diagram

Wire clip

Part #55015

The manufacturer no longer makes this part, and there's no substitute part

Nut 53833-2
#10

Hood/motor/base diagram

Nut

Part #53833-2

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Field 53901-2
#5

Motor housing/motor/fan diagram

Kenmore field

Part #53901-2

The manufacturer no longer makes this part, and there's no substitute part

Wire Terminal 55296
#9

Hood/motor/base diagram

Wire terminal

Part #55296

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Clamp 26266-2
#5

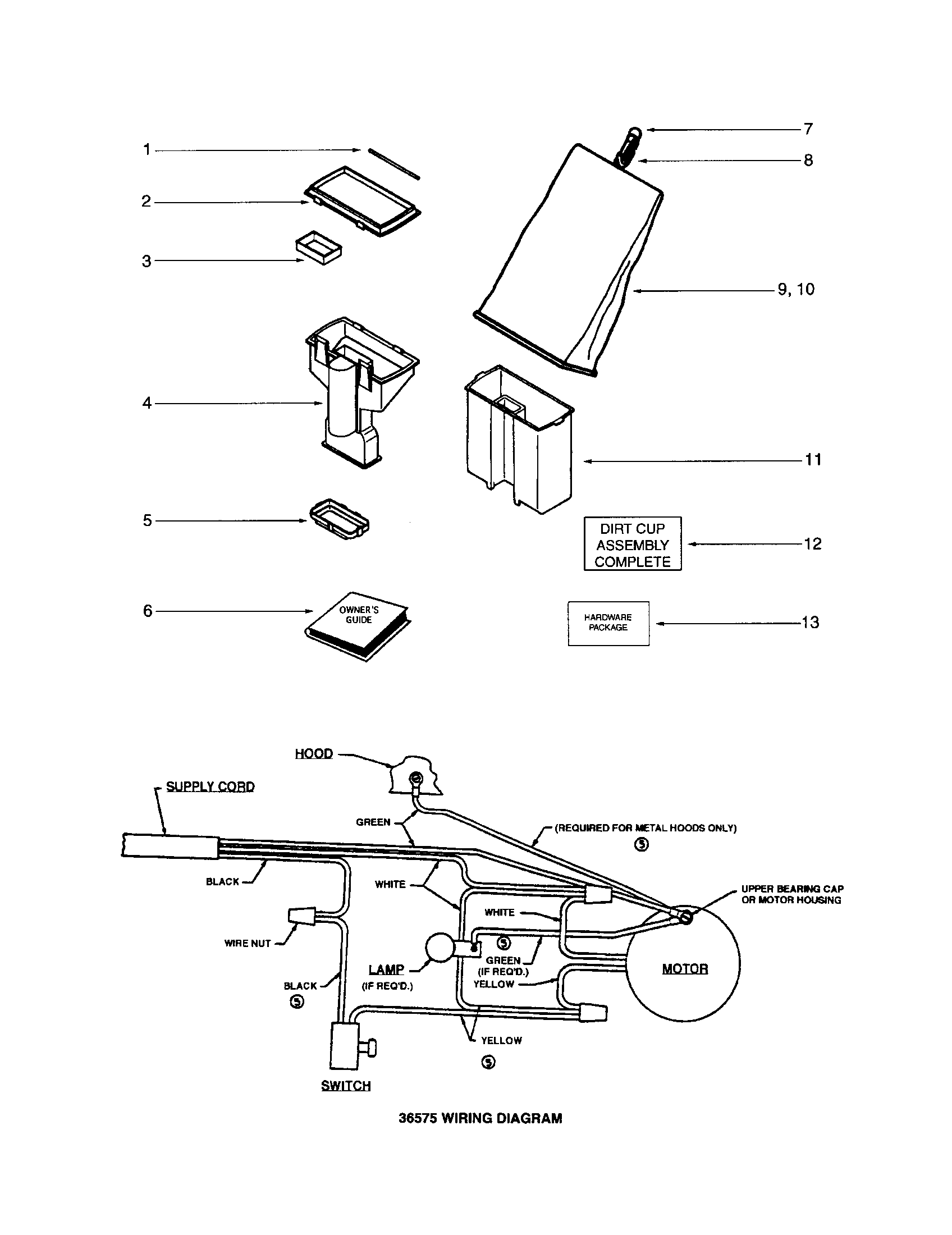

Bag/wiring diagram diagram

Kenmore clamp

Part #26266-2

The manufacturer no longer makes this part, and there's no substitute part

Axle 37183
#3

Guard/wheel and axle diagram

Axle

Part #37183

The manufacturer no longer makes this part, and there's no substitute part

End 54768
#2

Motor housing/motor/fan diagram

End

Part #54768

The manufacturer no longer makes this part, and there's no substitute part
