Model # 6256 Official Milwaukee jig saw

Here are the diagrams and repair parts for Official Milwaukee 6256 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Nameplate 12-75-1876
#15

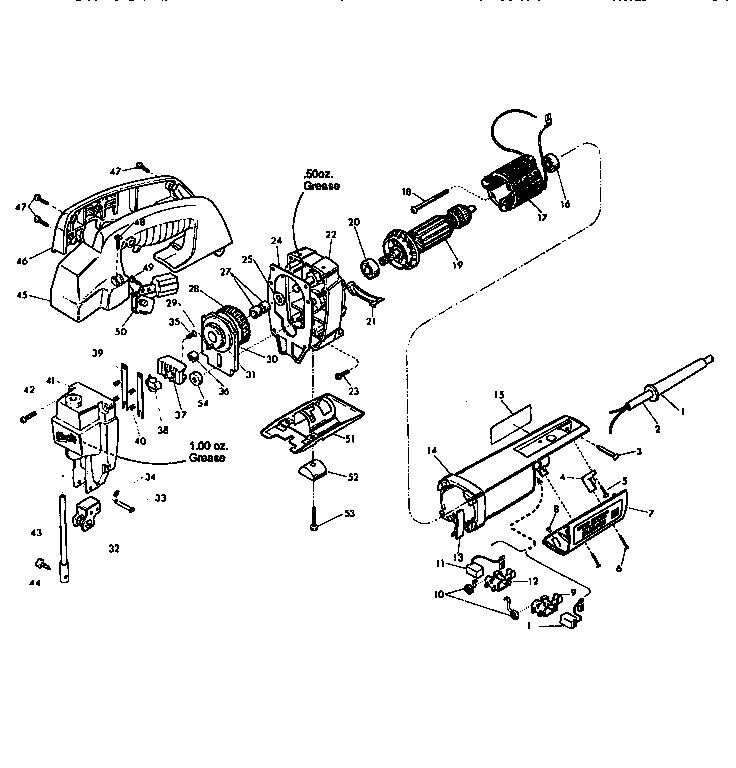

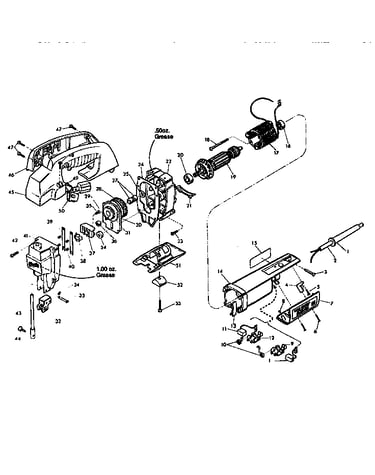

Unit parts diagram

Nameplate

Part #12-75-1876

The manufacturer no longer makes this part, and there's no substitute part

Roller Bearing 02-50-2423
#27

Unit parts diagram

Roller bearing

Part #02-50-2423

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Power Cord 22-64-0215
#2

Unit parts diagram

Power tool power cord

Part #22-64-0215

The manufacturer no longer makes this part, and there's no substitute part

Retainer 44-86-0335
#31

Unit parts diagram

Retainer

Part #44-86-0335

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 14-30-0411
#22

Unit parts diagram

Gear case

Part #14-30-0411

The manufacturer no longer makes this part, and there's no substitute part

Brush Holder 22-20-0692
#12

Unit parts diagram

Brush holder

Part #22-20-0692

The manufacturer no longer makes this part, and there's no substitute part

Screw 06-82-5346
#42

Unit parts diagram

Screw

Part #06-82-5346

The manufacturer no longer makes this part, and there's no substitute part

Spacer 45-36-1370
#54

Unit parts diagram

Spacer

Part #45-36-1370

The manufacturer no longer makes this part, and there's no substitute part

Power Tool Motor Brush 22-18-0710
#11

Unit parts diagram

Power tool motor brush

Part #22-18-0710

The manufacturer no longer makes this part, and there's no substitute part

Air Deflec 31-05-0161
#21

Unit parts diagram

Air deflec

Part #31-05-0161

The manufacturer no longer makes this part, and there's no substitute part
