Sharp
Countertop Microwave

Model # R-530BK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-530BK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

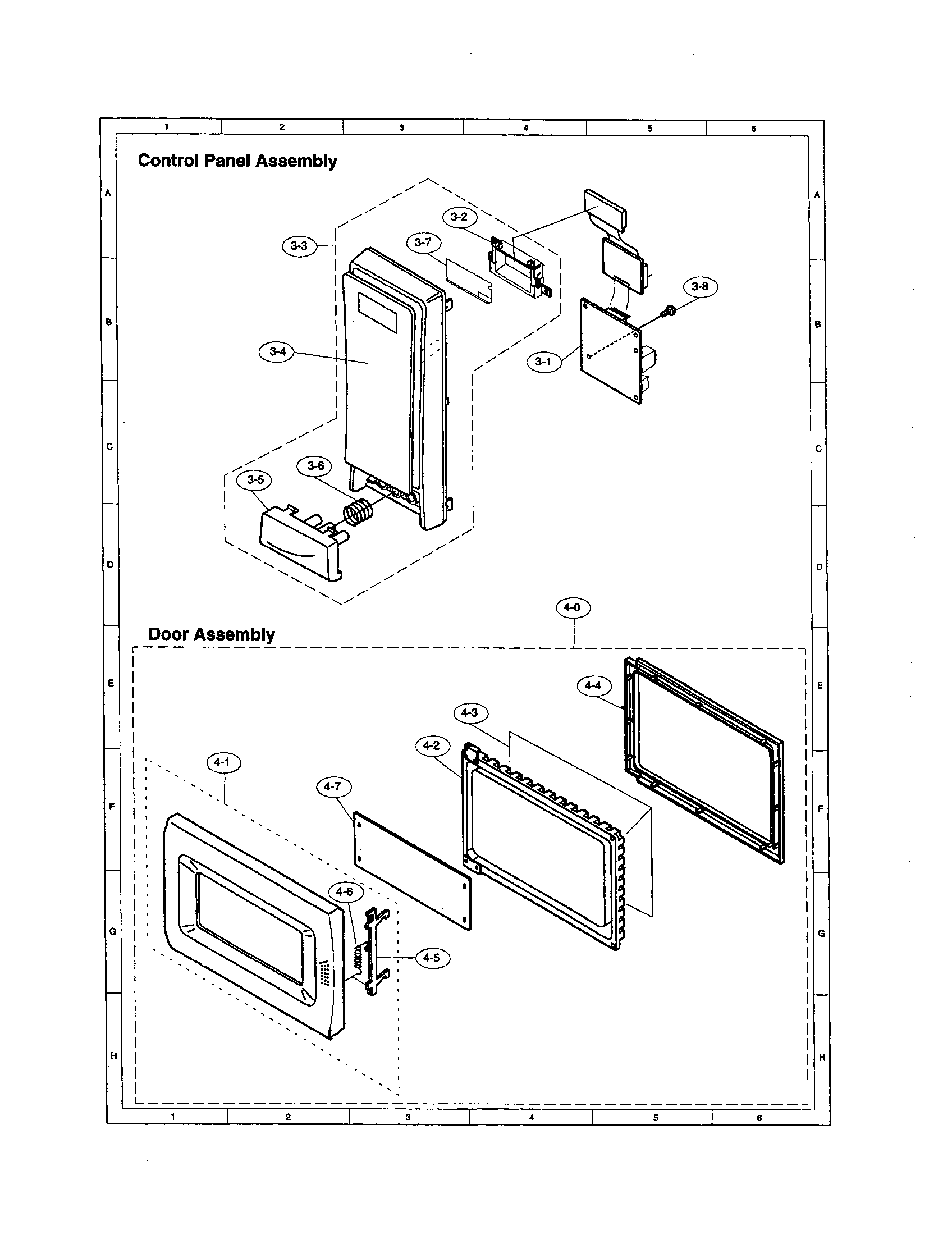

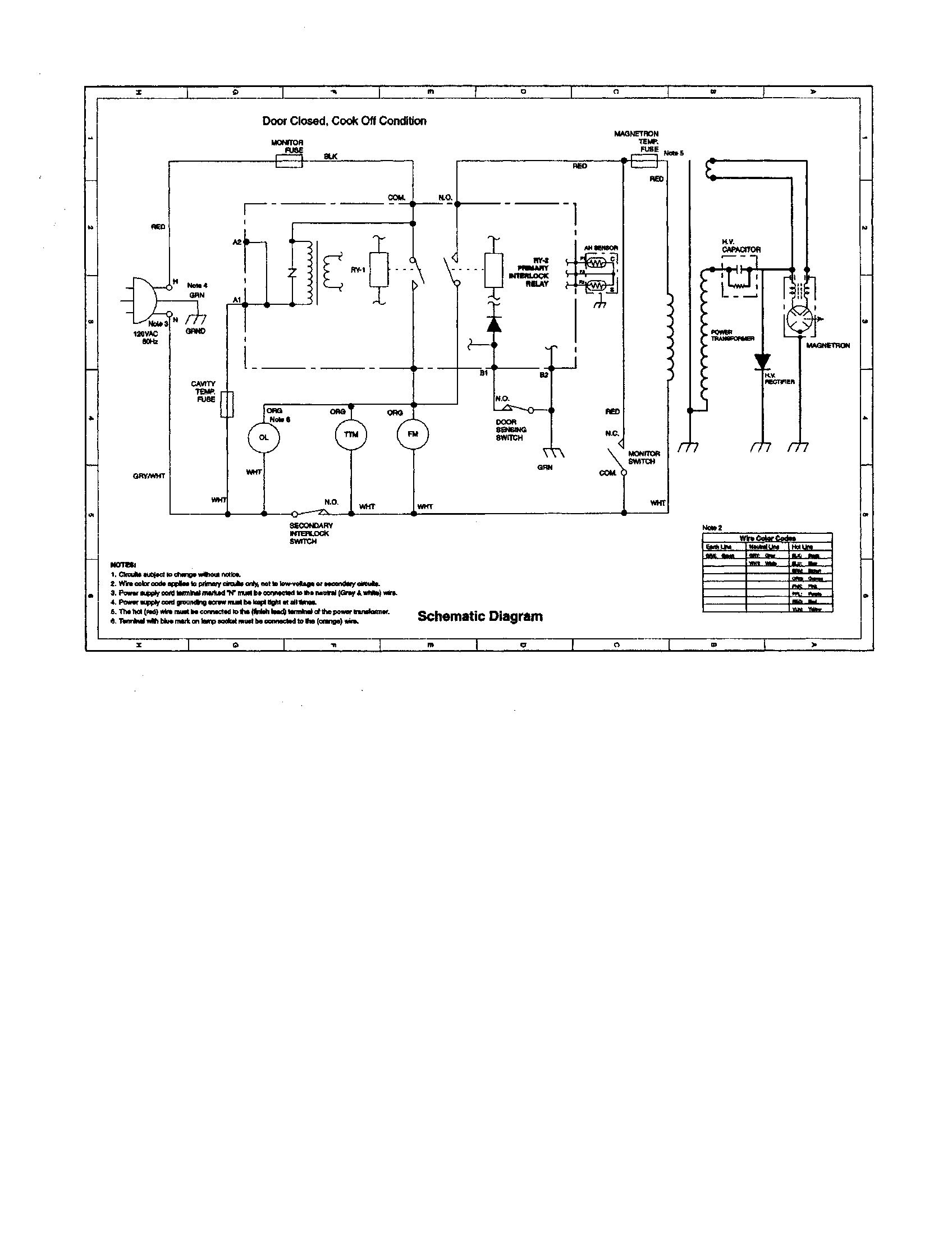

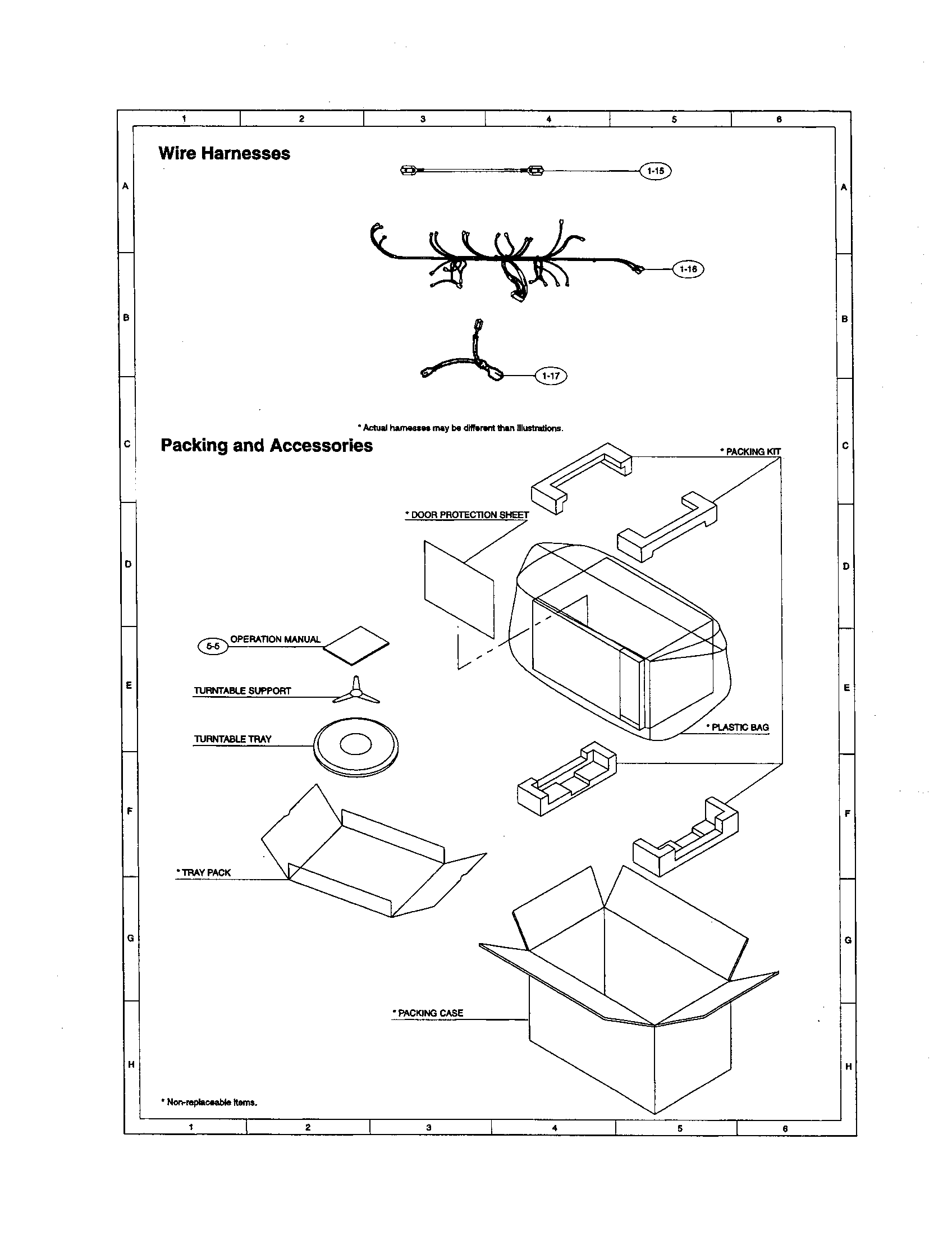

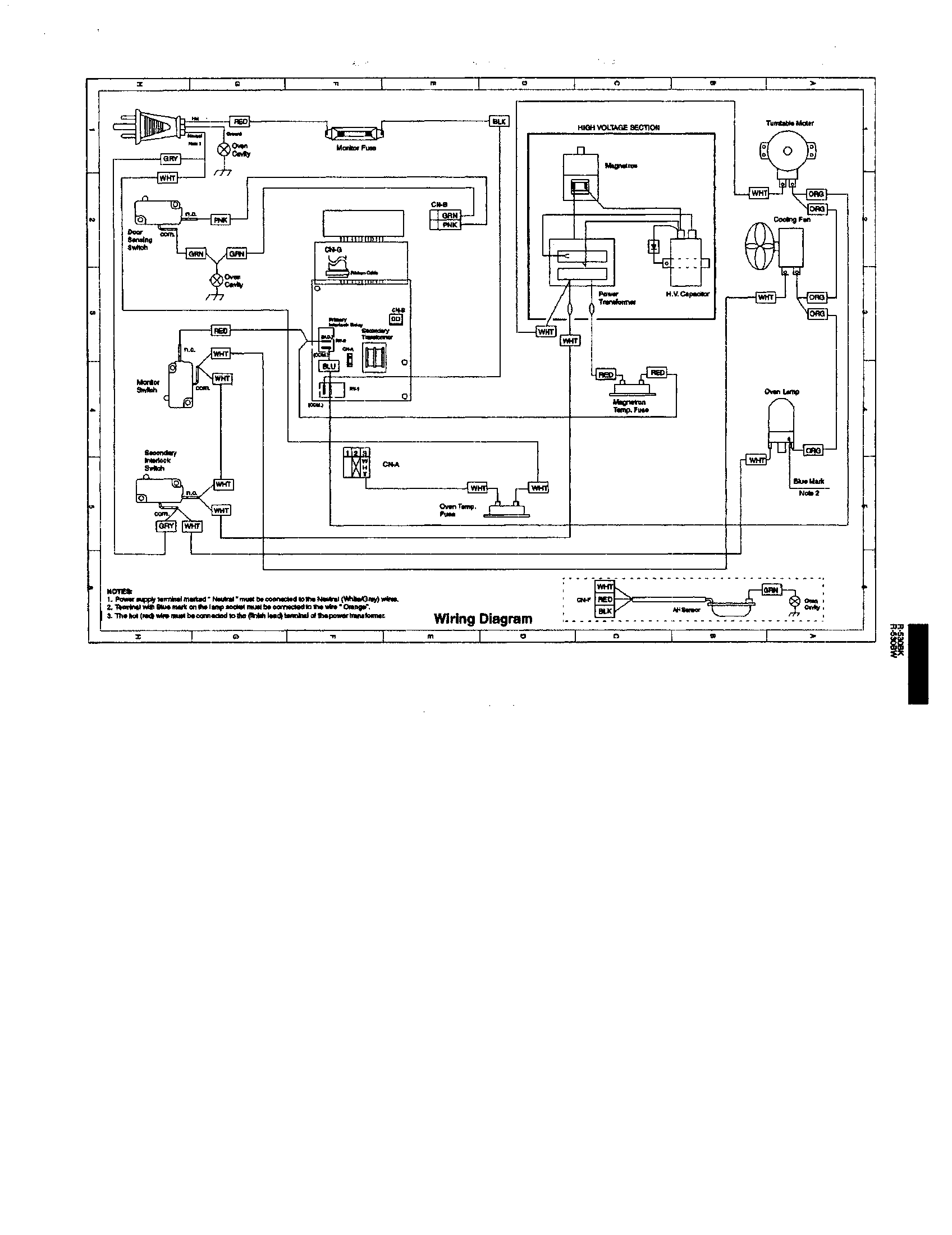

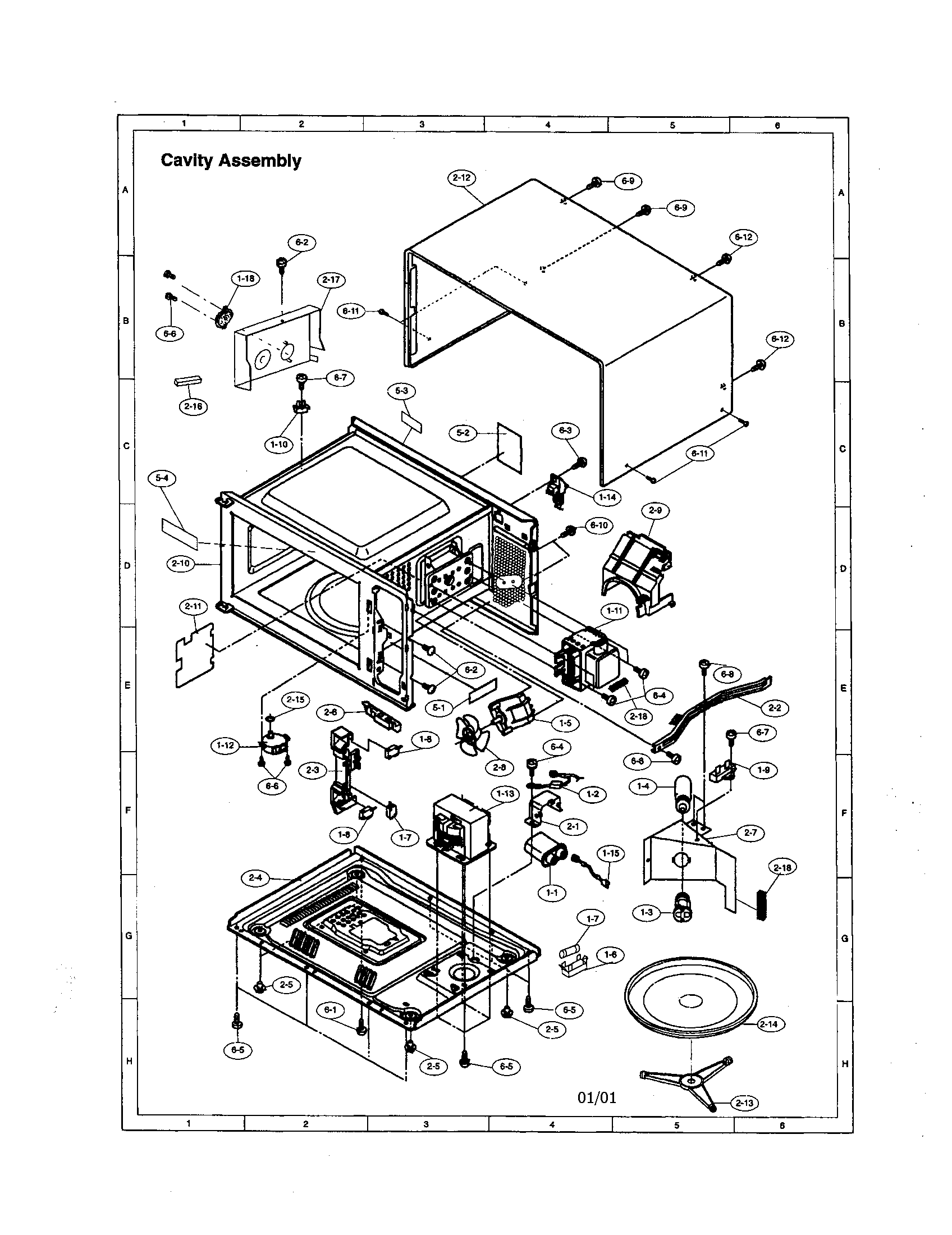

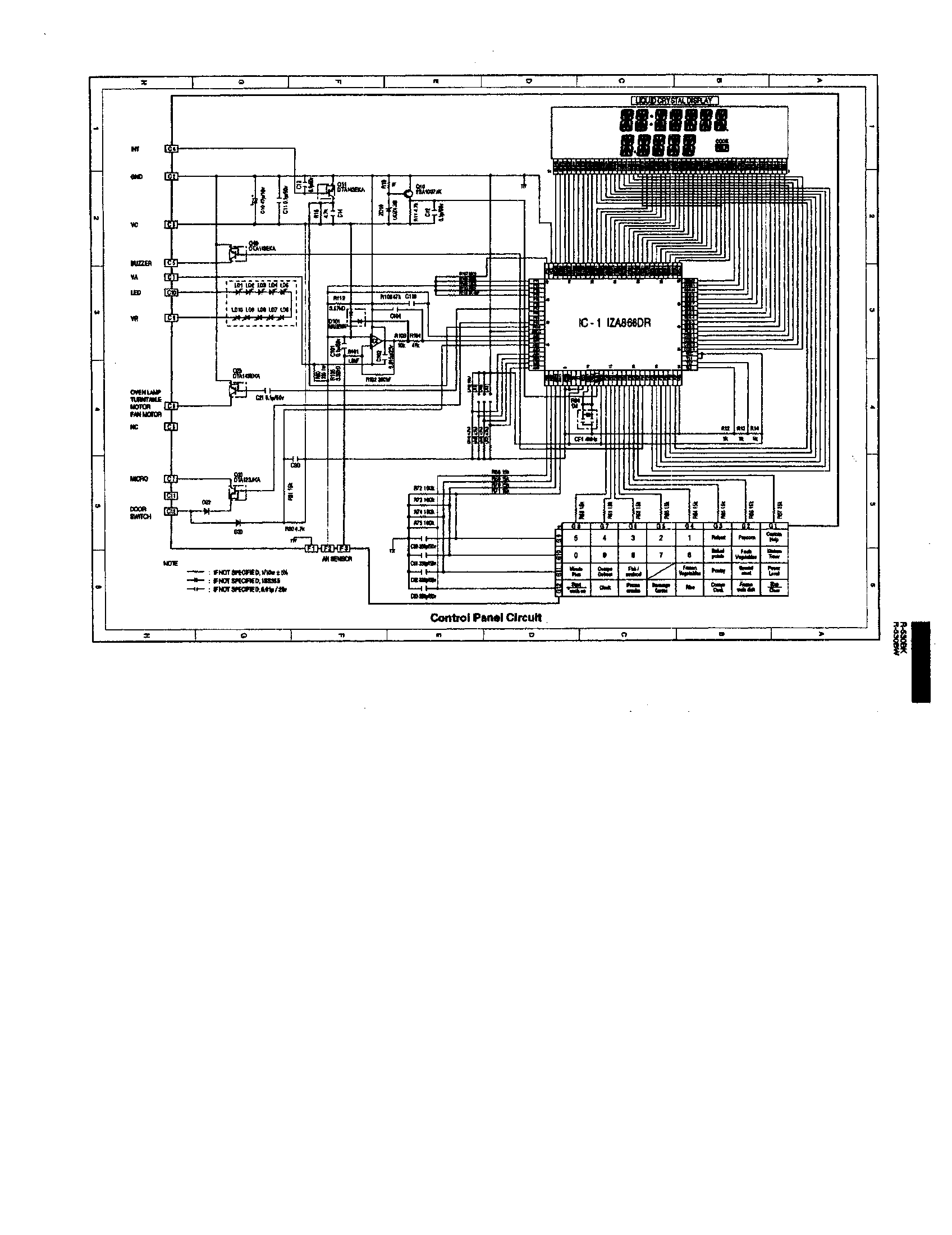

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |
Switch QSW-MA110WRE0

#1-08

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Latch Hook PHOK-B013MRF0

#2-03

All parts diagram

Latch hook

Part #PHOK-B013MRF0

The manufacturer no longer makes this part, and there's no substitute part

Cap H/v RC-QZB018MRE0

#1-01

All parts diagram

Cap h/v

Part #RC-QZB018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VRD-B12EF242J

#NI

All parts diagram

Capacitor

Part #VRD-B12EF242J

The manufacturer no longer makes this part, and there's no substitute part

Tray NTNT-B001MRE0

#2-14

All parts diagram

Tray

Part #NTNT-B001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor RMOTEA346WRE0

#1-05

All parts diagram

Fan motor

Part #RMOTEA346WRE0

The manufacturer no longer makes this part, and there's no substitute part

Foot GLEGPB003MRF0

#2-05

All parts diagram

Foot

Part #GLEGPB003MRF0

The manufacturer no longer makes this part, and there's no substitute part

Latch LSTPPB021MRF0

#4-05

All parts diagram

Latch

Part #LSTPPB021MRF0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VCEAB31VW106M

#NI

All parts diagram

Capacitor

Part #VCEAB31VW106M

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA046WRE0

#4-06

All parts diagram

Spring

Part #MSPRTA046WRE0

The manufacturer no longer makes this part, and there's no substitute part
