Model # LAT9280AAW Official Maytag washer/dryer

Here are the diagrams and repair parts for Official Maytag LAT9280AAW washer/dryer, as well as links to manuals and error code tables, if available.

By Schematic
By Part

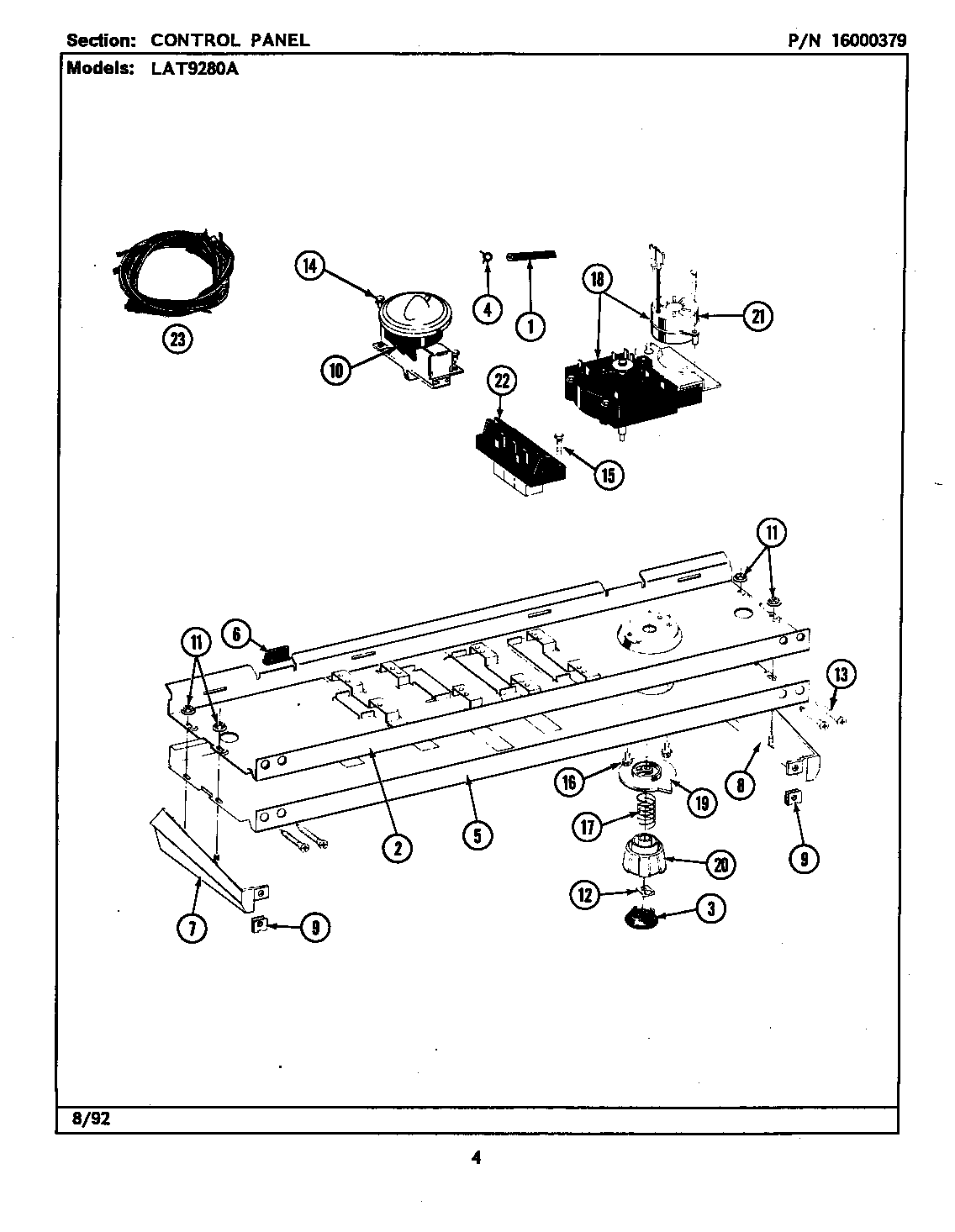

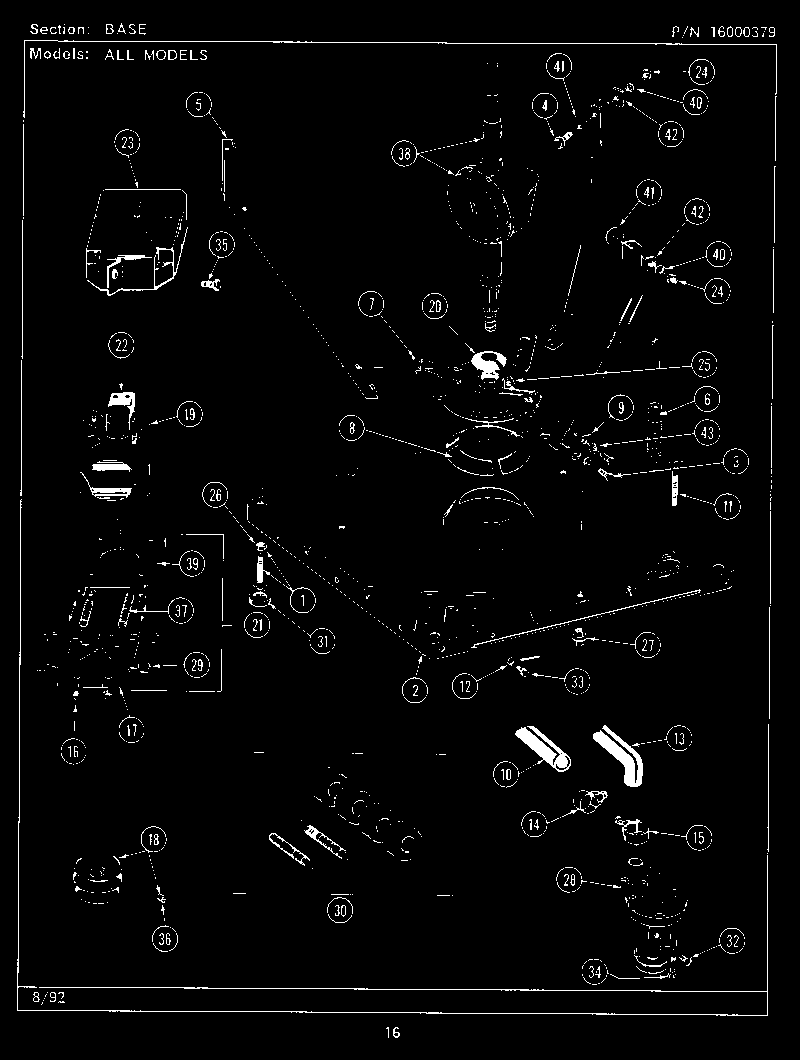

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts forLAT9280AAW Washer/Dryer

  • Lid Switch 205415
    #16

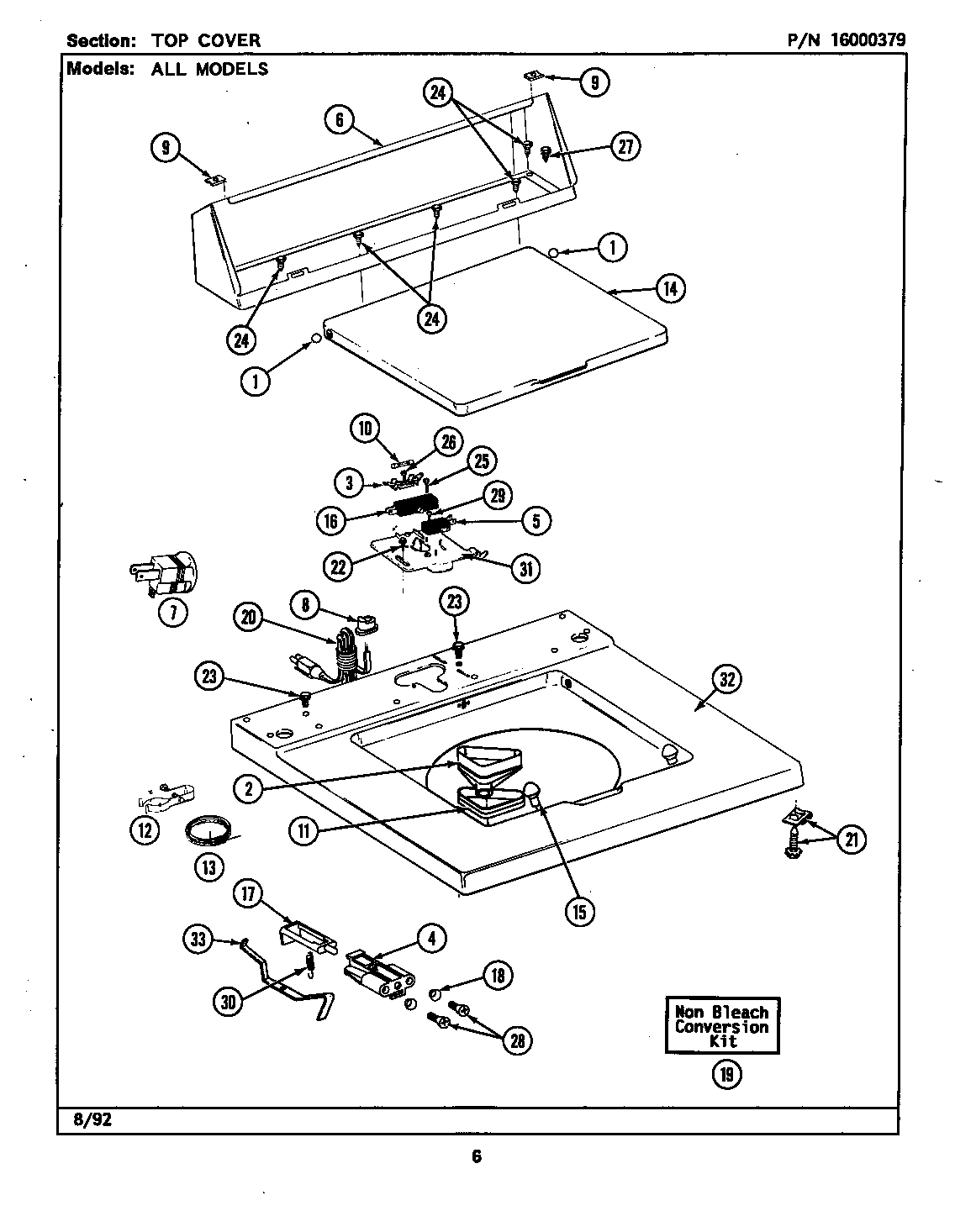

    Top cover diagram

    Lid switch

    Part #205415

    Replaced by #W10820036

    ?
    Manufacturer substitution
    This part replaces 205415. Substitute parts can look different from the original.
    BEST SELLER
    $22.10
    21% OFF Phone Price : $28.10
    In Stock
  • Water Clamp 410296
    Water clamp

    Part #410296

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 410296. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Spring Hose 214739
    #43

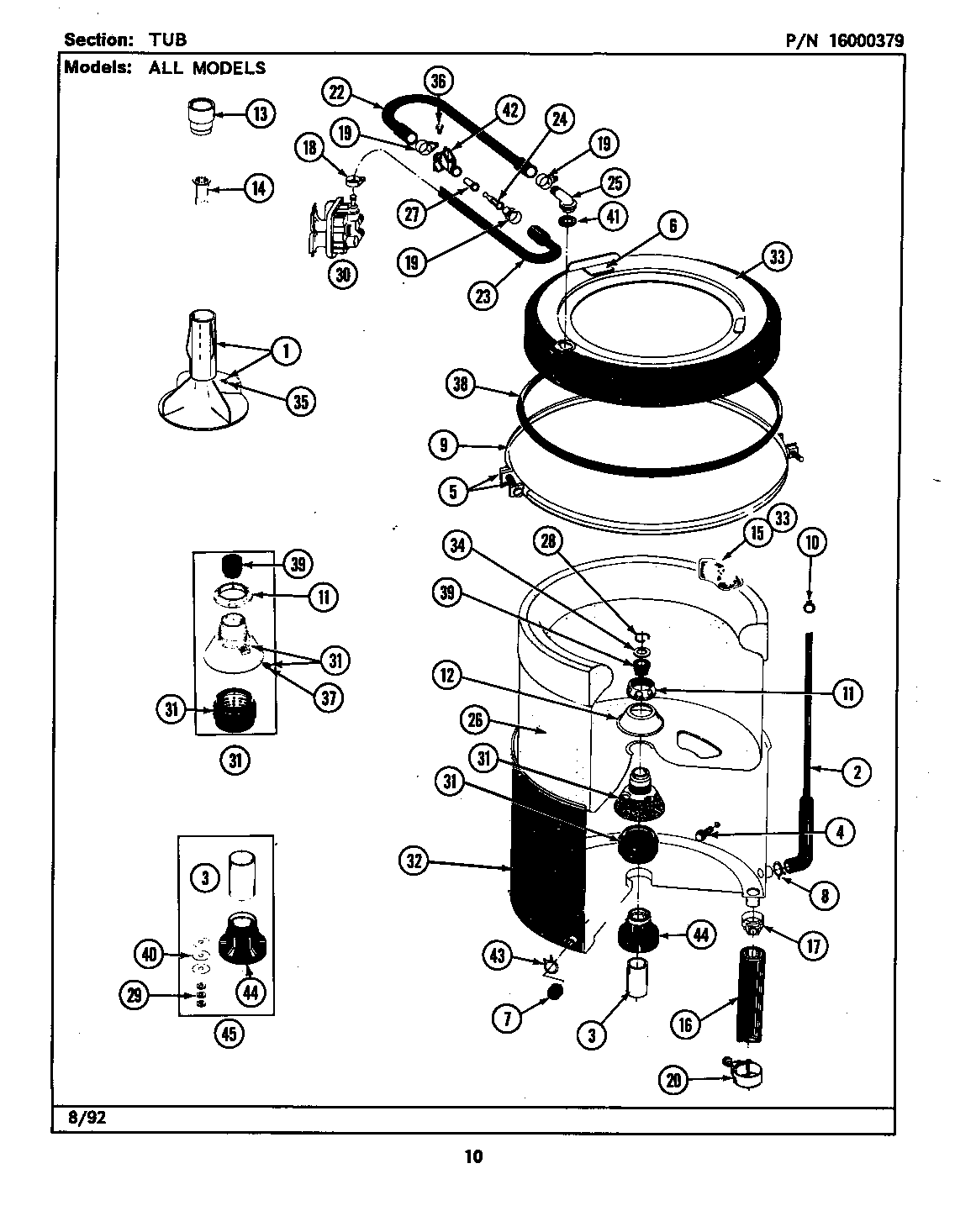

    Tub diagram

    Spring hose

    Part #214739

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 214739. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Hose Clamp 201575
    Hose clamp

    Part #201575

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 201575. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Hose Clamp 202515
    #19

    Tub diagram

    Hose clamp

    Part #202515

    Replaced by #WP596669

    ?
    Manufacturer substitution
    This part replaces 202515. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Washer Drive Belt 211125
    #21

    Clutch diagram

    Washer drive belt

    Part #211125

    Replaced by #12112425

    ?
    Manufacturer substitution
    This part replaces 211125. Substitute parts can look different from the original.
    BEST SELLER
    $34.98
    15% OFF Phone Price : $40.98
    In Stock
  • Washer Pump Drive Belt 211124
    #20

    Clutch diagram

    Washer pump drive belt

    Part #211124

    Replaced by #12112425

    ?
    Manufacturer substitution
    This part replaces 211124. Substitute parts can look different from the original.
    BEST SELLER
    $34.98
    15% OFF Phone Price : $40.98
    In Stock
  • Washer Screw 211294
    Washer screw

    Part #211294

    Replaced by #WP90767

    ?
    Manufacturer substitution
    This part replaces 211294. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Screw 212276
    #23

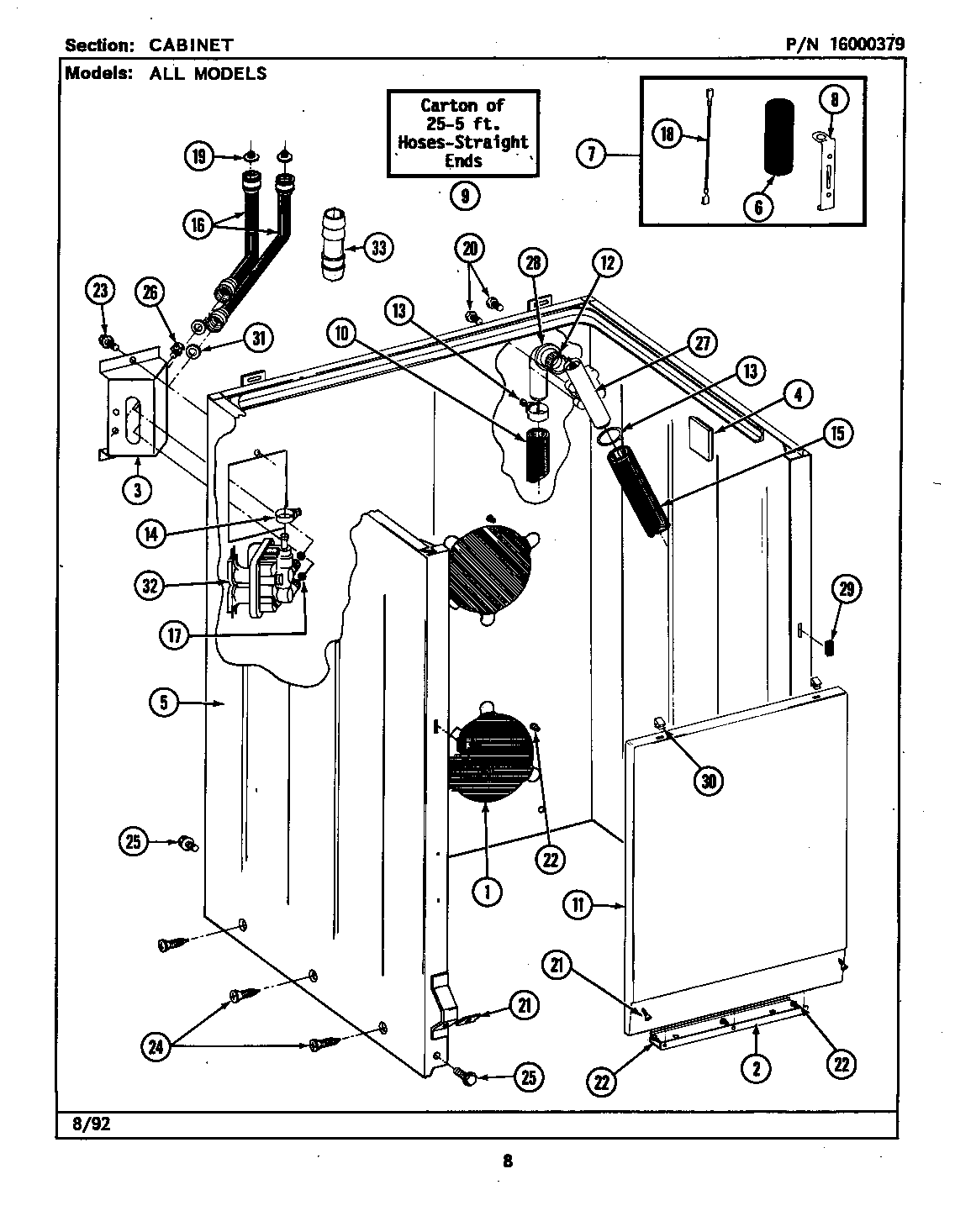

    Cabinet diagram

    Screw

    Part #212276

    Replaced by #WP90767

    ?
    Manufacturer substitution
    This part replaces 212276. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
  • Screw 313559
    #27

    Top cover diagram

    Screw

    Part #313559

    Replaced by #WP90767

    ?
    Manufacturer substitution
    This part replaces 313559. Substitute parts can look different from the original.
    BEST SELLER
    This item is not returnable
    $4.31
    19% OFF Phone Price : $5.31
    In Stock
