Model # LATA100AKE Official Admiral washer

Here are the diagrams and repair parts for Official Admiral LATA100AKE washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 213 parts  |
Hose Clamp 25-7867
Hose clamp

Part #25-7867

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7867. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Clamp, Pressure Switch Hose 25-7796
Clamp, pressure switch hose

Part #25-7796

Replaced by #WP596669

?
Manufacturer substitution
This part replaces 25-7796. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer Drive Belt 21352320
#30

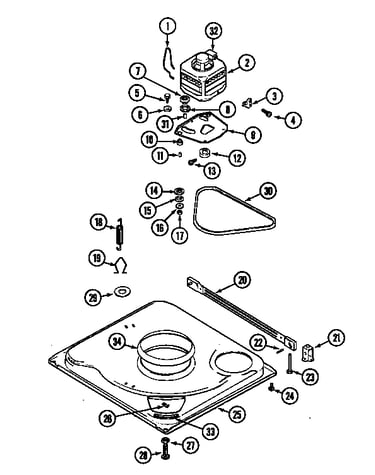

Base diagram

Washer drive belt

Part #21352320

Replaced by #WP21352320

?
Manufacturer substitution
This part replaces 21352320. Substitute parts can look different from the original.
BEST SELLER
$15.14 |
12% OFF Phone Price : $17.14
In Stock
Inlet Hose 33-7891
#14

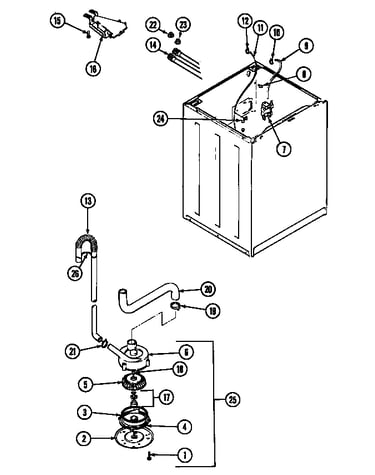

Pump diagram

Inlet hose

Part #33-7891

Replaced by #WP89503

?
Manufacturer substitution
This part replaces 33-7891. Substitute parts can look different from the original.
BEST SELLER
$14.49 |
12% OFF Phone Price : $16.49
In Stock
Screw, Suppo 25-7828
#24

Base diagram

Screw, suppo

Part #25-7828

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7828. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Screw 25-7894
#18

Pump diagram

Screw

Part #25-7894

Replaced by #WP489483

?
Manufacturer substitution
This part replaces 25-7894. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.12 |
11% OFF Phone Price : $9.12
In Stock
Washer Lid Hinge 35-2044
#6

Top diagram

Washer lid hinge

Part #35-2044

Replaced by #WP35-2044

?
Manufacturer substitution
This part replaces 35-2044. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Locator Nut 25-0224
#24

Top diagram

Locator nut

Part #25-0224

Replaced by #WP3400029

?
Manufacturer substitution
This part replaces 25-0224. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Snubber 21001161
Snubber

Part #21001161

Replaced by #WP21002026

?
Manufacturer substitution
This part replaces 21001161. Substitute parts can look different from the original.
This item is not returnable
$7.49 |
12% OFF Phone Price : $8.49
In Stock
Bearing Housing 35-2716
Bearing housing

Part #35-2716

Replaced by #W10219156

?
Manufacturer substitution
This part replaces 35-2716. Substitute parts can look different from the original.
$153.01 |
7% OFF Phone Price : $165.01
In Stock
