GE
Gas Range

Model # JGBS07SET3SA Official GE gas range

Here are the diagrams and repair parts for Official GE JGBS07SET3SA gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

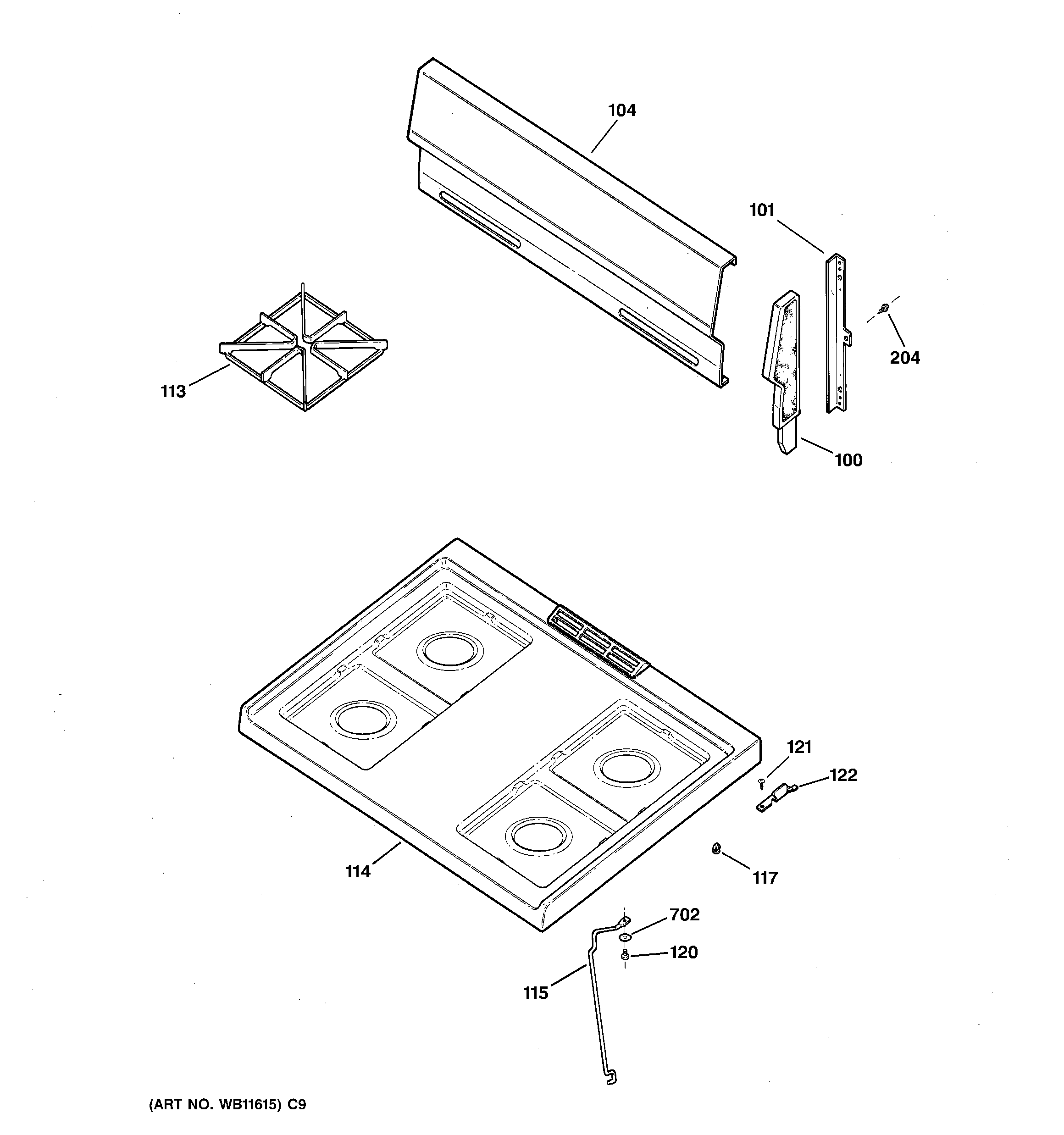

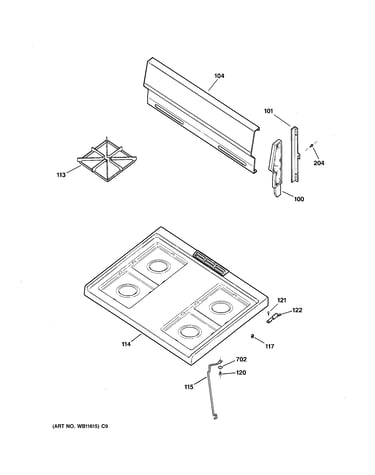

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 149 parts  |
Bake Burner Ignition WB13K0021
#218

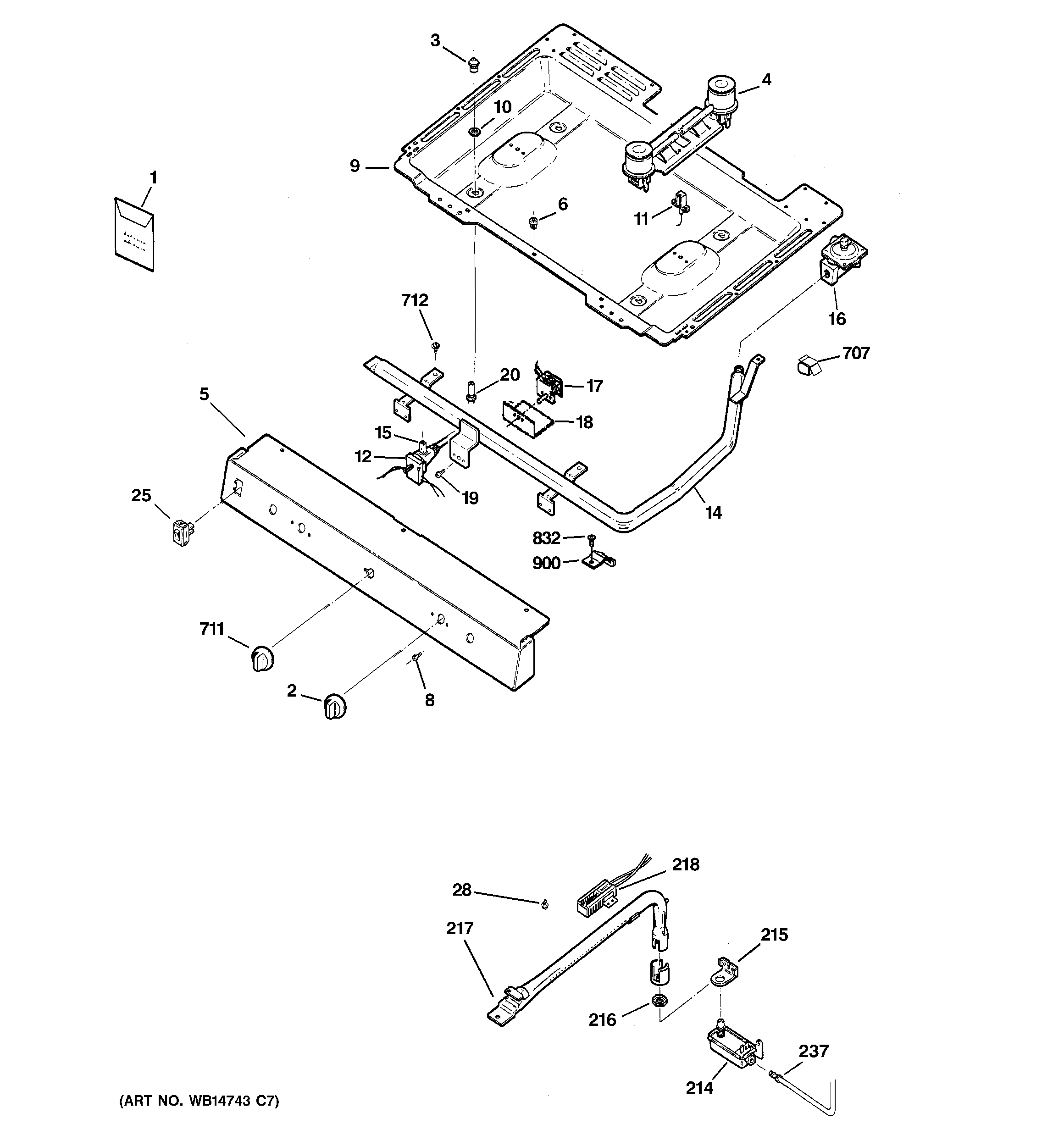

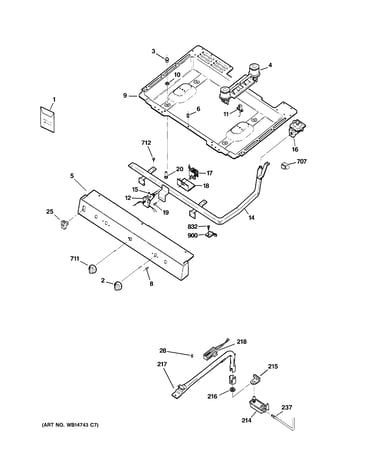

Gas & burner parts diagram

Bake burner ignition

Part #WB13K0021

Replaced by #WB13K21

?
Manufacturer substitution
This part replaces WB13K0021. Substitute parts can look different from the original.
BEST SELLER
$54.97 |
10% OFF Phone Price : $60.97
In Stock
Thermostat WB20K0008
#17

Gas & burner parts diagram

Thermostat

Part #WB20K0008

Replaced by #WB20K8

?
Manufacturer substitution
This part replaces WB20K0008. Substitute parts can look different from the original.
BEST SELLER
$303.21 |
$12.00 OFF Phone Price : $315.21
In Stock
Range Light Socket (replaces Wb08t10004) WB08T10026
#230

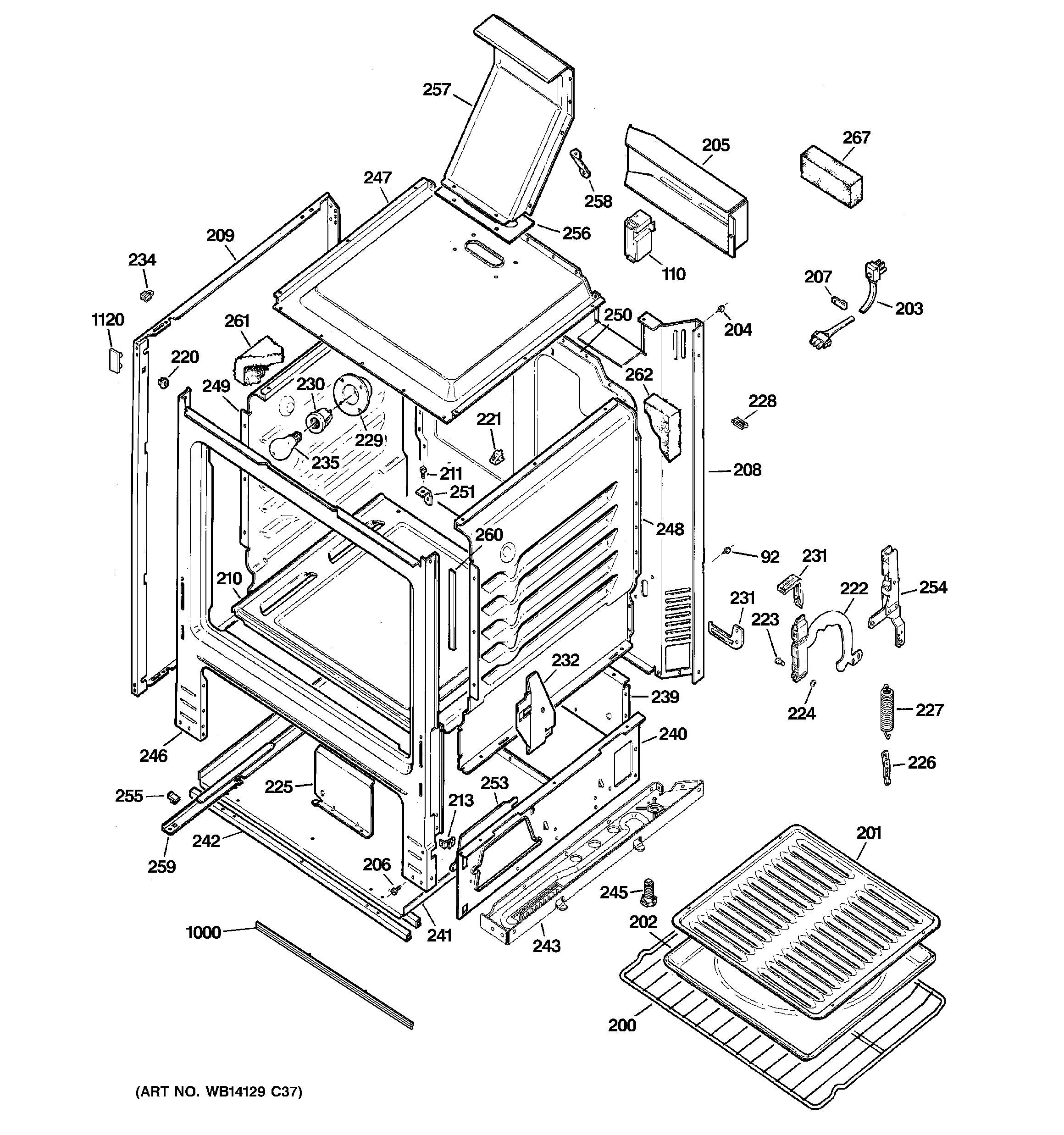

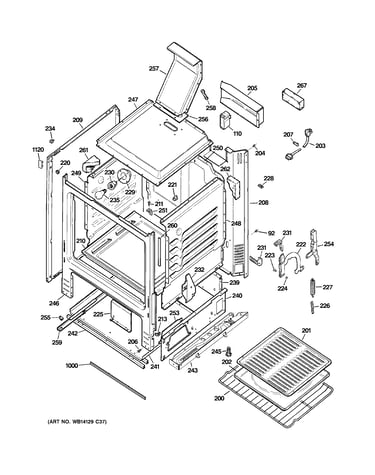

Body parts diagram

Range light socket (replaces wb08t10004)

Part #WB08T10026

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Hex Washer Head Screw WB01K0050
#28

Gas & burner parts diagram

Hex washer head screw

Part #WB01K0050

Replaced by #WB1X1293

?
Manufacturer substitution
This part replaces WB01K0050. Substitute parts can look different from the original.
This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Surface Burner Valve WB28K10578
#15

Gas & burner parts diagram

Range surface burner valve

Part #WB28K10578

$23.80 |
20% OFF Phone Price : $29.80
In Stock
Safety Valve WB19K0031
#214

Gas & burner parts diagram

Safety valve

Part #WB19K0031

Replaced by #WB19K31

?
Manufacturer substitution
This part replaces WB19K0031. Substitute parts can look different from the original.
$88.65 |
6% OFF Phone Price : $94.65
In Stock
Range Leveling Leg (replaces Wb02k10379) WB02K10182
#245

Body parts diagram

Range leveling leg (replaces wb02k10379)

Part #WB02K10182

This item is not returnable
$7.92 |
11% OFF Phone Price : $8.92
In Stock
Range Surface Burner Knob WB03K10216
#2

Gas & burner parts diagram

Range surface burner knob

Part #WB03K10216

This item is not returnable
$6.92 |
13% OFF Phone Price : $7.92
In Stock
Bumper WB02K0015
#311

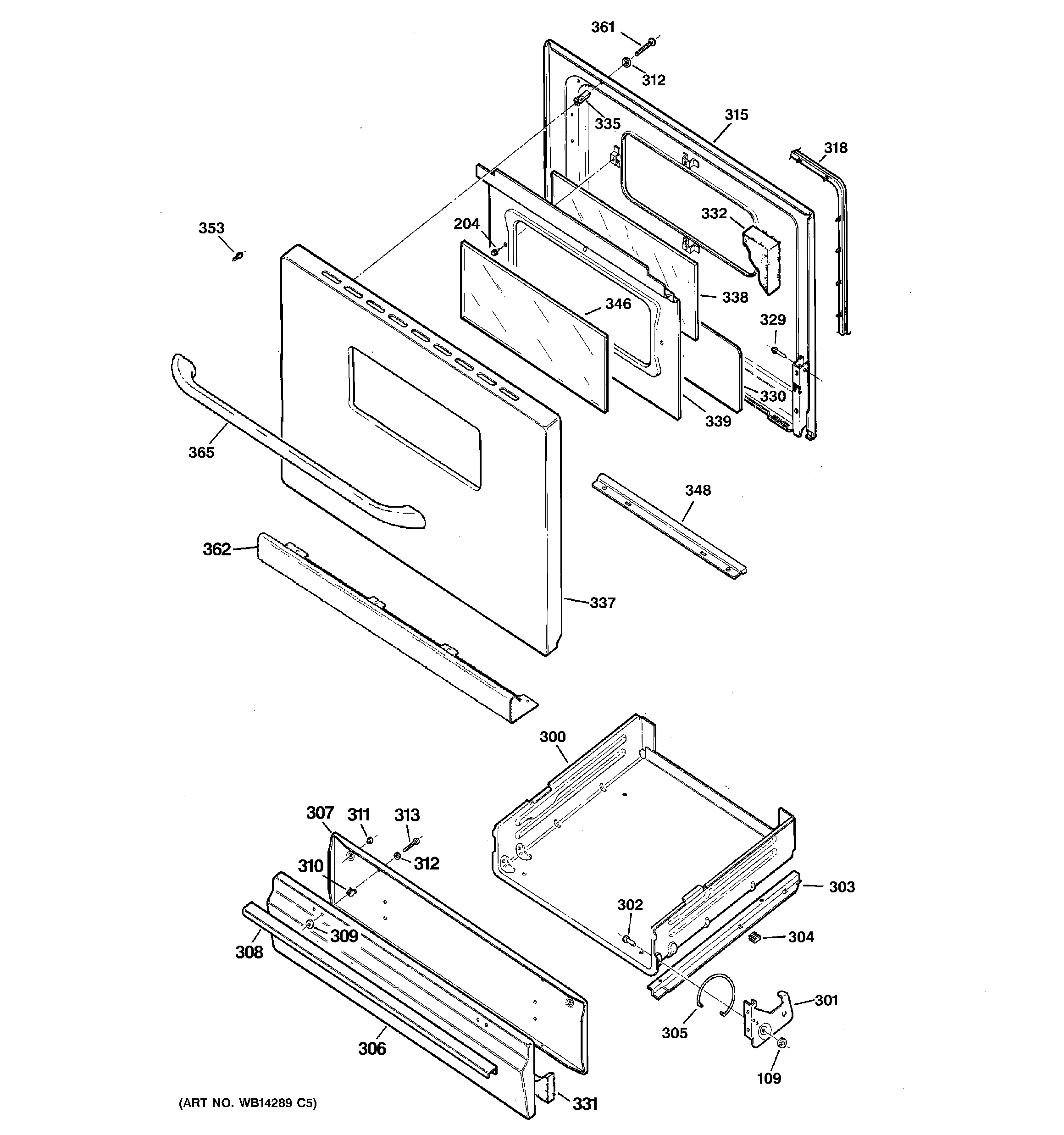

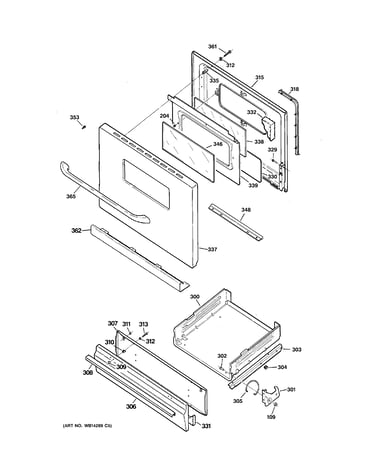

Door & drawer parts diagram

Bumper

Part #WB02K0015

Replaced by #WB2K15

?
Manufacturer substitution
This part replaces WB02K0015. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Range Oven Door Seal WB04K10021
#1000

Body parts diagram

Range oven door seal

Part #WB04K10021

$35.01 |
15% OFF Phone Price : $41.01
In Stock
