Model # 79040563800 Official Kenmore Pro cooktop

Here are the diagrams and repair parts for Official Kenmore Pro 79040563800 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

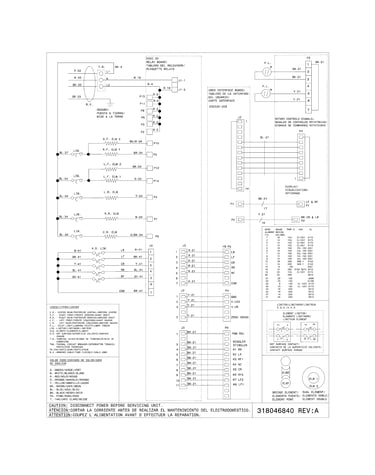

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Element 318198830
#15

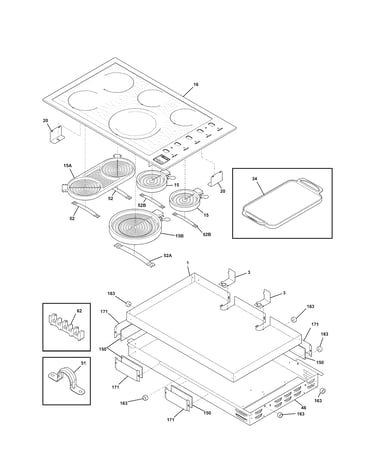

Maintop diagram

Element

Part #318198830

Replaced by #318178110

?
Manufacturer substitution
This part replaces 318198830. Substitute parts can look different from the original.
BEST SELLER
$138.09 |
8% OFF Phone Price : $150.09
In Stock
Terminal Block 316056000
#62

Maintop diagram

Terminal block

Part #316056000

Replaced by #5304409888

?
Manufacturer substitution
This part replaces 316056000. Substitute parts can look different from the original.
BEST SELLER
$9.64 |
9% OFF Phone Price : $10.64
In Stock
Appliance Cleaning Pad 316459400
#NI

Maintop diagram

Appliance cleaning pad

Part #316459400

This item is not returnable
$2.16
In Stock
Range Nut 5303323144
#NI

Maintop diagram

Range nut

Part #5303323144

$8.83
In Stock
Range Power Control Board Support 316114100
#77A

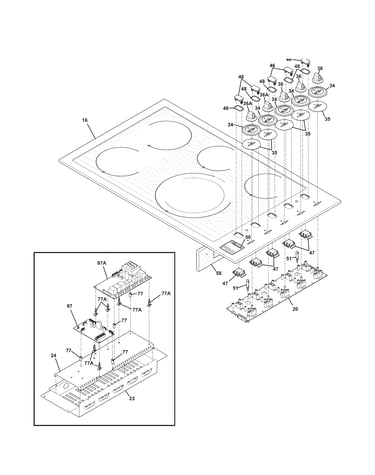

Controls diagram

Range power control board support

Part #316114100

$52.42 |
10% OFF Phone Price : $58.42
In Stock
Spring 318122011
#52A

Maintop diagram

Spring

Part #318122011

$42.47
In Stock
Cooktop Installation Bracket 318121902
#20

Maintop diagram

Cooktop installation bracket

Part #318121902

$35.79 |
14% OFF Phone Price : $41.79
In Stock
Wire Box 318394475
#NI

Maintop diagram

Wire box

Part #318394475

$213.55
In Stock
Range Screw 5303323140
#NI

Maintop diagram

Range screw

Part #5303323140

$11.17
In Stock
Spring 318122008
#52

Maintop diagram

Spring

Part #318122008

$62.04
In Stock
