Model # 867747950 Official Kenmore oil-fired furnace

Here are the diagrams and repair parts for Official Kenmore 867747950 oil-fired furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 141 parts  |
Capacitor 77353
#13B

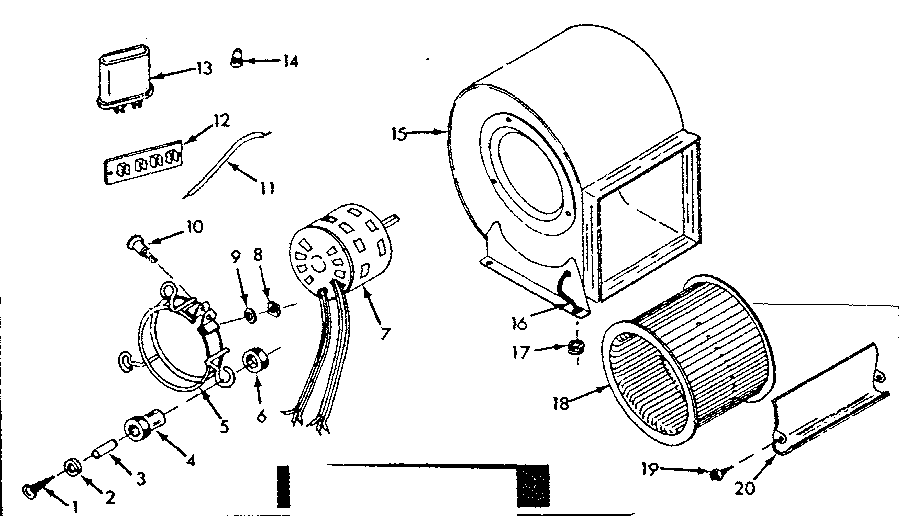

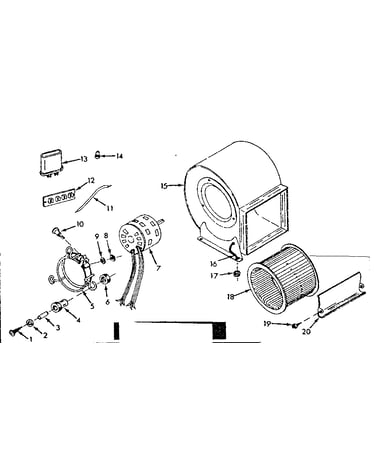

H-q blower assembly diagram

Capacitor

Part #77353

Replaced by #PAKTRCF5

?
Manufacturer substitution
This part replaces 77353. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.44 |
23% OFF Phone Price : $4.44
In Stock
Motor 1/3 Hp 84748
#7B

H-q blower assembly diagram

Motor 1/3 hp

Part #84748

The manufacturer no longer makes this part, and there's no substitute part

Motor 1/4 Hp 84745
#7A

H-q blower assembly diagram

Motor 1/4 hp

Part #84745

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 64605
#39A

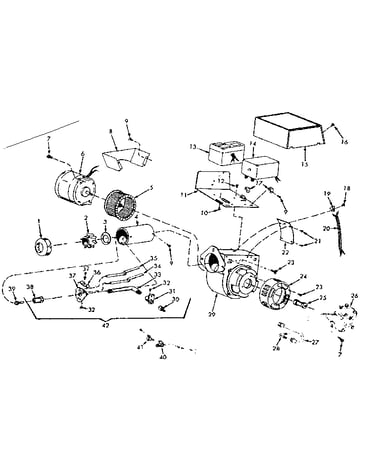

Oil burner assembly diagram

Nozzle

Part #64605

The manufacturer no longer makes this part, and there's no substitute part

Limit Control 69287
#23

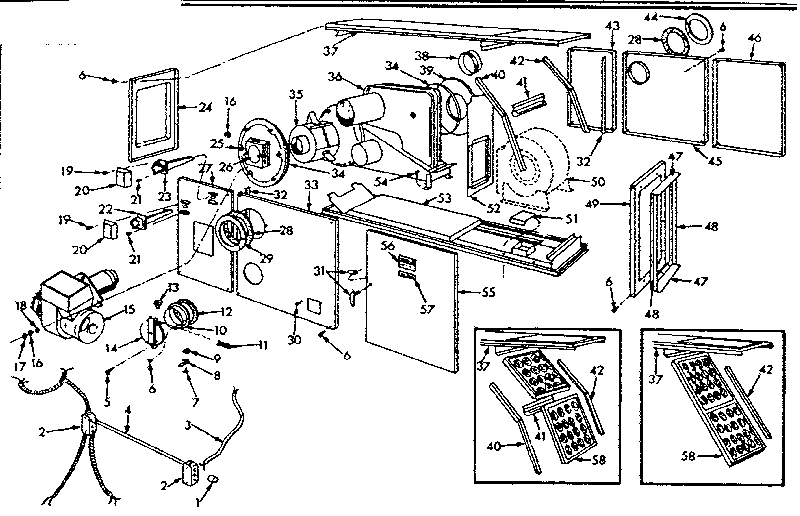

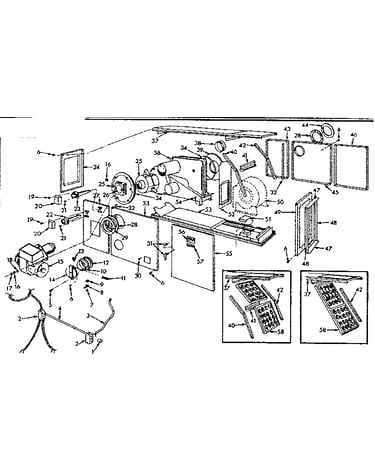

Functional replacement parts diagram

Limit control

Part #69287

The manufacturer no longer makes this part, and there's no substitute part

Air Filter 64488
#58A

Functional replacement parts diagram

Air filter

Part #64488

The manufacturer no longer makes this part, and there's no substitute part

Twist-on Wire Connector 89483

#NI

All parts diagram

Twist-on wire connector

Part #89483

The manufacturer no longer makes this part, and there's no substitute part

Washer 103320
Washer

Part #103320

The manufacturer no longer makes this part, and there's no substitute part

Coupling 91818
#25A

Oil burner assembly diagram

Coupling

Part #91818

The manufacturer no longer makes this part, and there's no substitute part

Screw 273624
#18

Oil burner assembly diagram

Screw

Part #273624

The manufacturer no longer makes this part, and there's no substitute part
