Kenmore Elite
Gas Range

Model # 79032623311 Official Kenmore Elite gas range

Here are the diagrams and repair parts for Official Kenmore Elite 79032623311 gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual
Error Codes

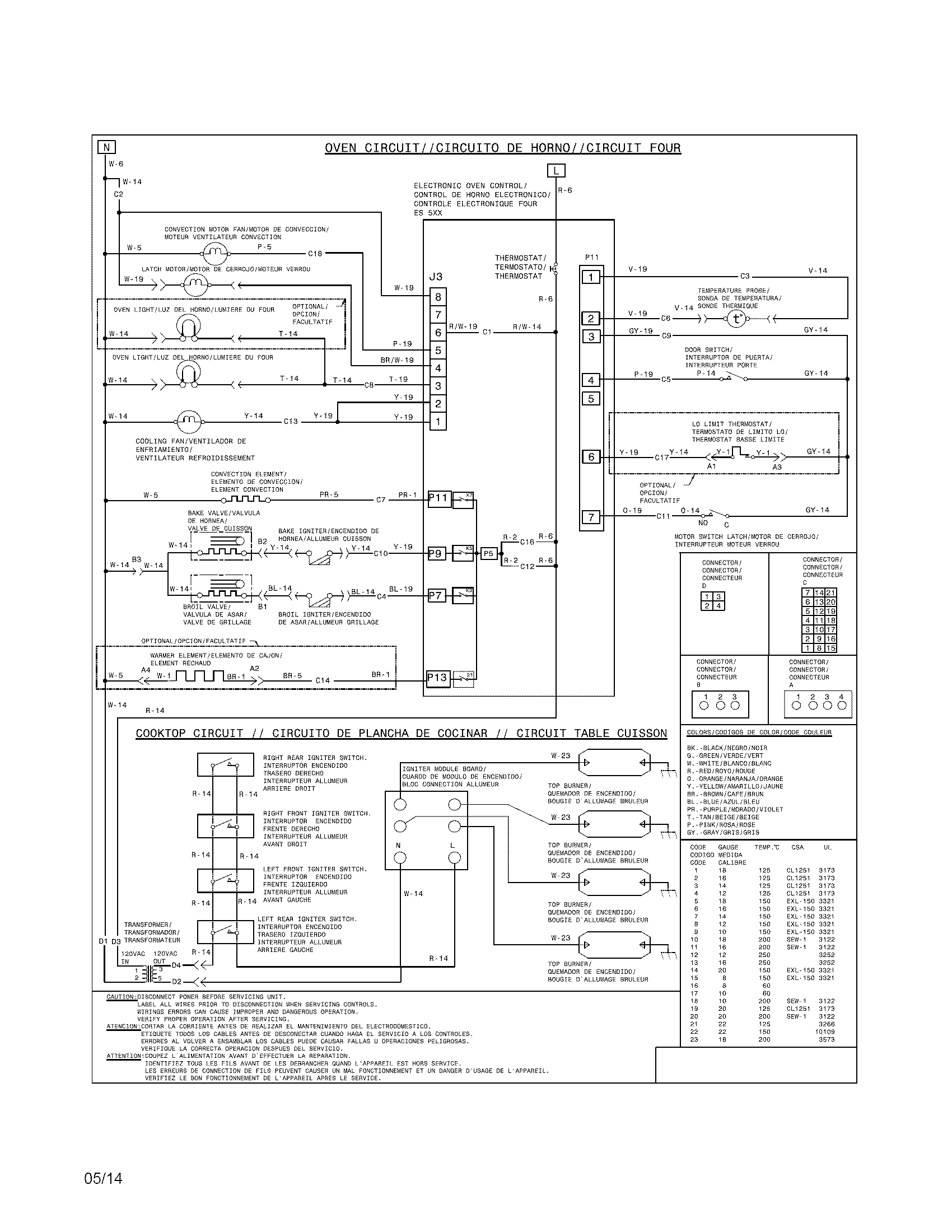

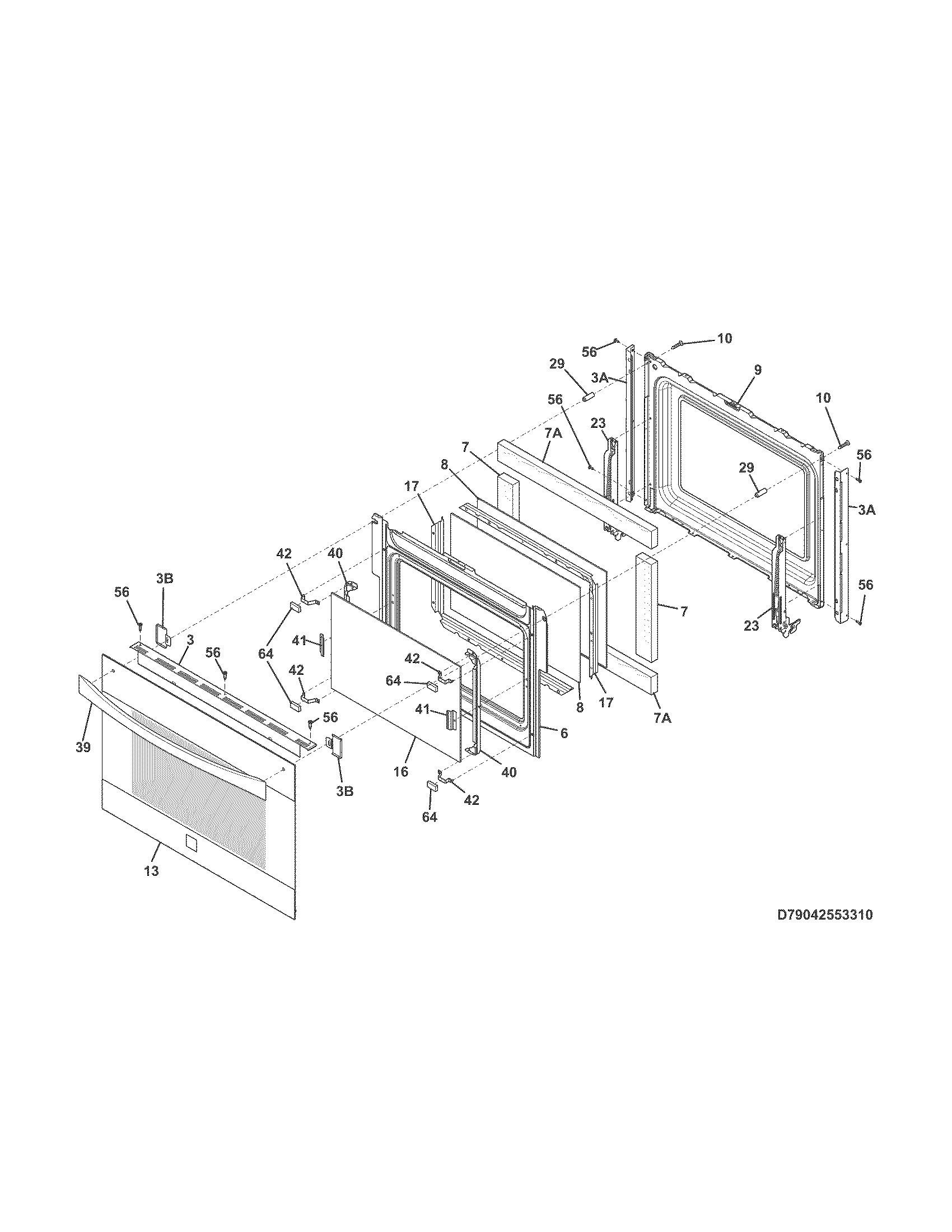

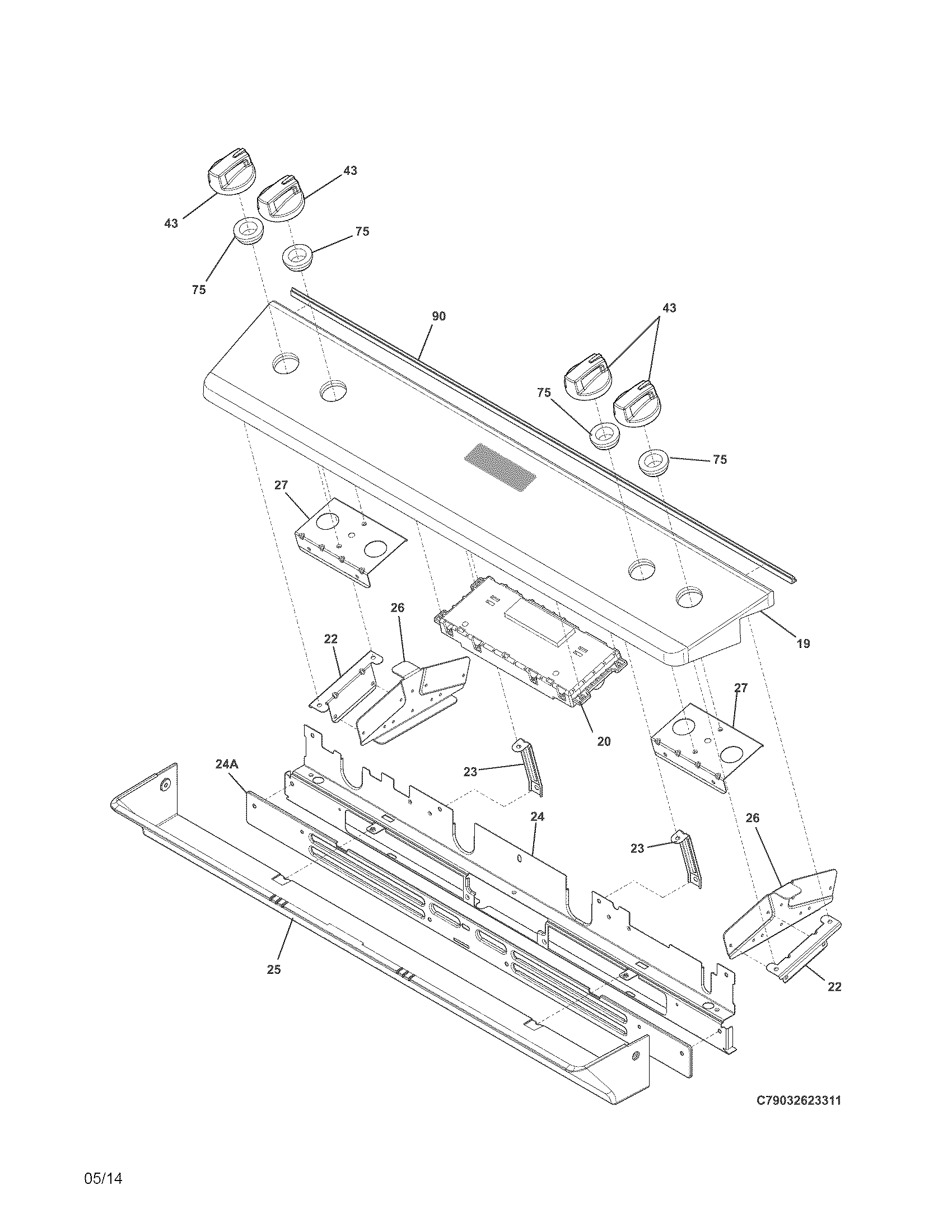

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 187 parts  |
Range Oven Temperature Sensor 318562500
#37

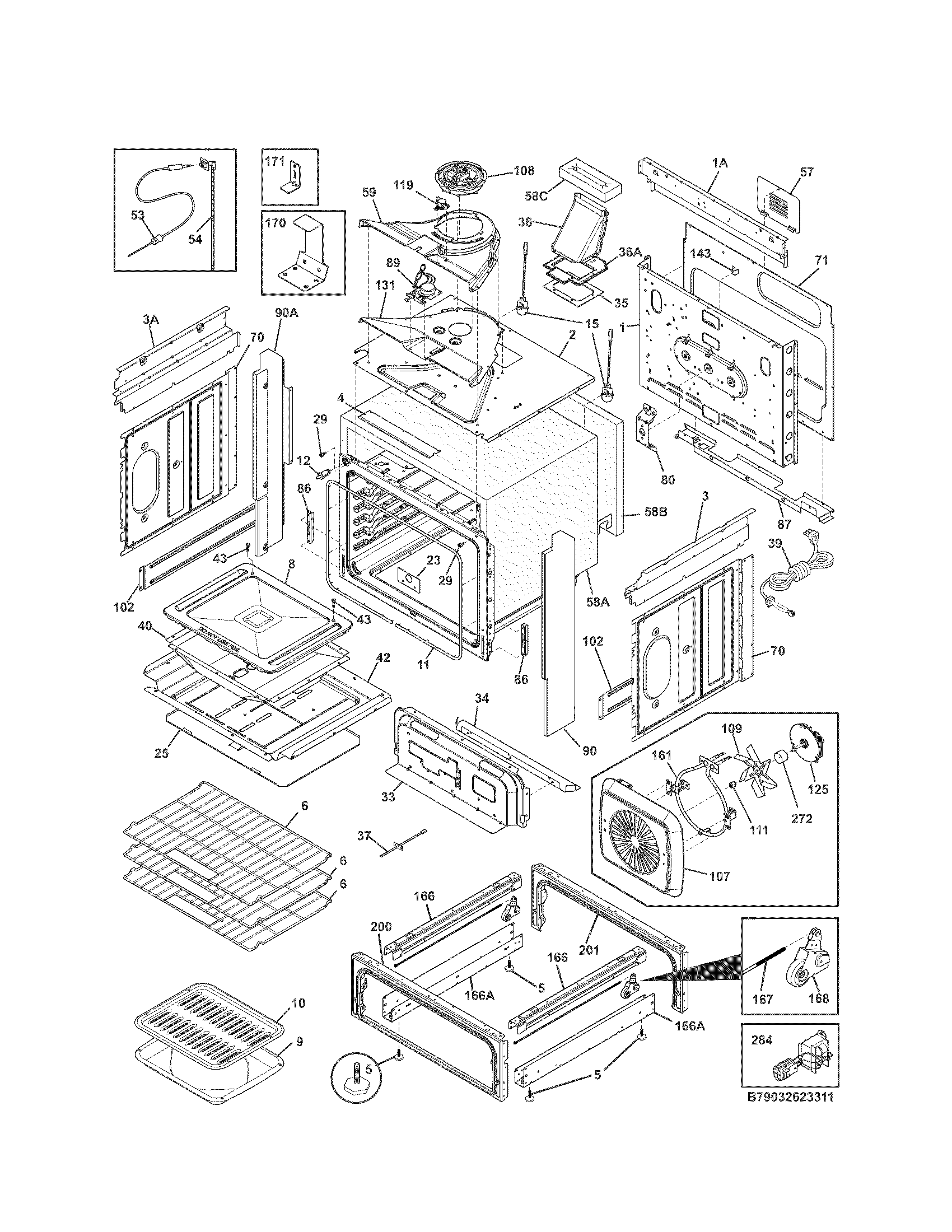

Body diagram

Range oven temperature sensor

Part #318562500

Replaced by #5304525427

?
Manufacturer substitution
This part replaces 318562500. Substitute parts can look different from the original.
BEST SELLER
$32.51 |
16% OFF Phone Price : $38.51
In Stock
Range Screw 5304472956
#4

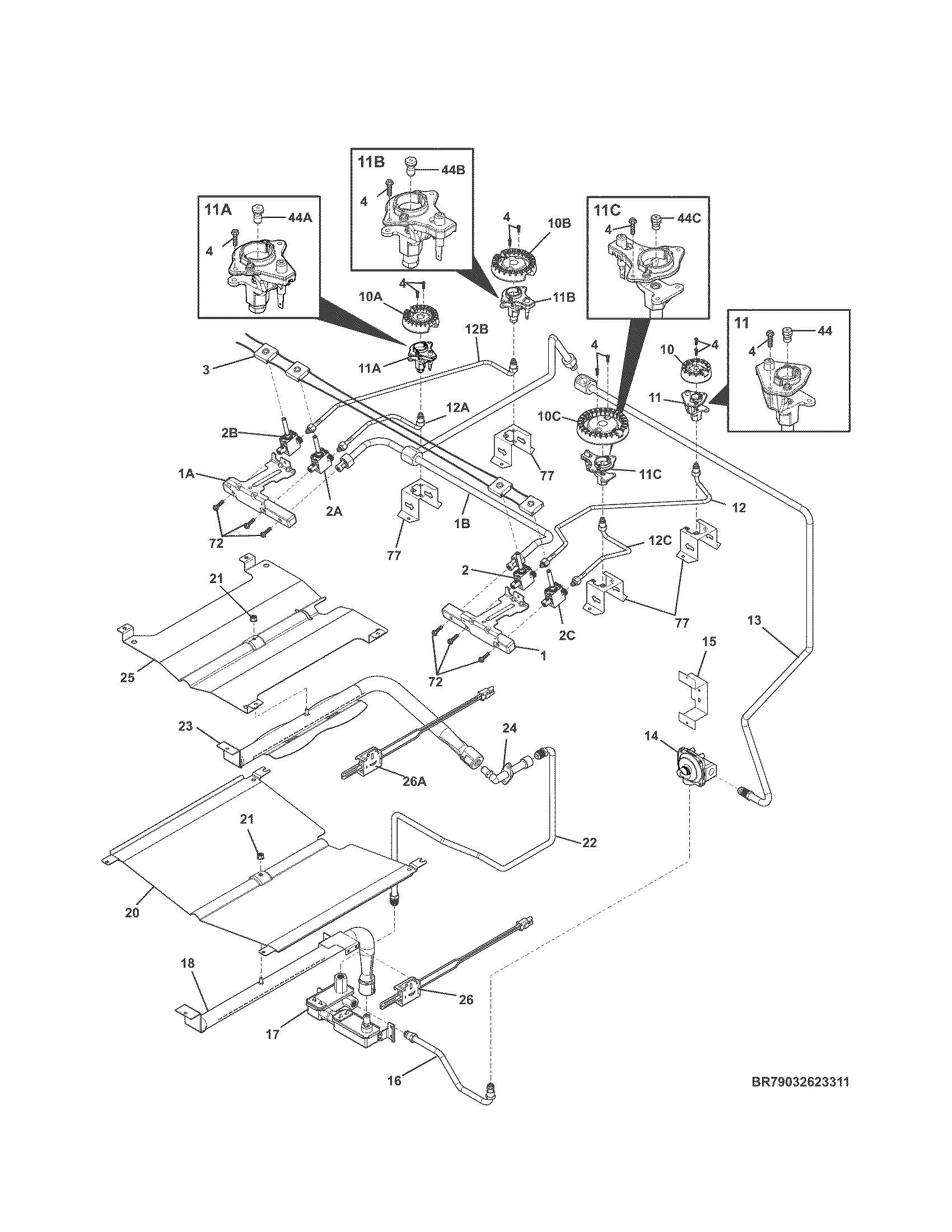

Burner diagram

Range screw

Part #5304472956

Replaced by #316240600

?
Manufacturer substitution
This part replaces 5304472956. Substitute parts can look different from the original.
BEST SELLER
$10.87 |
16% OFF Phone Price : $12.87
In Stock
Range Surface Burner Head (replaces 316527400, 7316558300) 316558300
#10A

Burner diagram

Range surface burner head (replaces 316527400, 7316558300)

Part #316558300

BEST SELLER
$41.85 |
13% OFF Phone Price : $47.85
In Stock
Tappan Range Surface Burner Head (replaces 7316438200) 316438200
#10

Burner diagram

Tappan range surface burner head (replaces 7316438200)

Part #316438200

BEST SELLER
$48.17 |
11% OFF Phone Price : $54.17
In Stock
Range Lp Conversion Kit 318565418
#NI

Burner diagram

Range lp conversion kit

Part #318565418

Replaced by #GRLP4

?
Manufacturer substitution
This part replaces 318565418. Substitute parts can look different from the original.
BEST SELLER
$42.94 |
12% OFF Phone Price : $48.94
In Stock
Range Surface Burner Cap 316262104
#22C

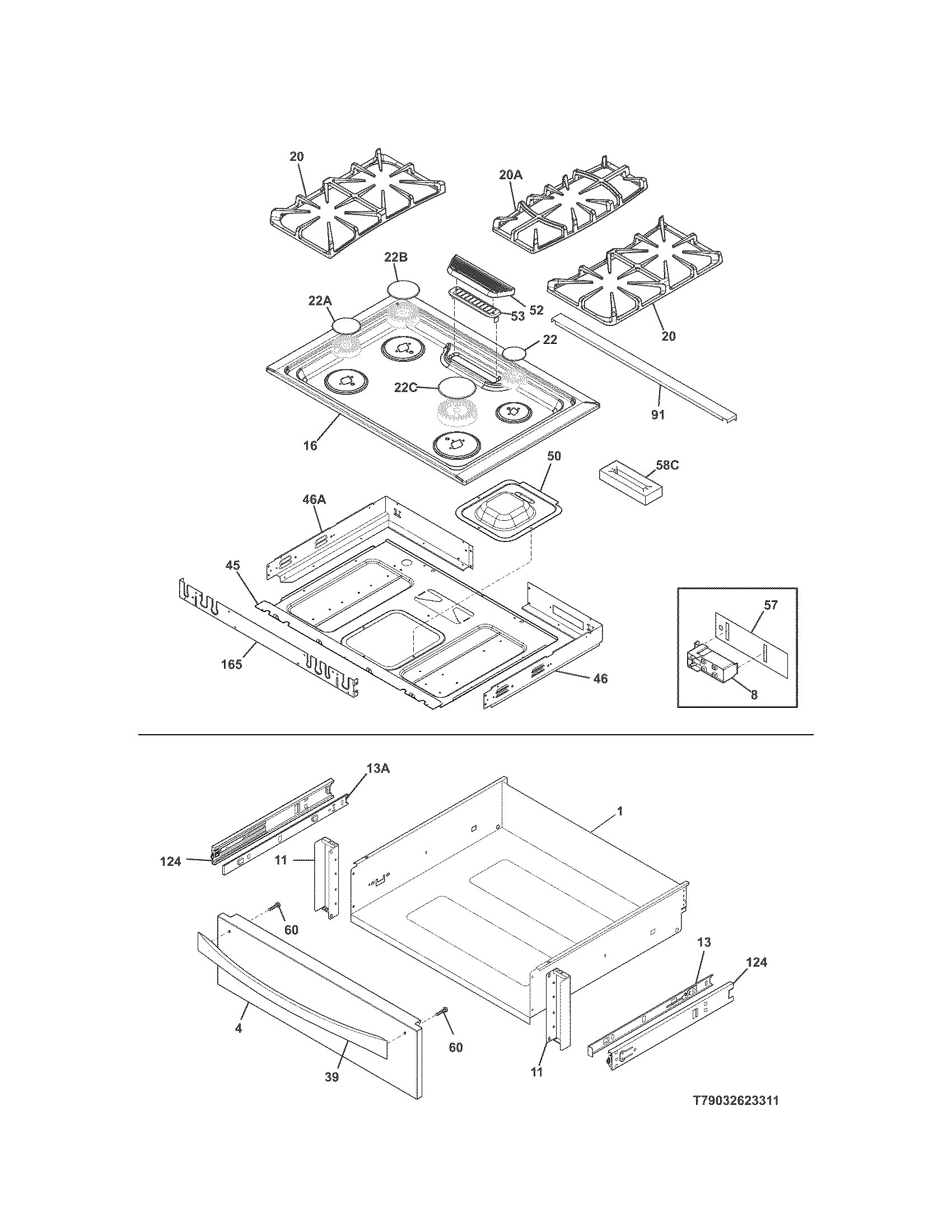

Top/drawer diagram

Range surface burner cap

Part #316262104

Replaced by #5304508468

?
Manufacturer substitution
This part replaces 316262104. Substitute parts can look different from the original.
BEST SELLER
$40.39 |
13% OFF Phone Price : $46.39
In Stock
Range Spark Module 316262405
#8

Top/drawer diagram

Range spark module

Part #316262405

Replaced by #808608802

?
Manufacturer substitution
This part replaces 316262405. Substitute parts can look different from the original.
BEST SELLER
$69.05 |
8% OFF Phone Price : $75.05
In Stock
Range Bake Igniter 139013700
#26

Burner diagram

Range bake igniter

Part #139013700

BEST SELLER
$100.80 |
11% OFF Phone Price : $112.80
In Stock
Range Surface Burner Cap 316262004
#22B

Top/drawer diagram

Range surface burner cap

Part #316262004

Replaced by #5304508443

?
Manufacturer substitution
This part replaces 316262004. Substitute parts can look different from the original.
BEST SELLER
$36.03 |
14% OFF Phone Price : $42.03
In Stock
Regulator 316416705
#14

Burner diagram

Regulator

Part #316416705

Replaced by #316091711

?
Manufacturer substitution
This part replaces 316416705. Substitute parts can look different from the original.
BEST SELLER
$79.36 |
7% OFF Phone Price : $85.36
In Stock
