Model # 2582327850 Official Craftsman gas outdoor grill

Here are the diagrams and repair parts for Official Craftsman 2582327850 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

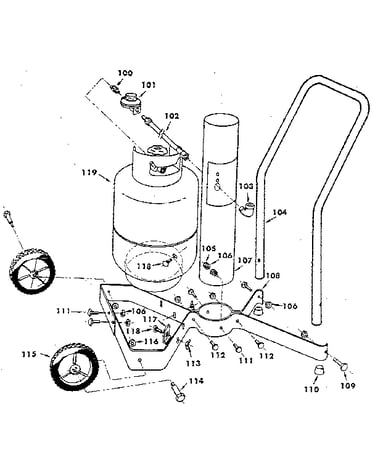

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 116 parts  |
Cap Screw STD522507
Cap screw

Part #STD522507

The manufacturer no longer makes this part, and there's no substitute part

Drive Assembly 7540-2
#215

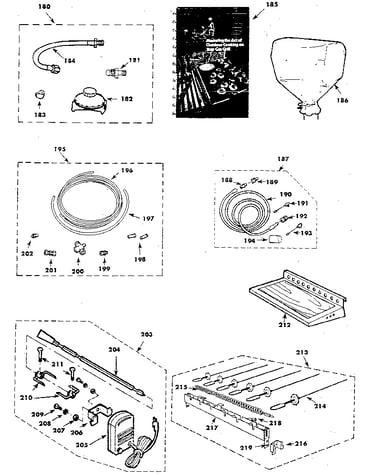

Optional accessories diagram

Drive assembly

Part #7540-2

The manufacturer no longer makes this part, and there's no substitute part

Hose 10111-8
Hose

Part #10111-8

The manufacturer no longer makes this part, and there's no substitute part

Clip Y-11836
#85

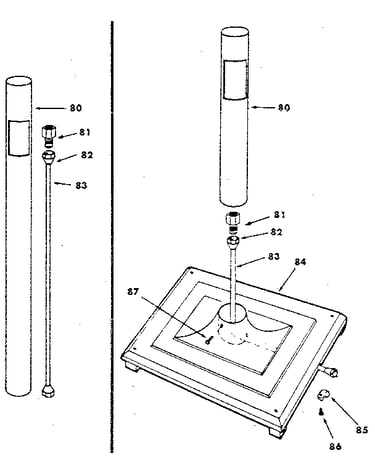

Post and patio base diagram

Clip

Part #Y-11836

The manufacturer no longer makes this part, and there's no substitute part

Base 10956-8
#84

Post and patio base diagram

Base

Part #10956-8

The manufacturer no longer makes this part, and there's no substitute part

Shelf Assembly 10724-23
#131

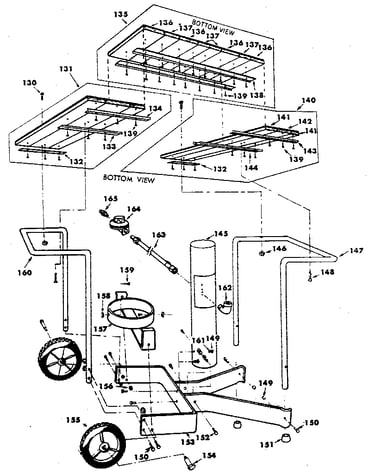

Deluxe cart diagram

Shelf assembly

Part #10724-23

The manufacturer no longer makes this part, and there's no substitute part

Shelf Assembly 10724-21
#135

Deluxe cart diagram

Shelf assembly

Part #10724-21

The manufacturer no longer makes this part, and there's no substitute part

Elbow Y-8645
Elbow

Part #Y-8645

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-147
#138

Deluxe cart diagram

Support

Part #10184-147

The manufacturer no longer makes this part, and there's no substitute part

Gas Valve 10691-33
#51

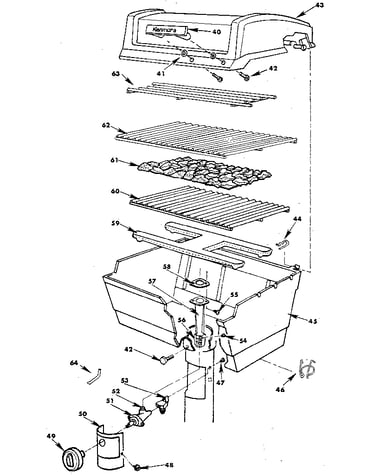

Grill and burner section diagram

Gas valve

Part #10691-33

The manufacturer no longer makes this part, and there's no substitute part
