DeWalt
Power Drill

Model # DW953K-2TY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DW953K-2TY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

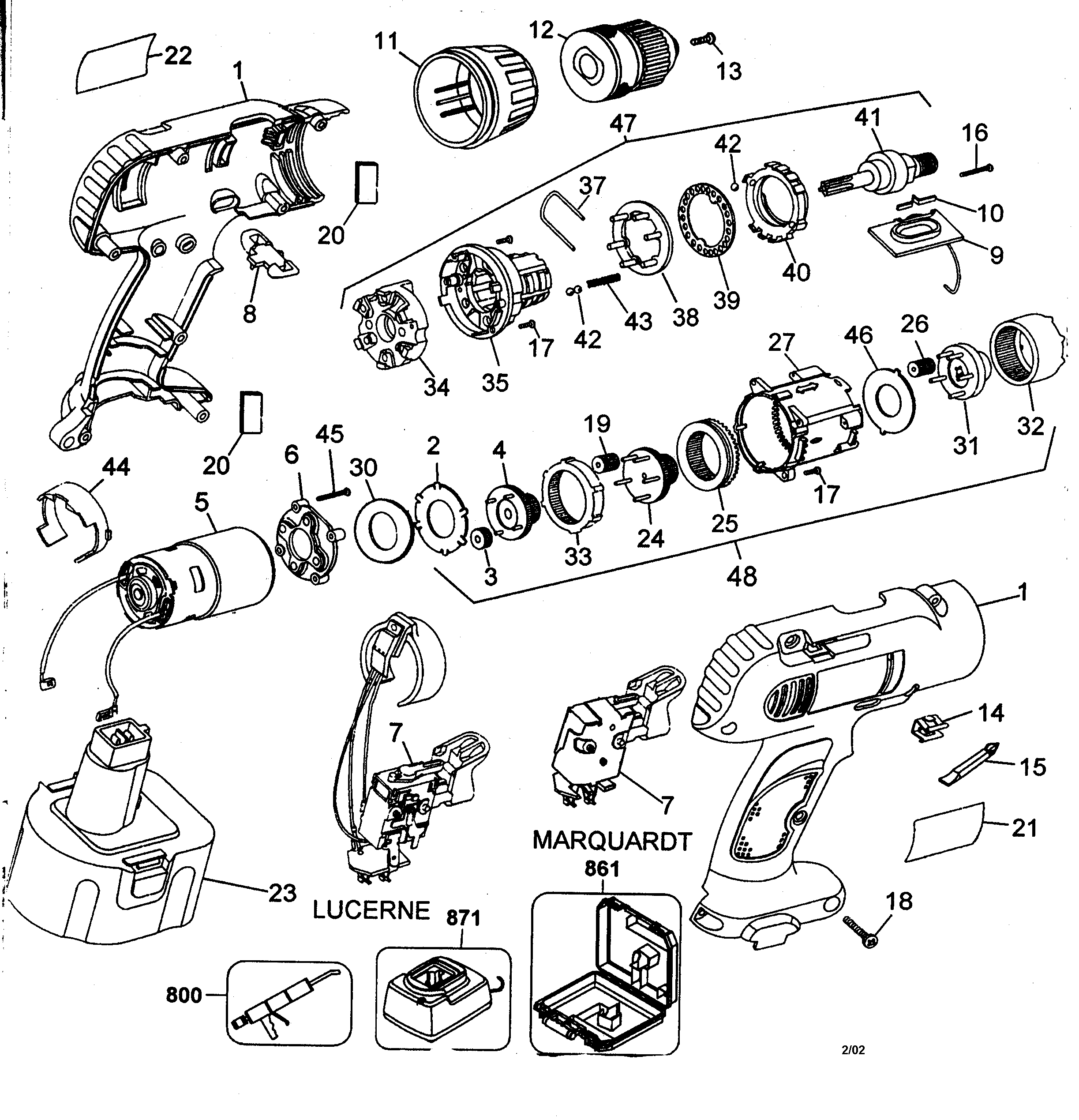

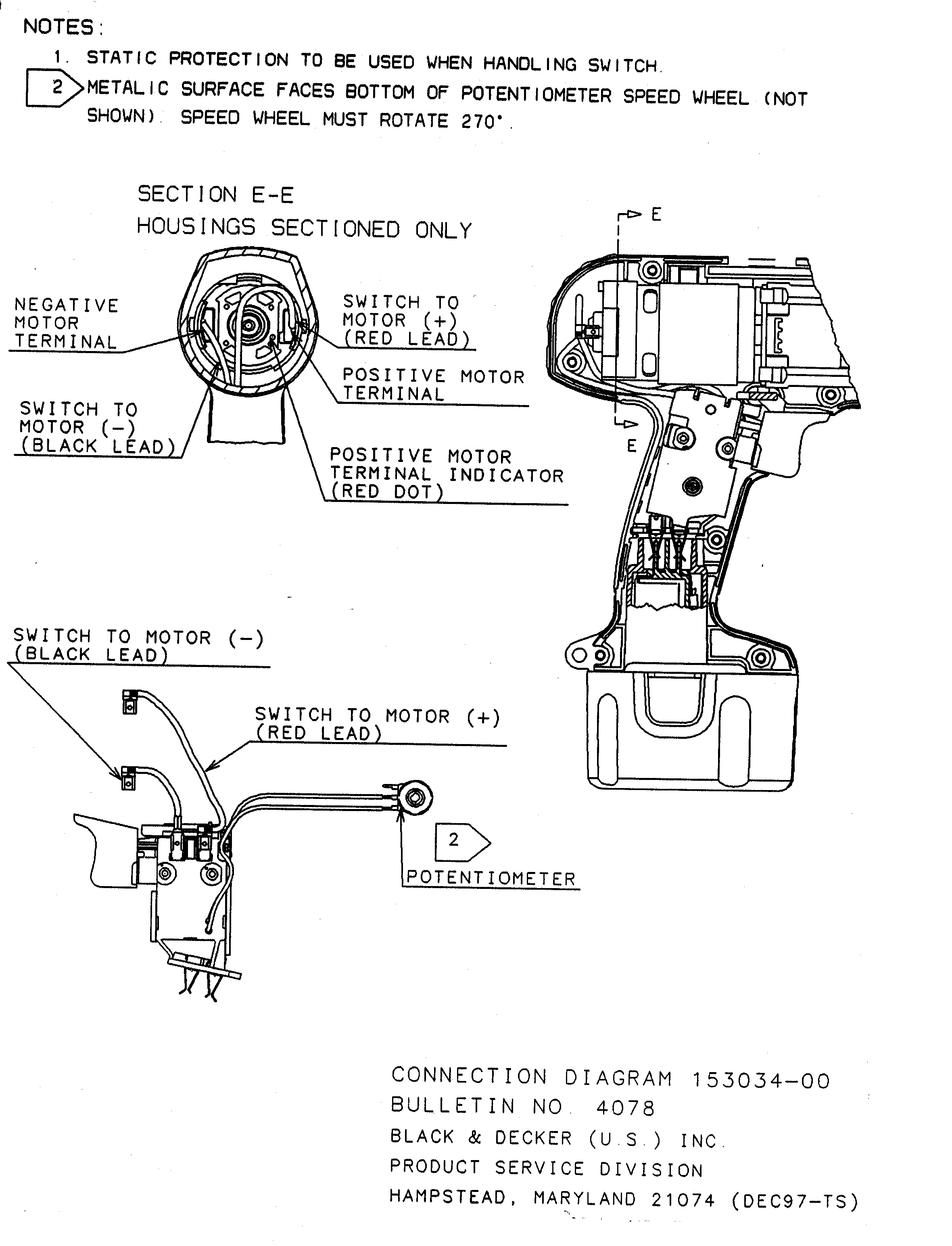

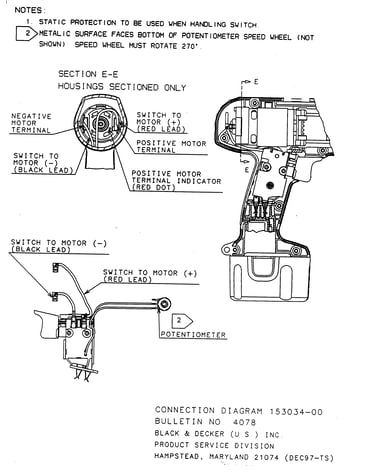

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Shifter Spring 144658-00
#10

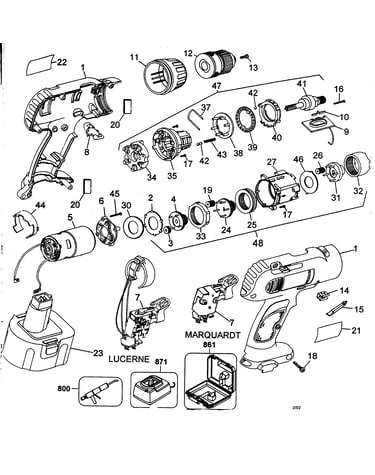

Drill diagram

Shifter spring

Part #144658-00

The manufacturer no longer makes this part, and there's no substitute part

Support 798963-01
#38

Drill diagram

Support

Part #798963-01

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Gear 151936-02
#3

Drill diagram

Black & decker gear

Part #151936-02

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Ring 392755-00
#32

Drill diagram

Black & decker ring

Part #392755-00

The manufacturer no longer makes this part, and there's no substitute part

Clip 798959-00
#37

Drill diagram

Clip

Part #798959-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker Adjustment 387068-00
#11

Drill diagram

Black & decker adjustment

Part #387068-00

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Pad 150844-00
#20

Drill diagram

Craftsman pad

Part #150844-00

The manufacturer no longer makes this part, and there's no substitute part

Gear 372274-00
#19

Drill diagram

Gear

Part #372274-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#14

Drill diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Spindle 386278-00
#41

Drill diagram

Dewalt spindle

Part #386278-00

The manufacturer no longer makes this part, and there's no substitute part
