Model # 1039567810 Official Kenmore 30" electric microwave/range

Here are the diagrams and repair parts for Official Kenmore 1039567810 30" electric microwave/range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

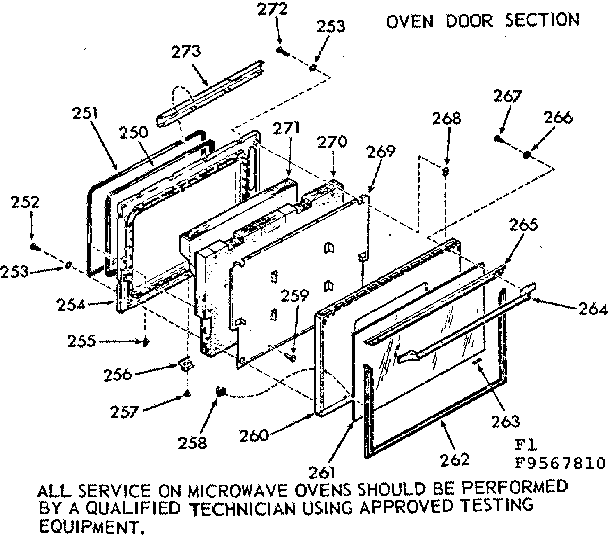

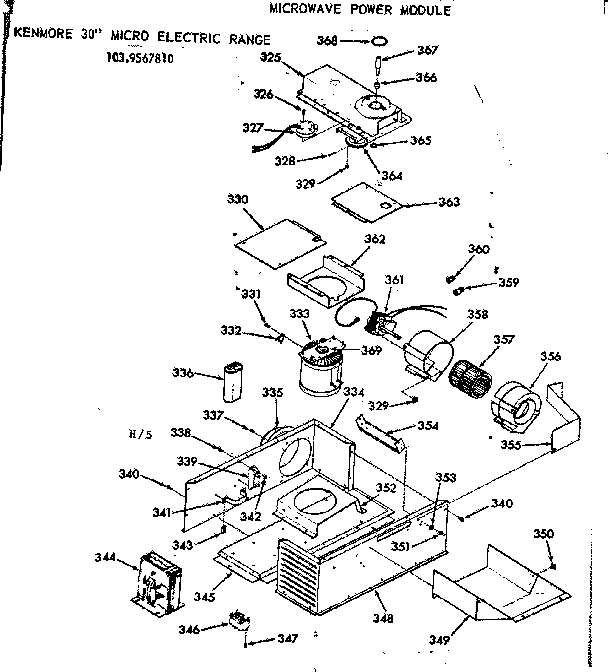

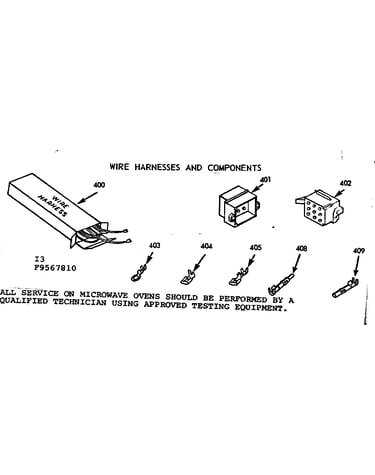

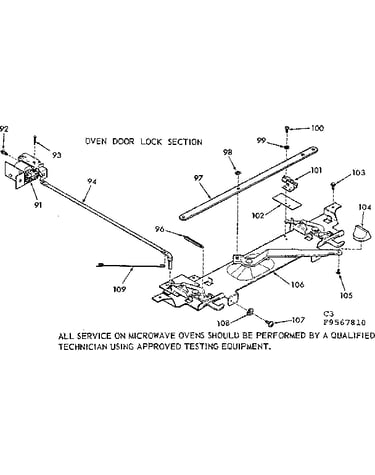

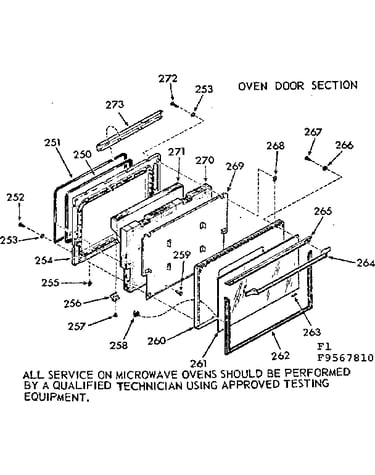

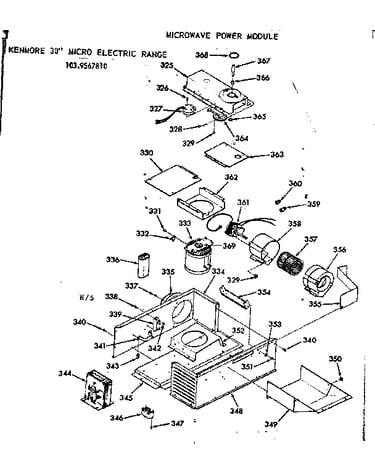

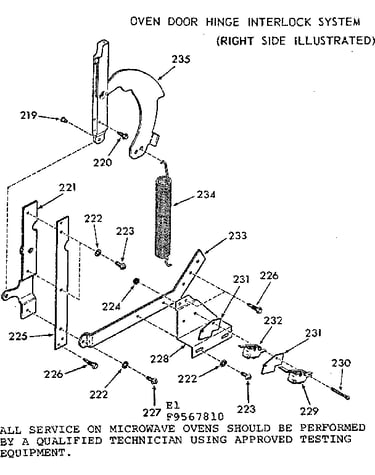

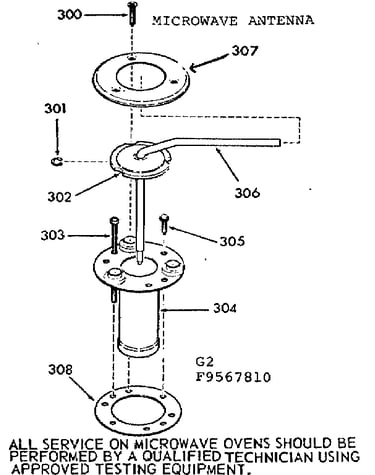

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 305 parts  |
Lamp Bulb STD372401
#127

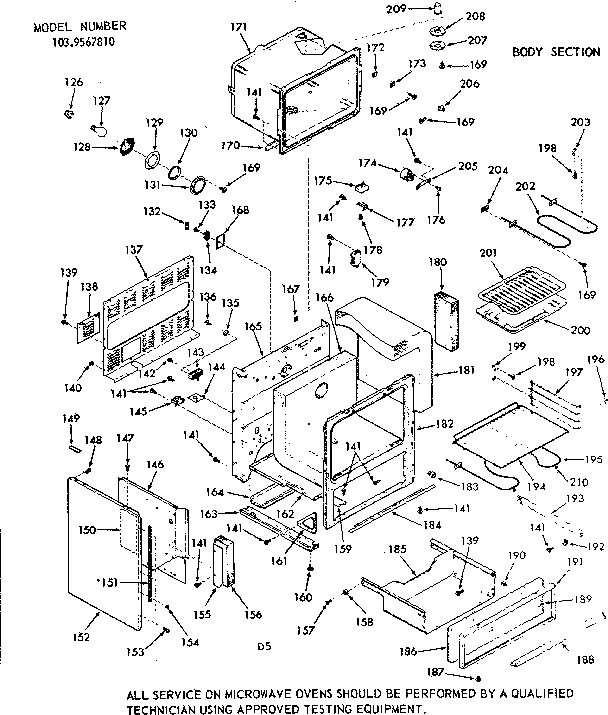

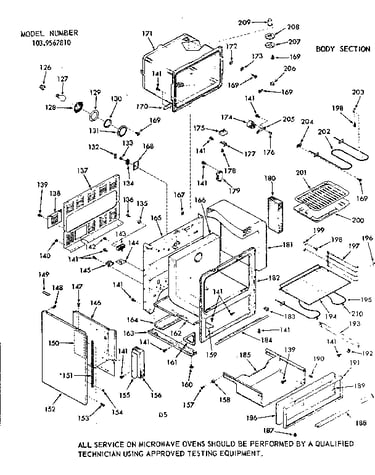

Body section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$15.16 |
12% OFF Phone Price : $17.16
In Stock
Terminal Block 304645
#74

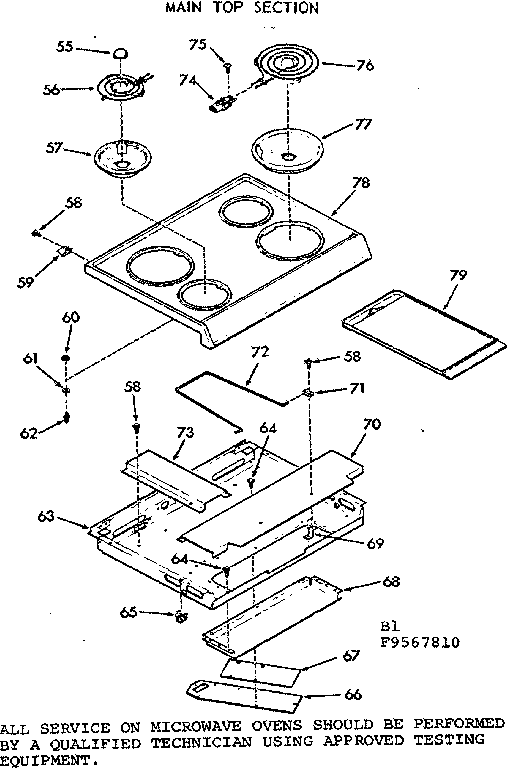

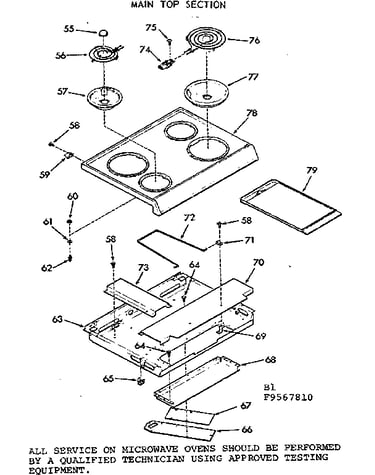

Main top section diagram

Terminal block

Part #304645

Replaced by #WB17X210

?
Manufacturer substitution
This part replaces 304645. Substitute parts can look different from the original.
BEST SELLER
$22.97 |
21% OFF Phone Price : $28.97
In Stock
Infinite Switch 301818
#13

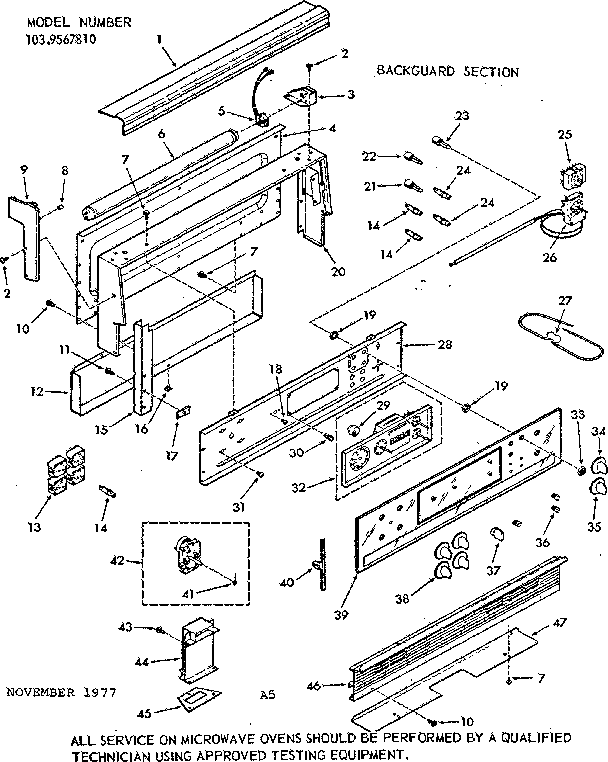

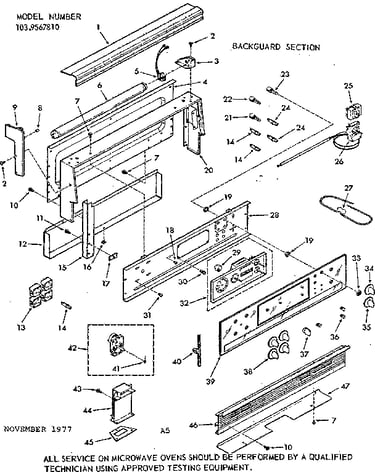

Backguard section diagram

Infinite switch

Part #301818

Replaced by #WB21X36771

?
Manufacturer substitution
This part replaces 301818. Substitute parts can look different from the original.
BEST SELLER
$44.00 |
12% OFF Phone Price : $50.00
In Stock
Bowl 304969
#77

Main top section diagram

Bowl

Part #304969

Replaced by #WB32X106

?
Manufacturer substitution
This part replaces 304969. Substitute parts can look different from the original.
BEST SELLER
$13.87 |
13% OFF Phone Price : $15.87
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102430
Screw

Part #102430

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102430. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 102428
Screw

Part #102428

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 102428. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 299424
#136

Body section diagram

Screw

Part #299424

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 299424. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Unit 112690
#76A

Main top section diagram

Unit

Part #112690

The manufacturer no longer makes this part, and there's no substitute part

Screw 299632
#75

Main top section diagram

Screw

Part #299632

Replaced by #WB1X1425

?
Manufacturer substitution
This part replaces 299632. Substitute parts can look different from the original.
This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
