Power Drill

Model # 900271001 Official Craftsman 3/8" industrial drill

Here are the diagrams and repair parts for Official Craftsman 900271001 3/8" industrial drill, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
900271001 Power Tools
Sears Drill Motor Brush Spring 445860-00
#4

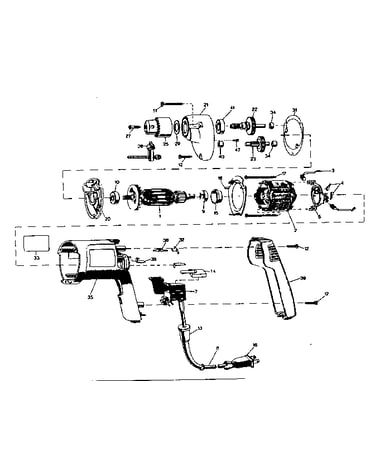

Unit parts diagram

Sears drill motor brush spring

Part #445860-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Fan Baffle 447866-00
#16

Unit parts diagram

Sears fan baffle

Part #447866-00

The manufacturer no longer makes this part, and there's no substitute part

Terminal 449192-00
#36

Unit parts diagram

Terminal

Part #449192-00

The manufacturer no longer makes this part, and there's no substitute part

Brinley Power Tool 2-prong Power Cord 448557-98
#8

Unit parts diagram

Brinley power tool 2-prong power cord

Part #448557-98

The manufacturer no longer makes this part, and there's no substitute part

Sears Screw 448269-00
#17

Unit parts diagram

Sears screw

Part #448269-00

The manufacturer no longer makes this part, and there's no substitute part

Sears Plug 234900-02
#18

Unit parts diagram

Sears plug

Part #234900-02

The manufacturer no longer makes this part, and there's no substitute part

Ndl Bearing 93128-00
#34

Unit parts diagram

Ndl bearing

Part #93128-00

The manufacturer no longer makes this part, and there's no substitute part

Ndl Bearing 93129-00
#40

Unit parts diagram

Ndl bearing

Part #93129-00

The manufacturer no longer makes this part, and there's no substitute part

Field Case 447865-01
#35

Unit parts diagram

Field case

Part #447865-01

The manufacturer no longer makes this part, and there's no substitute part

Pinion Gear 132323-05
#23

Unit parts diagram

Pinion gear

Part #132323-05

The manufacturer no longer makes this part, and there's no substitute part
