Model # 86776871 Official Kenmore gas-fired horizontal furnace

Here are the diagrams and repair parts for Official Kenmore 86776871 gas-fired horizontal furnace, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for86776871 Gas-Fired Horizontal Furnace

  • Thermocouple 92097
    #49

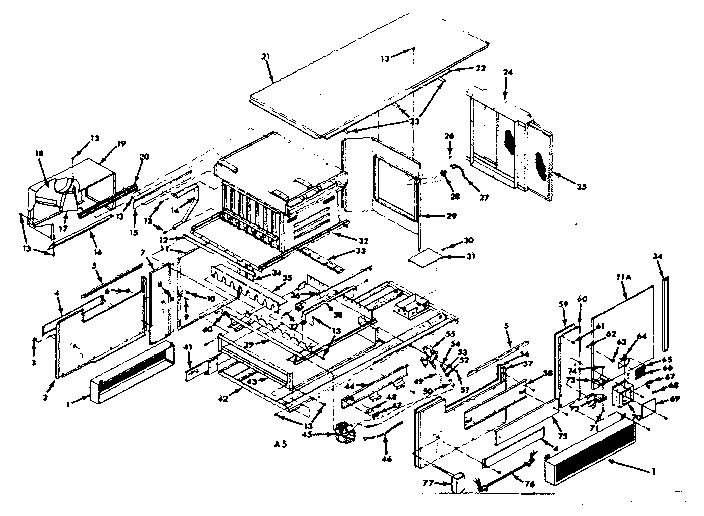

    Furnace assembly diagram

    Thermocouple

    Part #92097

    Replaced by #H06E-36

    ?
    Manufacturer substitution
    This part replaces 92097. Substitute parts can look different from the original.
    $14.91
    12% OFF Phone Price : $16.91
    In Stock
  • Pilot Tube 91464
    #50

    Furnace assembly diagram

    Pilot tube

    Part #91464

    Replaced by #100108370

    ?
    Manufacturer substitution
    This part replaces 91464. Substitute parts can look different from the original.
    In Stock
  • Limit Control 93045
    #28

    Furnace assembly diagram

    Limit control

    Part #93045

    Replaced by #3L05-1

    ?
    Manufacturer substitution
    This part replaces 93045. Substitute parts can look different from the original.
    $32.47
    16% OFF Phone Price : $38.47
    In Stock
  • Fan Wheel 72978
    #2B

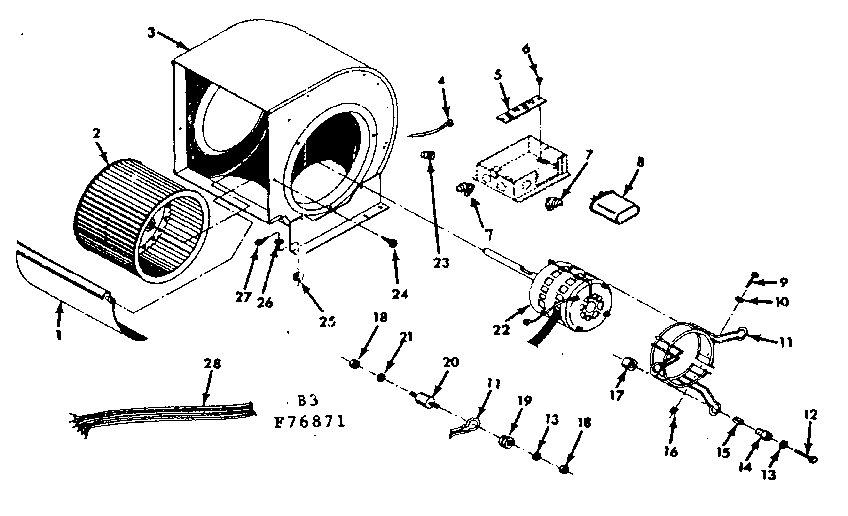

    H-q blower assembly diagram

    Fan wheel

    Part #72978

    Replaced by #600587

    ?
    Manufacturer substitution
    This part replaces 72978. Substitute parts can look different from the original.
    $151.49
    7% OFF Phone Price : $163.49
    In Stock
  • Transformer 92891
    #72

    Furnace assembly diagram

    Transformer

    Part #92891

    The manufacturer no longer makes this part, and there's no substitute part

  • Burner 89592
    #36

    Furnace assembly diagram

    Burner

    Part #89592

    Replaced by #610232

    ?
    Manufacturer substitution
    This part replaces 89592. Substitute parts can look different from the original.
    In Stock
  • F/l Cont 87056
    #77

    Furnace assembly diagram

    F/l cont

    Part #87056

    The manufacturer no longer makes this part, and there's no substitute part

  • Motor 1/4 Hp 84745
    #22B

    H-q blower assembly diagram

    Motor 1/4 hp

    Part #84745

    The manufacturer no longer makes this part, and there's no substitute part

  • Valve 93575
    #45B

    Furnace assembly diagram

    Valve

    Part #93575

    Replaced by #36C53-418

    ?
    Manufacturer substitution
    This part replaces 93575. Substitute parts can look different from the original.
    $615.82
    $12.00 OFF Phone Price : $627.82
    In Stock
  • Valve 92922
    #45A

    Furnace assembly diagram

    Valve

    Part #92922

    Replaced by #36C53-418

    ?
    Manufacturer substitution
    This part replaces 92922. Substitute parts can look different from the original.
    $615.82
    $12.00 OFF Phone Price : $627.82
    In Stock
