KitchenAid
Gas Cooktop

Model # KGCP462KSS01 Official KitchenAid gas counter unit

Here are the diagrams and repair parts for Official KitchenAid KGCP462KSS01 gas counter unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |
Spark Module 8522423
#29

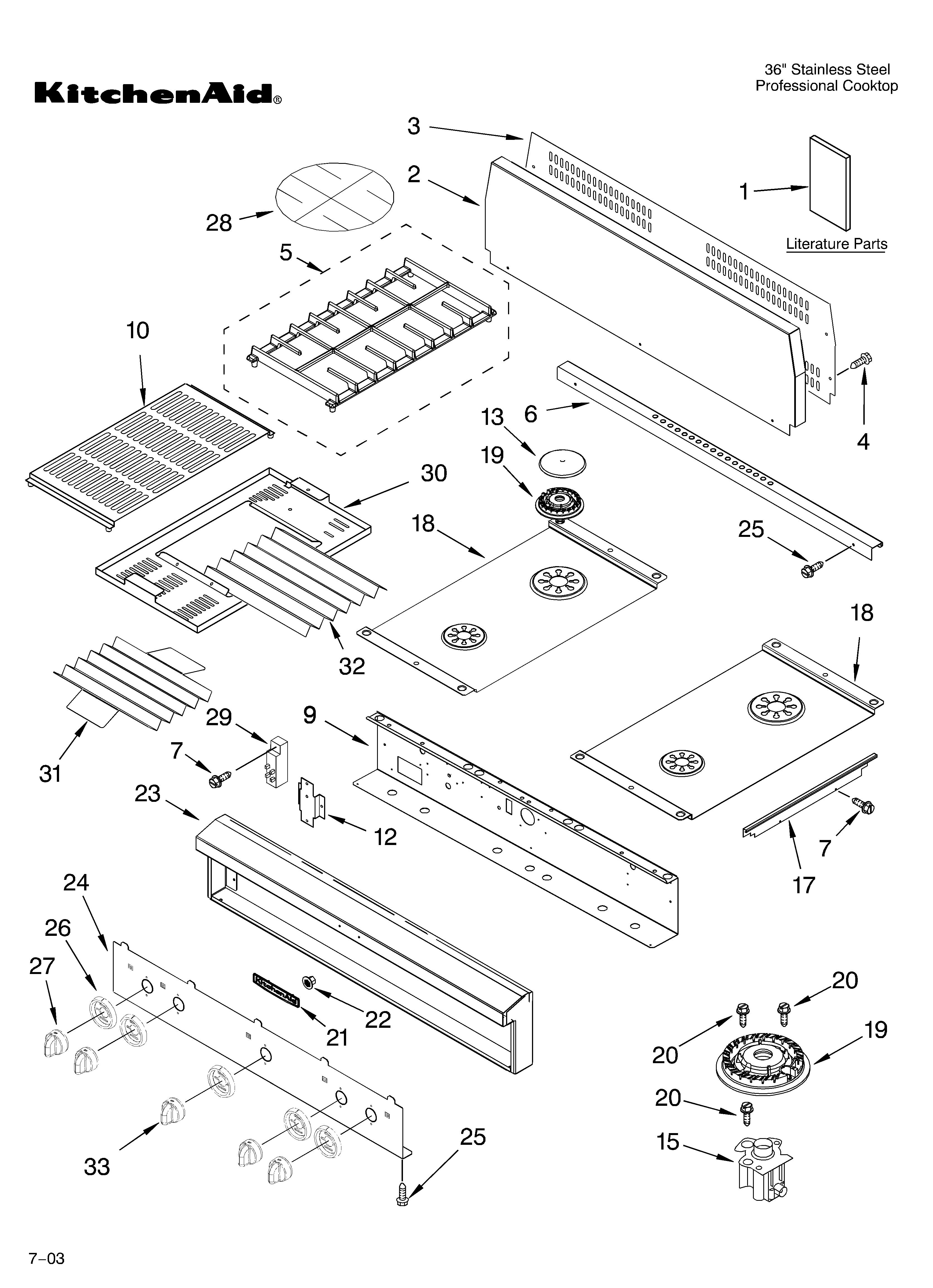

Cooktop, burner and grate parts diagram

Spark module

Part #8522423

Replaced by #WPW10110491

?
Manufacturer substitution
This part replaces 8522423. Substitute parts can look different from the original.
$89.53 |
6% OFF Phone Price : $95.53
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cooktop Grill Burner Valve 8284858
#14

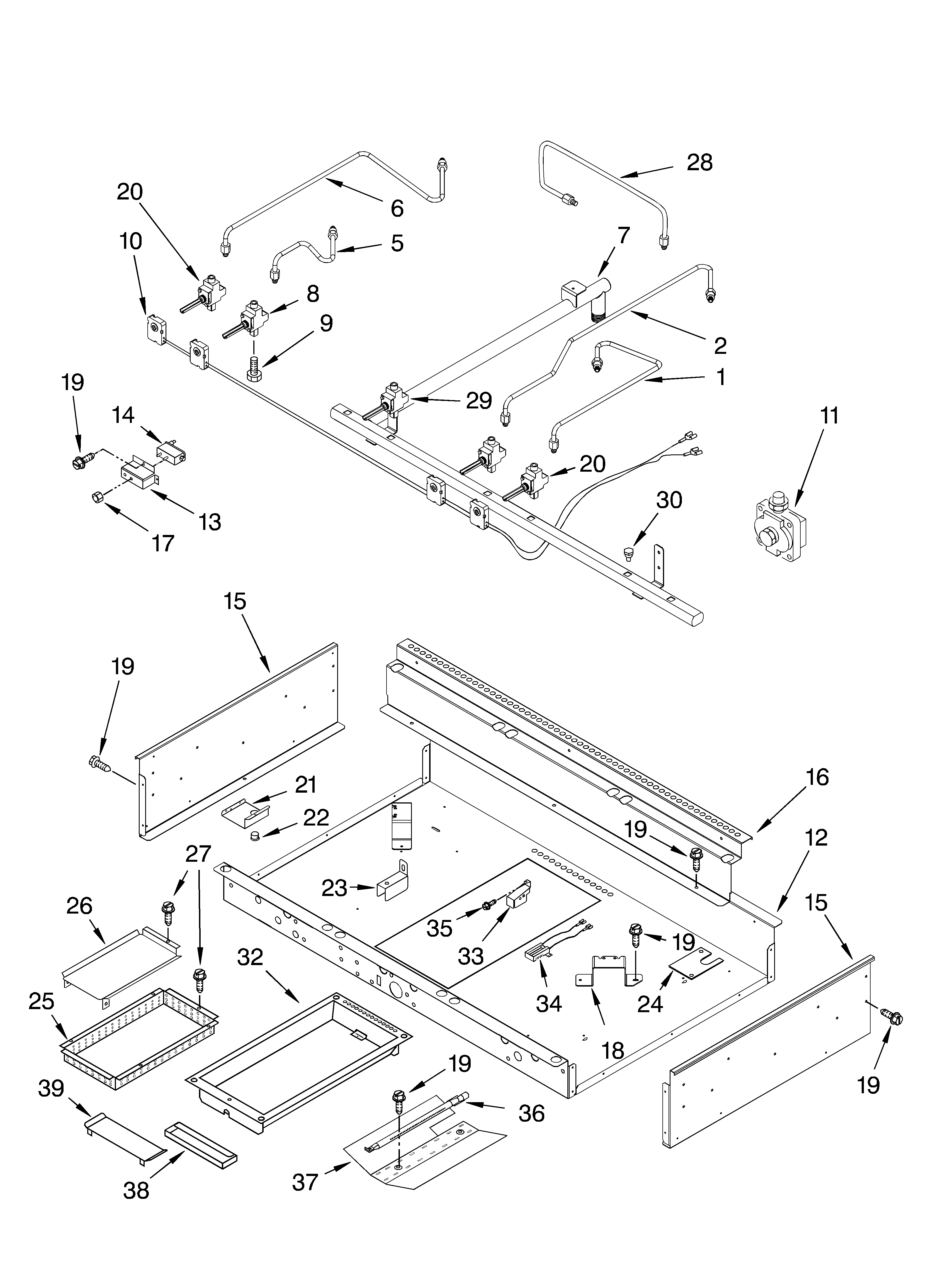

Burner box, gas valves, and switches diagram

Cooktop grill burner valve

Part #8284858

$173.69 |
6% OFF Phone Price : $185.69
In Stock
Knob 4454970
#27

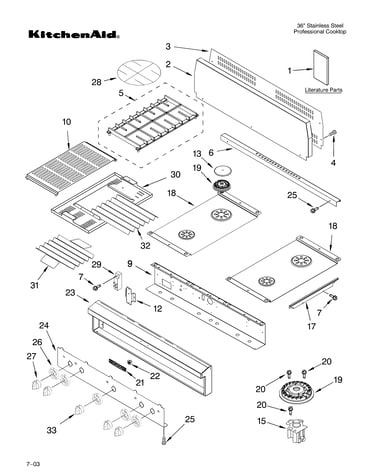

Cooktop, burner and grate parts diagram

Knob

Part #4454970

Replaced by #WPW10078400

?
Manufacturer substitution
This part replaces 4454970. Substitute parts can look different from the original.
This item is not returnable
$4.78
In Stock
Bushing 4173634
#NI

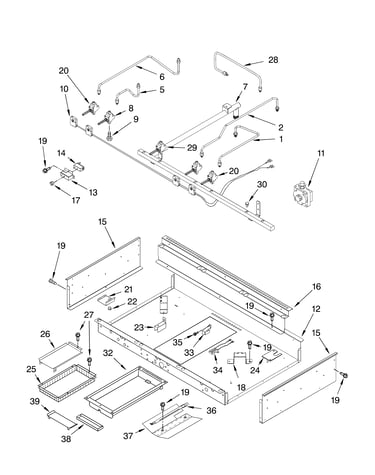

Burner box, gas valves, and switches diagram

Bushing

Part #4173634

$8.49 |
11% OFF Phone Price : $9.49
In Stock
Screw 3400855
#35

Burner box, gas valves, and switches diagram

Screw

Part #3400855

This item is not returnable
$5.15
In Stock
Range Wire Harness 4456627
#NI

Burner box, gas valves, and switches diagram

Range wire harness

Part #4456627

$53.76
In Stock
Range Screw 3400843
Range screw

Part #3400843

Replaced by #WP12990527

?
Manufacturer substitution
This part replaces 3400843. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Seal Switch 3192439
#10A

Burner box, gas valves, and switches diagram

Seal switch

Part #3192439

Replaced by #W10491984

?
Manufacturer substitution
This part replaces 3192439. Substitute parts can look different from the original.
This item is not returnable
$8.79 |
10% OFF Phone Price : $9.79
In Stock
Range Screw 3368921
#20

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
This item is not returnable
$6.23 |
14% OFF Phone Price : $7.23
In Stock
