Model # FEF364FWA Official Frigidaire electric range

Here are the diagrams and repair parts for Official Frigidaire FEF364FWA electric range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 111 parts  |
Frigidaire Range Surface Element Control Switch (replaces 316021501, 5304506425) 316436001
#54A

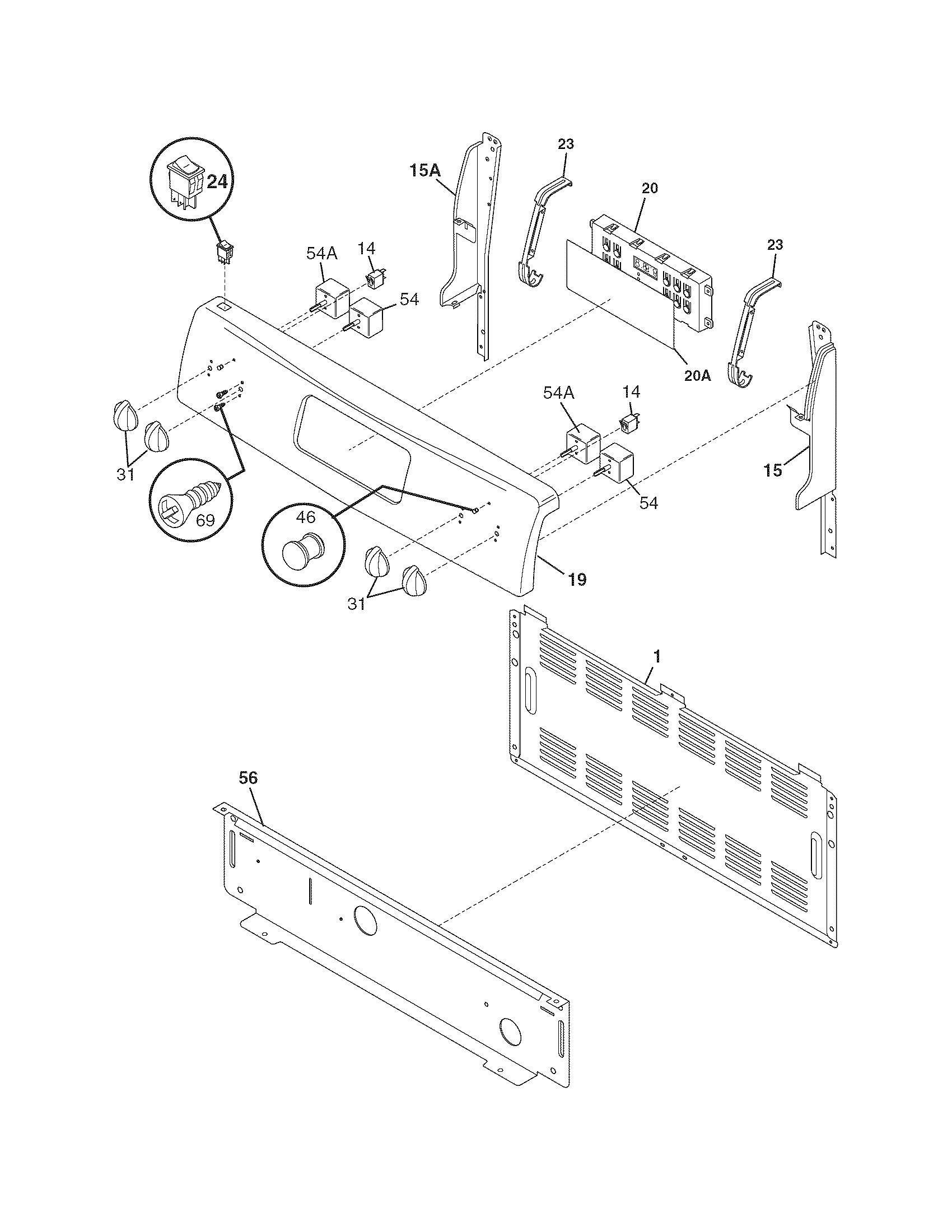

Backguard diagram

Frigidaire range surface element control switch (replaces 316021501, 5304506425)

Part #316436001

BEST SELLER
$36.82 |
14% OFF Phone Price : $42.82
In Stock
Frigidaire Range Bake Element (replaces 316075104) 316075103
#67

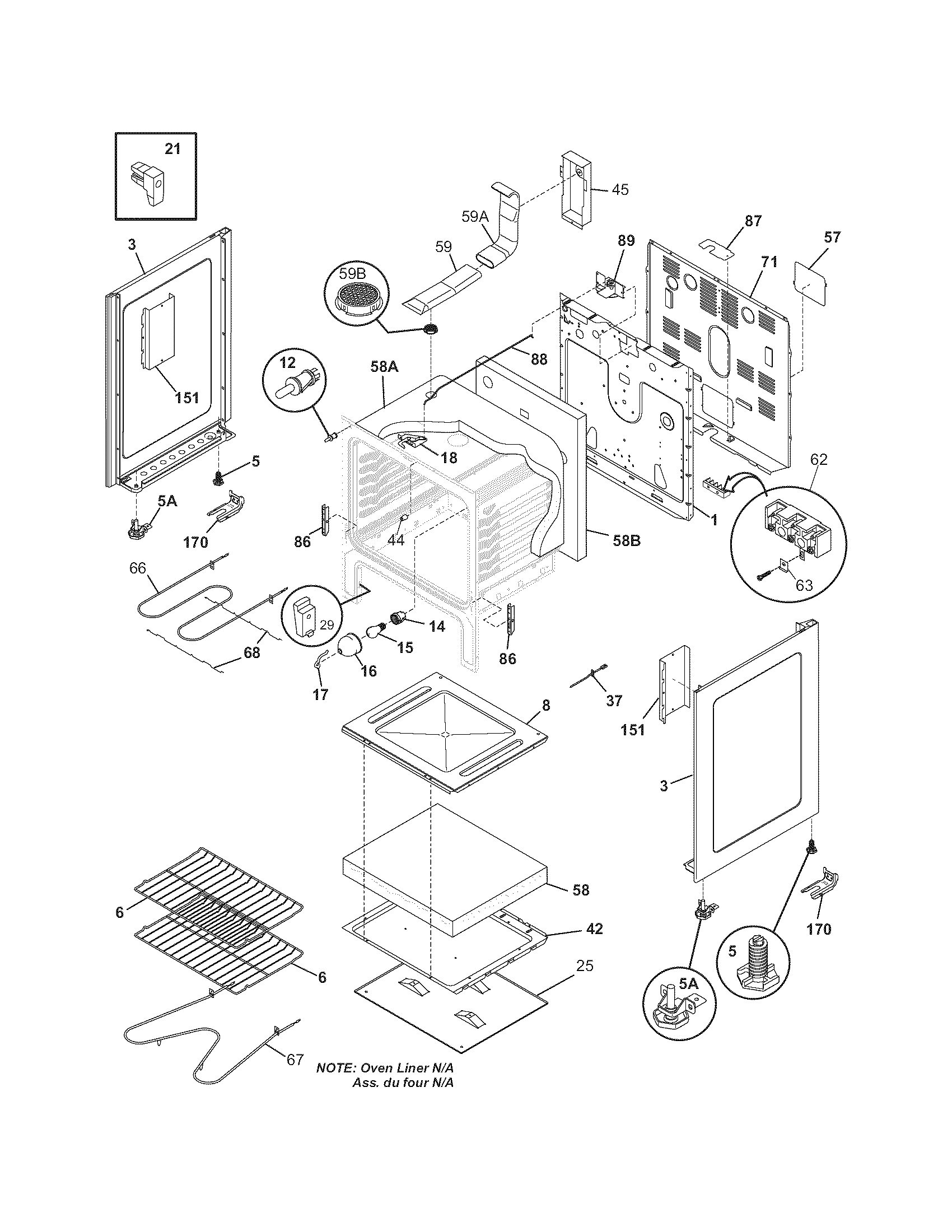

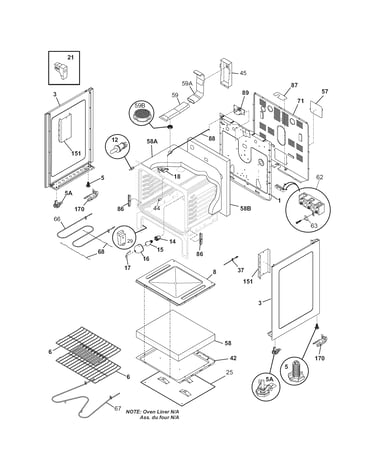

Body diagram

Frigidaire range bake element (replaces 316075104)

Part #316075103

BEST SELLER
$25.77 |
19% OFF Phone Price : $31.77
In Stock
Universal/multiflex (frigidaire) Range Small Surface Element Control Switch (replaces 316021500, 5304506424) 316436000
#54

Backguard diagram

Universal/multiflex (frigidaire) range small surface element control switch (replaces 316021500, 5304506424)

Part #316436000

BEST SELLER
$57.43 |
9% OFF Phone Price : $63.43
In Stock
Range Oven Light Bulb 5303013071
#15

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Universal/multiflex (frigidaire) Range Oven Door Handle Screw, 10-14 X 2-1/8-inch 316433300
#10

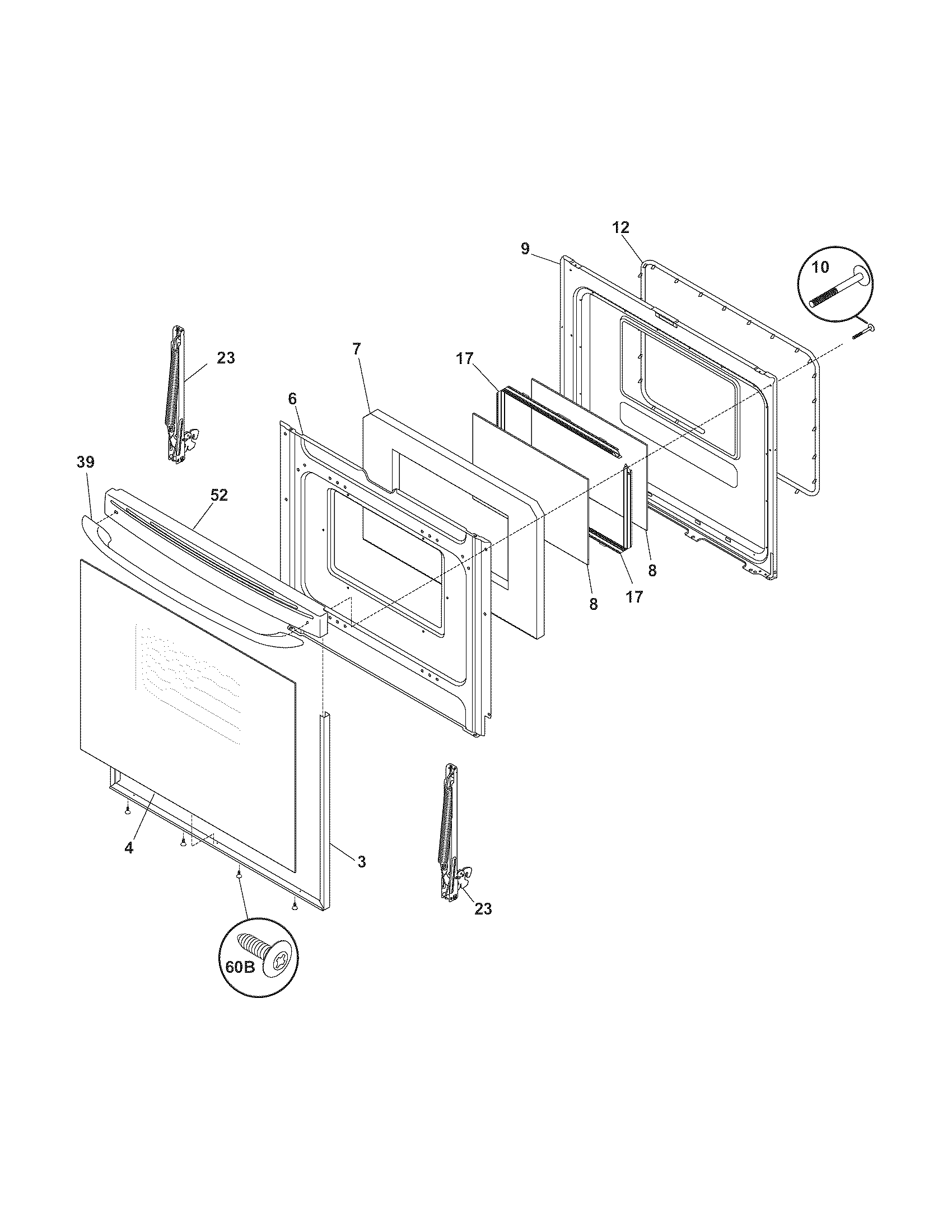

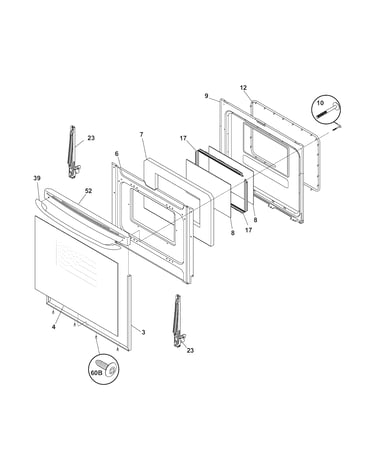

Door diagram

Universal/multiflex (frigidaire) range oven door handle screw, 10-14 x 2-1/8-inch

Part #316433300

BEST SELLER
$15.59 |
11% OFF Phone Price : $17.59
In Stock
Range Radiant Surface Element, 9-in 316224200
#15B

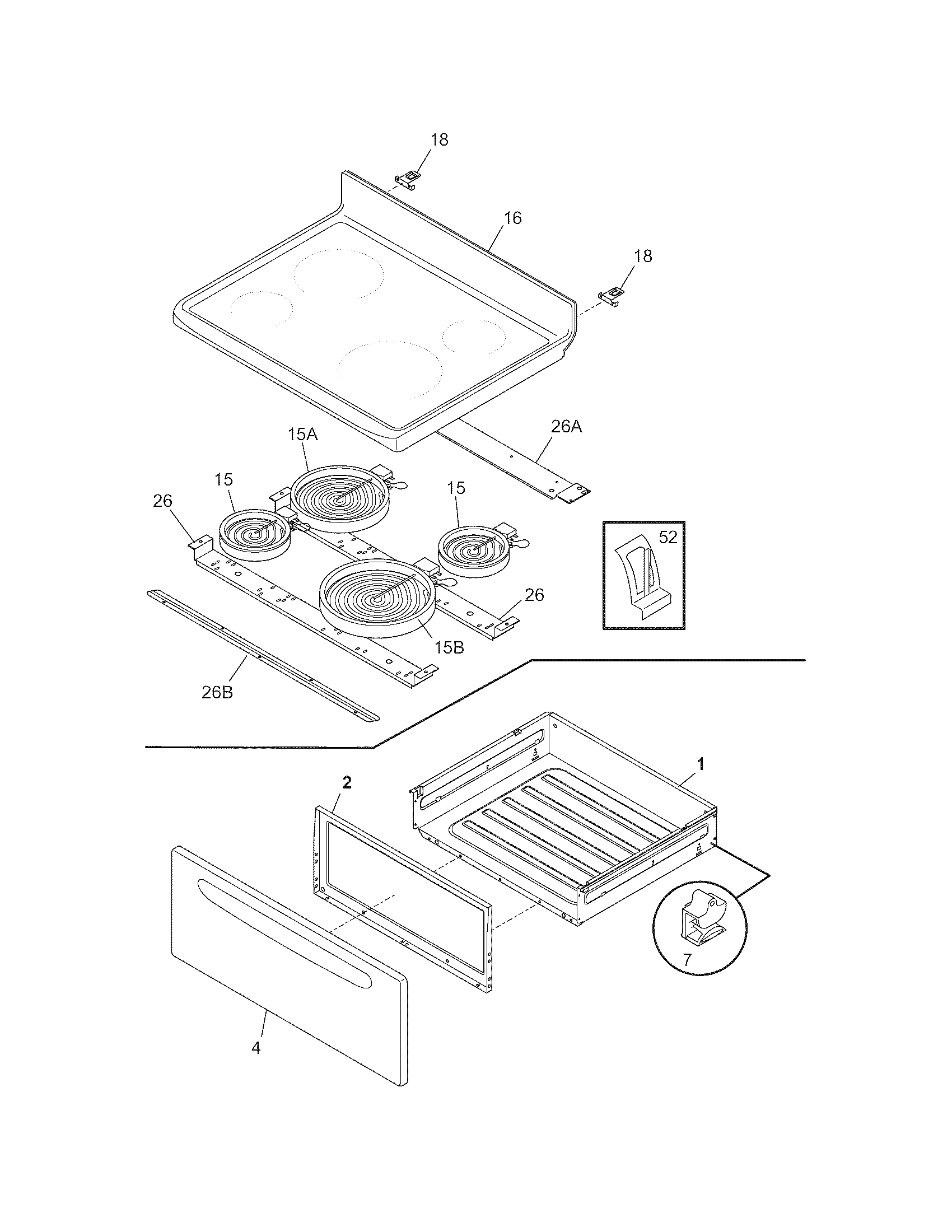

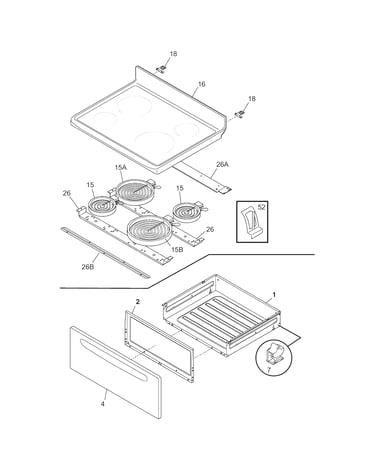

Top/drawer diagram

Range radiant surface element, 9-in

Part #316224200

Replaced by #316135401

?
Manufacturer substitution
This part replaces 316224200. Substitute parts can look different from the original.
BEST SELLER
$161.94 |
7% OFF Phone Price : $173.94
In Stock
Probe 316217001
#37

Body diagram

Probe

Part #316217001

Replaced by #316490001

?
Manufacturer substitution
This part replaces 316217001. Substitute parts can look different from the original.
BEST SELLER
$45.55 |
12% OFF Phone Price : $51.55
In Stock
Motor 316415400
#89

Body diagram

Motor

Part #316415400

Replaced by #5304528973

?
Manufacturer substitution
This part replaces 316415400. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Range Light Socket (replaces 5308011085) 316116400
#14

Body diagram

Range light socket (replaces 5308011085)

Part #316116400

BEST SELLER
$42.01 |
12% OFF Phone Price : $48.01
In Stock
Range Control Overlay 316419101
#20A

Backguard diagram

Range control overlay

Part #316419101

Replaced by #316419134

?
Manufacturer substitution
This part replaces 316419101. Substitute parts can look different from the original.
BEST SELLER
$32.96 |
15% OFF Phone Price : $38.96
In Stock
