GE
Countertop Microwave

Model # JEM31GA01 Official GE microwave

Here are the diagrams and repair parts for Official GE JEM31GA01 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

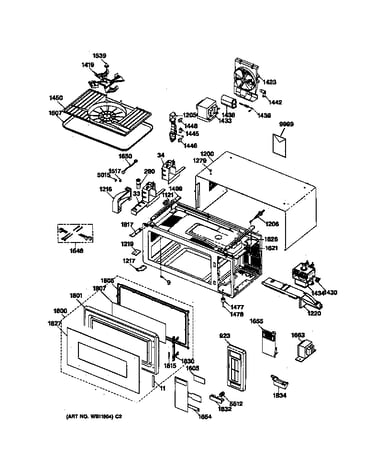

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Primary Switch WB24X439
#1446

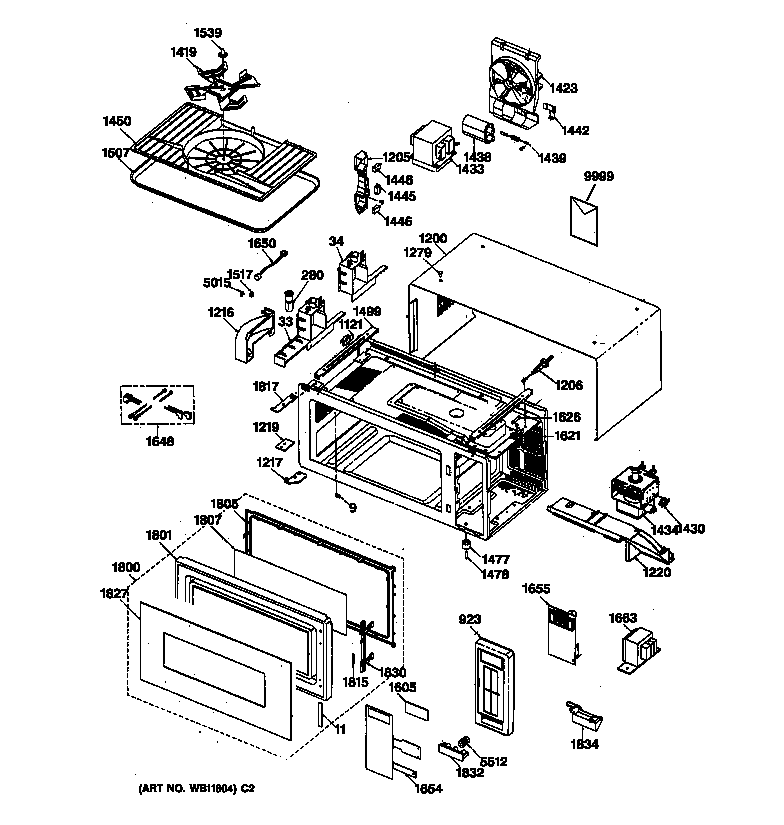

Microwave diagram

Primary switch

Part #WB24X439

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X439. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Sw-secondary WB24X796
#1445

Microwave diagram

Sw-secondary

Part #WB24X796

Replaced by #WB24X829

?
Manufacturer substitution
This part replaces WB24X796. Substitute parts can look different from the original.
BEST SELLER
$33.20 |
15% OFF Phone Price : $39.20
In Stock
Microwave High-voltage Capacitor (replaces Wb27x585) WB27X10011
#1438

Microwave diagram

Microwave high-voltage capacitor (replaces wb27x585)

Part #WB27X10011

BEST SELLER
$46.74 |
11% OFF Phone Price : $52.74
In Stock
Diode WB27X10072
#1439

Microwave diagram

Diode

Part #WB27X10072

Replaced by #WB27X1160

?
Manufacturer substitution
This part replaces WB27X10072. Substitute parts can look different from the original.
BEST SELLER
$79.22 |
7% OFF Phone Price : $85.22
In Stock
Microwave Magnetron (replaces Wb27x10492) WB27X10089
#1434

Microwave diagram

Microwave magnetron (replaces wb27x10492)

Part #WB27X10089

$204.17 |
6% OFF Phone Price : $216.17
In Stock
Holder Sensor WB6X193
#5015

Microwave diagram

Holder sensor

Part #WB6X193

Replaced by #WB6X549

?
Manufacturer substitution
This part replaces WB6X193. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Sensor Ga WB6X477
#1517

Microwave diagram

Sensor ga

Part #WB6X477

Replaced by #WB27X1170

?
Manufacturer substitution
This part replaces WB6X477. Substitute parts can look different from the original.
$98.78 |
11% OFF Phone Price : $110.78
In Stock
Fuse WB27X696
#1626

Microwave diagram

Fuse

Part #WB27X696

Replaced by #WB27X7

?
Manufacturer substitution
This part replaces WB27X696. Substitute parts can look different from the original.
$7.83 |
11% OFF Phone Price : $8.83
In Stock
Clip Plug WB6X321
#1279

Microwave diagram

Clip plug

Part #WB6X321

$10.89
In Stock
Mini Manual 31-20474
#9999A

Microwave diagram

Mini manual

Part #31-20474

The manufacturer no longer makes this part, and there's no substitute part
