Canister Vacuum

Model # 1752828 Official Kenmore vacuum cleaner

Here are the diagrams and repair parts for Official Kenmore 1752828 vacuum cleaner, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
1752828 Vacuum Cleaners
Gasket 640432-001
#31

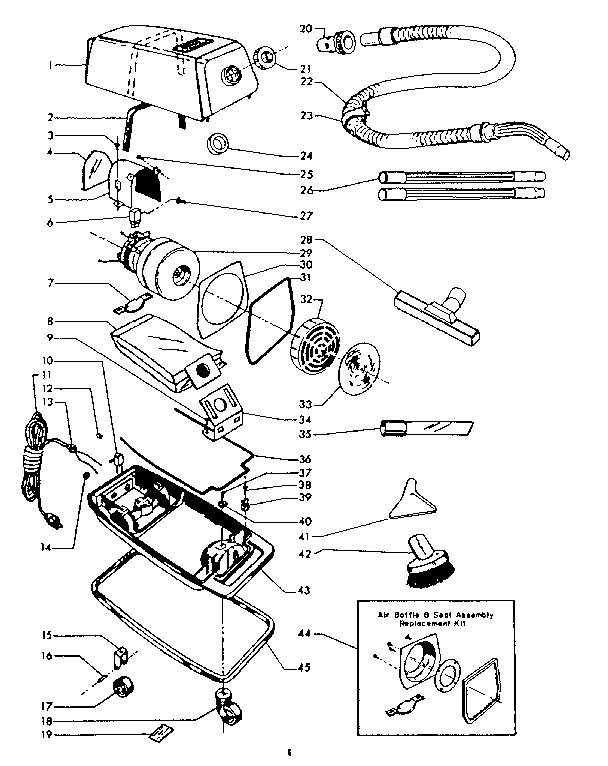

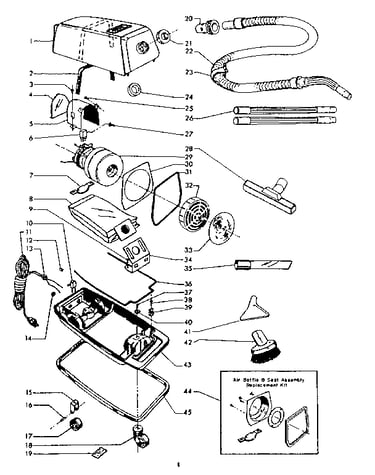

Vacuum cleaner diagram

Gasket

Part #640432-001

The manufacturer no longer makes this part, and there's no substitute part

Hose Connector 640221-000
#24

Vacuum cleaner diagram

Hose connector

Part #640221-000

The manufacturer no longer makes this part, and there's no substitute part

Hose Couplng 640219-010
#20

Vacuum cleaner diagram

Hose couplng

Part #640219-010

The manufacturer no longer makes this part, and there's no substitute part

Screw 640100-006
#37

Vacuum cleaner diagram

Screw

Part #640100-006

The manufacturer no longer makes this part, and there's no substitute part

Complete Hose 641966-007
#22

Vacuum cleaner diagram

Complete hose

Part #641966-007

The manufacturer no longer makes this part, and there's no substitute part

Screw 641700-003
#3

Vacuum cleaner diagram

Screw

Part #641700-003

The manufacturer no longer makes this part, and there's no substitute part

Connector 642149-001
#12

Vacuum cleaner diagram

Connector

Part #642149-001

The manufacturer no longer makes this part, and there's no substitute part

End Plate 640058-001
#4

Vacuum cleaner diagram

End plate

Part #640058-001

The manufacturer no longer makes this part, and there's no substitute part

Wheel Pin 640063-000
#16

Vacuum cleaner diagram

Wheel pin

Part #640063-000

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 20-5250
#35

Vacuum cleaner diagram

Crevice tool

Part #20-5250

The manufacturer no longer makes this part, and there's no substitute part
