Washer

Model # DH1150 Official Speed Queen washer

Here are the diagrams and repair parts for Official Speed Queen DH1150 washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

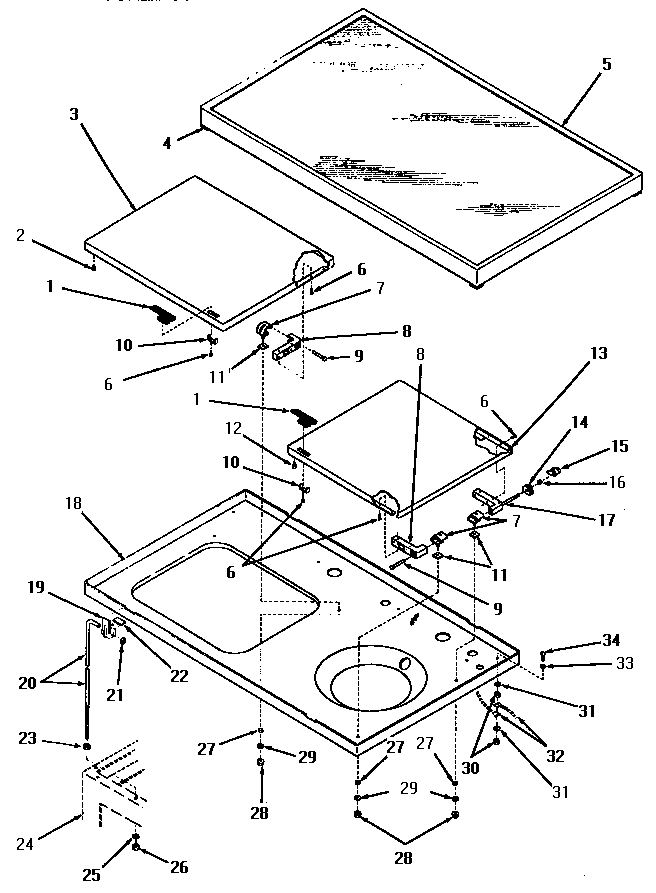

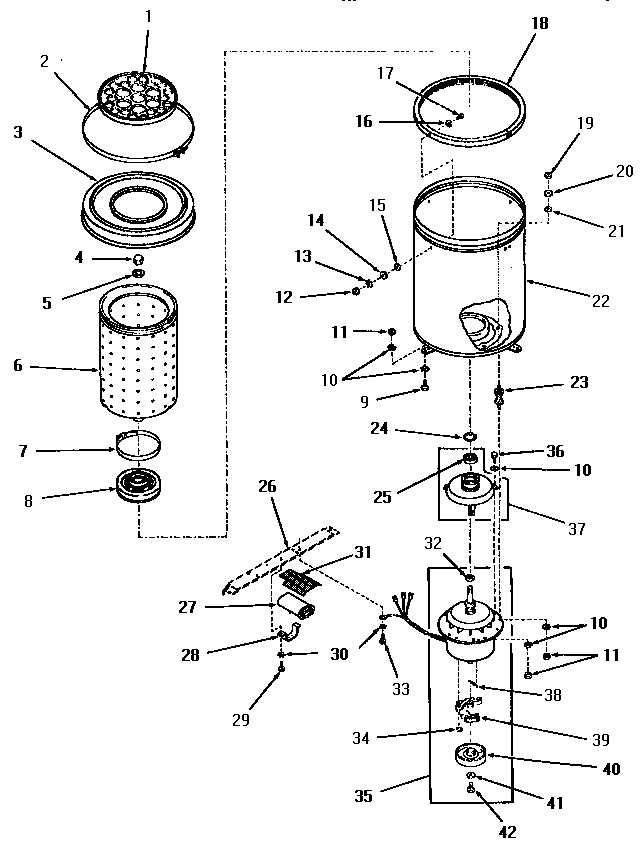

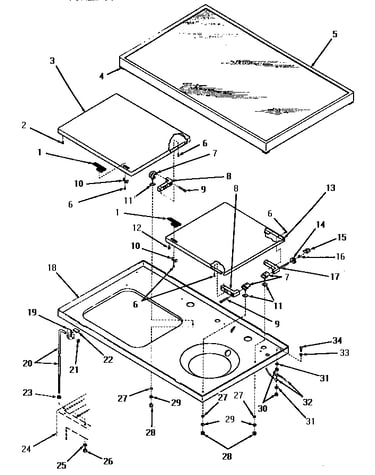

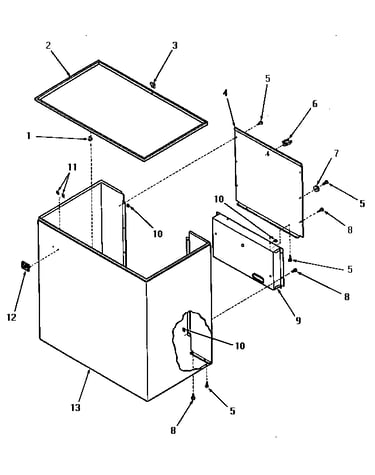

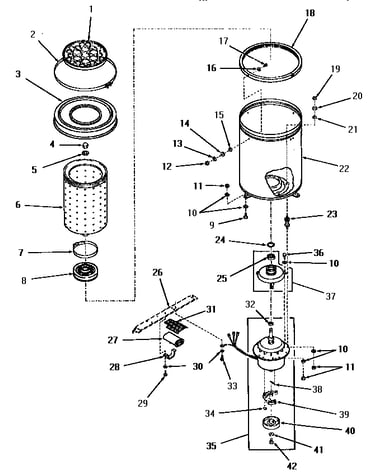

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 254 parts  |
Screw 52150
Screw

Part #52150

Replaced by #WP489464

?
Manufacturer substitution
This part replaces 52150. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Nut 20275
Nut

Part #20275

This item is not returnable
$2.16
In Stock
Kenmore Washer 04704
#30

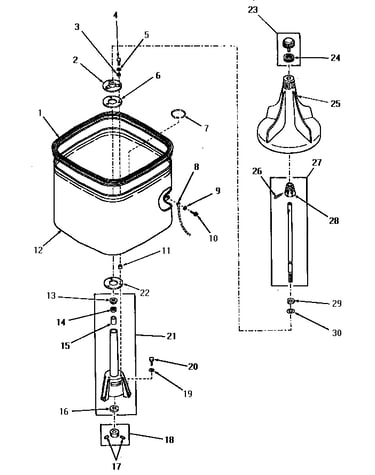

Agitator, wash tub and agitator post diagram

Kenmore washer

Part #04704

This item is not returnable
$3.71
In Stock
Speed Queen Hex Nut 23951
#31

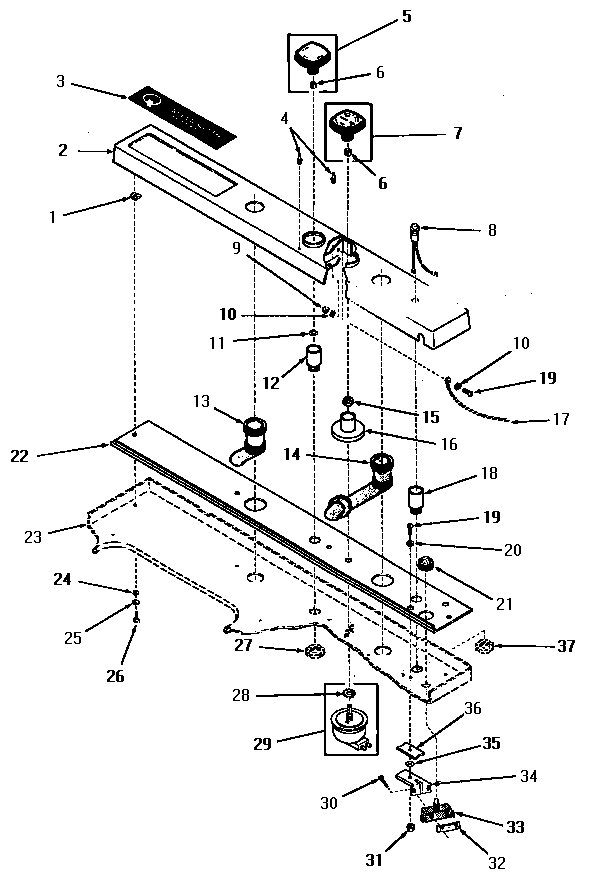

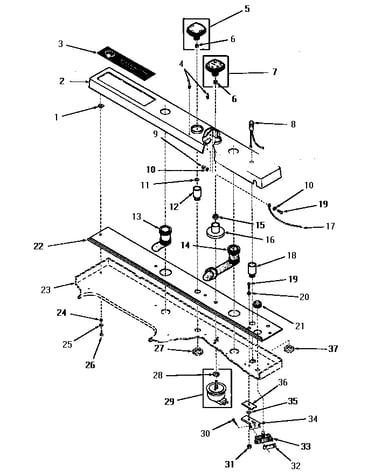

Control housing and controls diagram

Speed queen hex nut

Part #23951

This item is not returnable
$3.23
In Stock
Kenmore Washer 03888
#25

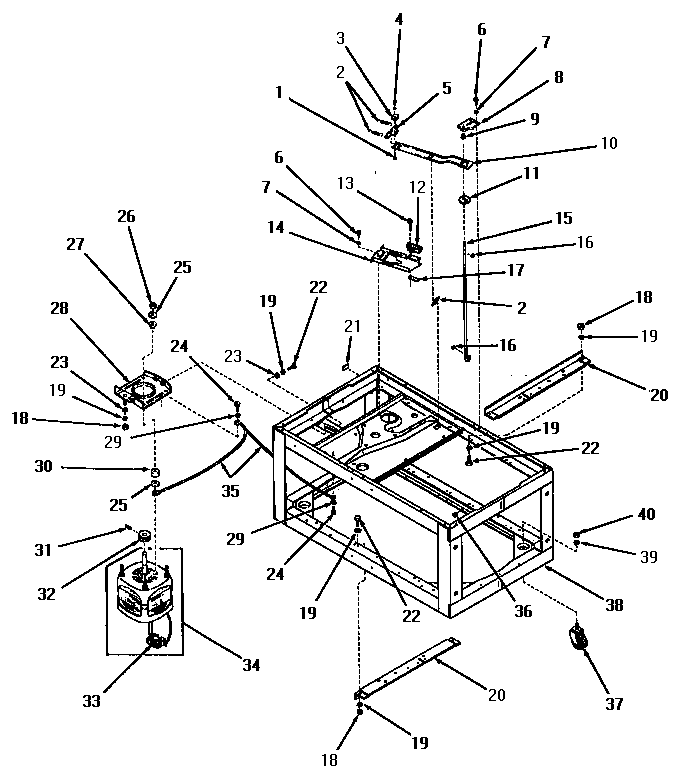

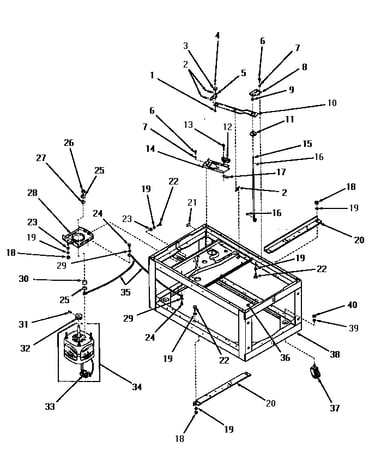

Wash motor and frame diagram

Kenmore washer

Part #03888

$9.32 |
10% OFF Phone Price : $10.32
In Stock
Speed Queen Pin 10416
#31

Wash motor and frame diagram

Speed queen pin

Part #10416

This item is not returnable
$3.86
In Stock
Connector 21091
#11

Wire harness, wire and terminals diagram

Connector

Part #21091

This item is not returnable
$3.09
In Stock
Terminal 00111
#8

Wire harness, wire and terminals diagram

Terminal

Part #00111

Replaced by #Y00111

?
Manufacturer substitution
This part replaces 00111. Substitute parts can look different from the original.
This item is not returnable
$3.29
In Stock
Screw 52906
#8

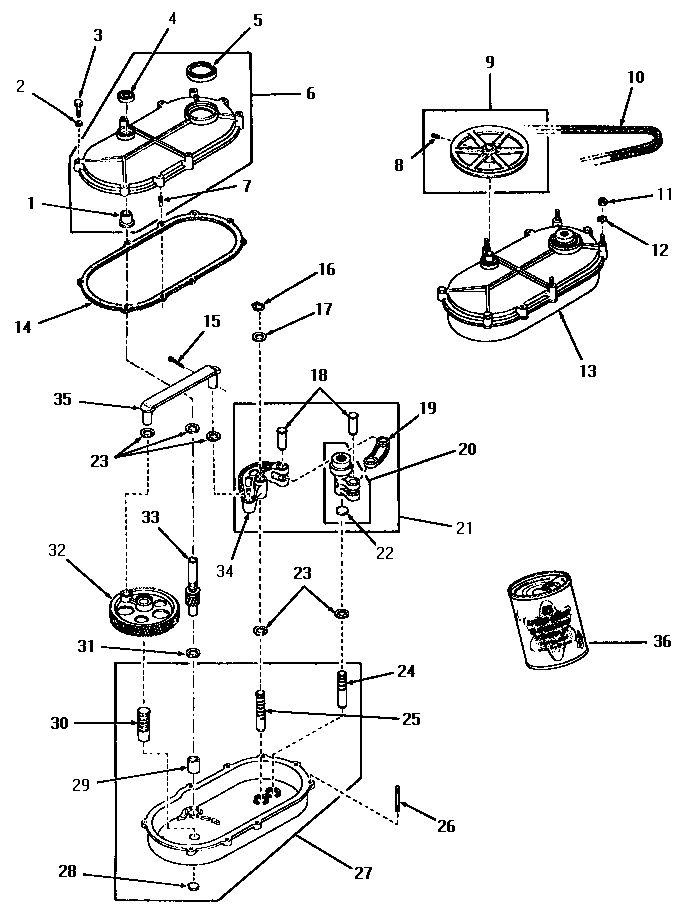

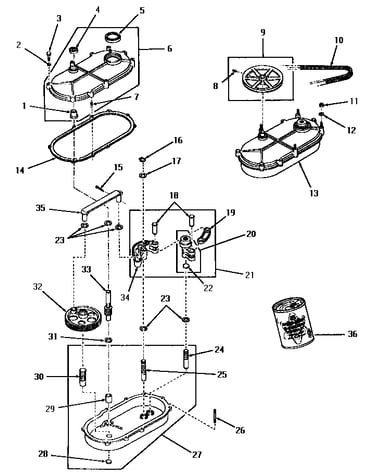

10502 transmission assembly diagram

Screw

Part #52906

Replaced by #62541

?
Manufacturer substitution
This part replaces 52906. Substitute parts can look different from the original.
This item is not returnable
$3.86
In Stock
Motor And Pump Assembly 10530
#10

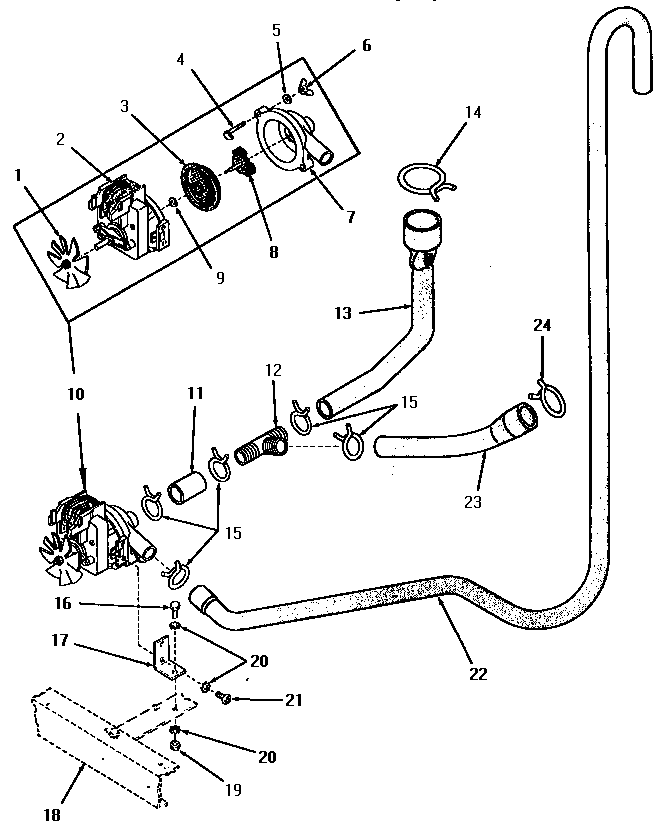

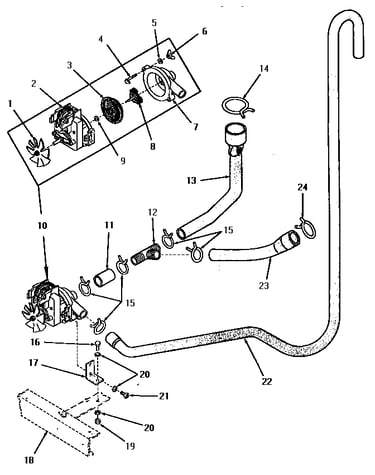

Motor and pump assembly and hoses diagram

Motor and pump assembly

Part #10530

The manufacturer no longer makes this part, and there's no substitute part
