Model # EQUITY IIE Official Epson printer

Here are the diagrams and repair parts for Official Epson EQUITY-IIE printer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Cable Set #5cb Y144314000

#145

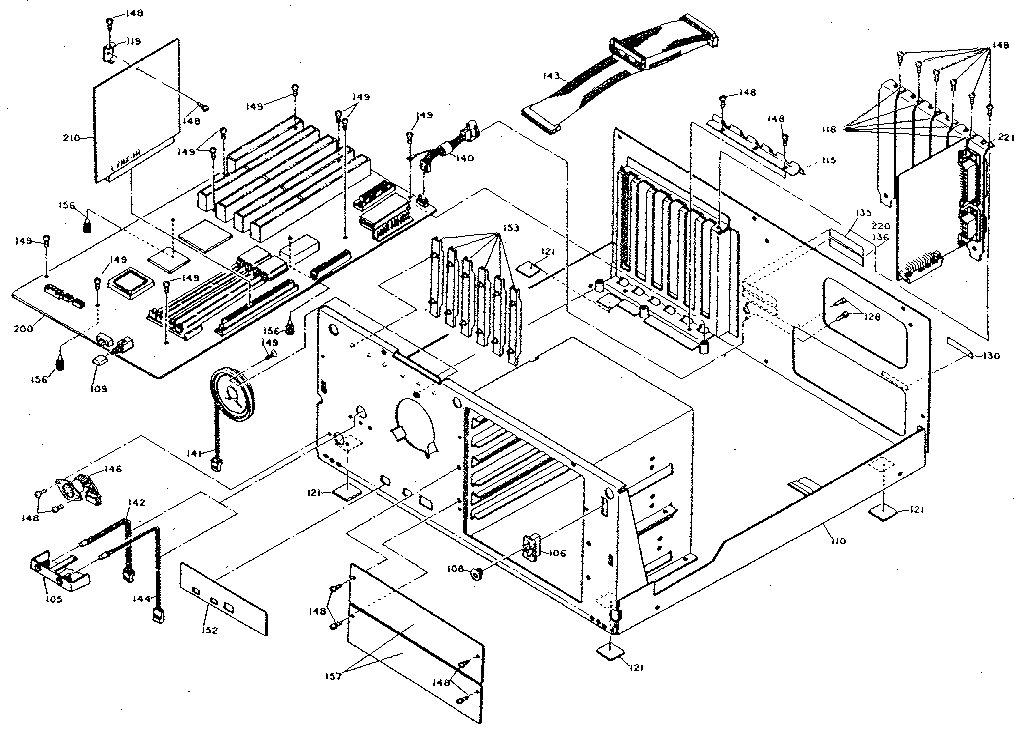

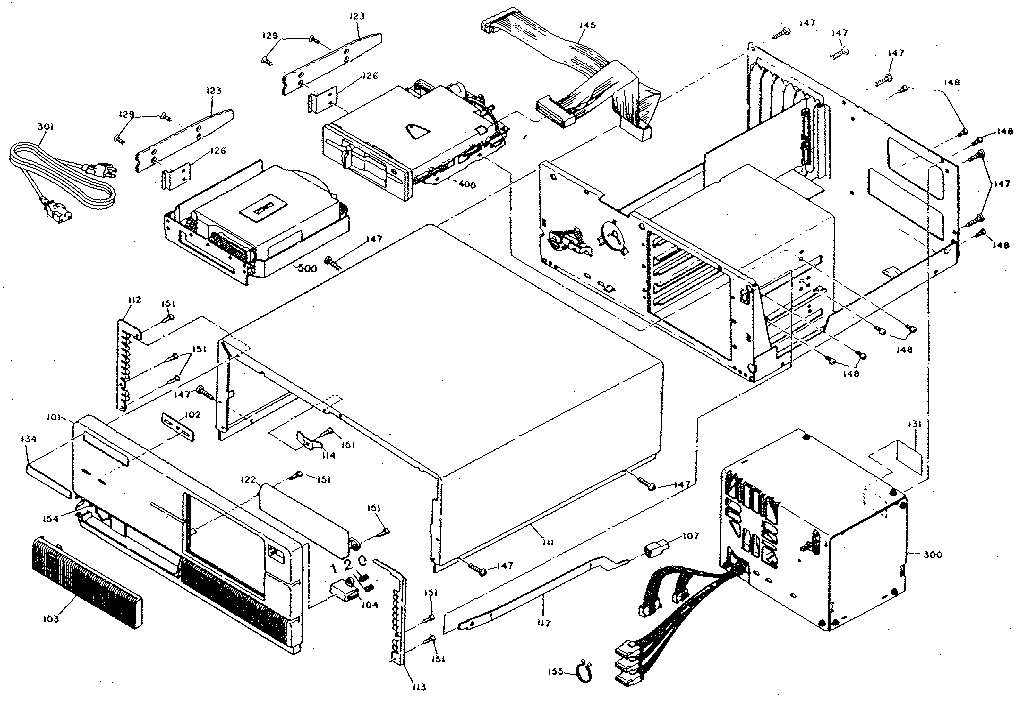

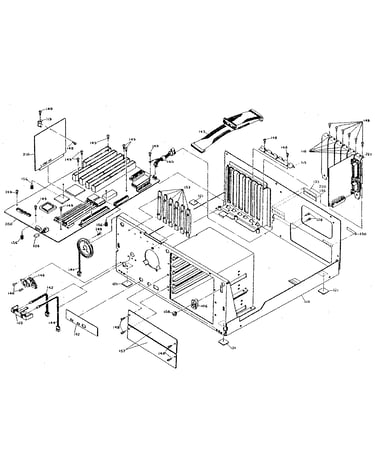

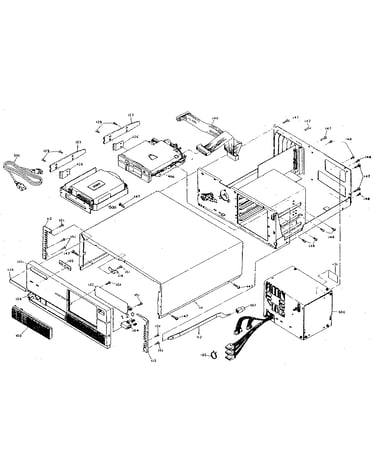

All parts diagram

Cable set #5cb

Part #Y144314000

The manufacturer no longer makes this part, and there's no substitute part

Microprocessor N-mos 12.5mhz Plcc Type (control Circuit Board Components) X402802866

#4K

All parts diagram

Microprocessor n-mos 12.5mhz plcc type (control circuit board components)

Part #X402802866

The manufacturer no longer makes this part, and there's no substitute part

Power Supply Unit (adrps) Y162501000

#300

All parts diagram

Power supply unit (adrps)

Part #Y162501000

The manufacturer no longer makes this part, and there's no substitute part

Lynx Board Unit (control Circuit Board Components) Y186201100

#200

All parts diagram

Lynx board unit (control circuit board components)

Part #Y186201100

The manufacturer no longer makes this part, and there's no substitute part

D/d Rail (162-1170) Y162017051

#123

All parts diagram

D/d rail (162-1170)

Part #Y162017051

The manufacturer no longer makes this part, and there's no substitute part

Push Rod Y186006051

#117

All parts diagram

Push rod

Part #Y186006051

The manufacturer no longer makes this part, and there's no substitute part

Lynx-hi Board Unit Y186203100

#210

All parts diagram

Lynx-hi board unit

Part #Y186203100

The manufacturer no longer makes this part, and there's no substitute part

Logo-eqiie Y186016051

#134

All parts diagram

Logo-eqiie

Part #Y186016051

The manufacturer no longer makes this part, and there's no substitute part

Fixing Screw Y911041051

#147

All parts diagram

Fixing screw

Part #Y911041051

The manufacturer no longer makes this part, and there's no substitute part

Power Cable (120v Ul-csa) Y901304800

#301

All parts diagram

Power cable (120v ul-csa)

Part #Y901304800

The manufacturer no longer makes this part, and there's no substitute part
