Hoover
Upright Vacuum

Model # U3725930 Official Hoover powermax vacuum

Here are the diagrams and repair parts for Official Hoover U3725930 powermax vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

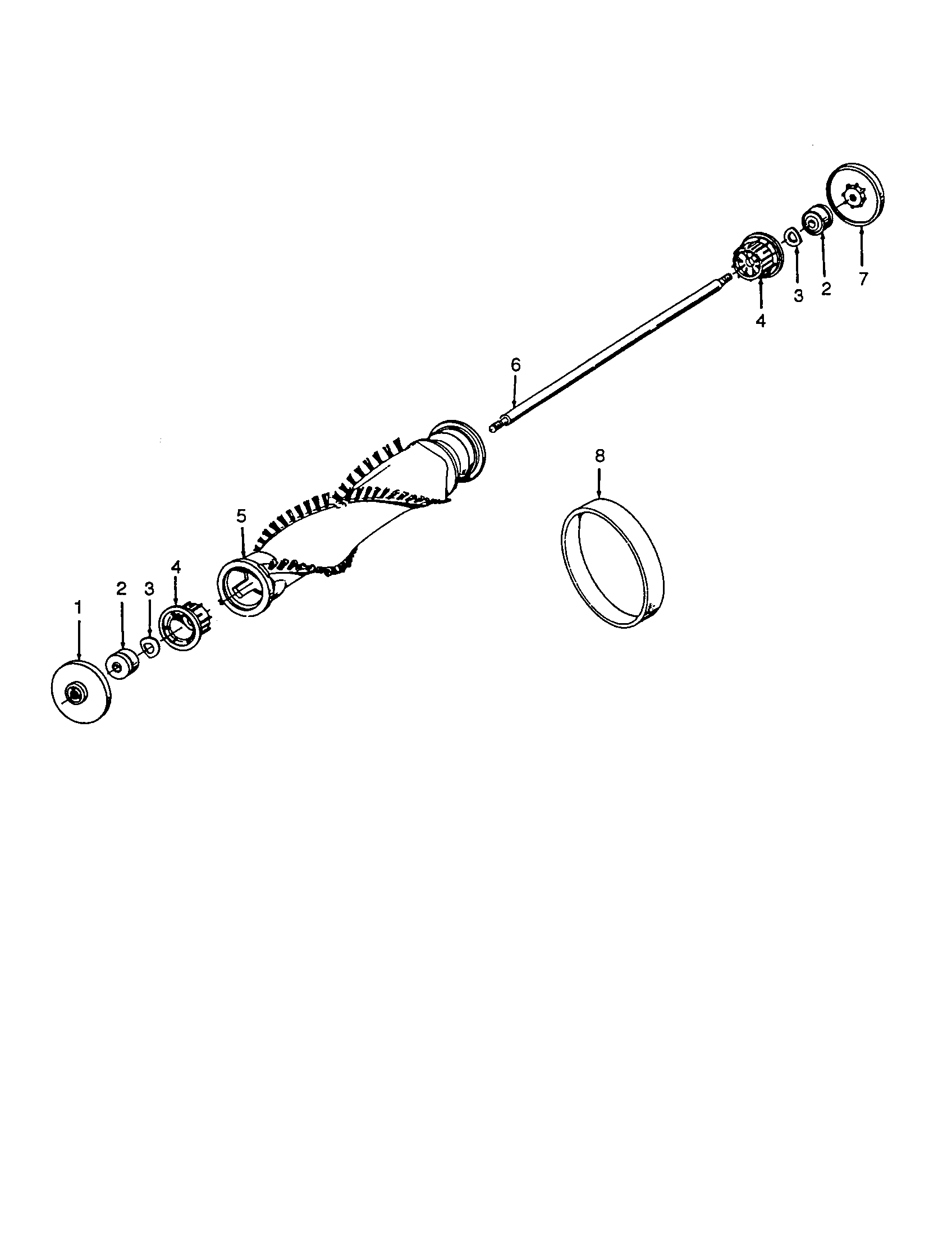

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 164 parts  |

Screw 21447218
#16

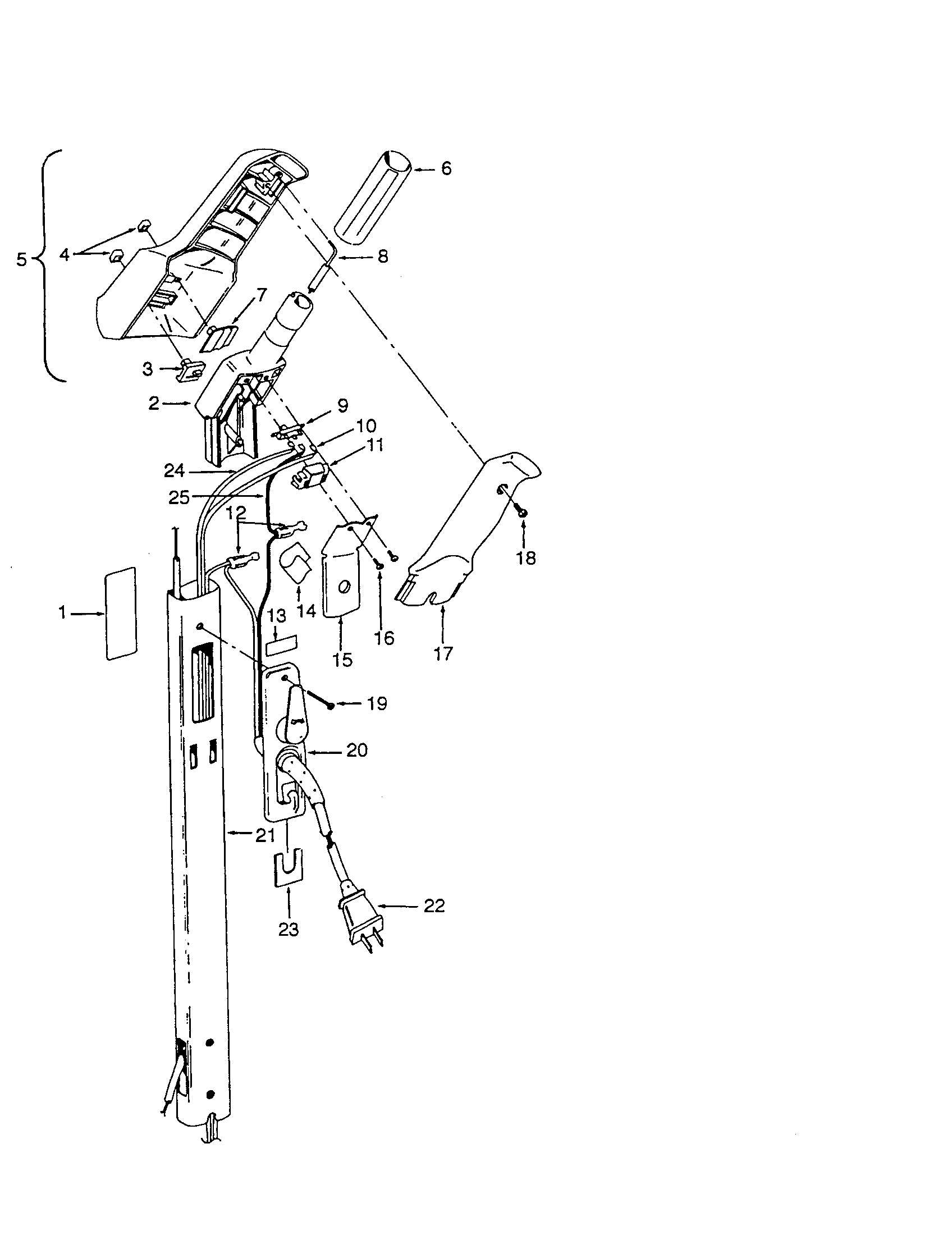

Handle diagram

Screw

Part #21447218

The manufacturer no longer makes this part, and there's no substitute part

Rivet 21254008
#30

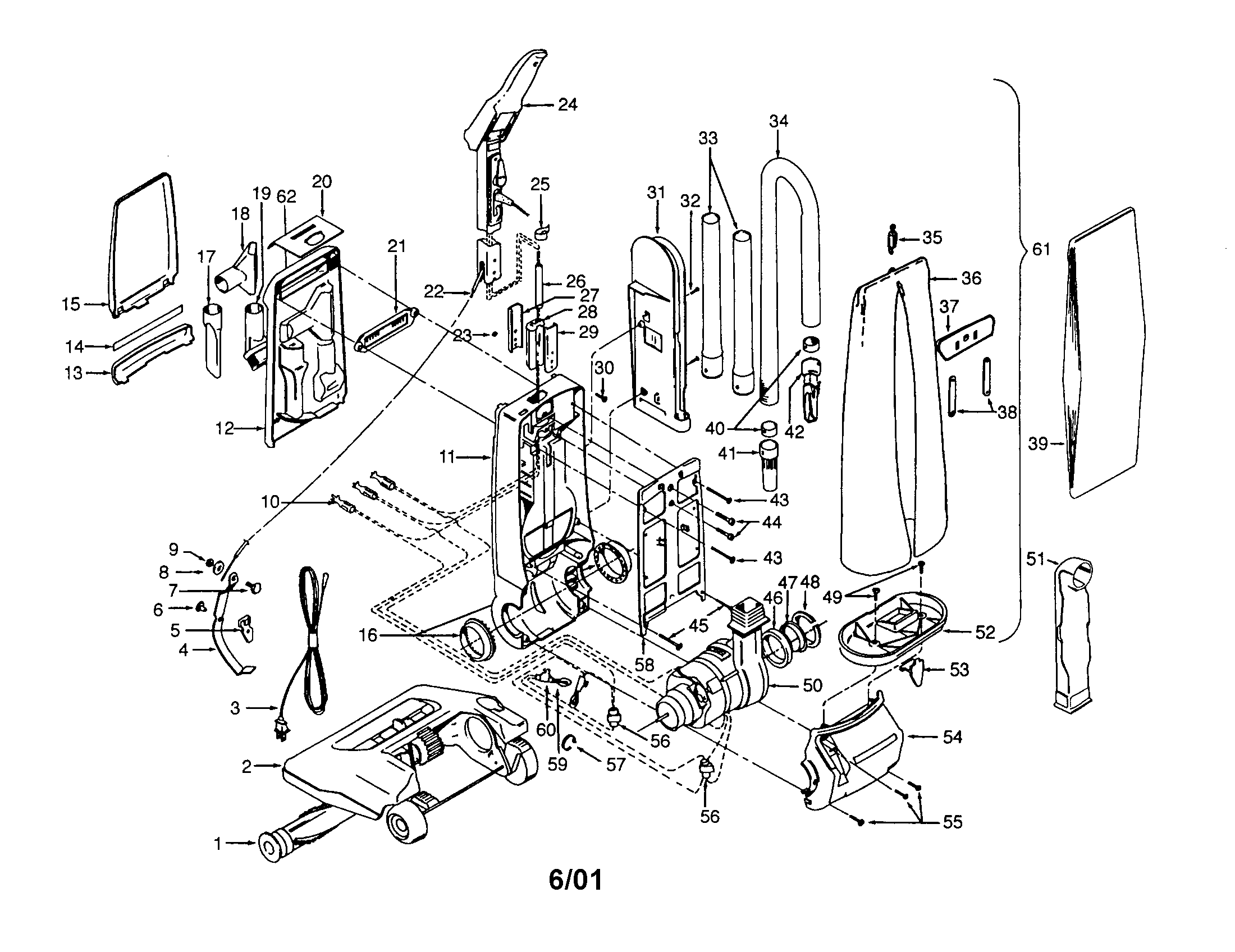

Power max diagram

Rivet

Part #21254008

The manufacturer no longer makes this part, and there's no substitute part

Motor Cover 37195097
#54

Power max diagram

Motor cover

Part #37195097

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Duct Assembly 43486005
#40

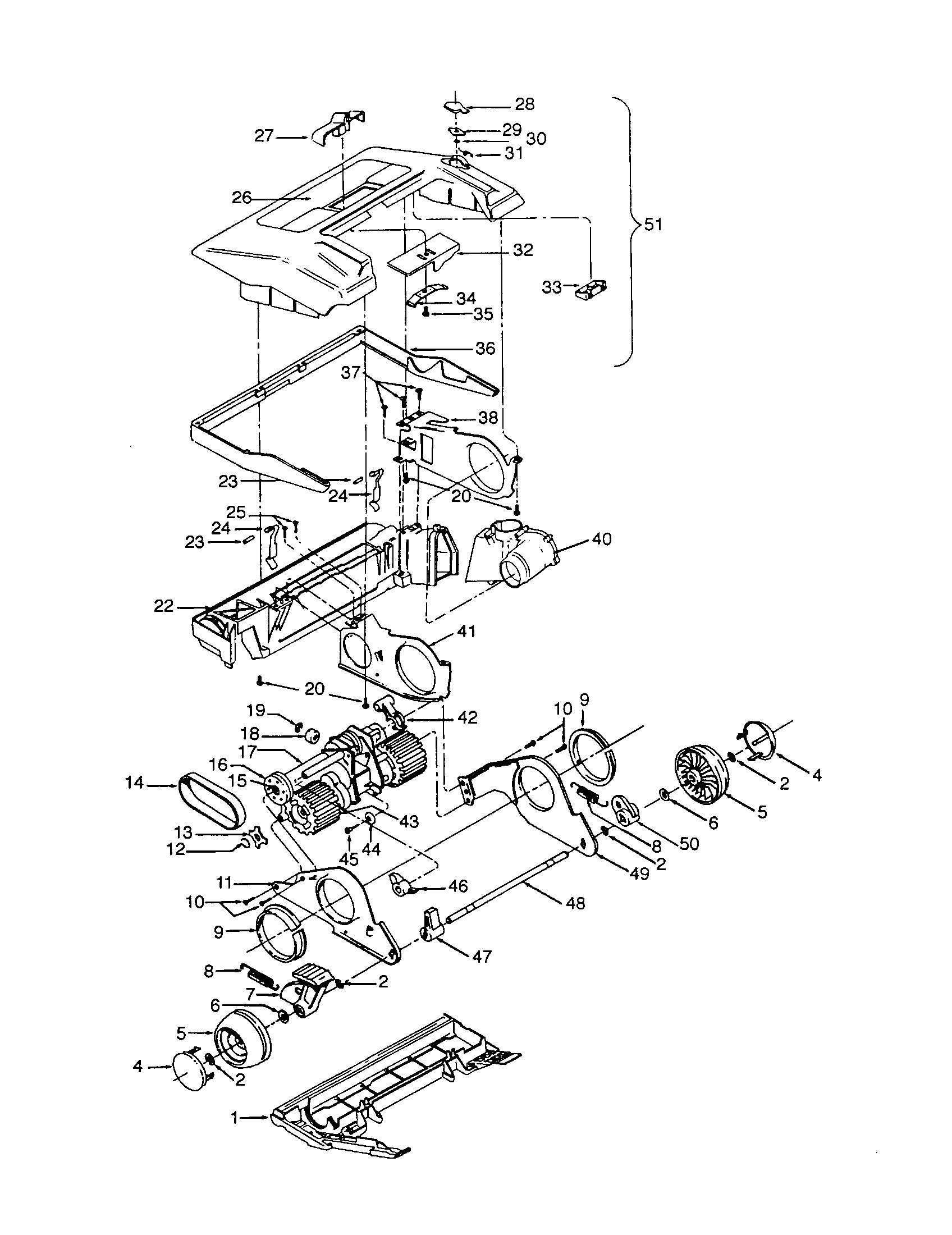

Agitator housing diagram

Kenmore duct assembly

Part #43486005

The manufacturer no longer makes this part, and there's no substitute part

Spring 38353004
#5

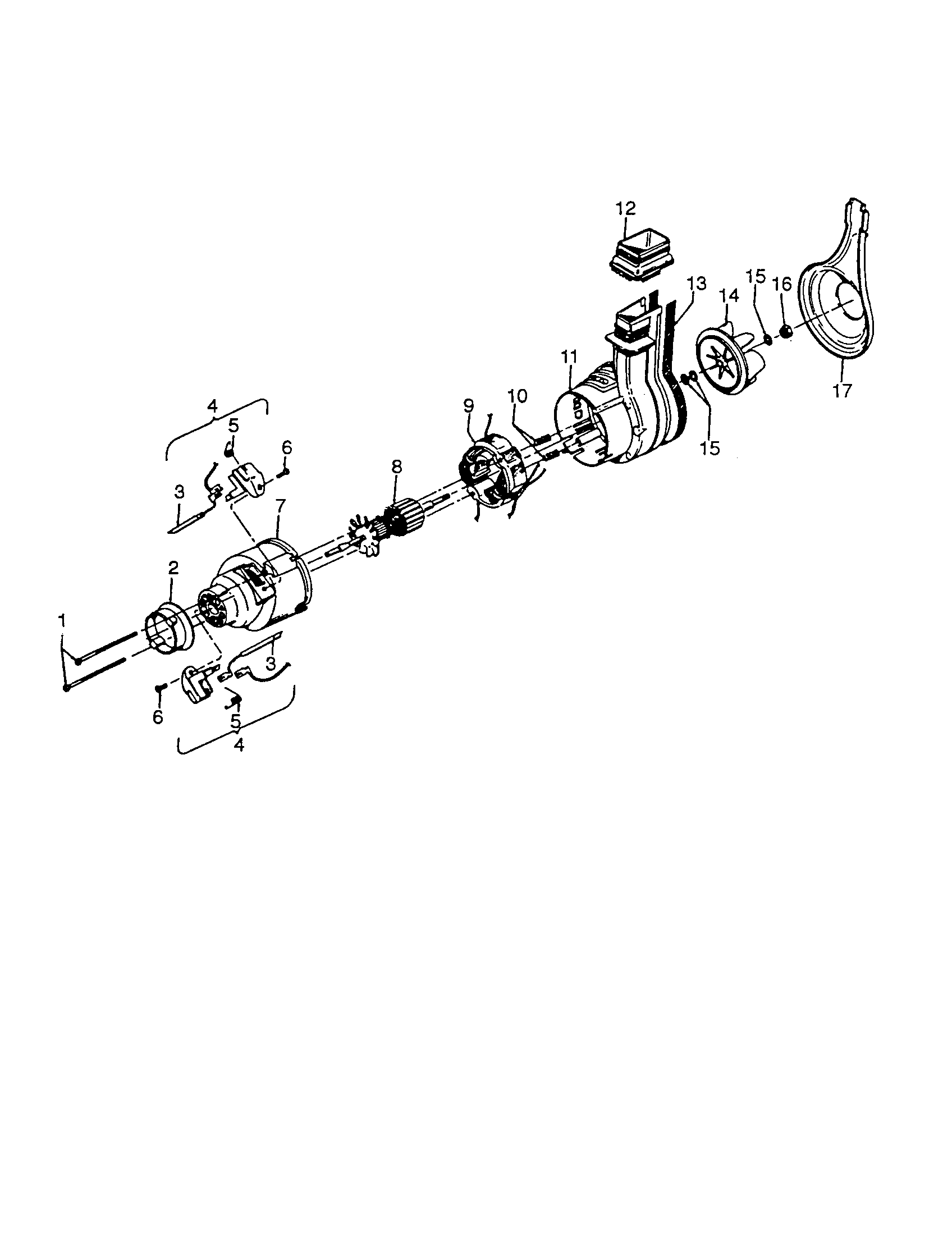

Motor diagram

Spring

Part #38353004

The manufacturer no longer makes this part, and there's no substitute part

Spring 38334002
#35

Power max diagram

Spring

Part #38334002

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Switch 28179021
#9

Handle diagram

Vacuum switch

Part #28179021

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Speed Nut 21362006
#30

Agitator housing diagram

Kenmore speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Handl Sleeve 31754002
#6

Handle diagram

Kenmore handl sleeve

Part #31754002

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Power Drive Unit 43124013
#17

Agitator housing diagram

Kenmore power drive unit

Part #43124013

The manufacturer no longer makes this part, and there's no substitute part
