Model # DPXQ473GT0AA Official GE gas dryer

Here are the diagrams and repair parts for Official GE DPXQ473GT0AA gas dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

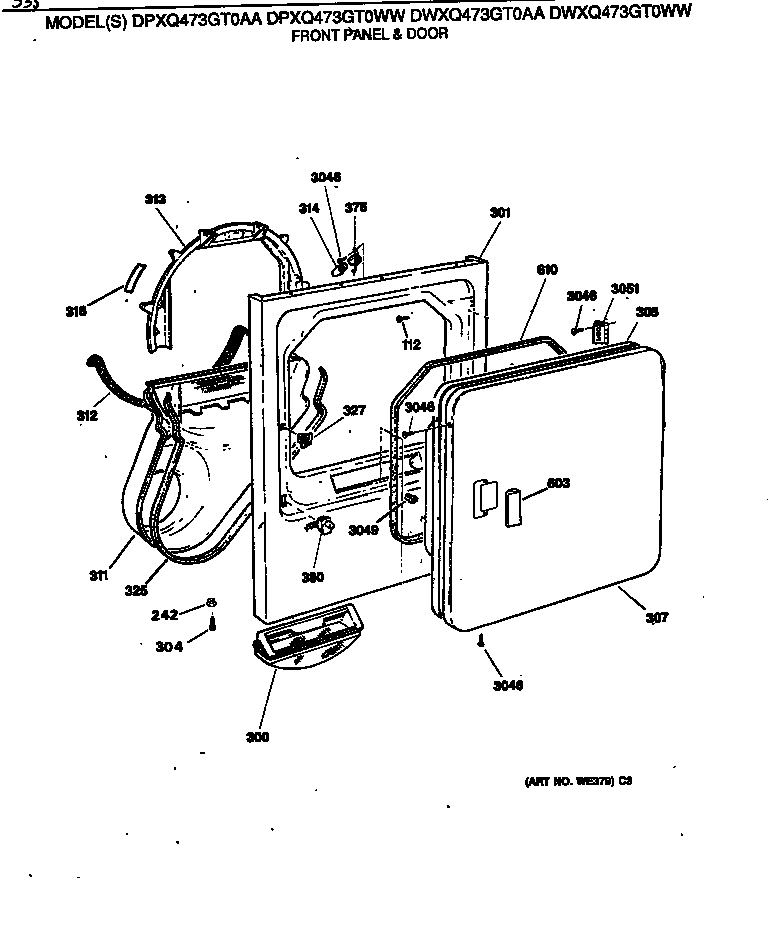

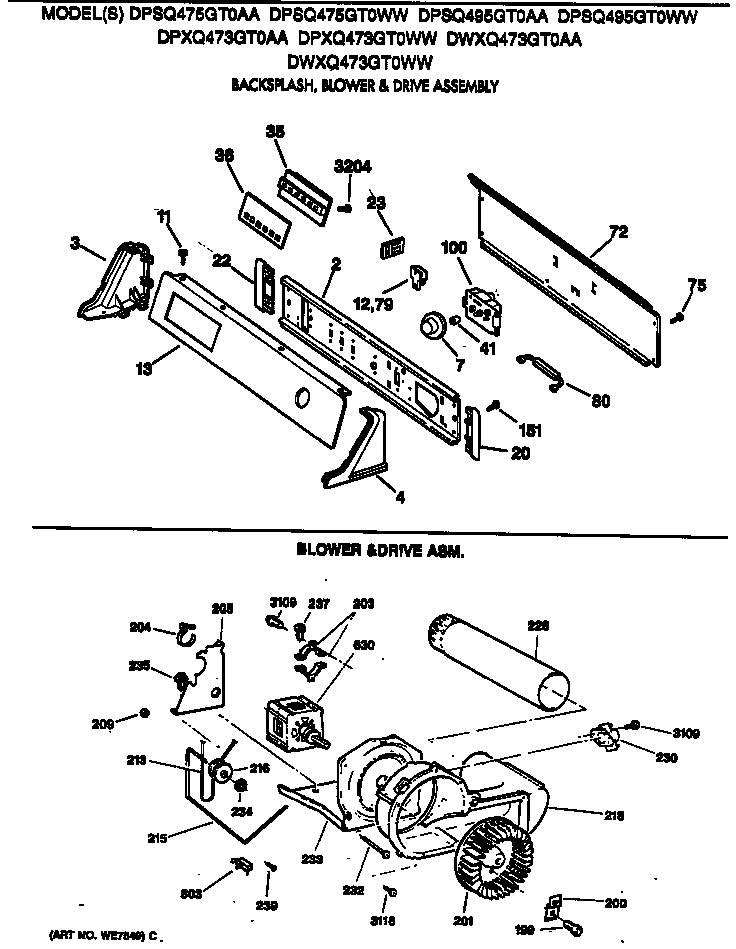

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Drum Bearing WE3M20
Drum bearing

Part #WE3M20

Replaced by #WE3M26

?
Manufacturer substitution
This part replaces WE3M20. Substitute parts can look different from the original.
BEST SELLER
$31.04 |
16% OFF Phone Price : $37.04
In Stock
Felt WE9M15
Felt

Part #WE9M15

Replaced by #WE09X27634

?
Manufacturer substitution
This part replaces WE9M15. Substitute parts can look different from the original.
BEST SELLER
$22.36 |
21% OFF Phone Price : $28.36
In Stock
Air Duct WE14M79
Air duct

Part #WE14M79

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M79. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Duct W/sensr WE14M76
Duct w/sensr

Part #WE14M76

Replaced by #WE14X25080

?
Manufacturer substitution
This part replaces WE14M76. Substitute parts can look different from the original.
BEST SELLER
$85.99 |
7% OFF Phone Price : $91.99
In Stock
Dryer Burner Igniter WE4X739
#717

Gas valve & burner assembly diagram

Dryer burner igniter

Part #WE4X739

Replaced by #WE04X25996

?
Manufacturer substitution
This part replaces WE4X739. Substitute parts can look different from the original.
BEST SELLER
$42.72 |
12% OFF Phone Price : $48.72
In Stock
Washer WE2X195
#3127

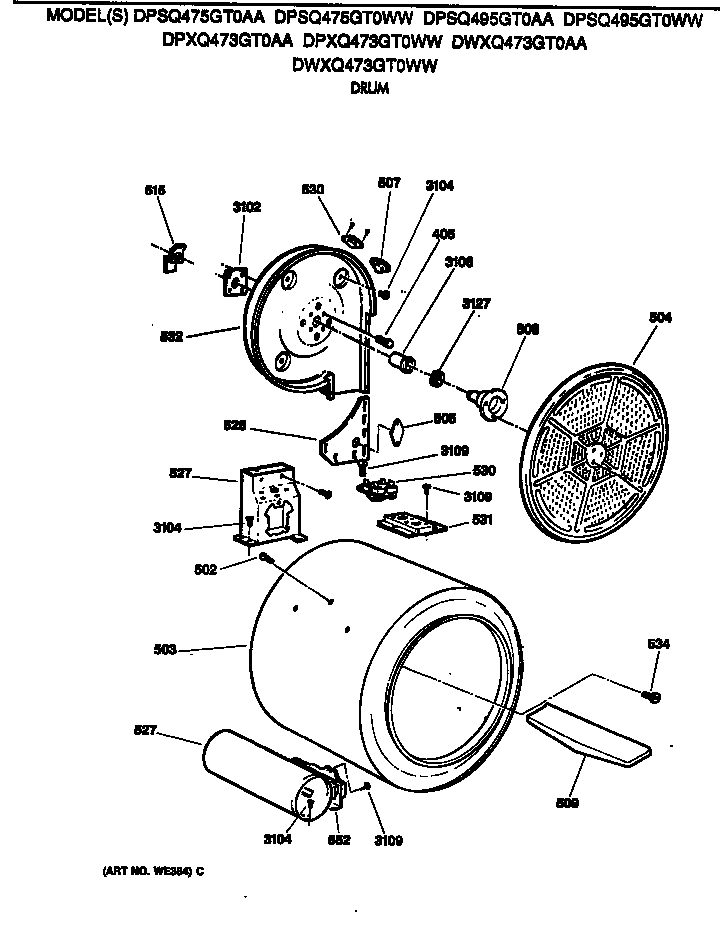

Drum diagram

Washer

Part #WE2X195

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE2X195. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Sleeve Bearing WE3X65
#3106

Drum diagram

Sleeve bearing

Part #WE3X65

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X65. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Shft-brkt WE3X39
#508

Drum diagram

Shft-brkt

Part #WE3X39

Replaced by #WE25M40

?
Manufacturer substitution
This part replaces WE3X39. Substitute parts can look different from the original.
BEST SELLER
$71.61 |
8% OFF Phone Price : $77.61
In Stock
Dryer Drum Bearing Bracket (replaces We01m0300) WE1M300
#3102

Drum diagram

Dryer drum bearing bracket (replaces we01m0300)

Part #WE1M300

BEST SELLER
$15.97 |
11% OFF Phone Price : $17.97
In Stock
Dryer Operating Thermostat (replaces We04m0181, We4m0181, We4m245) WE4M181
#507

Drum diagram

Dryer operating thermostat (replaces we04m0181, we4m0181, we4m245)

Part #WE4M181

BEST SELLER
$31.33
In Stock
