Model # LW1501/P7762111W Official Amana heavy-duty washer

Here are the diagrams and repair parts for Official Amana LW1501-P7762111W heavy-duty washer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

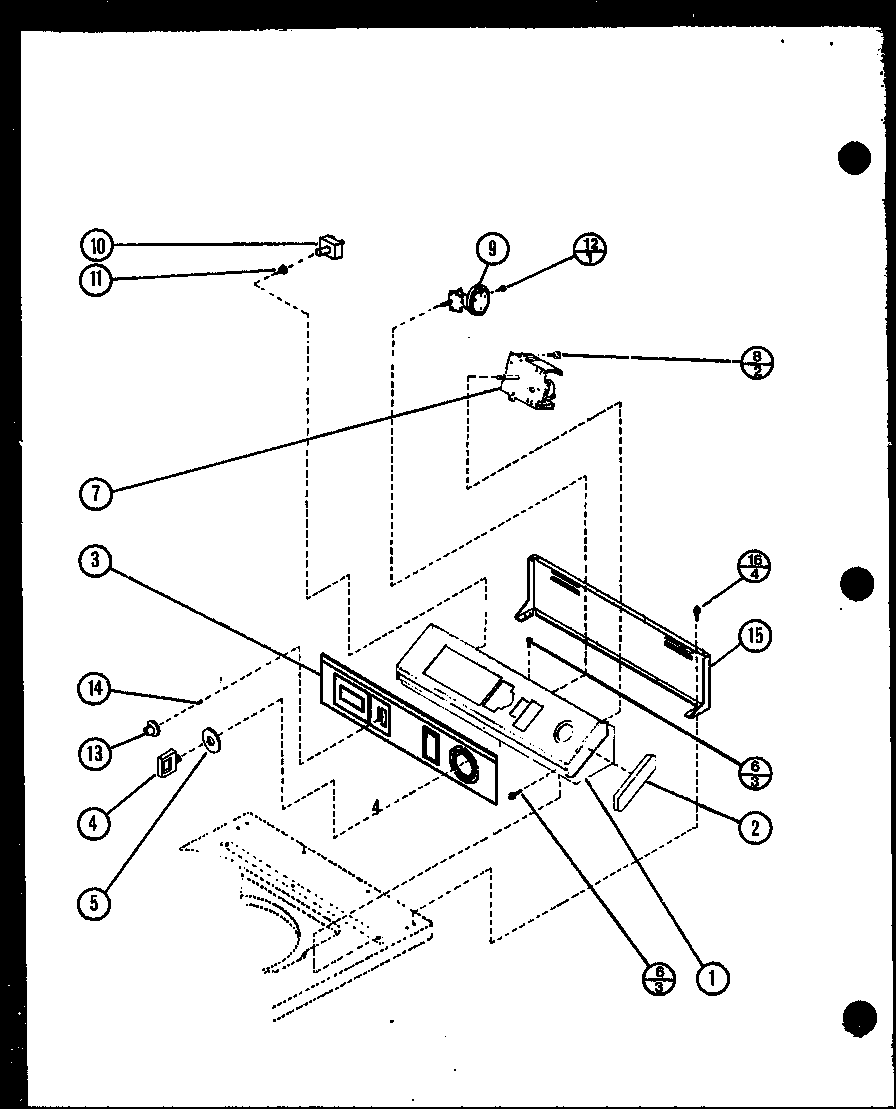

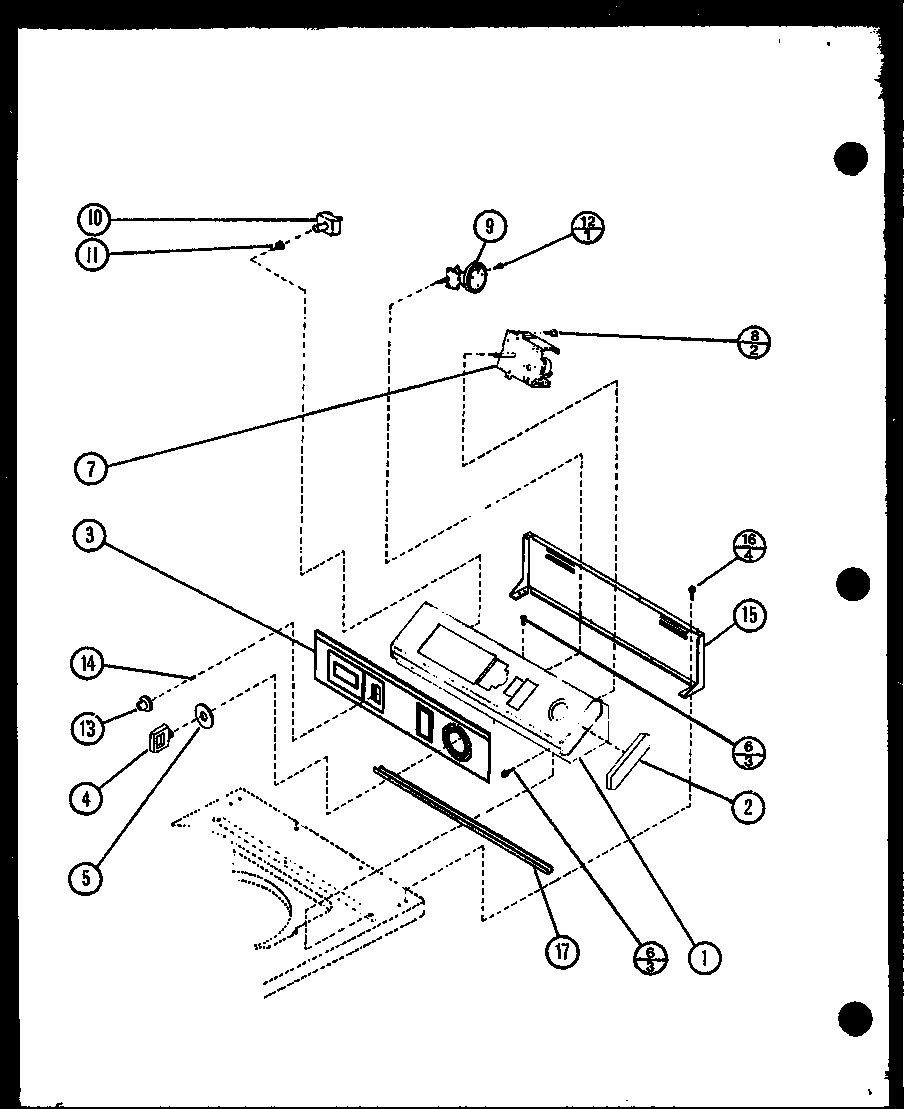

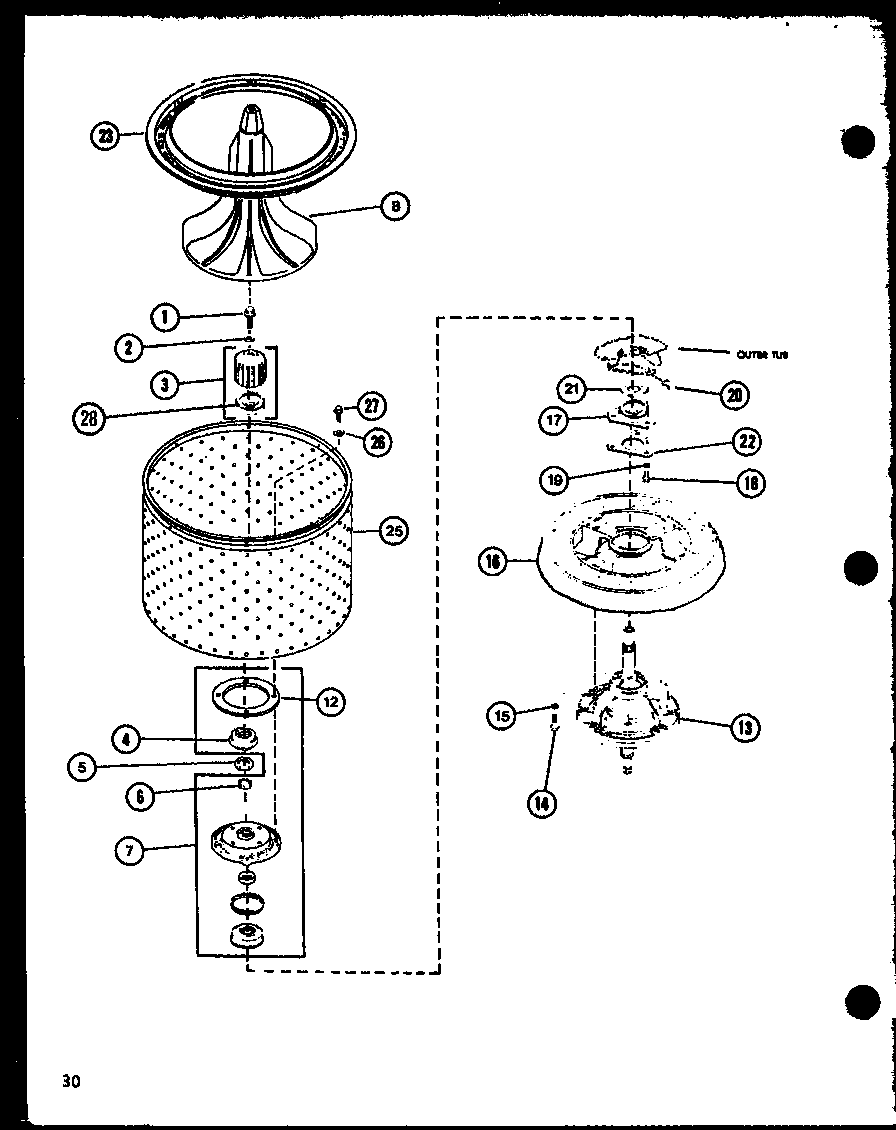

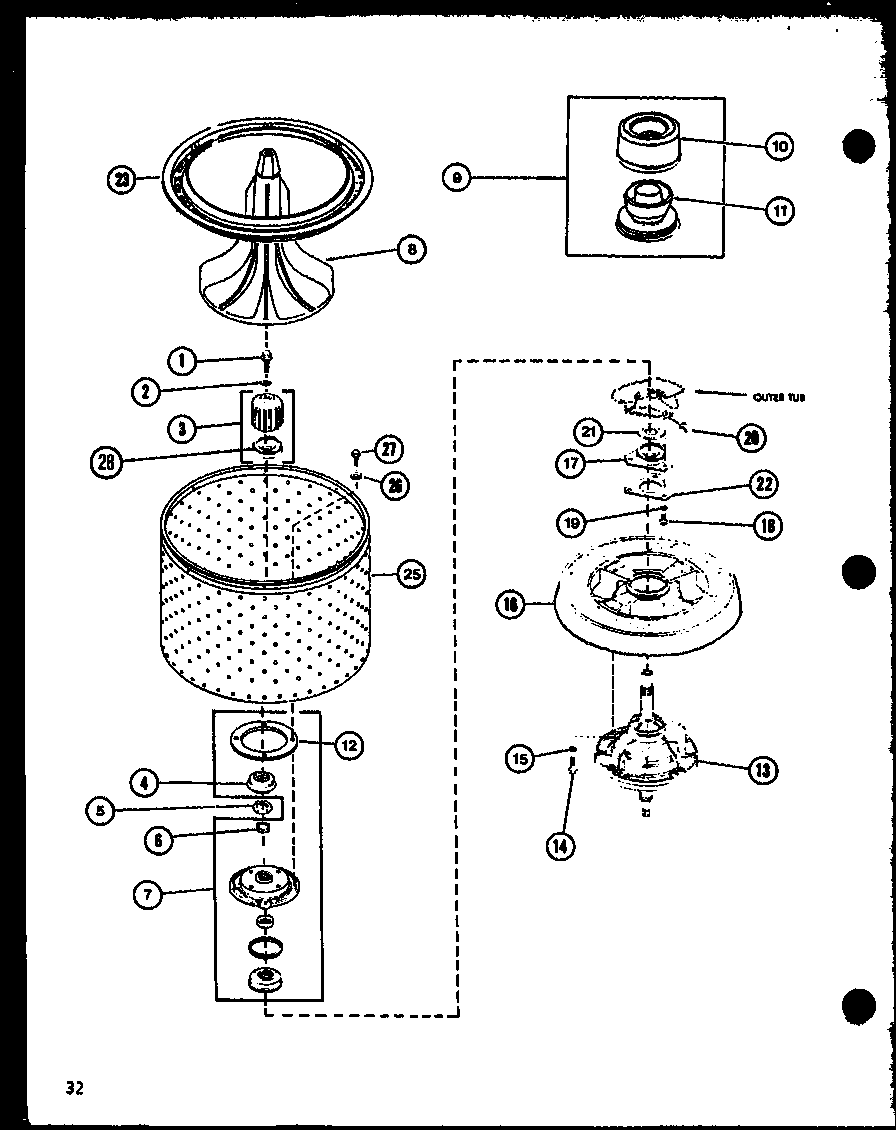

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

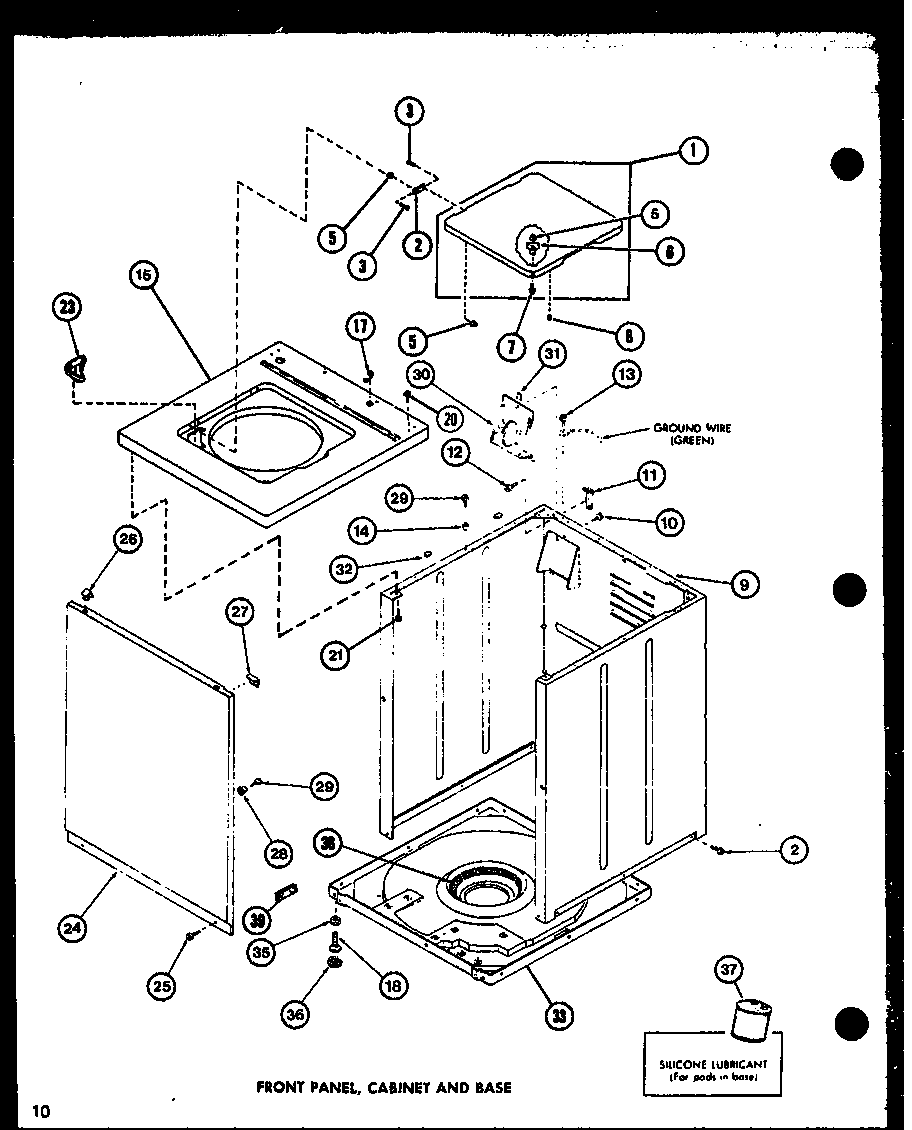

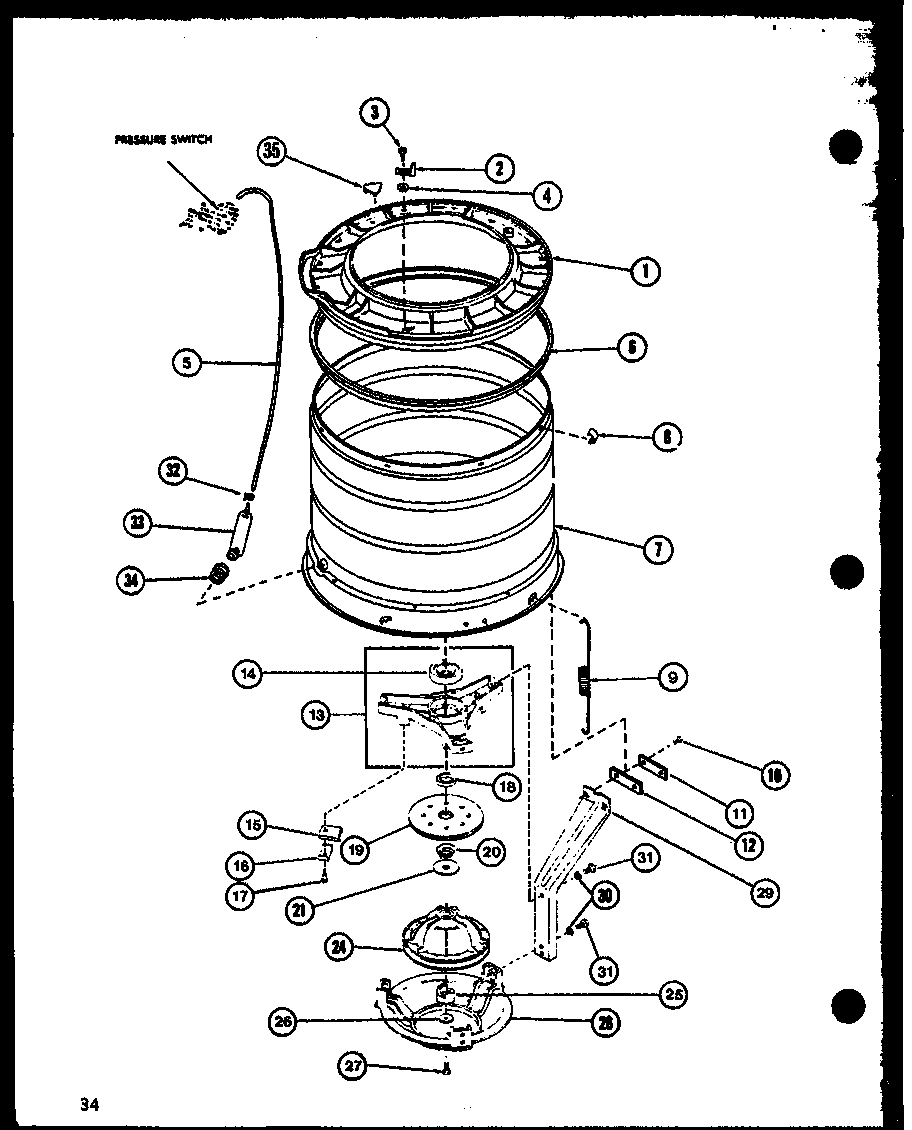

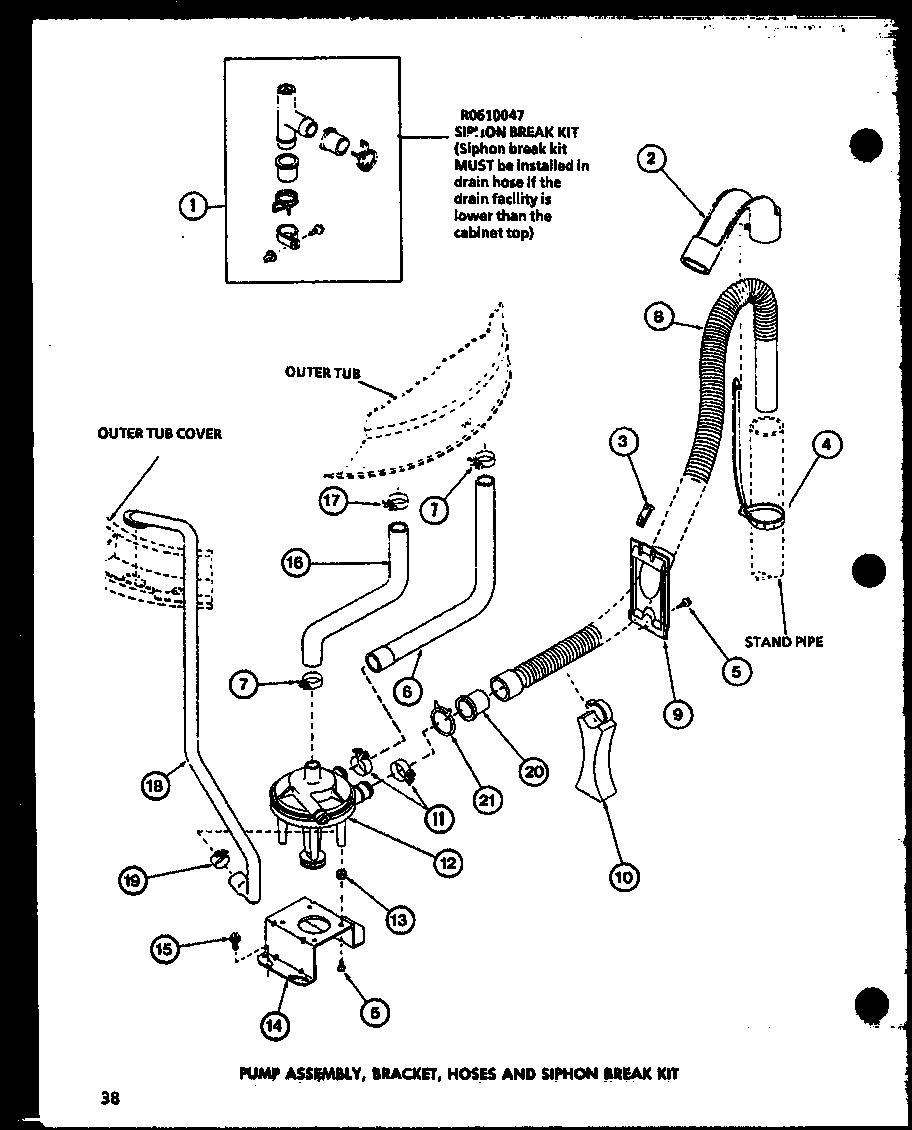

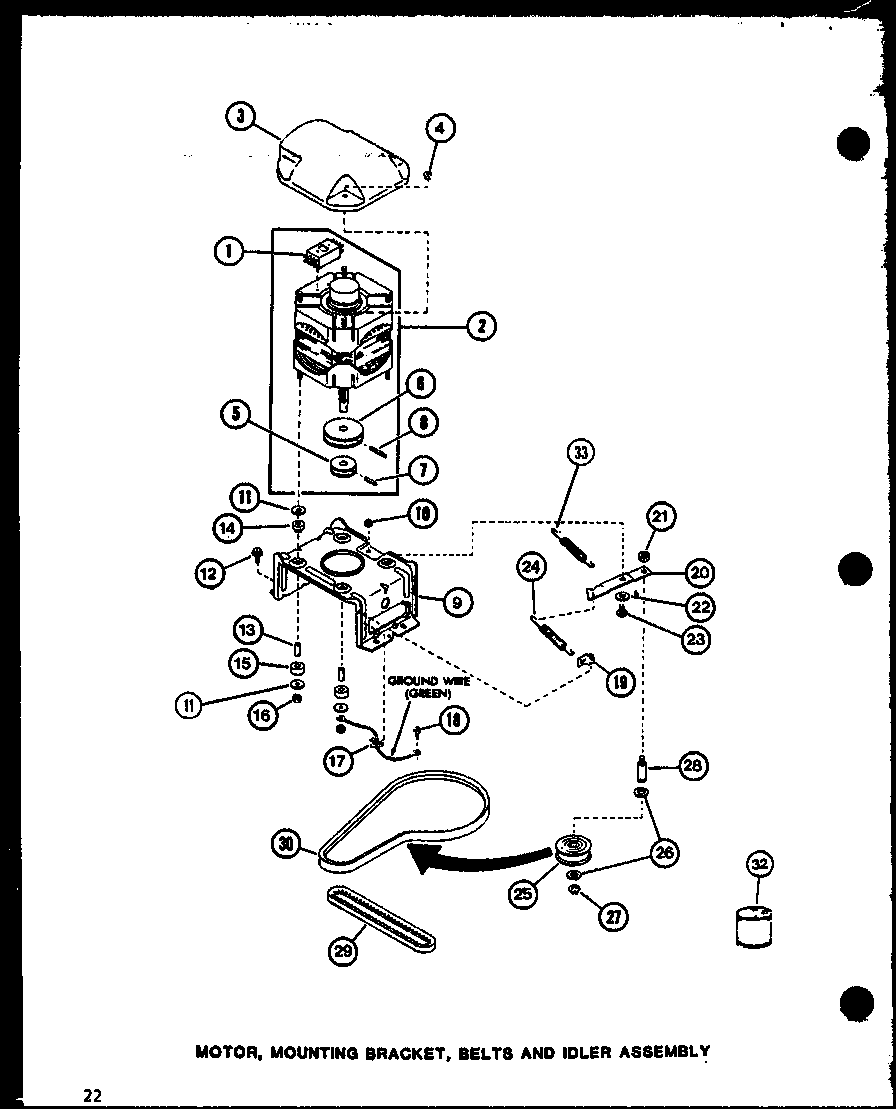

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 248 parts  |
Use 40064801 R0600032
Use 40064801

Part #R0600032

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces R0600032. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Refrigerator Screw R0600012
Refrigerator screw

Part #R0600012

Replaced by #WP489464

?
Manufacturer substitution
This part replaces R0600012. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Refrigerator Screw R0600033
Refrigerator screw

Part #R0600033

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces R0600033. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Washer R0600505
Washer

Part #R0600505

Replaced by #Y013783

?
Manufacturer substitution
This part replaces R0600505. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Leveling Leg R0600030
Refrigerator leveling leg

Part #R0600030

Replaced by #22003428

?
Manufacturer substitution
This part replaces R0600030. Substitute parts can look different from the original.
This item is not returnable
$11.39 |
15% OFF Phone Price : $13.39
In Stock
Bearing R0605530
Bearing

Part #R0605530

Replaced by #WP40004001

?
Manufacturer substitution
This part replaces R0605530. Substitute parts can look different from the original.
$50.16 |
11% OFF Phone Price : $56.16
In Stock
Bearing Housing R0610011
Bearing housing

Part #R0610011

Replaced by #WP40004201P

?
Manufacturer substitution
This part replaces R0610011. Substitute parts can look different from the original.
$38.70 |
13% OFF Phone Price : $44.70
In Stock
Refrigerator Clamp R0601541
Refrigerator clamp

Part #R0601541

Replaced by #WP285655

?
Manufacturer substitution
This part replaces R0601541. Substitute parts can look different from the original.
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Refrigerator Lock Nut R0601011
Refrigerator lock nut

Part #R0601011

Replaced by #WPW10139757

?
Manufacturer substitution
This part replaces R0601011. Substitute parts can look different from the original.
This item is not returnable
$4.33
In Stock
Filter Washer R0600504
Filter washer

Part #R0600504

Replaced by #WP22002960

?
Manufacturer substitution
This part replaces R0600504. Substitute parts can look different from the original.
$6.60 |
13% OFF Phone Price : $7.60
In Stock
