Kenmore
Handheld Vacuum

Model # 20860132 Official Kenmore dynomite corded hand vacuum

Here are the diagrams and repair parts for Official Kenmore 20860132 dynomite corded hand vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |
Dust Cup 80084B
#15

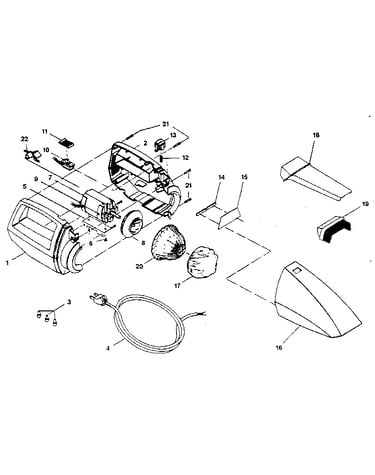

Unit parts diagram

Dust cup

Part #80084B

The manufacturer no longer makes this part, and there's no substitute part

Switch Cap 63311C
#11

Unit parts diagram

Switch cap

Part #63311C

The manufacturer no longer makes this part, and there's no substitute part

Spring 62828A
#12

Unit parts diagram

Spring

Part #62828A

The manufacturer no longer makes this part, and there's no substitute part

Dust Brush 80151C
#19

Unit parts diagram

Dust brush

Part #80151C

The manufacturer no longer makes this part, and there's no substitute part

Motor Assembly 91085
#8

Unit parts diagram

Motor assembly

Part #91085

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 63320
#5

Unit parts diagram

Motor bracket

Part #63320

The manufacturer no longer makes this part, and there's no substitute part

Warng Label 63327C

#NI

All parts diagram

Warng label

Part #63327C

The manufacturer no longer makes this part, and there's no substitute part

Crevice Tool 63341B
#18

Unit parts diagram

Crevice tool

Part #63341B

The manufacturer no longer makes this part, and there's no substitute part

Cord 61576J
#4

Unit parts diagram

Cord

Part #61576J

The manufacturer no longer makes this part, and there's no substitute part

Assembly 62420
#6

Unit parts diagram

Assembly

Part #62420

The manufacturer no longer makes this part, and there's no substitute part
