Model # DXL-100 Official Dunkirk boiler

Here are the diagrams and repair parts for Official Dunkirk DXL-100 boiler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

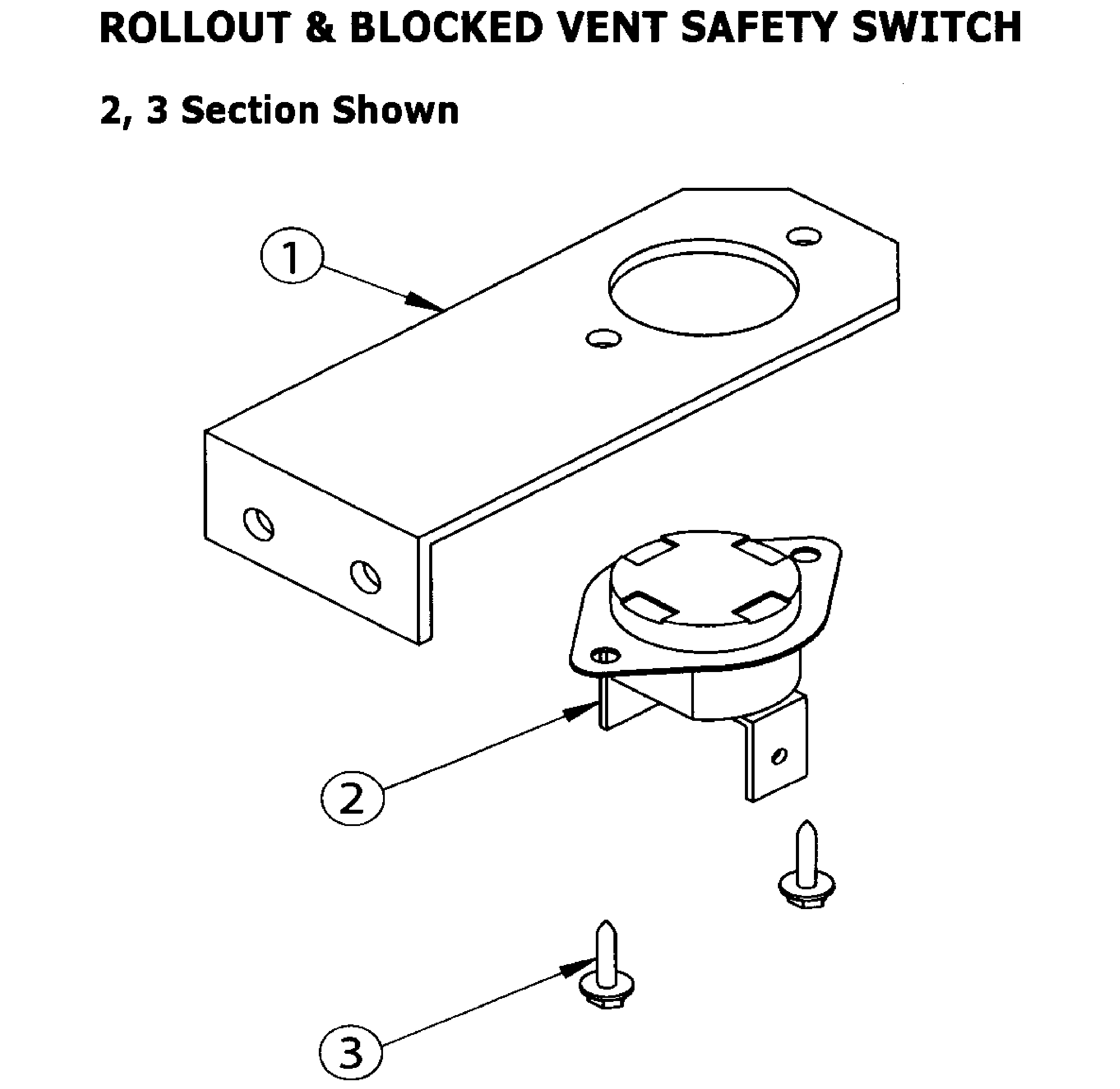

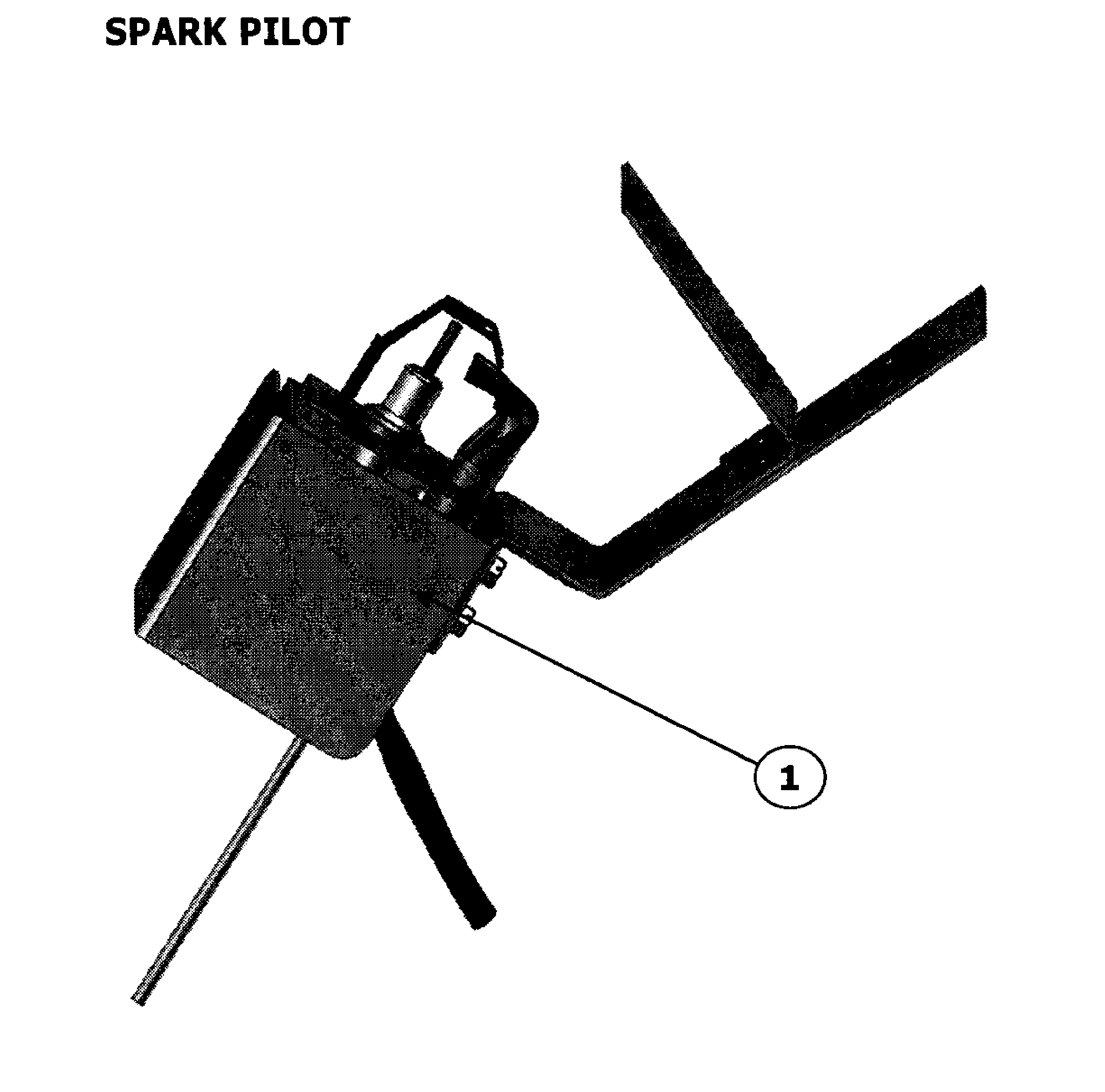

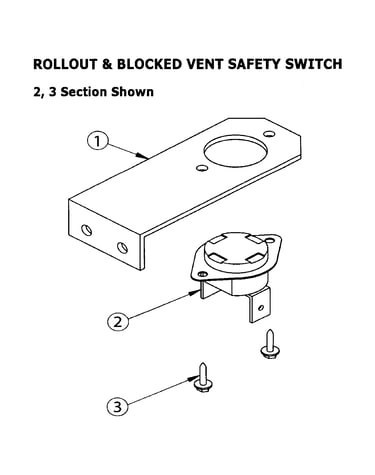

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Grommet,temp Sensor 240007713
#NI

Piping & controls diagram

Grommet,temp sensor

Part #240007713

$10.60
In Stock
Burner Tube 1 1/2 240005543
#1

Heat exchange & base diagram

Burner tube 1 1/2

Part #240005543

$52.91
In Stock
Screw HW-005.01
#5

Heat exchange & base diagram

Screw

Part #HW-005.01

This item is not returnable
$6.37
In Stock
Dunkirk Nat Gas Orifice, 3.2mm 240007406
#7

Heat exchange & base diagram

Dunkirk nat gas orifice, 3.2mm

Part #240007406

$10.60
In Stock
Heat Exchange,4section 912000003
#NI

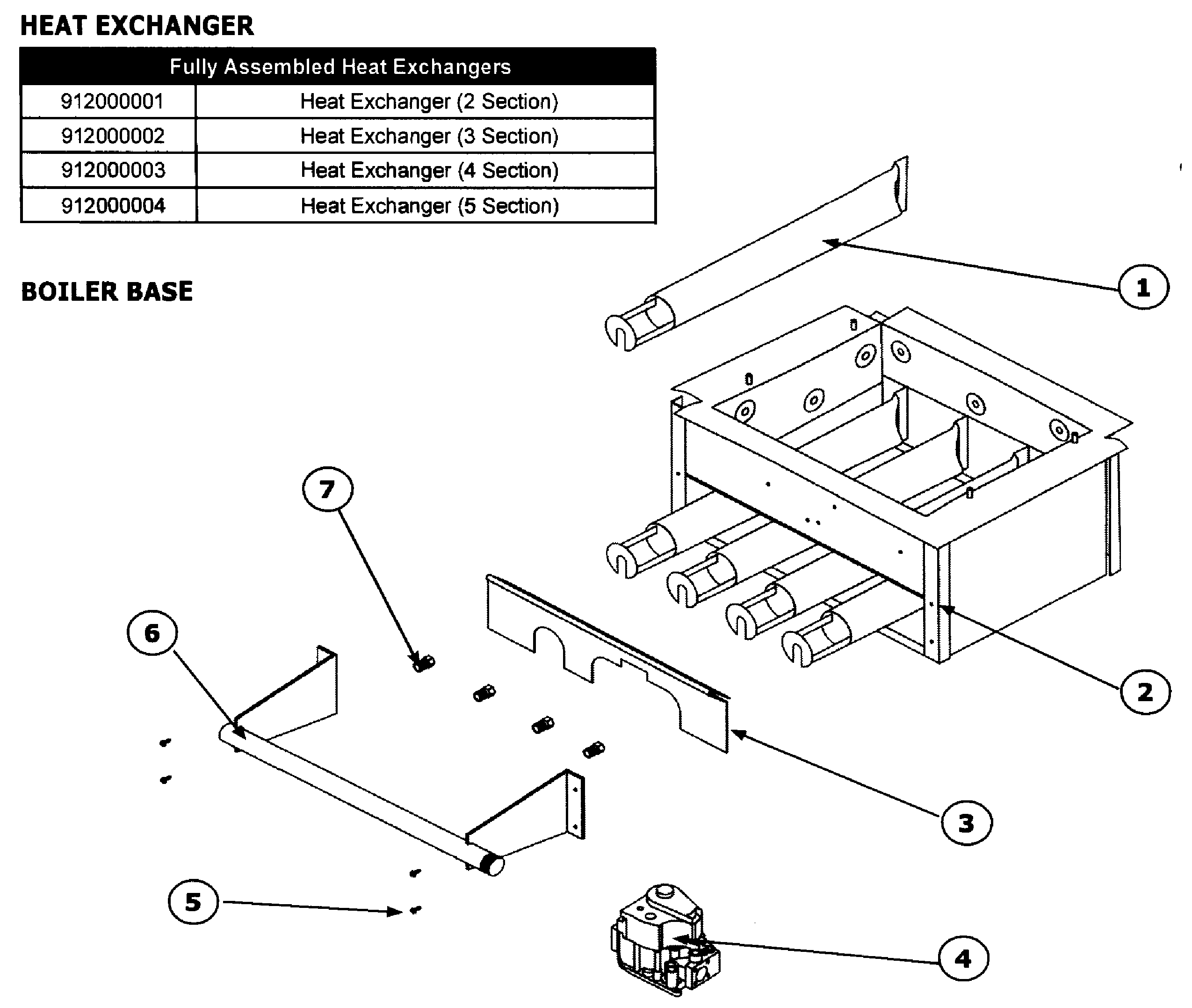

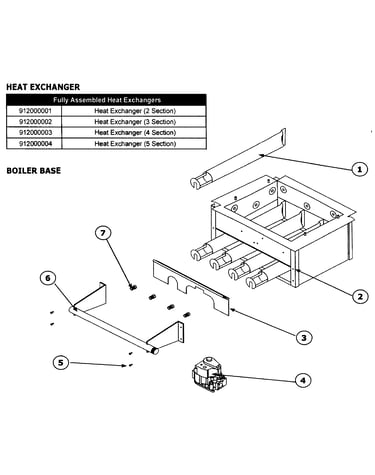

Heat exchange & base diagram

Heat exchange,4section

Part #912000003

$1185.26
In Stock
Tee 1510001
#6

Piping & controls diagram

Tee

Part #1510001

$31.36
In Stock
Screw 8-32x1/2 201000024
#4

Control module diagram

Screw 8-32x1/2

Part #201000024

$8.49
In Stock
Base W/insul 5611602
#2

Heat exchange & base diagram

Base w/insul

Part #5611602

$282.47
In Stock
Heat Exchange,3section 912000002
#NI

Heat exchange & base diagram

Heat exchange,3section

Part #912000002

$975.08
In Stock
Dunkirk Assy Pnl Lt Dxl 109008495AC
#10

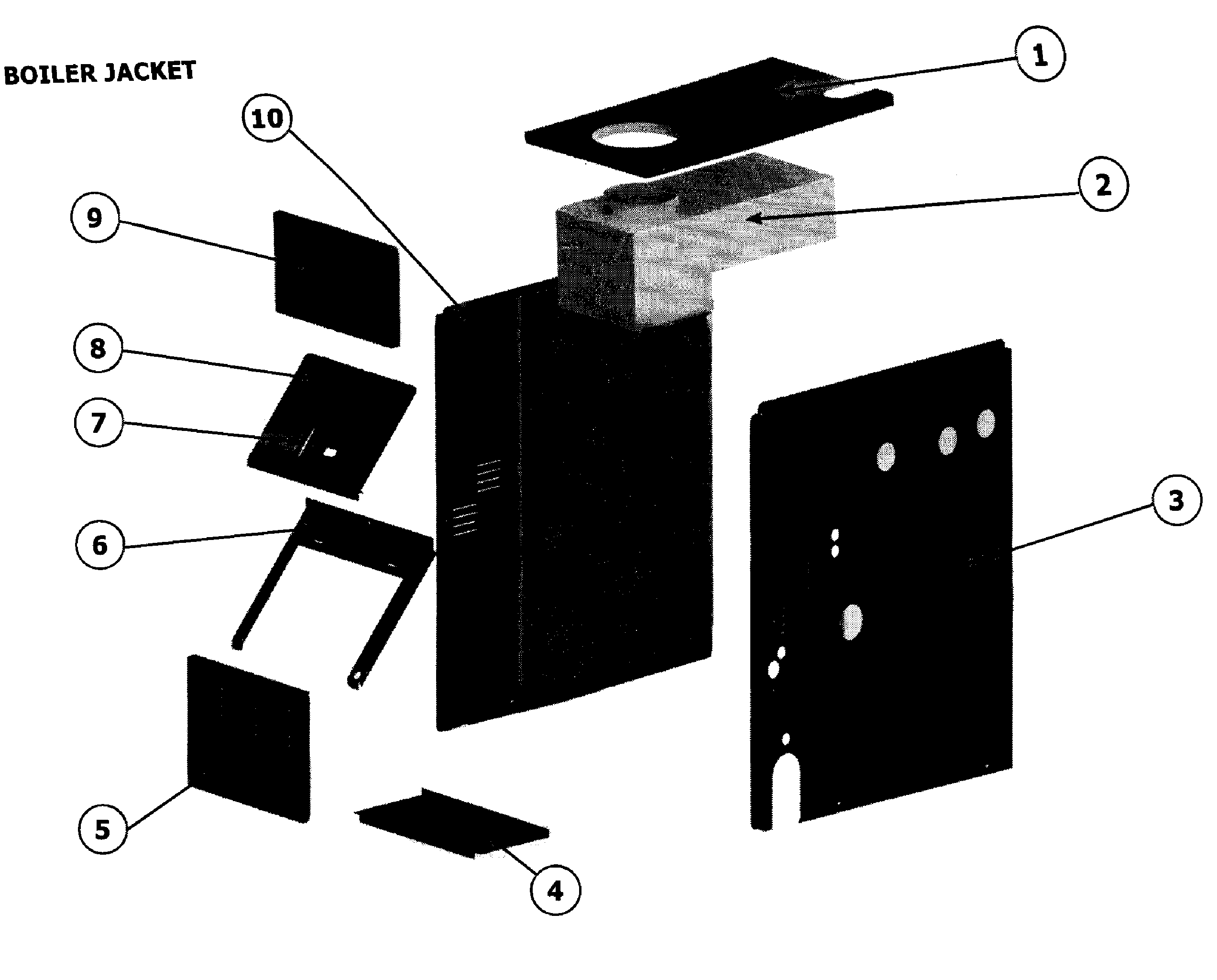

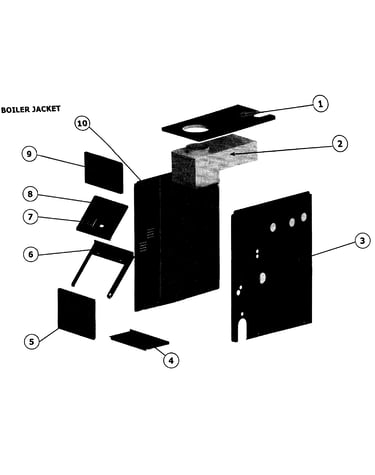

Jacket parts diagram

Dunkirk assy pnl lt dxl

Part #109008495AC

$194.48
In Stock
