Kenmore Elite
Refrigerator

Model # 25344743111 Official Kenmore Elite refrigerator

Here are the diagrams and repair parts for Official Kenmore Elite 25344743111 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 122 parts  |
Refrigerator Door Air Filter 242047801
#206

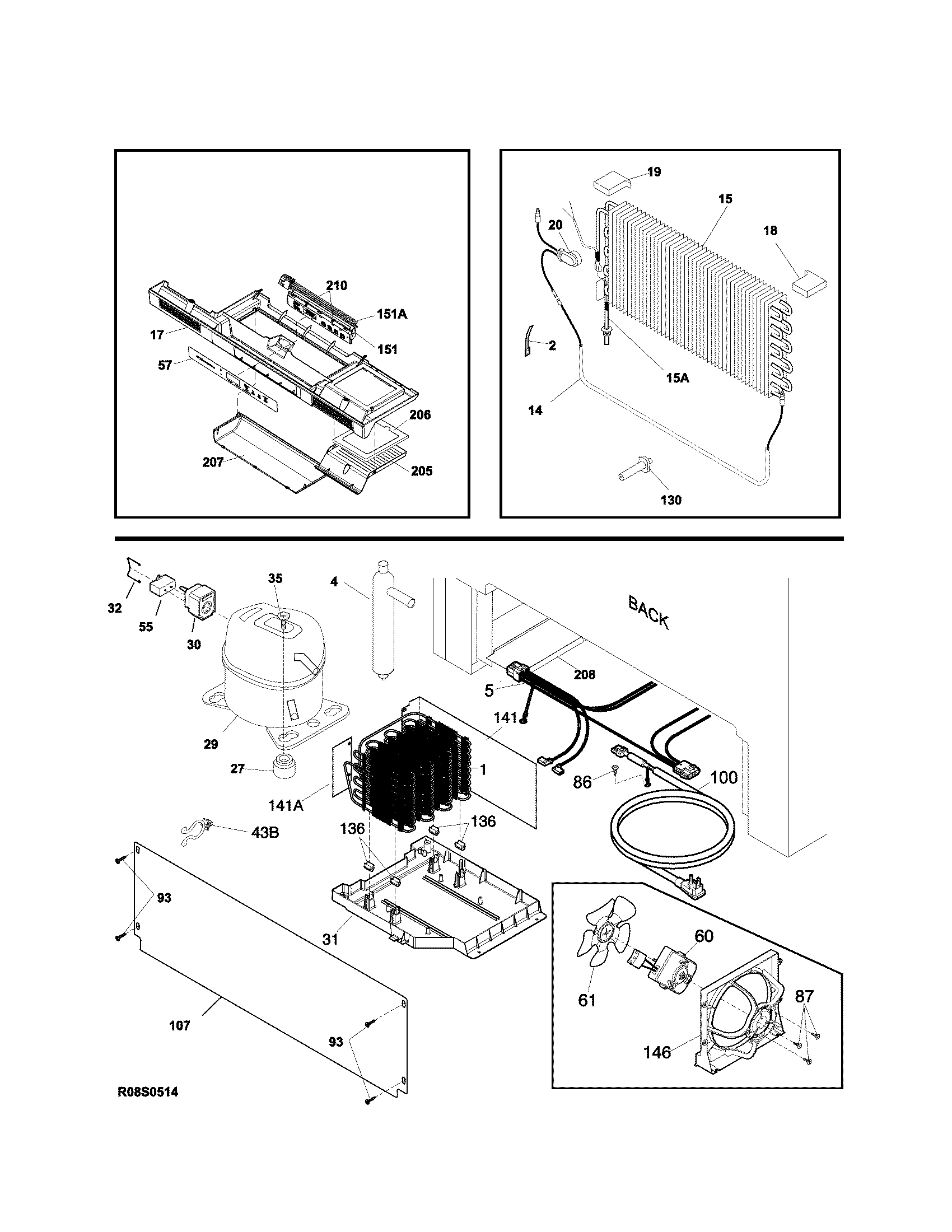

System diagram

Refrigerator door air filter

Part #242047801

Replaced by #EAFCBF

?
Manufacturer substitution
This part replaces 242047801. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$27.39 |
18% OFF Phone Price : $33.39
In Stock
Freezer Evaporator 297414900
#15

System diagram

Freezer evaporator

Part #297414900

Replaced by #297414901

?
Manufacturer substitution
This part replaces 297414900. Substitute parts can look different from the original.
BEST SELLER
$87.43 |
6% OFF Phone Price : $93.43
In Stock
Refrigerator Heat Exchanger 297319400
#15A

System diagram

Refrigerator heat exchanger

Part #297319400

Replaced by #297217900

?
Manufacturer substitution
This part replaces 297319400. Substitute parts can look different from the original.
BEST SELLER
$60.21 |
9% OFF Phone Price : $66.21
In Stock
Gibson Refrigerator Run Capacitor (replaces 216985001, 297286804) 297286803
#55

System diagram

Gibson refrigerator run capacitor (replaces 216985001, 297286804)

Part #297286803

BEST SELLER
$36.46 |
14% OFF Phone Price : $42.46
In Stock
Freezer Evaporator Fan Motor 297250000
#13

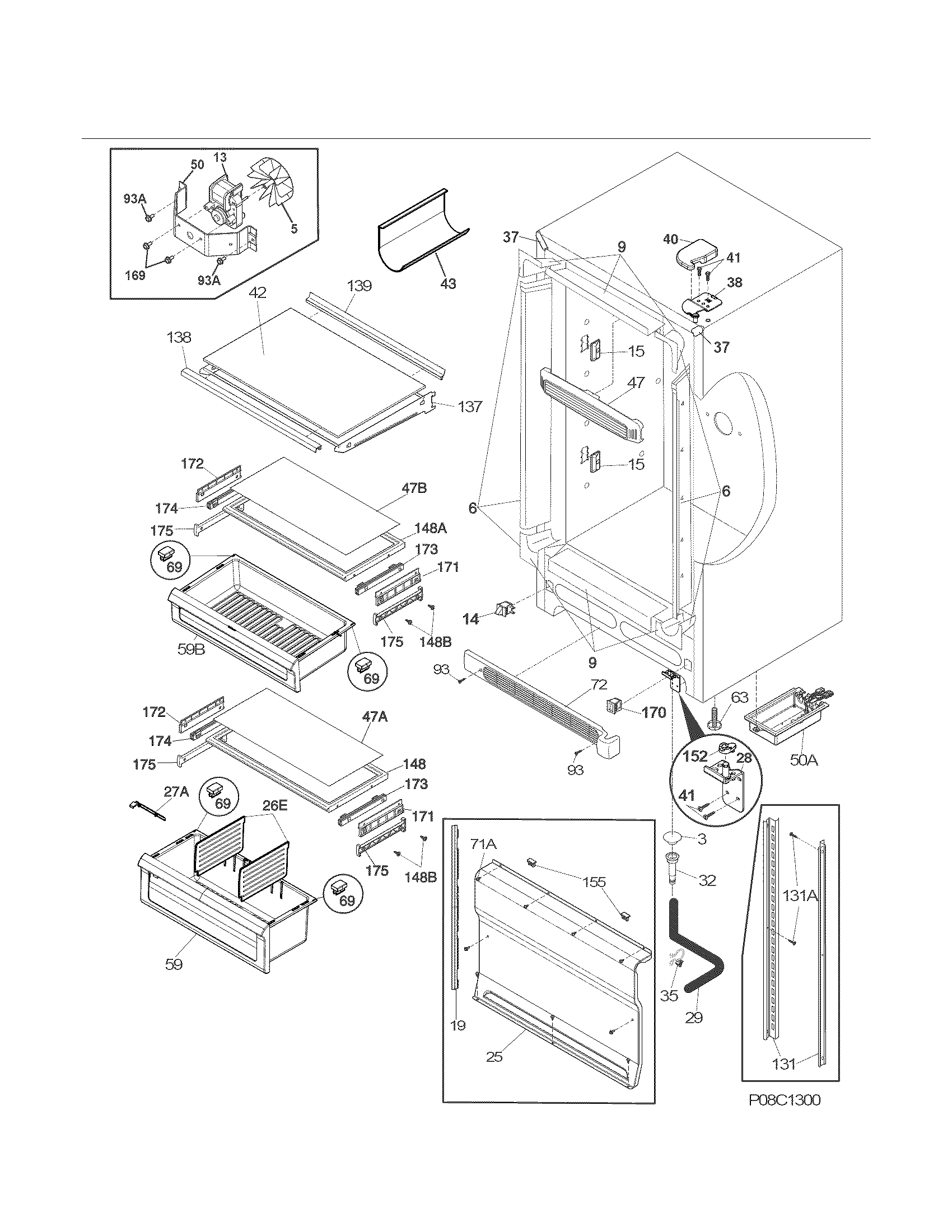

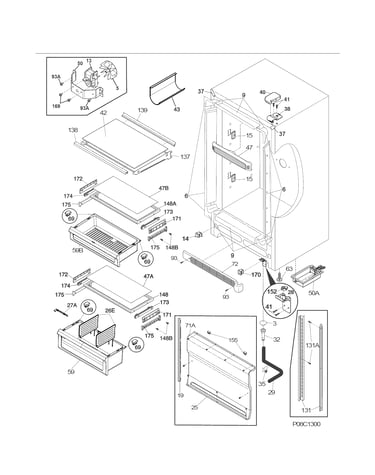

Cabinet diagram

Freezer evaporator fan motor

Part #297250000

Replaced by #297309000

?
Manufacturer substitution
This part replaces 297250000. Substitute parts can look different from the original.
BEST SELLER
$58.41 |
9% OFF Phone Price : $64.41
In Stock
Compressor 297068200
#29

System diagram

Compressor

Part #297068200

Replaced by #5304507765

?
Manufacturer substitution
This part replaces 297068200. Substitute parts can look different from the original.
BEST SELLER
$449.52 |
$12.00 OFF Phone Price : $461.52
In Stock
Refrigerator Condenser Fan Blade 241639501
#61

System diagram

Refrigerator condenser fan blade

Part #241639501

Replaced by #241639502

?
Manufacturer substitution
This part replaces 241639501. Substitute parts can look different from the original.
BEST SELLER
$21.49 |
22% OFF Phone Price : $27.49
In Stock
Refrigerator Crisper Drawer 297292301
#59B

Cabinet diagram

Refrigerator crisper drawer

Part #297292301

Replaced by #297292302

?
Manufacturer substitution
This part replaces 297292301. Substitute parts can look different from the original.
BEST SELLER
$127.30 |
9% OFF Phone Price : $139.30
In Stock
Freezer Door Gasket 216522370
#1

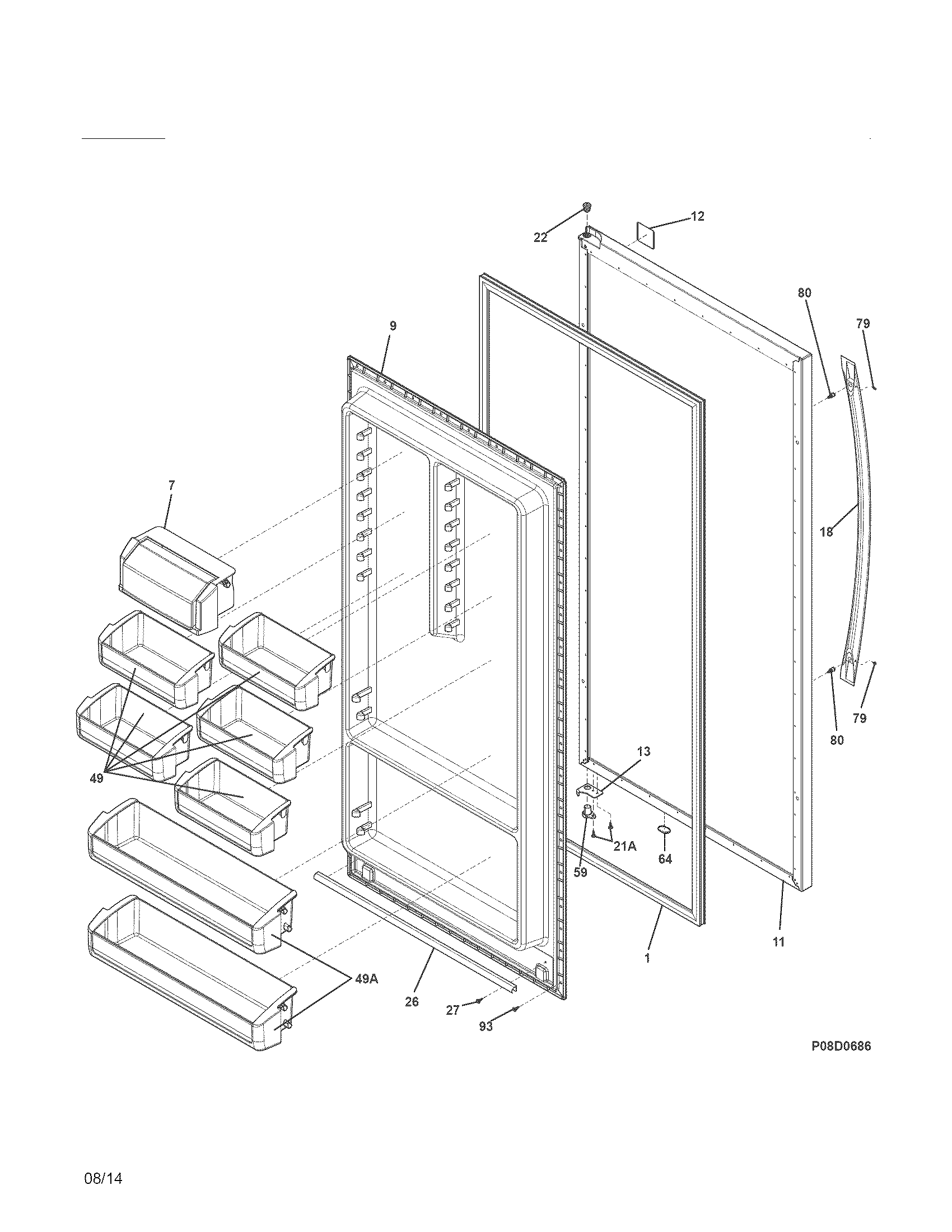

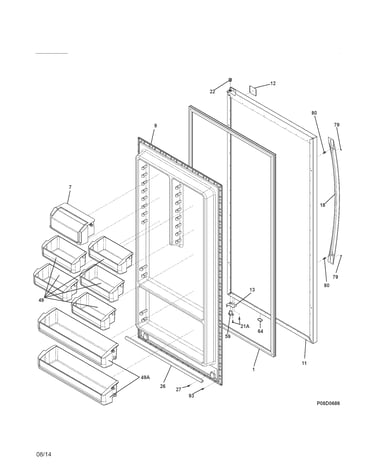

Door diagram

Freezer door gasket

Part #216522370

Replaced by #5304505782

?
Manufacturer substitution
This part replaces 216522370. Substitute parts can look different from the original.
BEST SELLER
$161.19 |
7% OFF Phone Price : $173.19
In Stock
Refrigerator Door Switch (replaces 216922800) 216822901
#14

Cabinet diagram

Refrigerator door switch (replaces 216922800)

Part #216822901

Replaced by #216822900

?
Manufacturer substitution
This part replaces 216822901. Substitute parts can look different from the original.
BEST SELLER
$51.35 |
10% OFF Phone Price : $57.35
In Stock
