Bottom-Mount Refrigerator

Model # LFCS27596S/08 Official LG refrigerator

Here are the diagrams and repair parts for Official LG LFCS27596S-08 refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
Error Codes

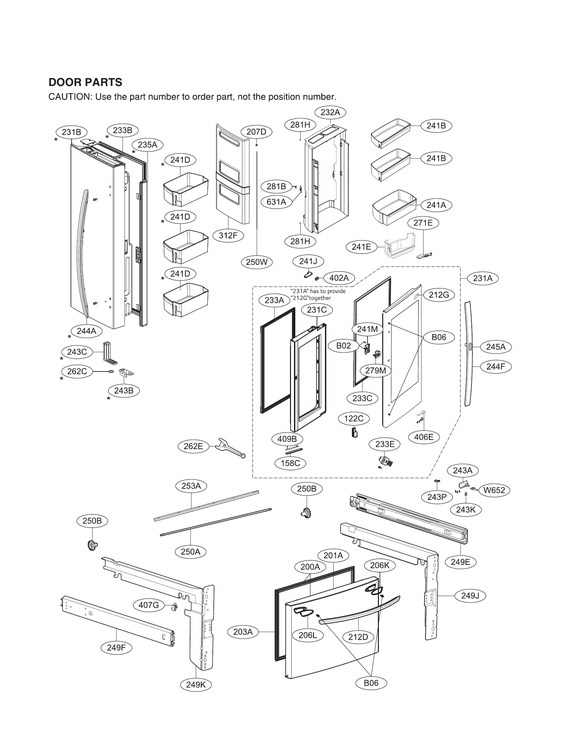

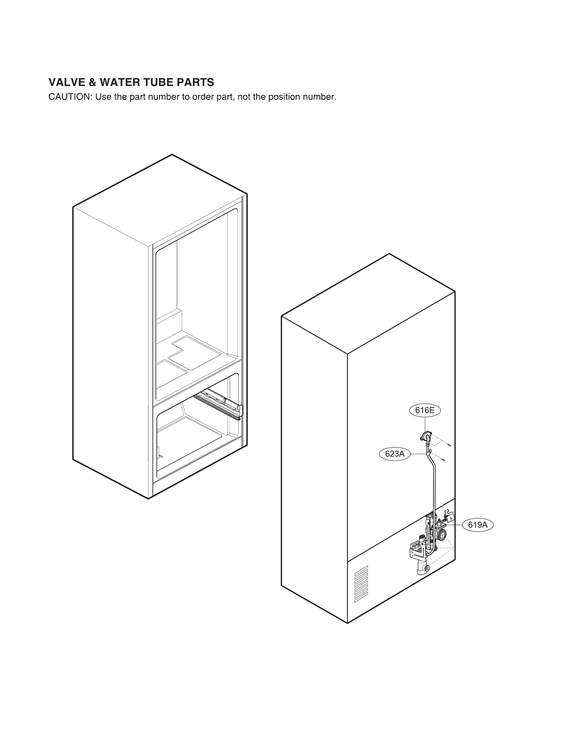

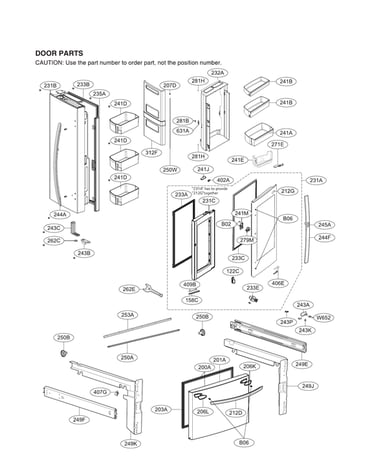

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 146 parts  |
Compressor TCA36811404

#300A

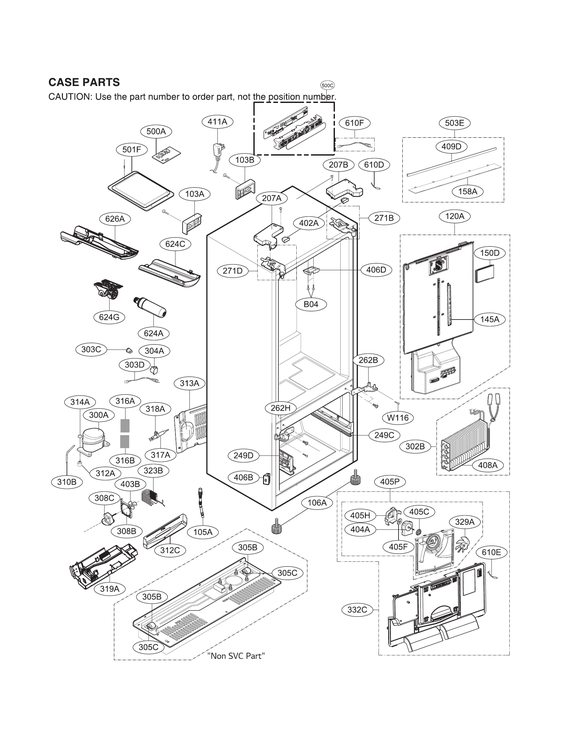

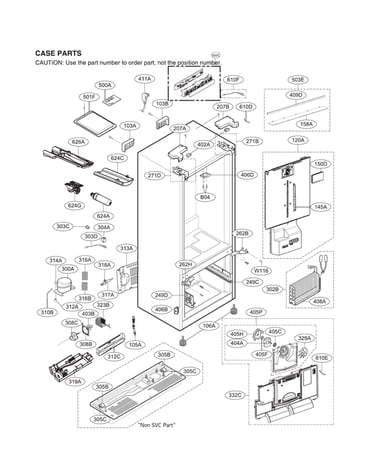

All parts diagram

Compressor

Part #TCA36811404

Replaced by #TCA36811409

?
Manufacturer substitution
This part replaces TCA36811404. Substitute parts can look different from the original.
BEST SELLER
$388.02 |
$12.00 OFF Phone Price : $400.02
In Stock
Lg Lt1000p Refrigerator Water Filter ADQ74793501

#624A

All parts diagram

Lg lt1000p refrigerator water filter

Part #ADQ74793501

Replaced by #AGF80300704

?
Manufacturer substitution
This part replaces ADQ74793501. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$66.99
In Stock

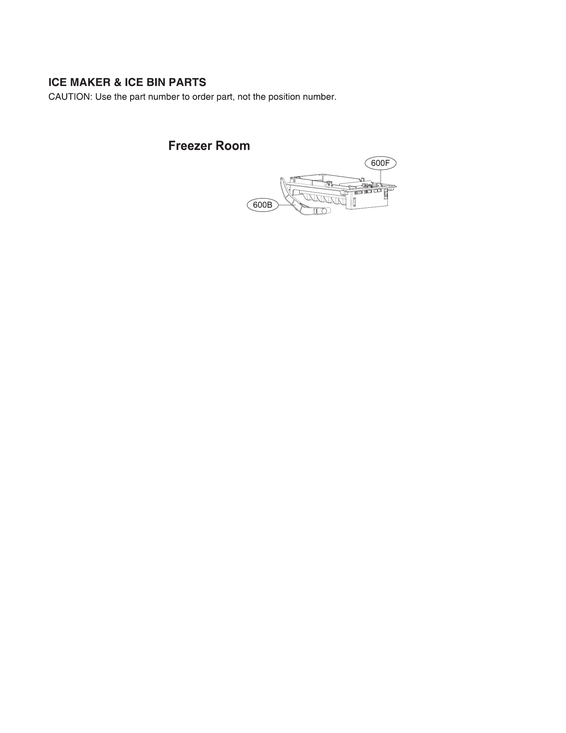

Ice Maker Assembly (aeq72909602) - Refrigerator Ice Maker Part By Lg (replaces Aeq72909601) AEQ72909602

#600F

All parts diagram

Ice maker assembly (aeq72909602) - refrigerator ice maker part by lg (replaces aeq72909601)

Part #AEQ72909602

BEST SELLER
$94.29 |
6% OFF Phone Price : $100.29
In Stock
Refrigerator Filter Dryer ADH73590303

#317A

All parts diagram

Refrigerator filter dryer

Part #ADH73590303

BEST SELLER
$32.09 |
16% OFF Phone Price : $38.09
In Stock
Refrigerator Condenser Fan Motor EAU65058502

#308C

All parts diagram

Refrigerator condenser fan motor

Part #EAU65058502

BEST SELLER
$58.15 |
9% OFF Phone Price : $64.15
In Stock
Refrigerator Evaporator Assembly ADL73762013

#302B

All parts diagram

Refrigerator evaporator assembly

Part #ADL73762013

BEST SELLER
$193.75
In Stock
Refrigerator Evaporator Fan Motor (replaces Eau63923606) EAU63923603

#404A

All parts diagram

Refrigerator evaporator fan motor (replaces eau63923606)

Part #EAU63923603

BEST SELLER
$62.19 |
9% OFF Phone Price : $68.19
In Stock
Refrigerator Temperature Sensor (replaces 6500jb2002p) 6500JB2002X

#610E

All parts diagram

Refrigerator temperature sensor (replaces 6500jb2002p)

Part #6500JB2002X

BEST SELLER
$20.76 |
22% OFF Phone Price : $26.76
In Stock
Grille Assy AEB73764526

#332C

All parts diagram

Grille assy

Part #AEB73764526

BEST SELLER
$168.76
In Stock

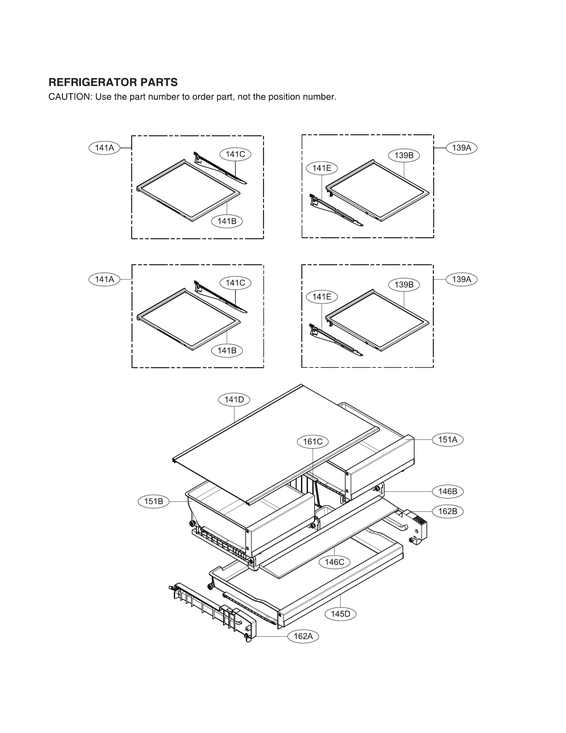

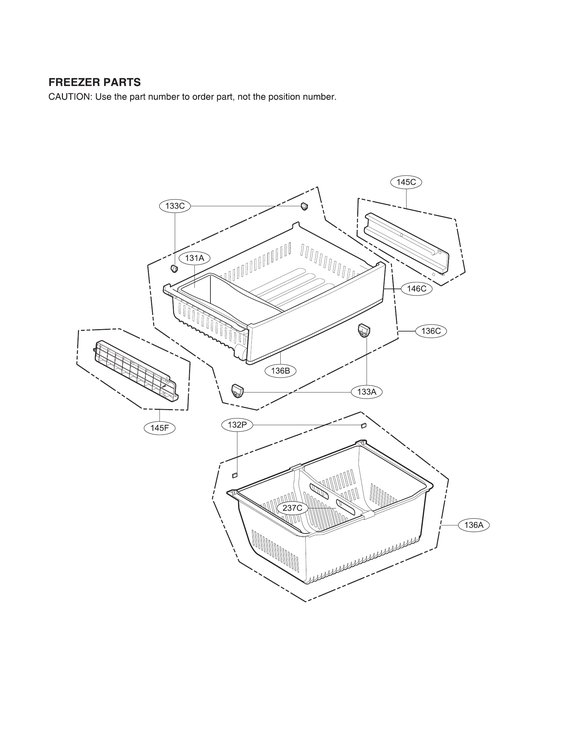

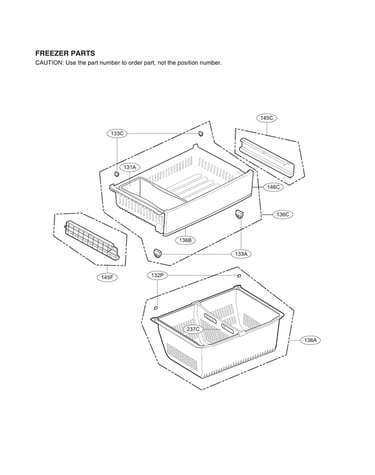

Refrigerator Deli Drawer Front Cover MCR66806901

#146C

All parts diagram

Refrigerator deli drawer front cover

Part #MCR66806901

BEST SELLER
This item is not returnable
$28.72 |
17% OFF Phone Price : $34.72
In Stock
