Model # CEF304CS/01 Official Thermador cooktop

Here are the diagrams and repair parts for Official Thermador CEF304CS-01 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 22 parts  |
Cooktop Installation Bracket 00188954
#NI

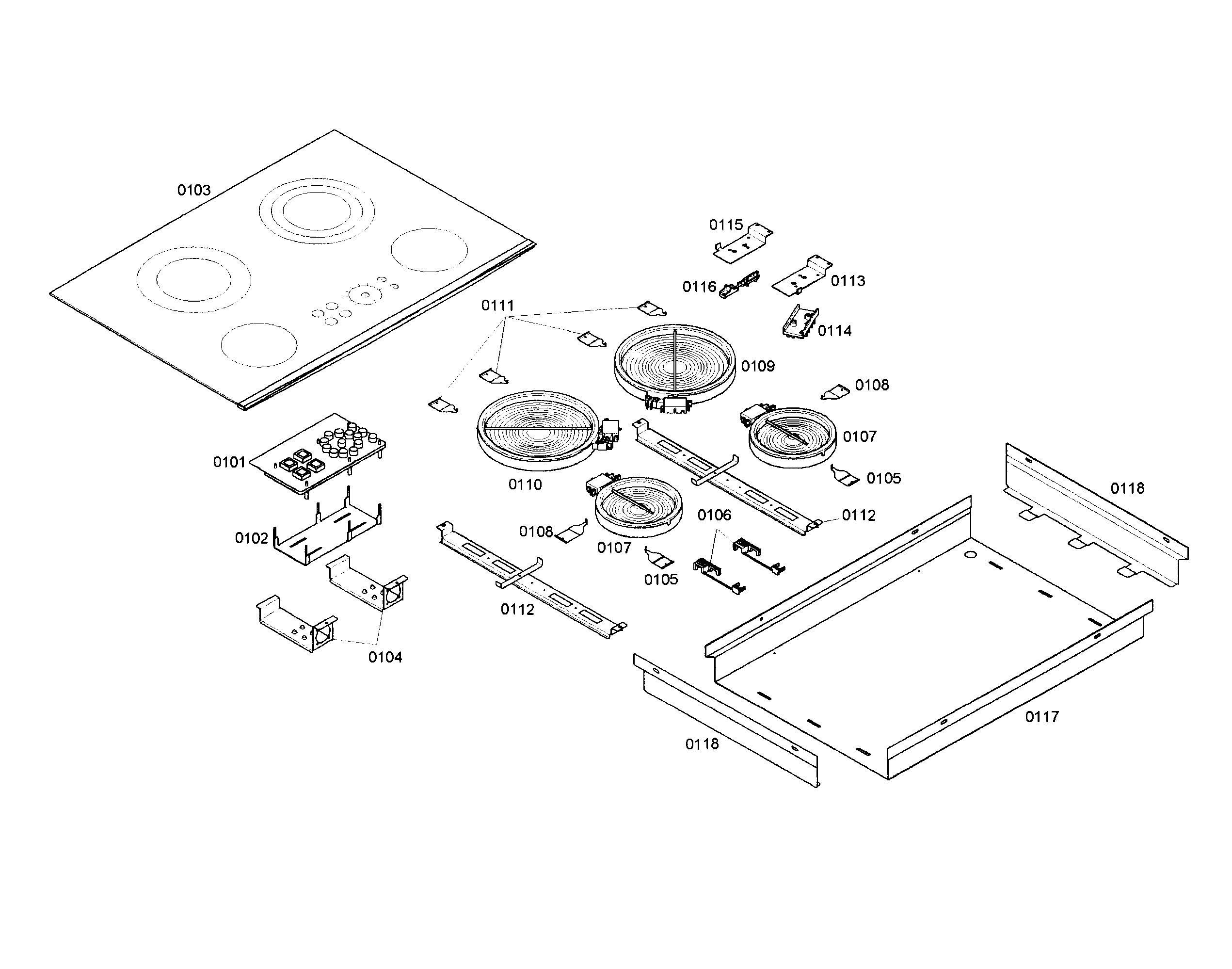

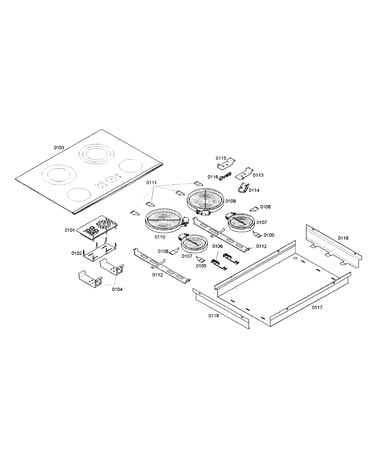

Cooktop assy diagram

Cooktop installation bracket

Part #00188954

$35.49 |
14% OFF Phone Price : $41.49
In Stock
Hot Plate 00491270
#107

Cooktop assy diagram

Hot plate

Part #00491270

$109.64
In Stock
Hot Plate 00491271
#110

Cooktop assy diagram

Hot plate

Part #00491271

$202.96
In Stock
Bracket 00496102
#104

Cooktop assy diagram

Bracket

Part #00496102

The manufacturer no longer makes this part, and there's no substitute part

Flat Seal 00416290
#NI

Cooktop assy diagram

Flat seal

Part #00416290

The manufacturer no longer makes this part, and there's no substitute part

Support 00189459
#115

Cooktop assy diagram

Support

Part #00189459

The manufacturer no longer makes this part, and there's no substitute part

Spring 00421501
#108

Cooktop assy diagram

Spring

Part #00421501

The manufacturer no longer makes this part, and there's no substitute part

Control Unit 00427823
#101

Cooktop assy diagram

Control unit

Part #00427823

The manufacturer no longer makes this part, and there's no substitute part

Top Cerami 00475378
#103

Cooktop assy diagram

Top cerami

Part #00475378

The manufacturer no longer makes this part, and there's no substitute part

Wire Element 00491275
#NI

Cooktop assy diagram

Wire element

Part #00491275

The manufacturer no longer makes this part, and there's no substitute part
