KitchenAid
Gas Range

Model # KFGG500EWH8 Official KitchenAid free standing gas range

Here are the diagrams and repair parts for Official KitchenAid KFGG500EWH8 free standing gas range, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

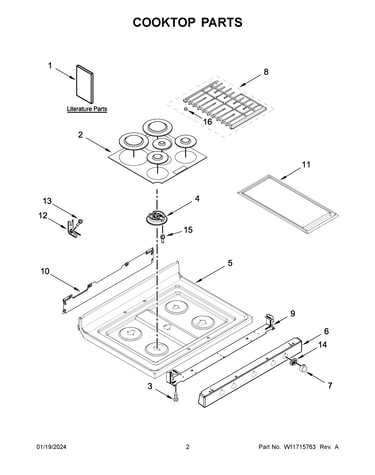

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 160 parts  |
Affresh Cooktop Cleaner (replaces 31464) W10355051
#NI

Optional parts (not included) diagram

Affresh cooktop cleaner (replaces 31464)

Part #W10355051

BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Range Oven Igniter W10324262
#13

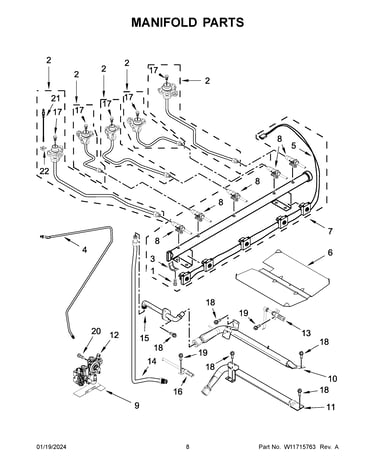

Manifold parts diagram

Range oven igniter

Part #W10324262

Replaced by #WPW10324262

?
Manufacturer substitution
This part replaces W10324262. Substitute parts can look different from the original.
BEST SELLER
$56.78 |
10% OFF Phone Price : $62.78
In Stock
Appliance Touch-up Paint 72017
#NI

Optional parts (not included) diagram

Appliance touch-up paint

Part #72017

Replaced by #72017

?
Manufacturer substitution
This part replaces 72017. Substitute parts can look different from the original.
BEST SELLER
$8.29 |
11% OFF Phone Price : $9.29
In Stock
Spray W 350930
#NI

Optional parts (not included) diagram

Spray w

Part #350930

Replaced by #350930

?
Manufacturer substitution
This part replaces 350930. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$15.69 |
11% OFF Phone Price : $17.69
In Stock
Range Oven Burner Igniter W10333842
#16

Manifold parts diagram

Range oven burner igniter

Part #W10333842

Replaced by #WPW10333842

?
Manufacturer substitution
This part replaces W10333842. Substitute parts can look different from the original.
BEST SELLER
$64.90 |
8% OFF Phone Price : $70.90
In Stock
Module-spark W10920631
#4

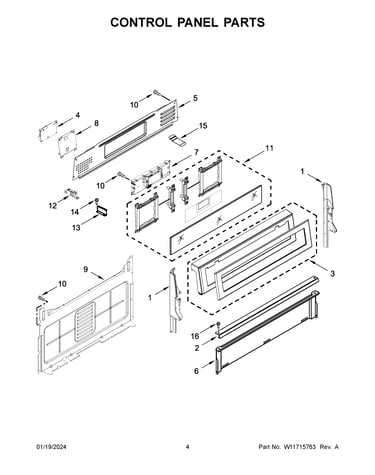

Control panel parts diagram

Module-spark

Part #W10920631

Replaced by #W11162730

?
Manufacturer substitution
This part replaces W10920631. Substitute parts can look different from the original.
$104.43 |
10% OFF Phone Price : $116.43
In Stock
Gasket, Door W11491752
#21

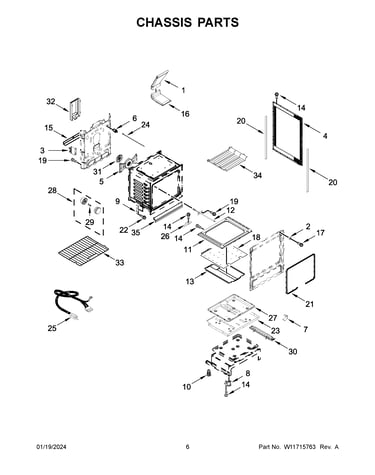

Chassis parts diagram

Gasket, door

Part #W11491752

Replaced by #W11562931

?
Manufacturer substitution
This part replaces W11491752. Substitute parts can look different from the original.
$45.67
In Stock
Range Screw W10317886
#17

Door parts diagram

Range screw

Part #W10317886

Replaced by #WPW10317886

?
Manufacturer substitution
This part replaces W10317886. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Door Hinge W10440013
#9

Door parts diagram

Door hinge

Part #W10440013

Replaced by #WPW10440013

?
Manufacturer substitution
This part replaces W10440013. Substitute parts can look different from the original.
$36.96 |
14% OFF Phone Price : $42.96
In Stock
Gas Valve W10720102
#12

Manifold parts diagram

Gas valve

Part #W10720102

Replaced by #W10919226

?
Manufacturer substitution
This part replaces W10720102. Substitute parts can look different from the original.
$118.19 |
9% OFF Phone Price : $130.19
In Stock
