Model # WF520ABP/XAA-02 Official Samsung washer
Here are the diagrams and repair parts for Official Samsung WF520ABP/XAA-02 washer, as well as links to manuals and error code tables, if available.
Owner’s manualBy Schematic
By Part

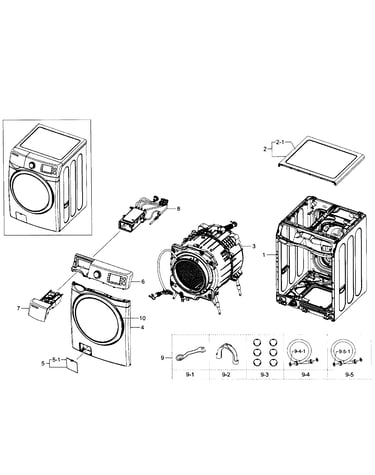

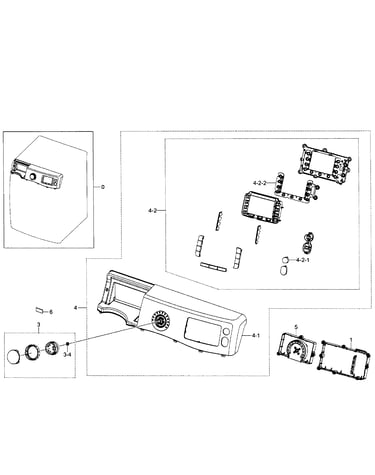

SELECT DIAGRAM
Browse Parts for
WF520ABP/XAA-02 Washer
Samsung washer shock absorber (replaces dc66-00650d)
Part #DC66-00470A
$57.86 |
9% OFF Phone Price : $63.86
In Stock
#11-2

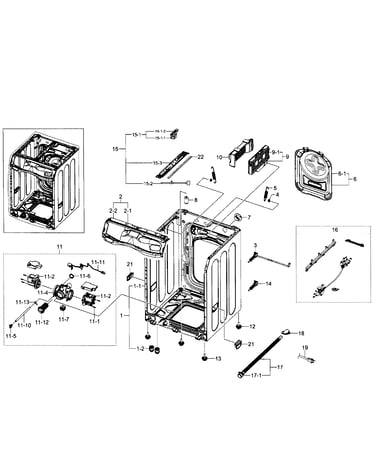

Frame diagram
Samsung washer drain pump (replaces dc31-00016a)
Part #DC31-00054A
$157.24 |
7% OFF Phone Price : $169.24
In Stock
#5

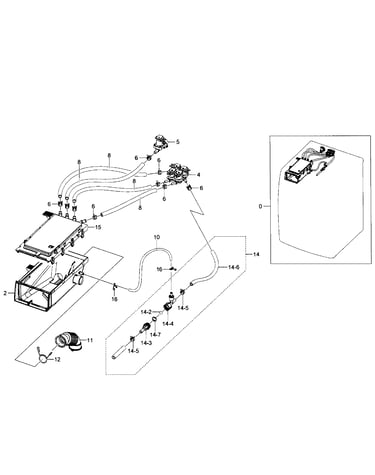

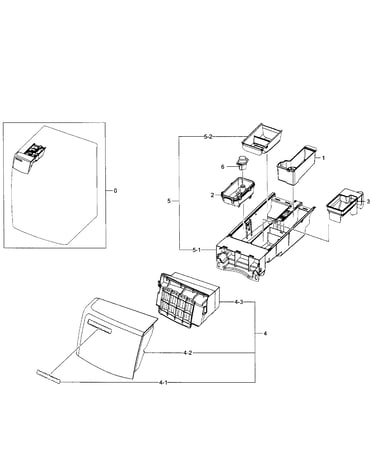

Housing drawer diagram
Washer water inlet valve (replaces dc62-30314h)
Part #DC62-30314K
$79.05 |
7% OFF Phone Price : $85.05
In Stock
#5

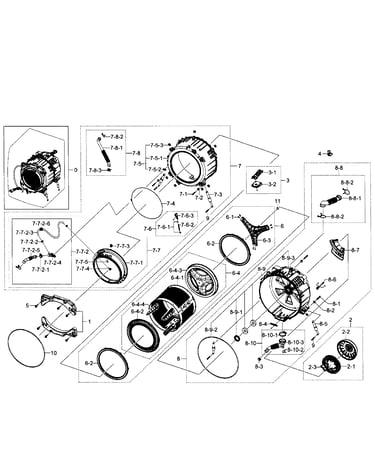

Tub-drum diagram
Washer bolt (replaces dc60-40138a)
Part #DC97-02412A
$16.20 |
11% OFF Phone Price : $18.20
In Stock
#2-3
Tub-drum diagram
Washer motor rotor position sensor
Part #DC31-00098A
$67.42 |
8% OFF Phone Price : $73.42
In Stock
#10
Tub-drum diagram
Washer door boot spring clamp
Part #DC97-04973B
$10.51 |
16% OFF Phone Price : $12.51
In Stock
#7-4
Tub-drum diagram
Washer door boot spring clamp
Part #DC97-04981F
$23.98 |
20% OFF Phone Price : $29.98
In Stock
#2-1
Tub-drum diagram
Washer motor stator
Part #DC31-00124A
$226.80 |
5% OFF Phone Price : $238.80
In Stock
#4

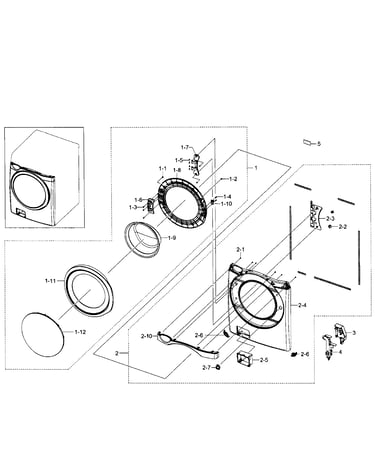

Front section diagram
Washer door lock
Part #DC64-00519B
$31.51 |
16% OFF Phone Price : $37.51
In Stock
#6-1
Tub-drum diagram
Washer bolt (replaces 6011-001491)
Part #DC60-40137A
$6.69 |
13% OFF Phone Price : $7.69
In Stock
