Bottom-Mount Refrigerator

Model # RF23HCEDBSR/AA-14 Official Samsung refrigerator

Here are the diagrams and repair parts for Official Samsung RF23HCEDBSR/AA-14 refrigerator, as well as links to manuals and error code tables, if available.

By Schematic
By Part

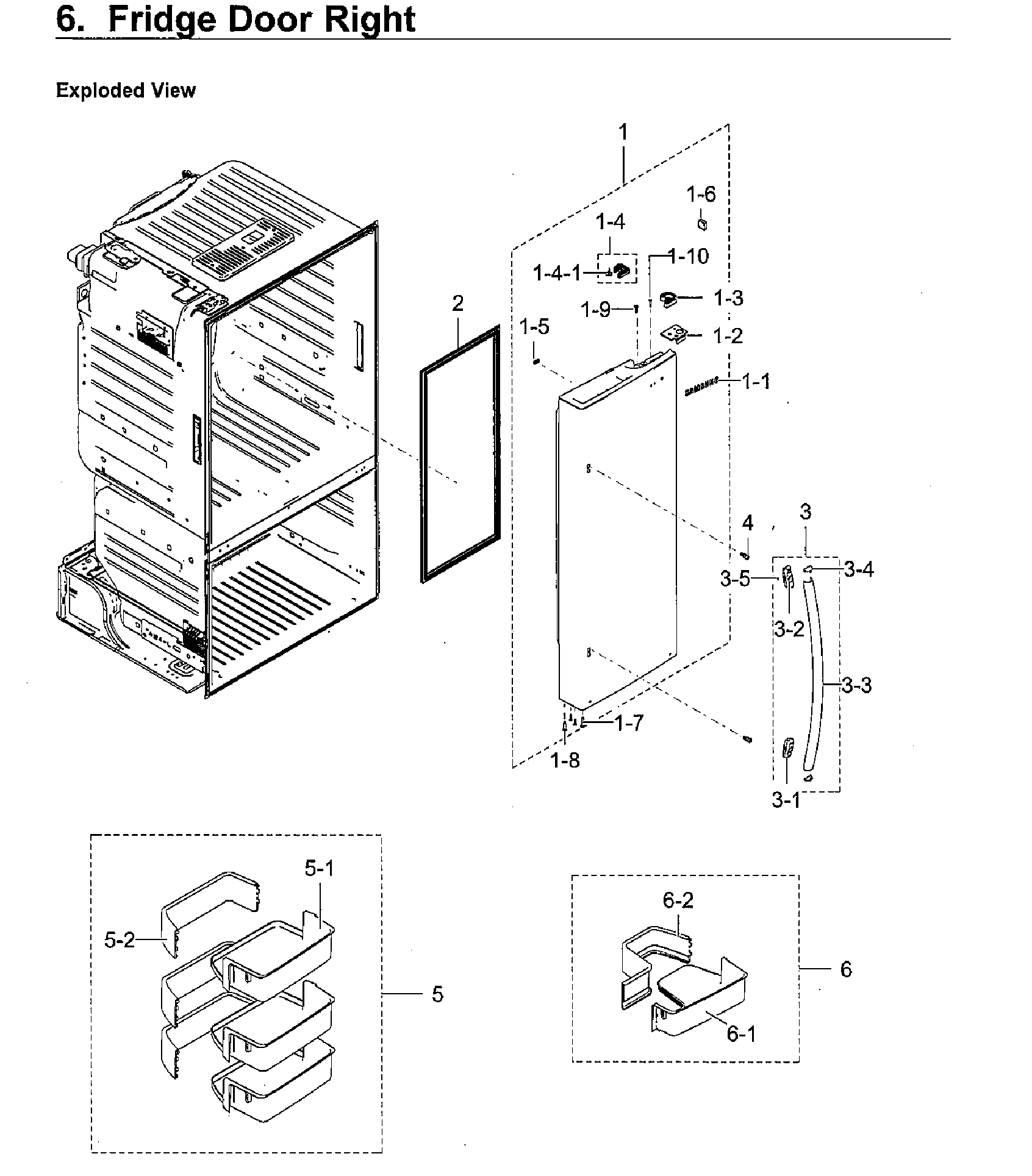

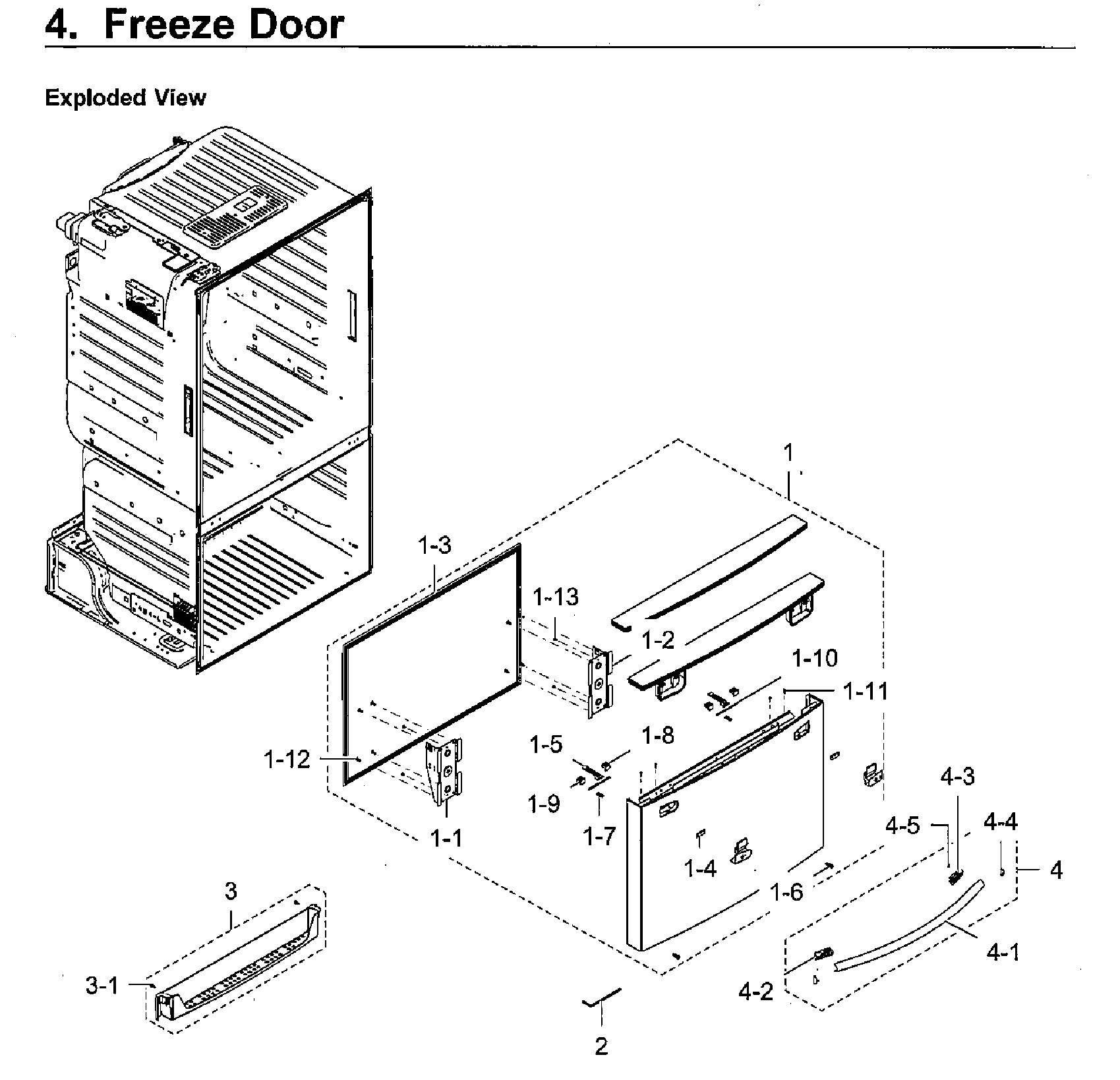

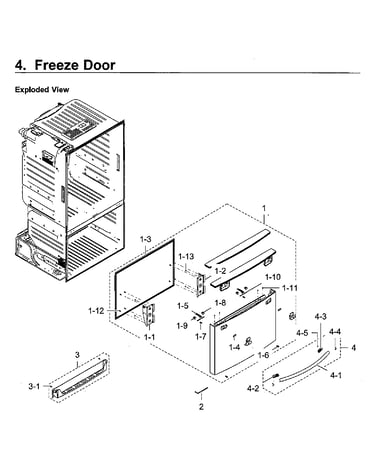

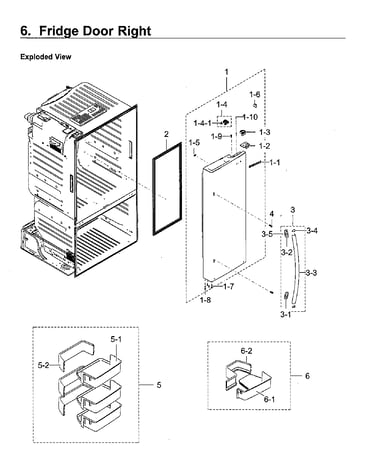

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
RF23HCEDBSR/AA-14 Refrigerators
Refrigerator Temperature Sensor DA32-10104N
Refrigerator temperature sensor

Part #DA32-10104N

4.67 (3)
BEST SELLER
$29.98 |
17% OFF Phone Price : $35.98
In Stock
Refrigerator Ice Maker DA97-13718A
#8

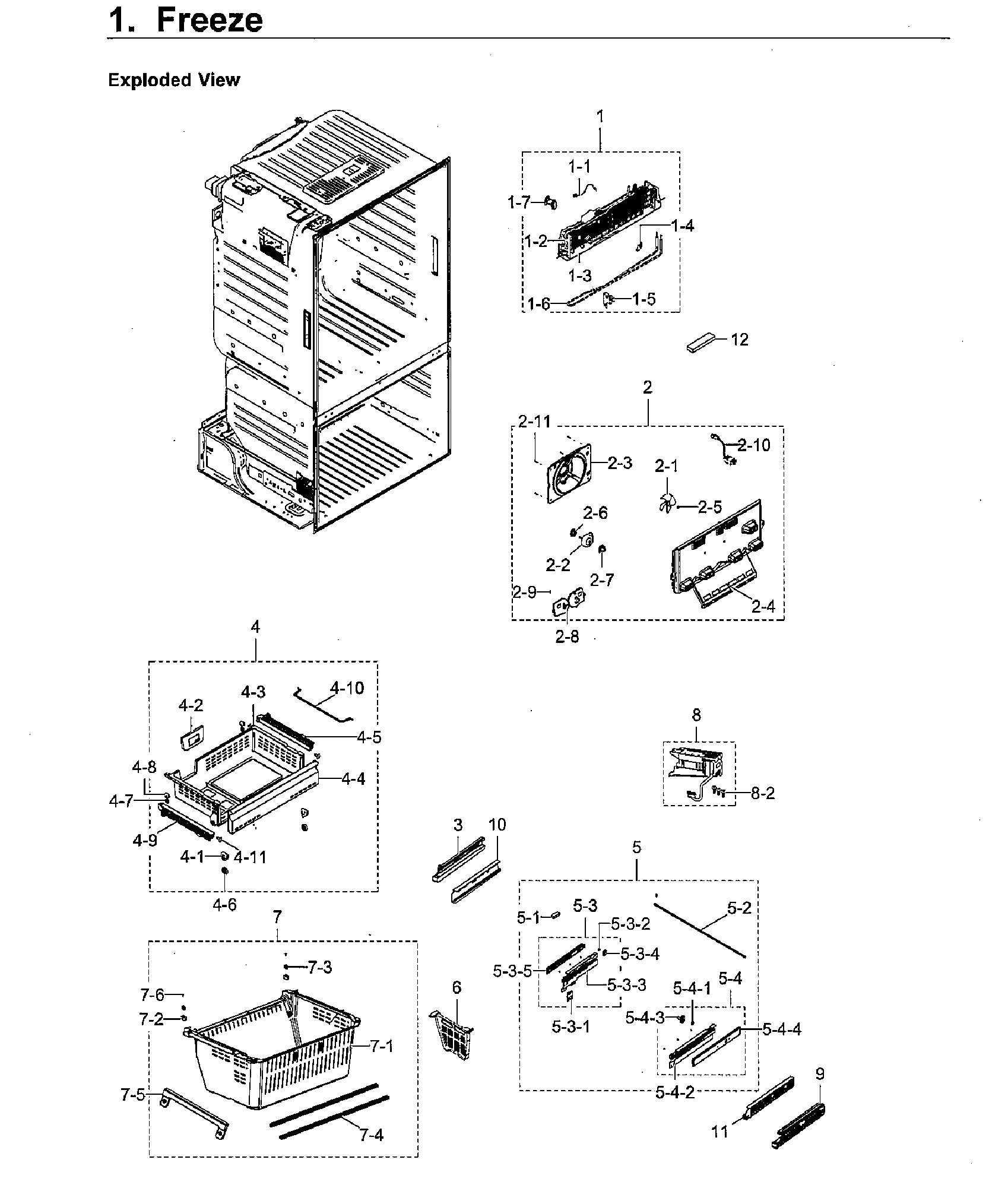

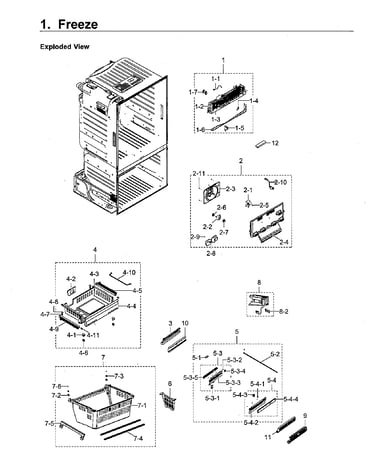

Freezer / icemaker diagram

Refrigerator ice maker

Part #DA97-13718A

Replaced by #DA97-13718C

?
Manufacturer substitution
This part replaces DA97-13718A. Substitute parts can look different from the original.
3.5 (4)
BEST SELLER
$144.53 |
8% OFF Phone Price : $156.53
In Stock
Samsung Refrigerator Fresh Food Evaporator Cover Assembly DA97-12608A
#24

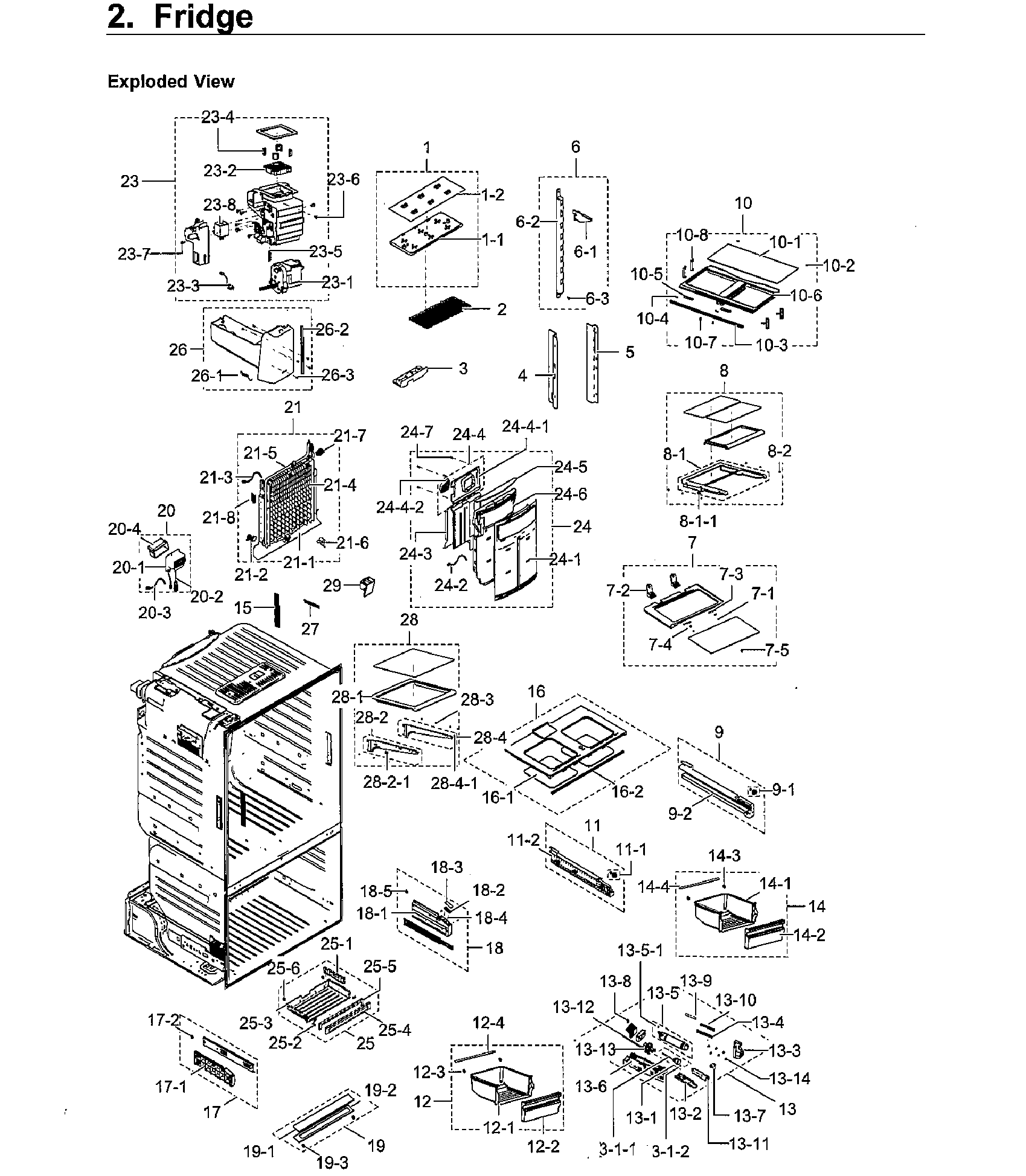

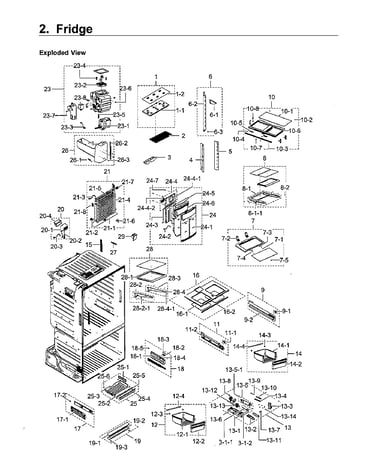

Fridge diagram

Samsung refrigerator fresh food evaporator cover assembly

Part #DA97-12608A

BEST SELLER
$154.20 |
7% OFF Phone Price : $166.20
In Stock
Filtr Dryr DA62-04309B
#22

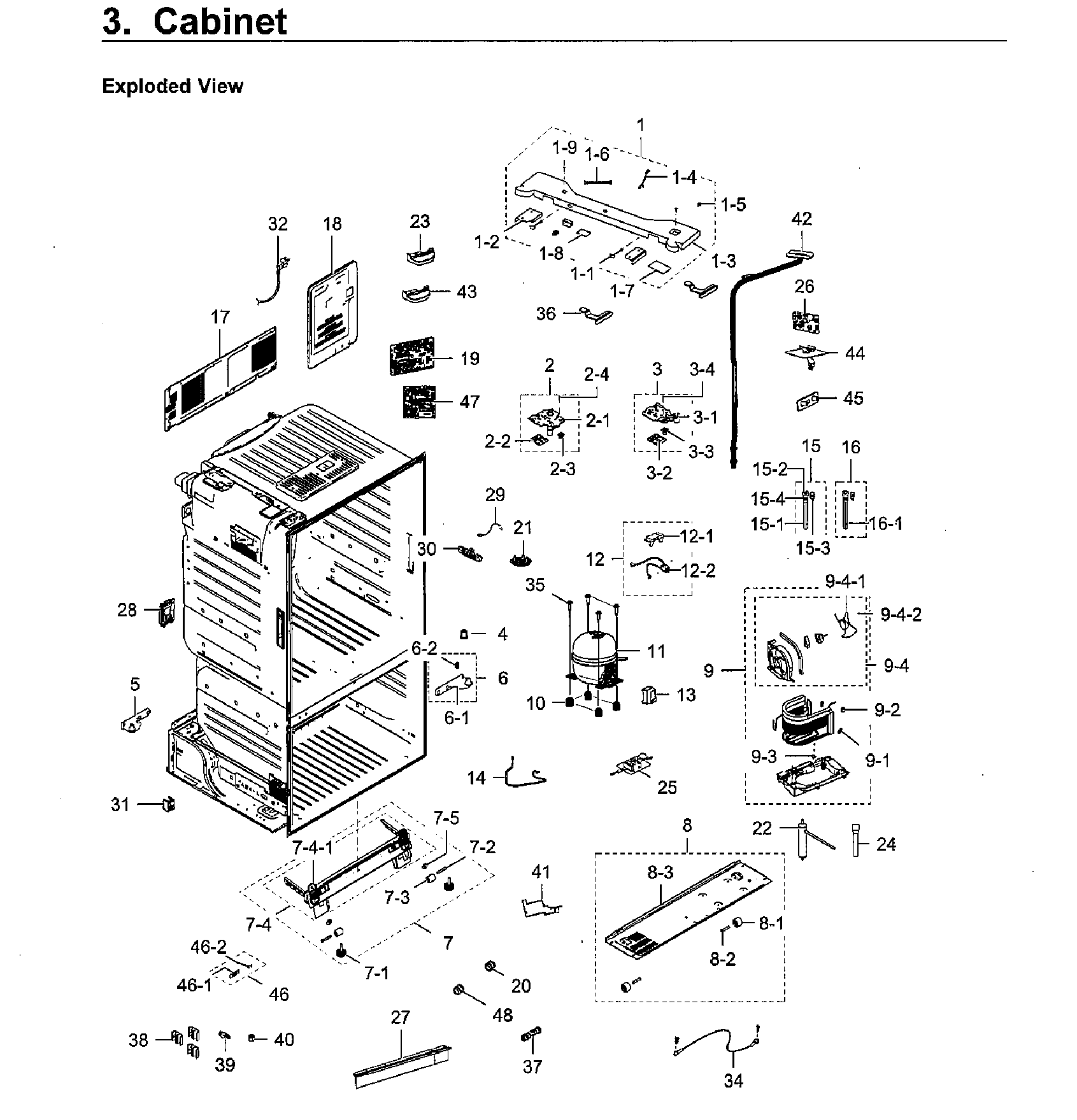

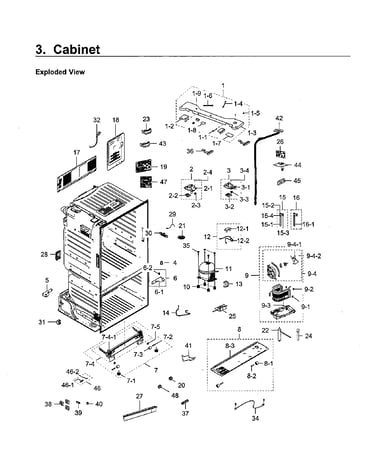

Cabinet diagram

Filtr dryr

Part #DA62-04309B

Replaced by #DA81-06006B

?
Manufacturer substitution
This part replaces DA62-04309B. Substitute parts can look different from the original.
BEST SELLER
$90.91 |
6% OFF Phone Price : $96.91
In Stock
Samsung Refrigerator Ice Container Assembly (replaces Da97-14504a) DA97-14504C
#26

Fridge diagram

Samsung refrigerator ice container assembly (replaces da97-14504a)

Part #DA97-14504C

5 (3)
BEST SELLER
$167.19 |
7% OFF Phone Price : $179.19
In Stock
Samsung Refrigerator Flipper Assembly DA97-12624A
#6

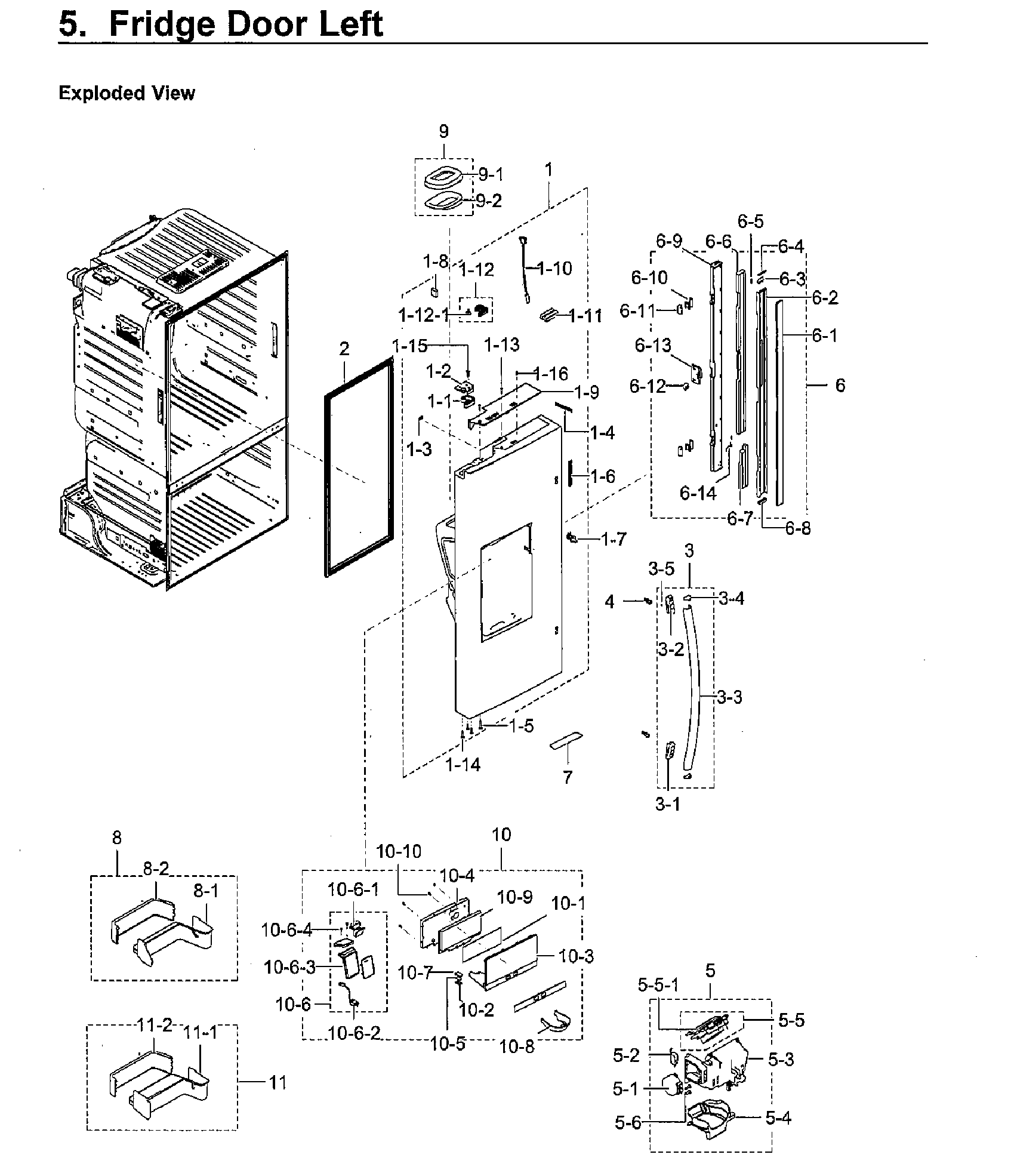

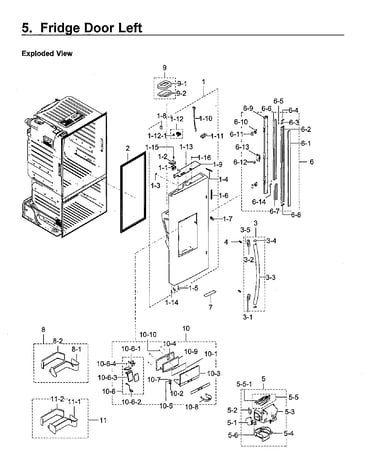

Fridge door l diagram

Samsung refrigerator flipper assembly

Part #DA97-12624A

5 (2)
BEST SELLER
$132.92 |
8% OFF Phone Price : $144.92
In Stock
Samsung Refrigerator Door Hinge, Left DA61-08309A
#2-1

Cabinet diagram

Samsung refrigerator door hinge, left

Part #DA61-08309A

5 (1)
BEST SELLER
$53.80 |
10% OFF Phone Price : $59.80
In Stock
Refrigerator Water Filter DA29-00019A
#NI

Freezer / icemaker diagram

Refrigerator water filter

Part #DA29-00019A

Replaced by #DA29-00020B

?
Manufacturer substitution
This part replaces DA29-00019A. Substitute parts can look different from the original.
5 (1)
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
Back Order
Refrigerator Dispenser Ice Chute Cap And Gasket Assembly DA97-12594A
#9

Fridge door l diagram

Refrigerator dispenser ice chute cap and gasket assembly

Part #DA97-12594A

4.5 (2)
BEST SELLER
$58.35 |
9% OFF Phone Price : $64.35
In Stock
Refrigerator Defrost Heater DA47-00244U
#21-5

Fridge diagram

Refrigerator defrost heater

Part #DA47-00244U

5 (1)
BEST SELLER
$97.99 |
11% OFF Phone Price : $109.99
In Stock
