Canister Vacuum

Model # 1162639584 Official Kenmore vacuum cleaner hose & attachment parts

Here are the diagrams and repair parts for Official Kenmore 1162639584 vacuum cleaner hose & attachment parts, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 55 parts  |
Vacuum Receptacle Assembly 4147243
#24

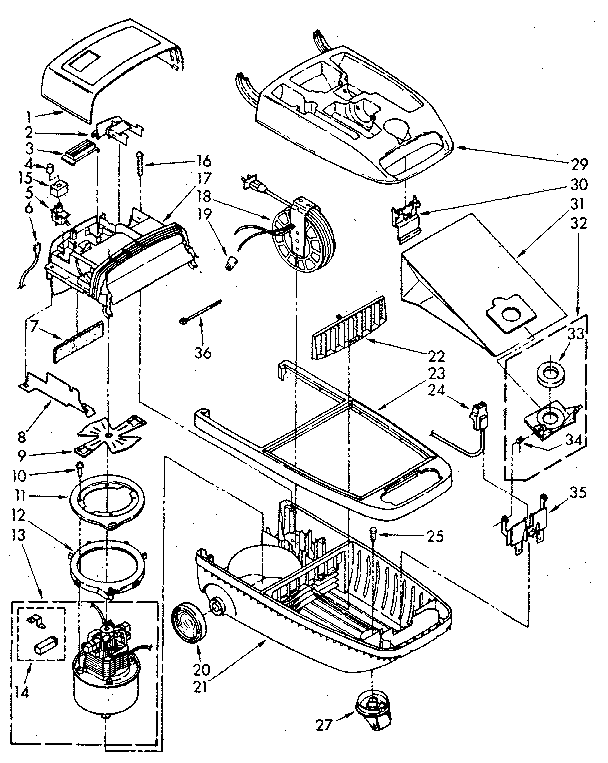

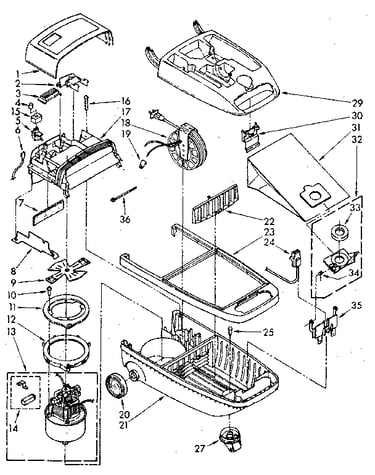

Vacuum cleaner diagram

Vacuum receptacle assembly

Part #4147243

The manufacturer no longer makes this part, and there's no substitute part

Contact Pin 4150715
#6

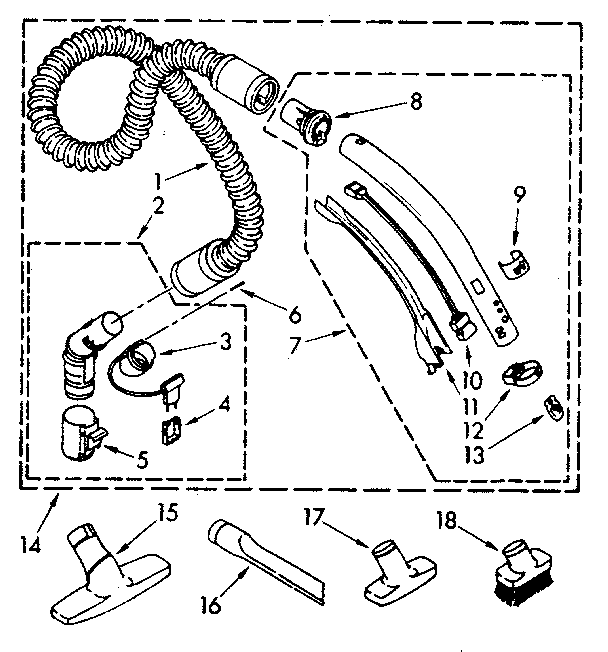

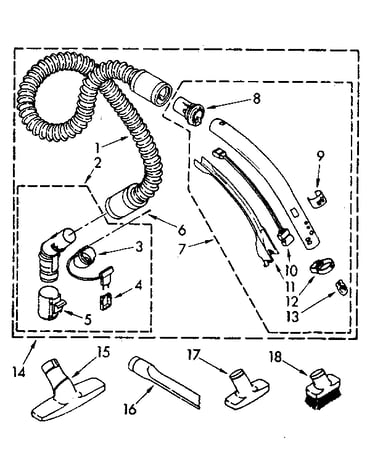

Hose and attachment diagram

Contact pin

Part #4150715

The manufacturer no longer makes this part, and there's no substitute part

Foam, Button 4149651
#15

Vacuum cleaner diagram

Foam, button

Part #4149651

The manufacturer no longer makes this part, and there's no substitute part

Screw 681697
#10

Vacuum cleaner diagram

Screw

Part #681697

The manufacturer no longer makes this part, and there's no substitute part

Cover, Canopy 4150059
#1

Vacuum cleaner diagram

Cover, canopy

Part #4150059

The manufacturer no longer makes this part, and there's no substitute part

Switch Button 4149414
#3

Vacuum cleaner diagram

Switch button

Part #4149414

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Filter 706389
#7

Vacuum cleaner diagram

Vacuum filter

Part #706389

The manufacturer no longer makes this part, and there's no substitute part

Parts List LIT4151101

#NI

All parts diagram

Parts list

Part #LIT4151101

The manufacturer no longer makes this part, and there's no substitute part

Nut 596564
#19

Vacuum cleaner diagram

Nut

Part #596564

The manufacturer no longer makes this part, and there's no substitute part

Frame Plug 4147153
#4

Hose and attachment diagram

Frame plug

Part #4147153

The manufacturer no longer makes this part, and there's no substitute part
