Bolens
Front-Engine Lawn Tractor

Model # Q808H Official Bolens lawn tractor

Here are the diagrams and repair parts for Official Bolens Q808H lawn tractor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

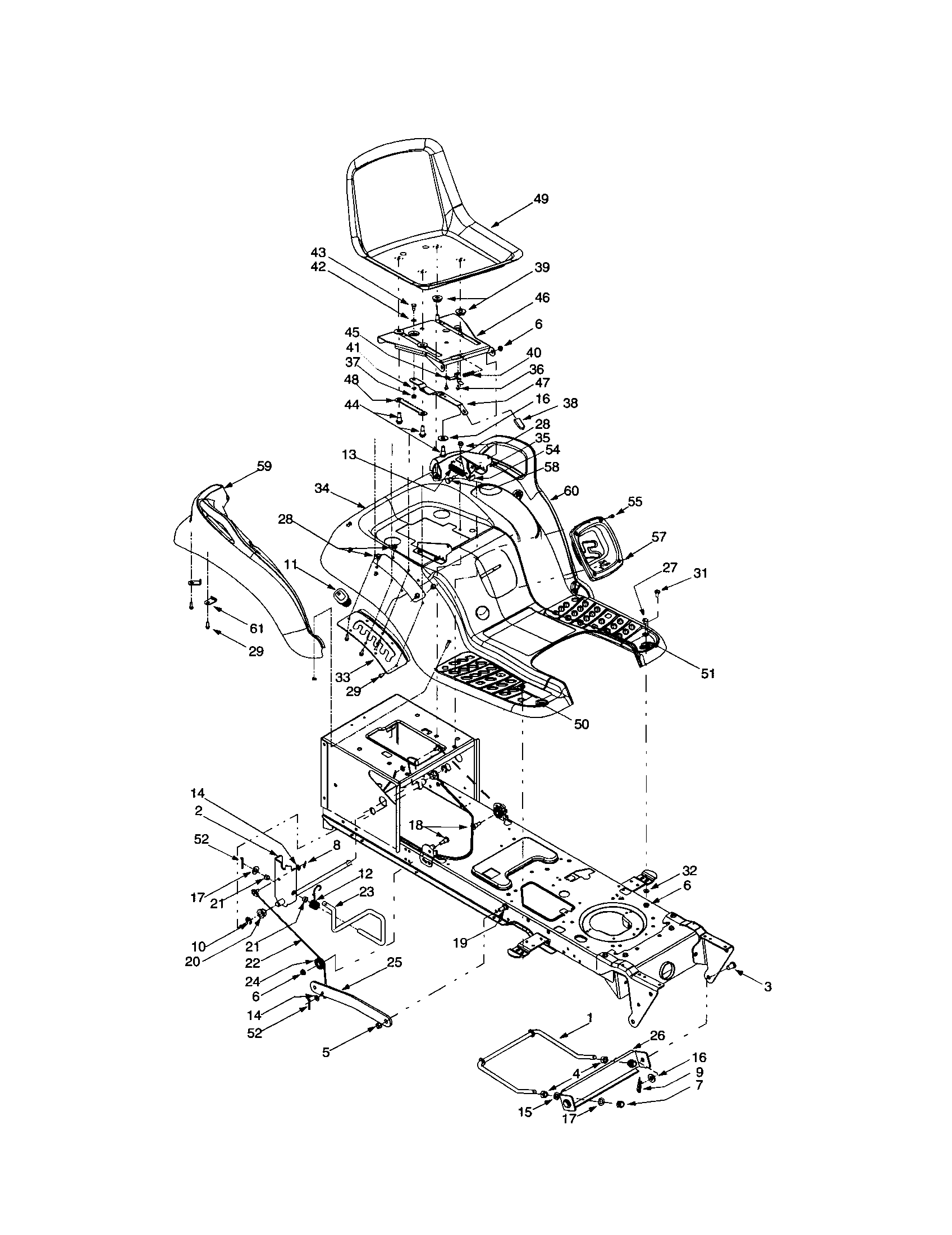

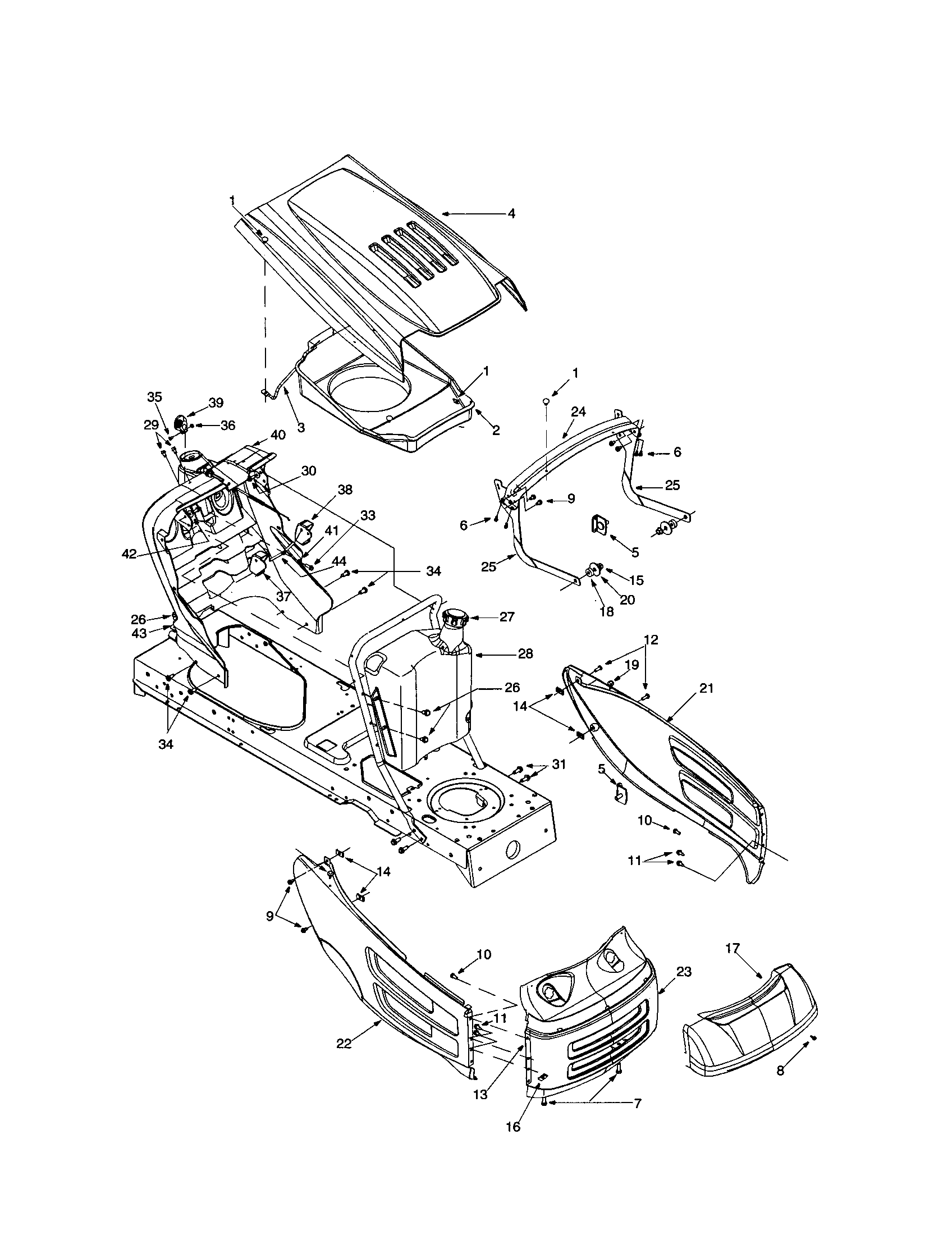

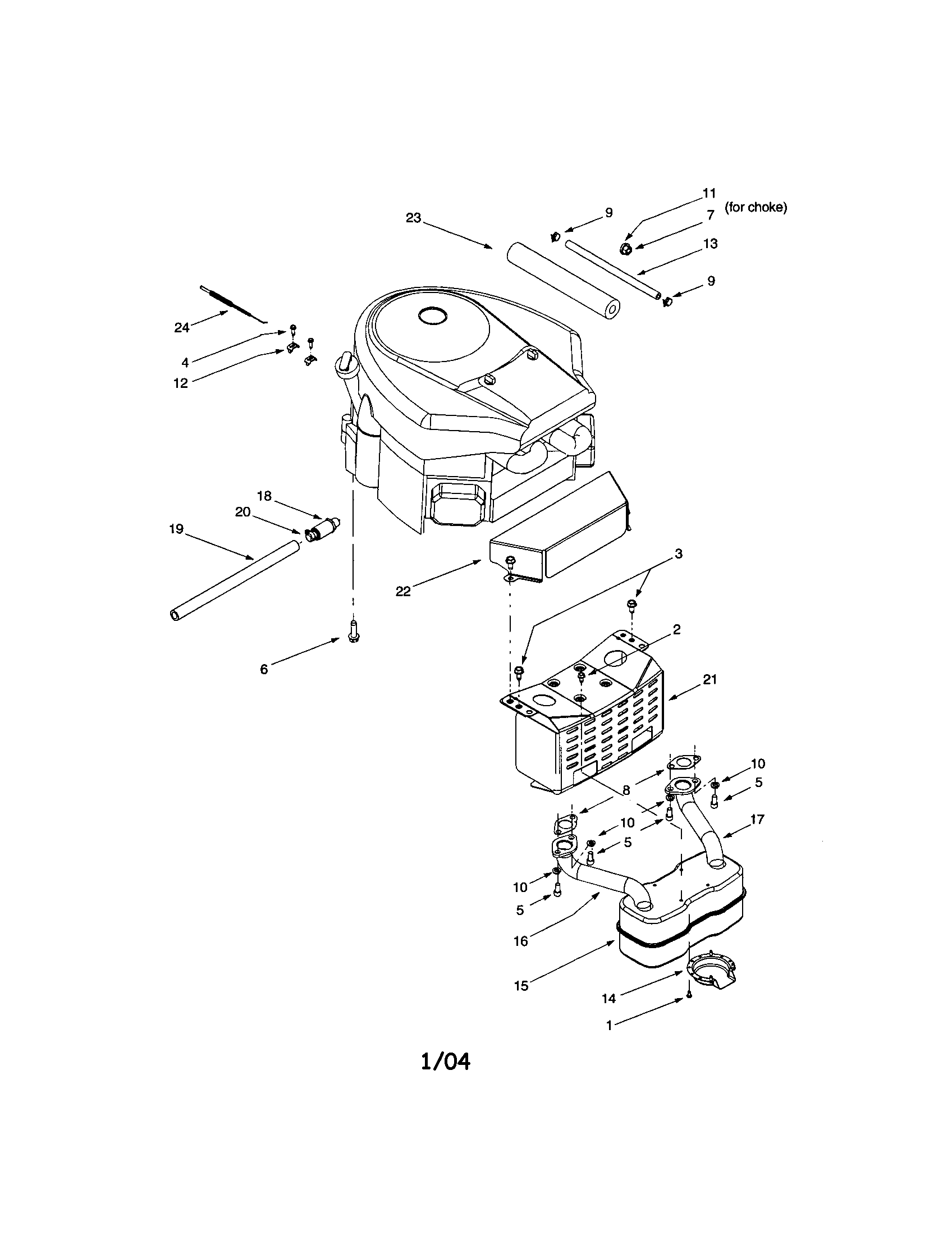

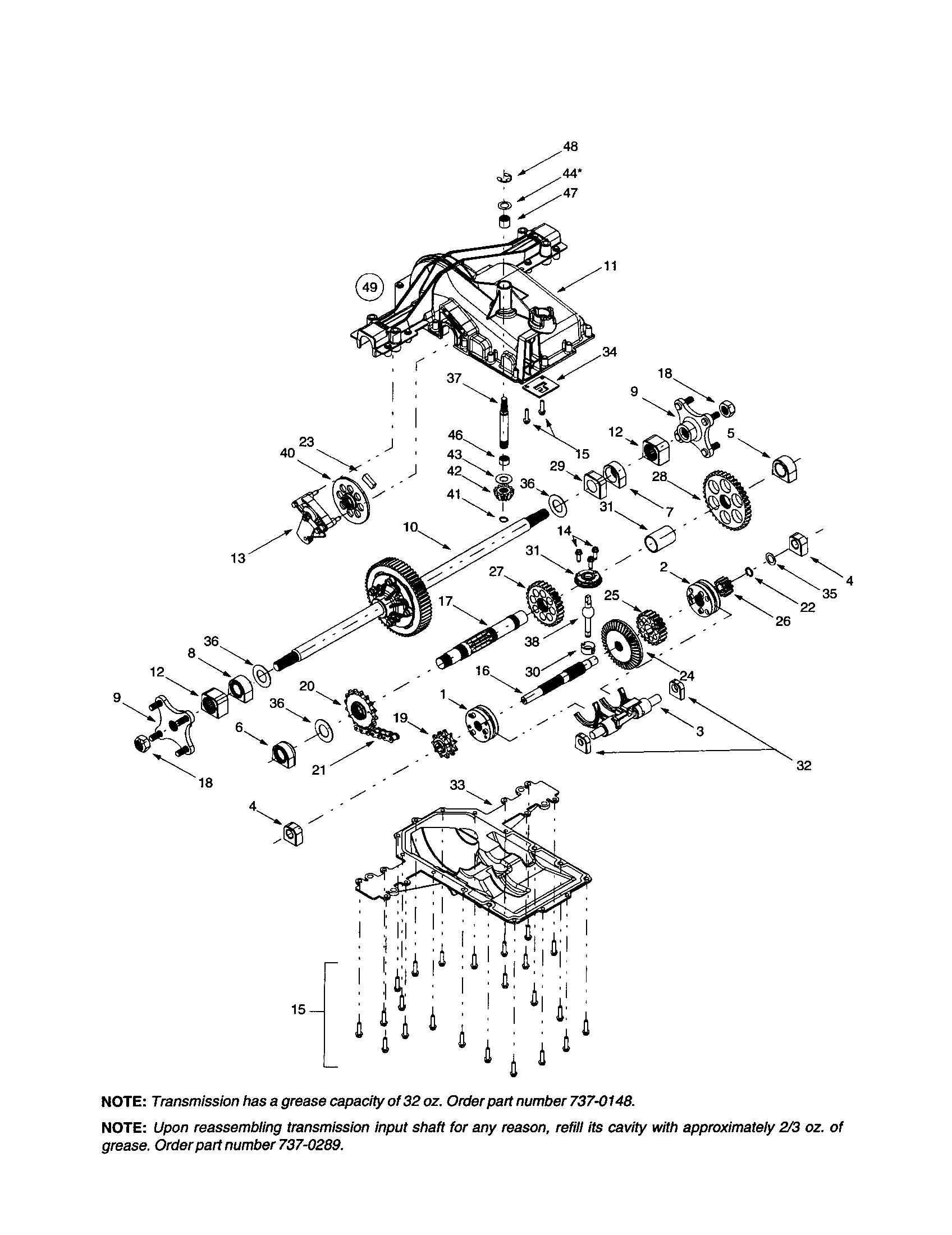

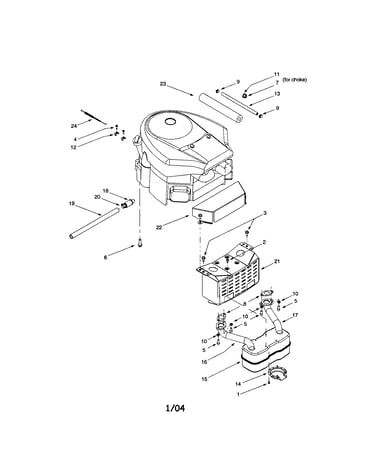

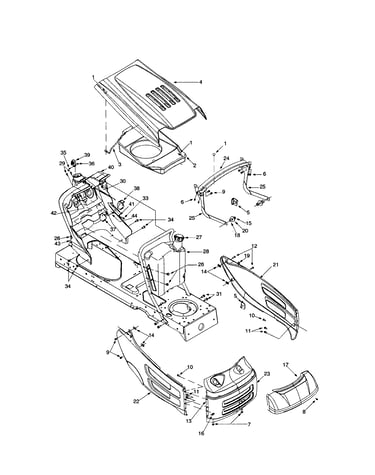

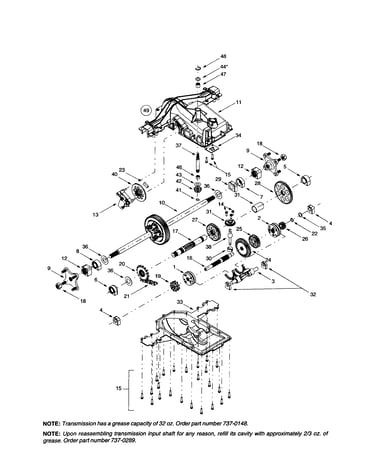

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 376 parts  |
Ace Lawn & Garden Equipment Self-tapping Bolt, 5/16-18 X 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, Gw-7101260) 710-1260A
Ace lawn & garden equipment self-tapping bolt, 5/16-18 x 3/4-in (replaces 1724491, 1740496, 1909304, 910-1260a, gw-7101260)

Part #710-1260A

BEST SELLER
This item is not returnable
$4.34 |
19% OFF Phone Price : $5.34
In Stock
Lawn Tractor Steering Shaft Pinion Gear 717-1554
#15

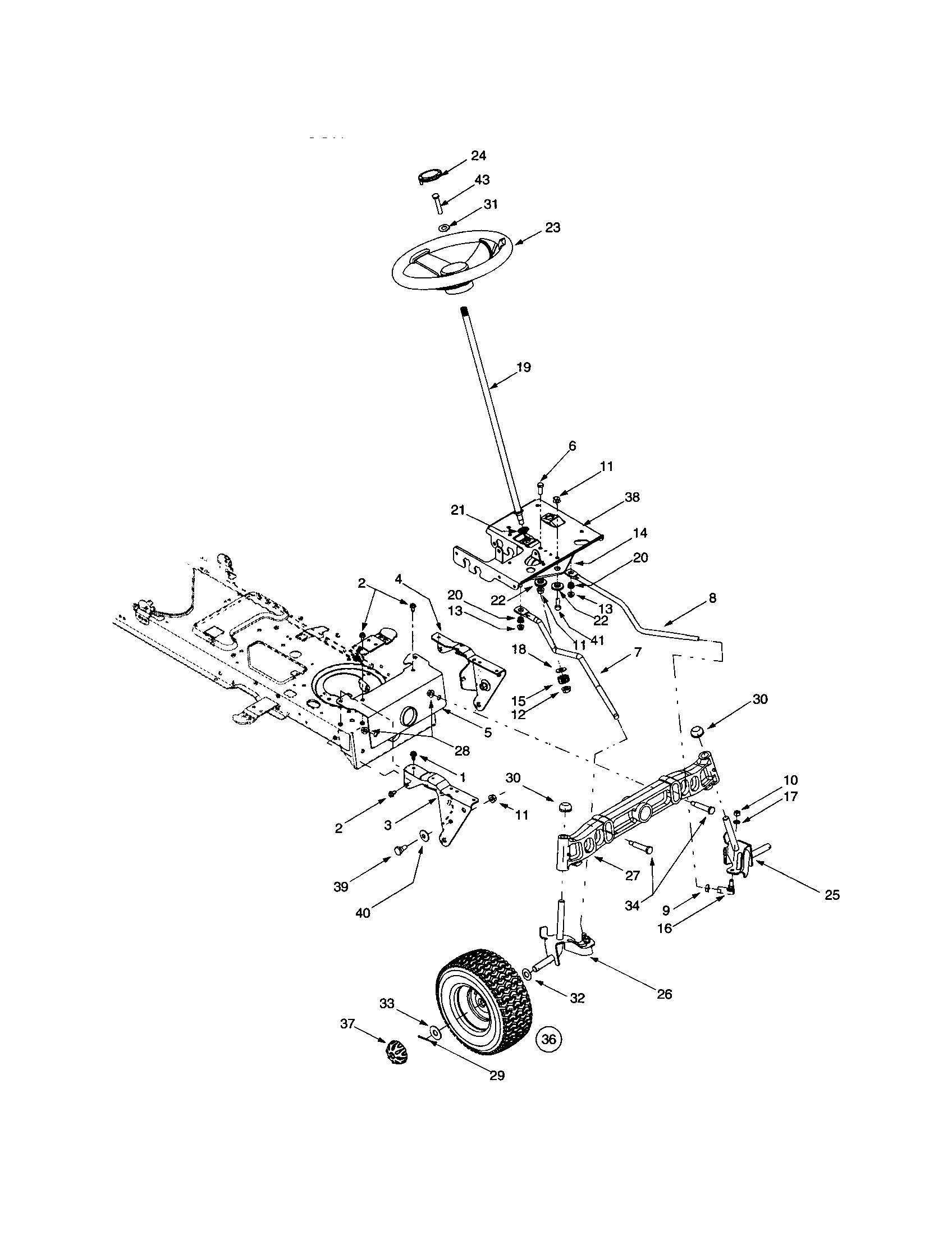

Steering/wheel/tire/rim diagram

Lawn tractor steering shaft pinion gear

Part #717-1554

BEST SELLER
$14.53 |
12% OFF Phone Price : $16.53
In Stock
Shoulder Bolt 738-3056
#46

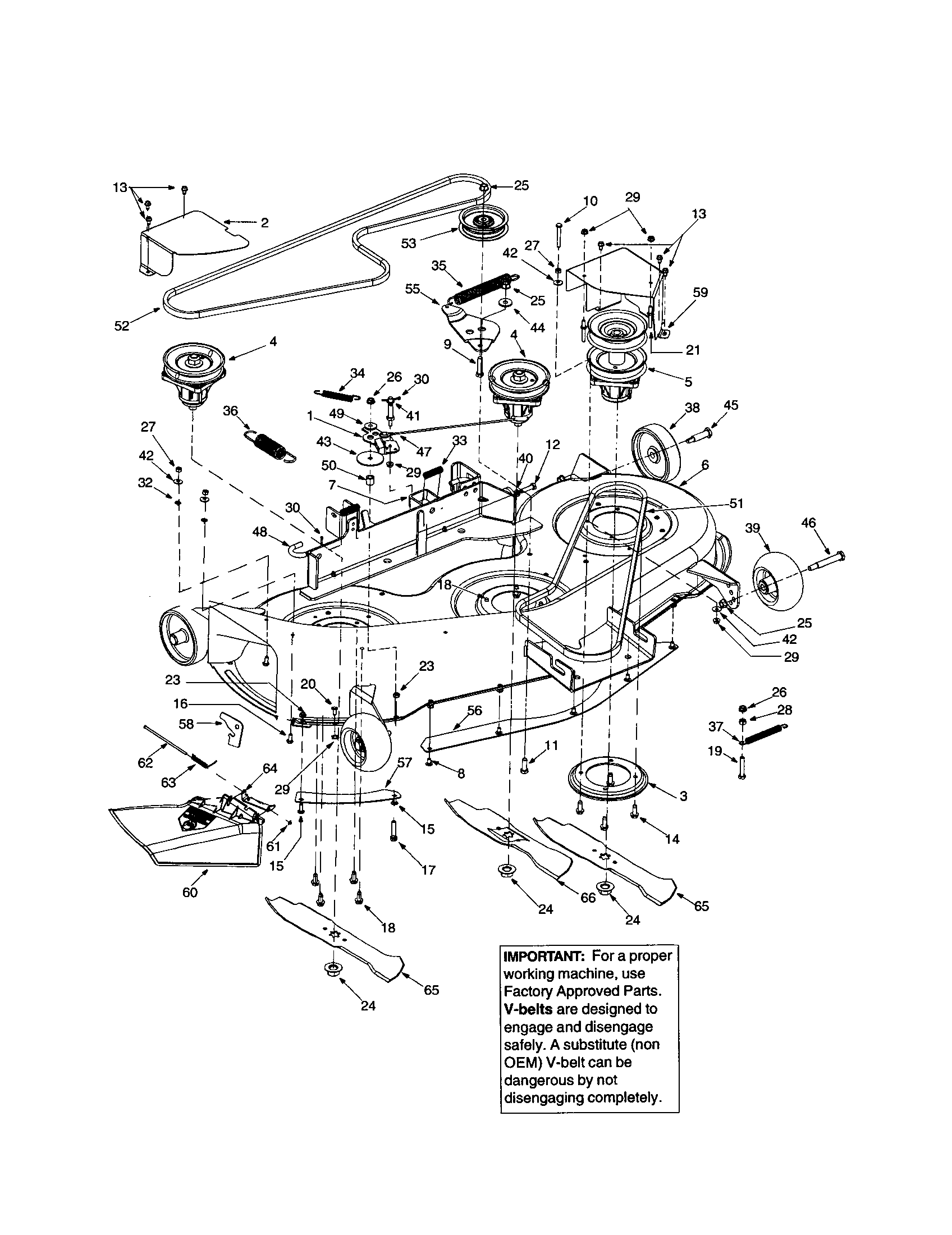

Brake/deck belt cover diagram

Shoulder bolt

Part #738-3056

Replaced by #938-3056

?
Manufacturer substitution
This part replaces 738-3056. Substitute parts can look different from the original.
BEST SELLER
$12.01 |
14% OFF Phone Price : $14.01
In Stock
Lawn Tractor Screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599) 710-0599
Lawn tractor screw (replaces 01000628, 01000865, 1186307, 1186308, 791-180288, 791-683298, 910-0599)

Part #710-0599

BEST SELLER
This item is not returnable
$4.91 |
17% OFF Phone Price : $5.91
In Stock
Yard Machines Lawn & Garden Equipment Bell Washer (replaces 936-0242) 736-0242
Yard machines lawn & garden equipment bell washer (replaces 936-0242)

Part #736-0242

BEST SELLER
This item is not returnable
$6.58 |
13% OFF Phone Price : $7.58
In Stock
Toro Lawn Tractor Hex Screw (replaces 753-05596, 910-0528) 710-0528
#12

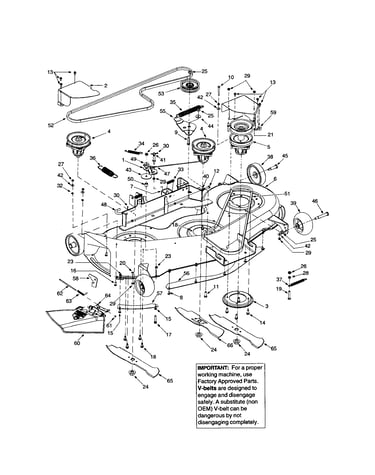

Brake/deck belt cover diagram

Toro lawn tractor hex screw (replaces 753-05596, 910-0528)

Part #710-0528

This item is not returnable
$6.86 |
13% OFF Phone Price : $7.86
In Stock
Unknown Brand Name #689 Lawn Tractor Cotter Pin (replaces 01002627, 714-04039a) 714-0162
#29

Steering/wheel/tire/rim diagram

Unknown brand name #689 lawn tractor cotter pin (replaces 01002627, 714-04039a)

Part #714-0162

$7.57 |
12% OFF Phone Price : $8.57
In Stock
Extension Spring 732-0384
#26

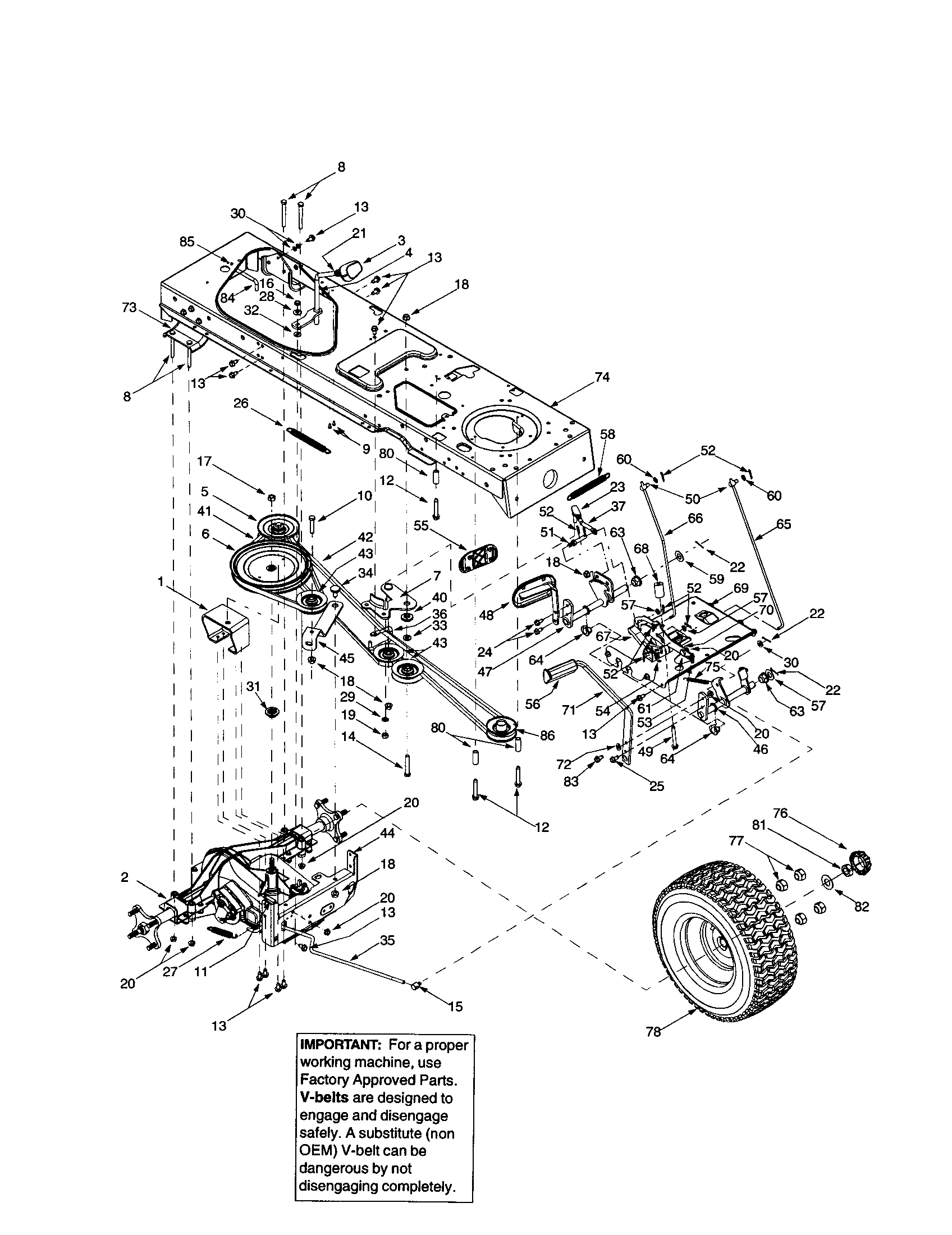

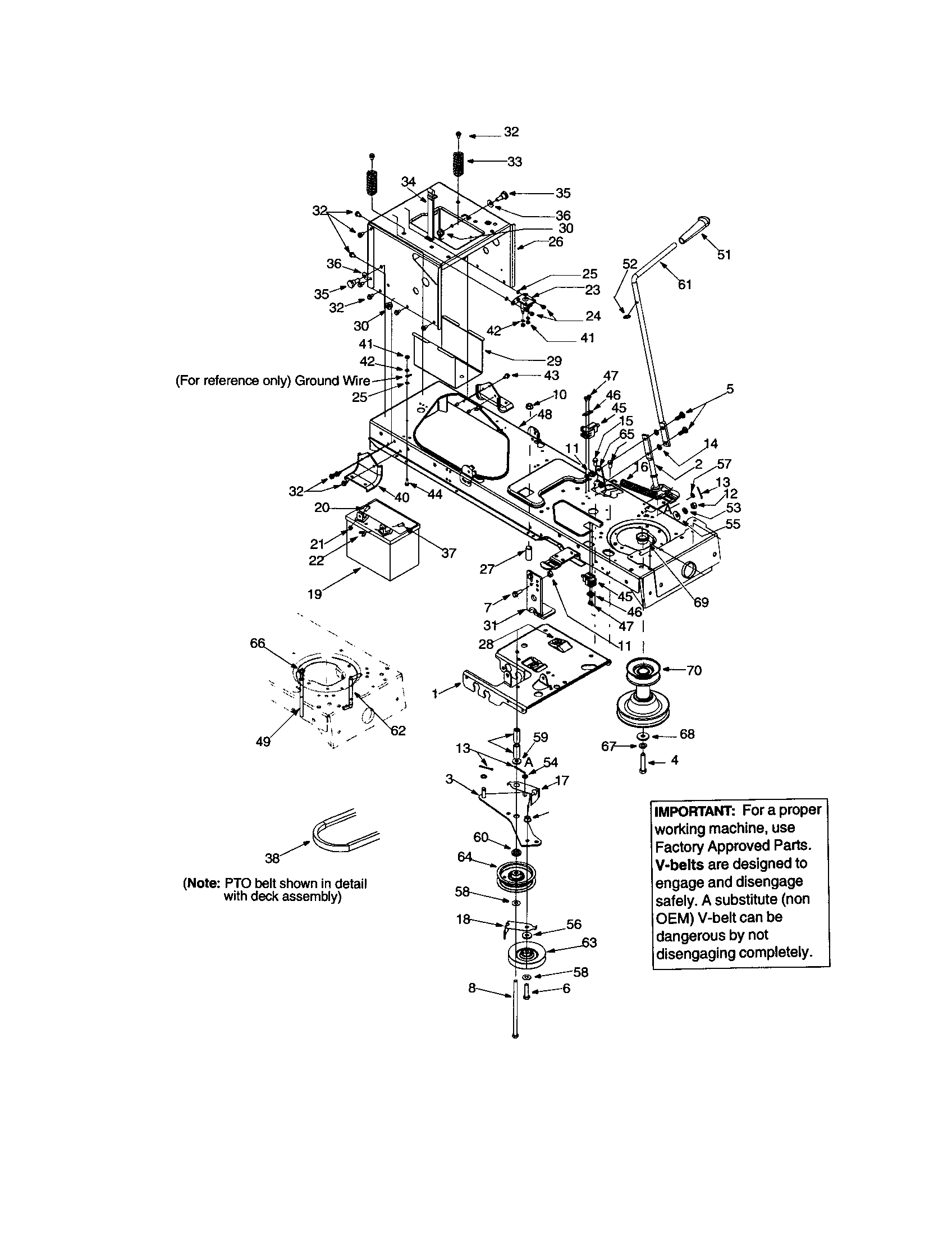

Frame/axle bracket/drive diagram

Extension spring

Part #732-0384

Replaced by #932-0384

?
Manufacturer substitution
This part replaces 732-0384. Substitute parts can look different from the original.
This item is not returnable
$18.62 |
10% OFF Phone Price : $20.62
In Stock
Lock Washer 736-0119
Lock washer

Part #736-0119

Replaced by #936-0119

?
Manufacturer substitution
This part replaces 736-0119. Substitute parts can look different from the original.
This item is not returnable
$6.05 |
14% OFF Phone Price : $7.05
In Stock
Idler Pulley 756-0981A
#43

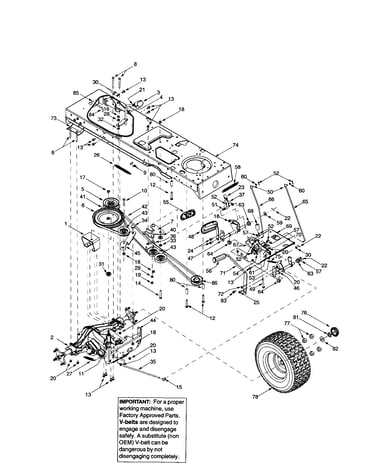

Frame/axle bracket/drive diagram

Idler pulley

Part #756-0981A

Replaced by #756-04224

?
Manufacturer substitution
This part replaces 756-0981A. Substitute parts can look different from the original.
$24.96 |
19% OFF Phone Price : $30.96
In Stock
