Kenmore
Canister Vacuum

Model # 72121325000 Official Kenmore vacuum

Here are the diagrams and repair parts for Official Kenmore 72121325000 vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Holder 4930FI2231F
#15B

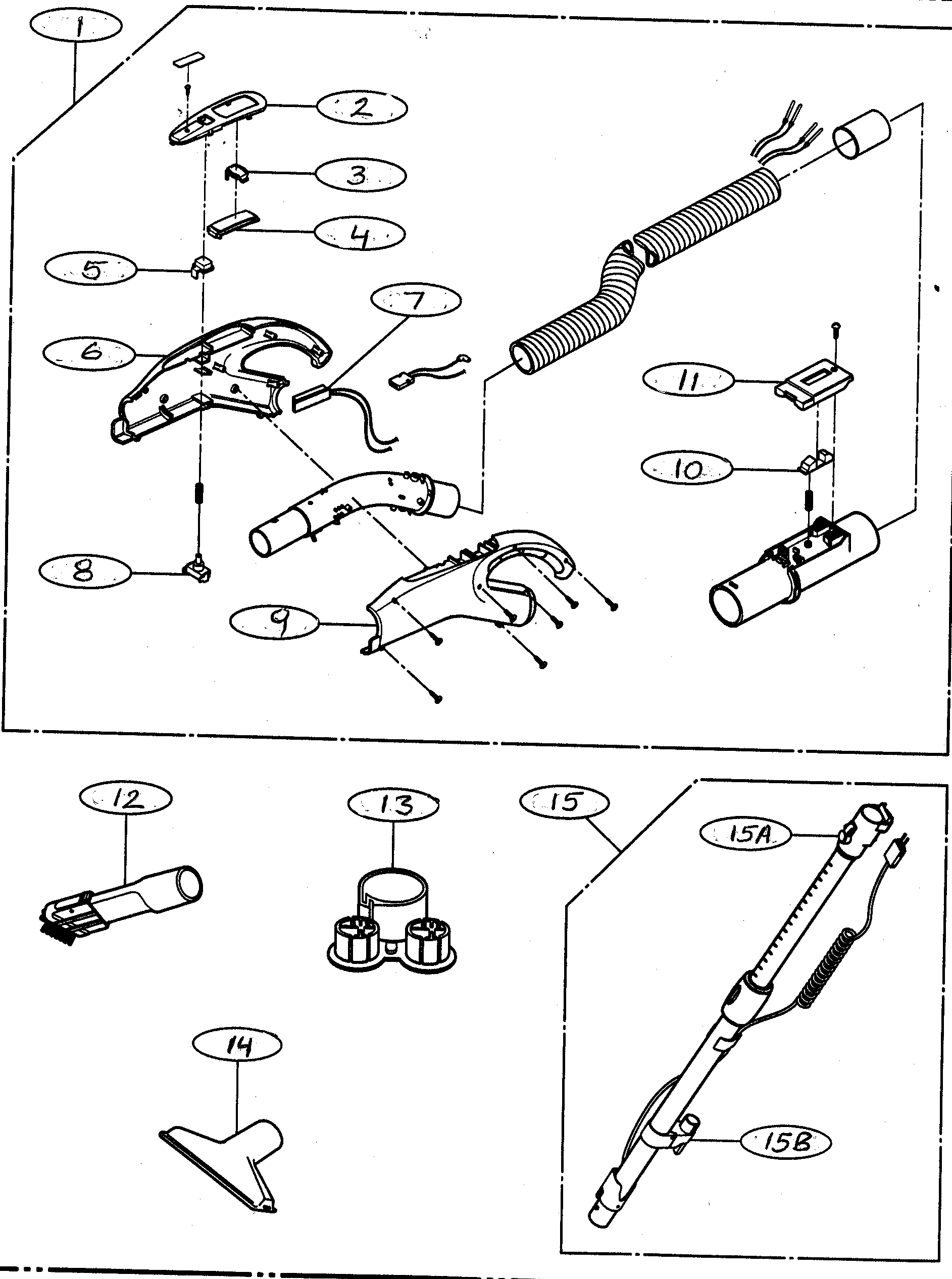

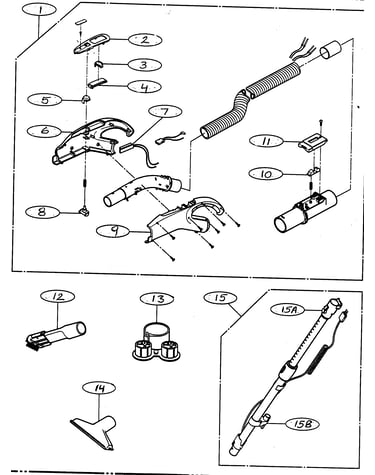

Accessorys diagram

Holder

Part #4930FI2231F

This item is not returnable
$2.16
In Stock
Vacuum Screw 1TPL0302818
#5

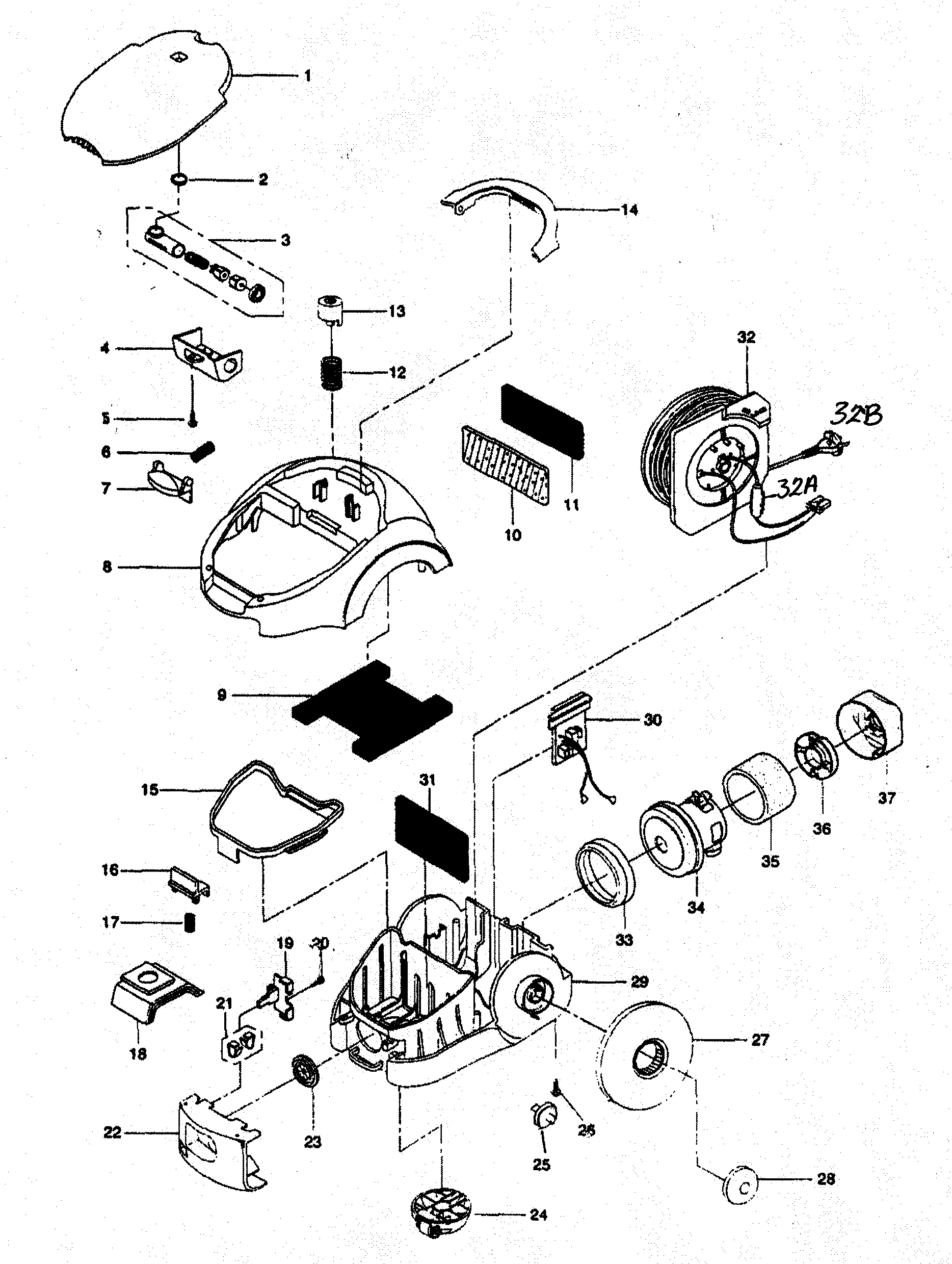

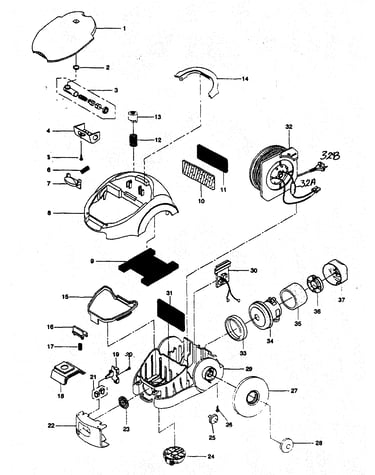

Motor assy diagram

Vacuum screw

Part #1TPL0302818

This item is not returnable
$2.16
In Stock
Thermostat 6931FI3523A
#NI

Motor assy diagram

Thermostat

Part #6931FI3523A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Upholstery Nozzle 5248FI2259C
#14

Accessorys diagram

Vacuum upholstery nozzle

Part #5248FI2259C

The manufacturer no longer makes this part, and there's no substitute part

Gear Motor 3920FI5001A
#11

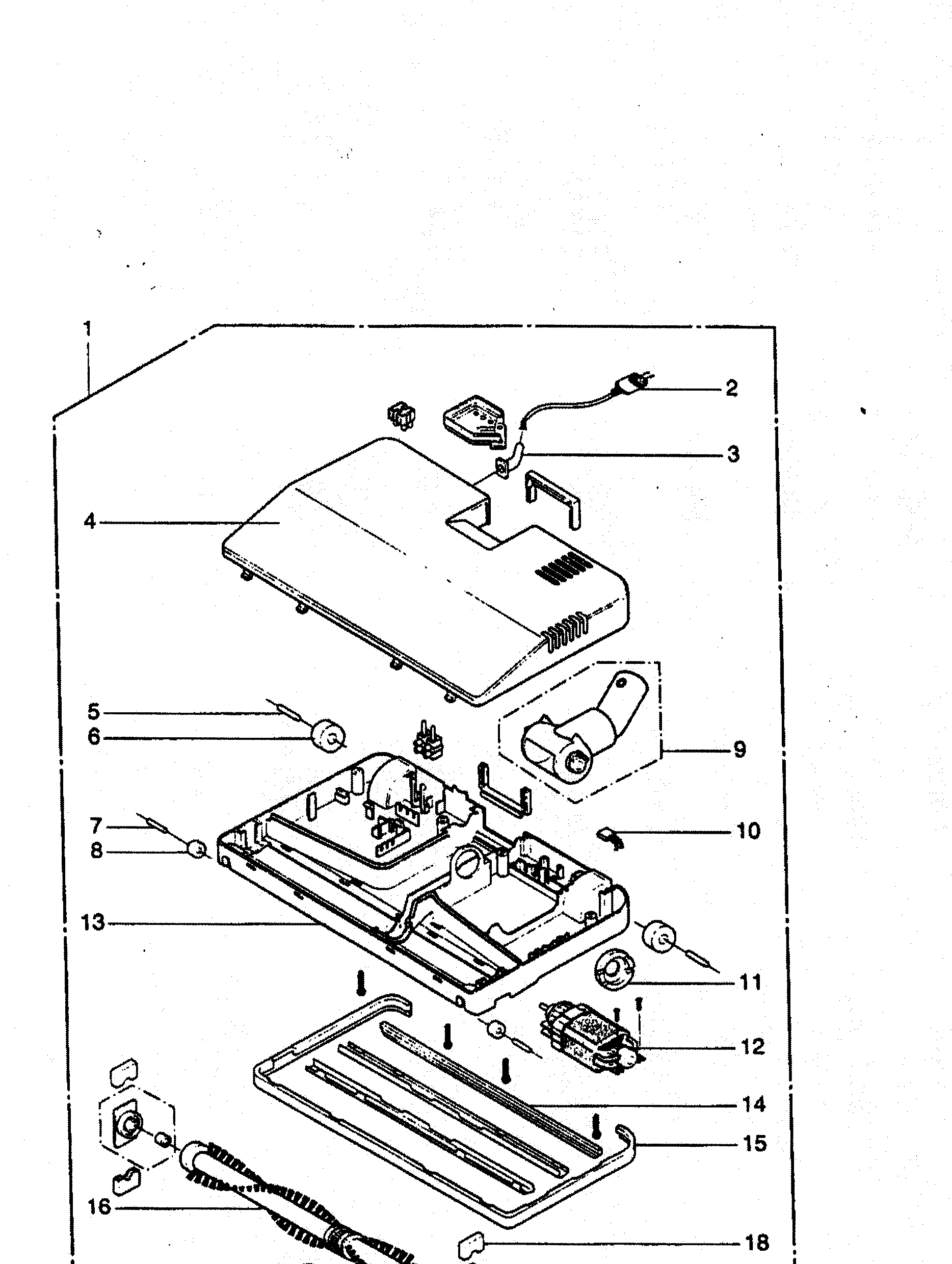

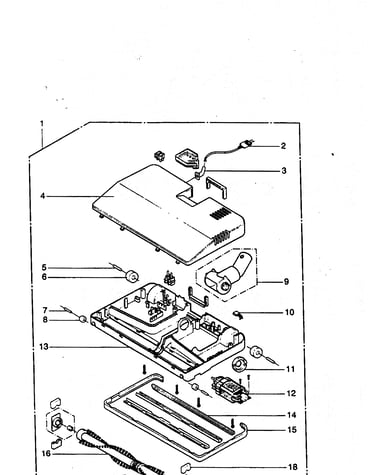

Power mate diagram

Gear motor

Part #3920FI5001A

The manufacturer no longer makes this part, and there's no substitute part

Spring 4I70024A
#12

Motor assy diagram

Spring

Part #4I70024A

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 4441FI3605J
#24

Motor assy diagram

Vacuum caster

Part #4441FI3605J

The manufacturer no longer makes this part, and there's no substitute part

Cover 3550FI2462D
#5

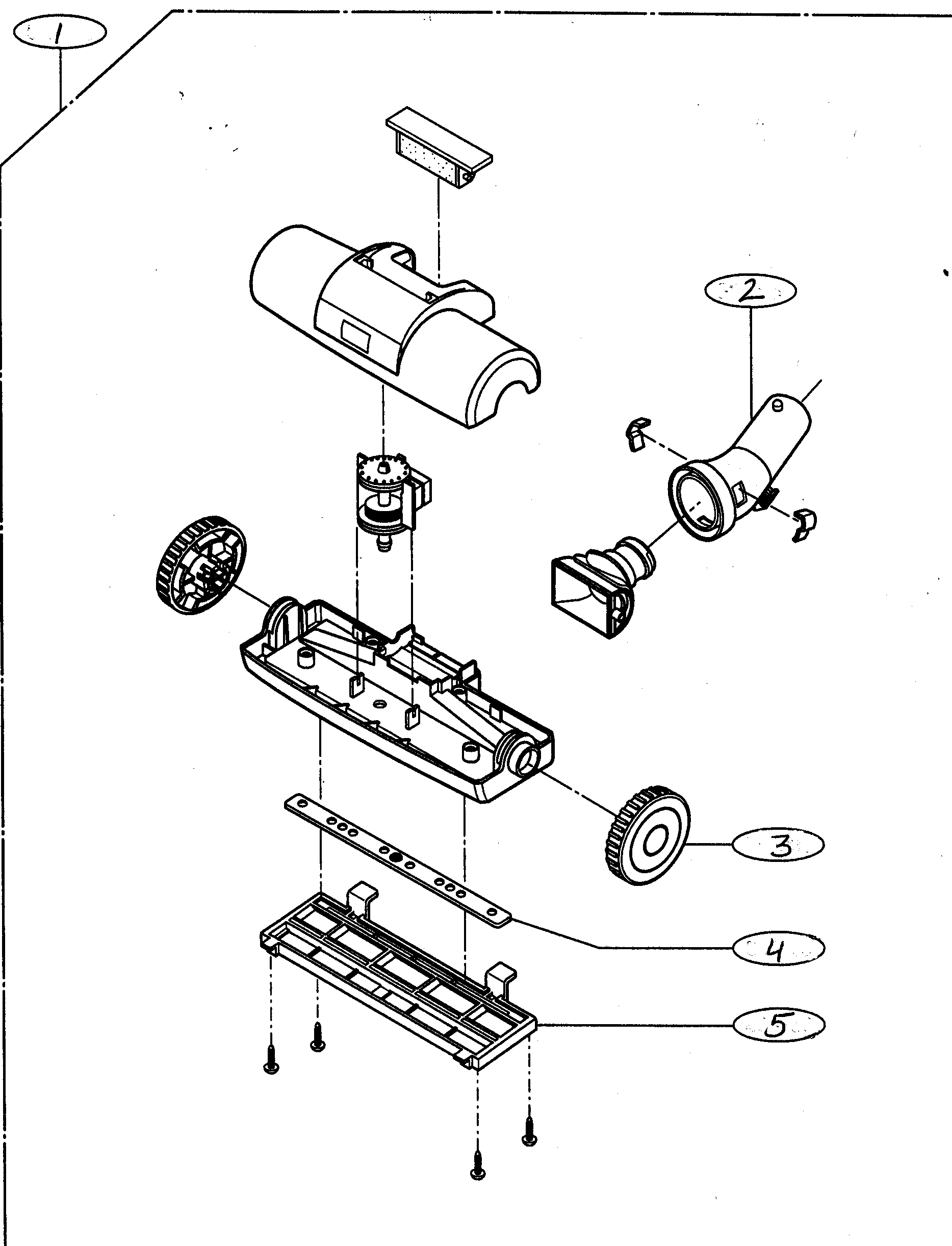

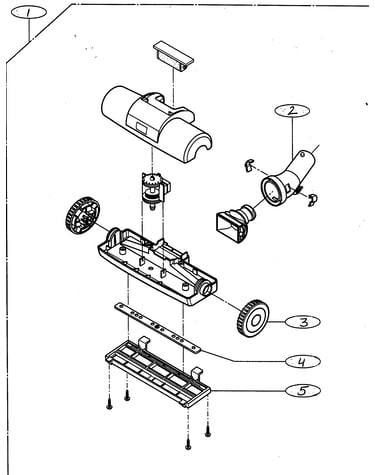

Plate beater diagram

Cover

Part #3550FI2462D

The manufacturer no longer makes this part, and there's no substitute part

Supporter 4874FI5001A
#18

Power mate diagram

Supporter

Part #4874FI5001A

The manufacturer no longer makes this part, and there's no substitute part

Latch 4026FI3234A
#7

Motor assy diagram

Latch

Part #4026FI3234A

The manufacturer no longer makes this part, and there's no substitute part
