Model # SCA1000HWW02 Official GE microwave

Here are the diagrams and repair parts for Official GE SCA1000HWW02 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 71 parts |

#1626

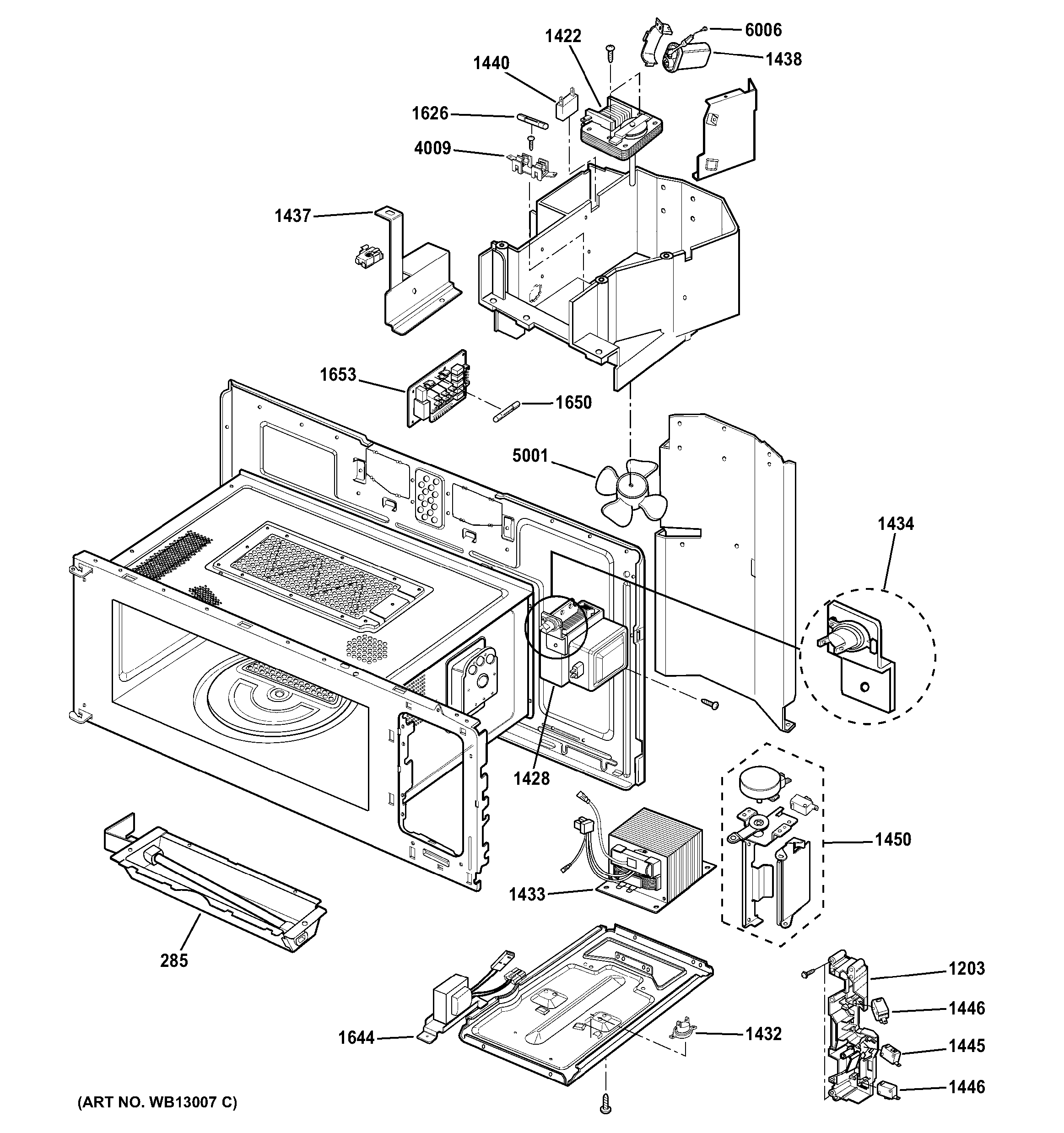

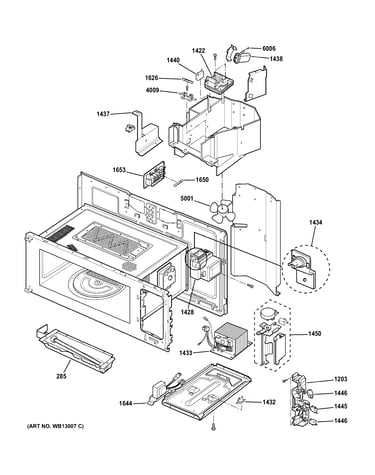

Interior parts (1) diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

$9.73 |

9% OFF Phone Price : $10.73

In Stock

Qty

#1446

Interior parts (1) diagram

Micro-switch

Part #WB24X10113

Replaced by #WB24X10047

$24.27 |

20% OFF Phone Price : $30.27

In Stock

Qty

#6006

Interior parts (1) diagram

Cable

Part #WB18X10286

Replaced by #WB27X10037

$24.73 |

20% OFF Phone Price : $30.73

In Stock

Qty

#9001

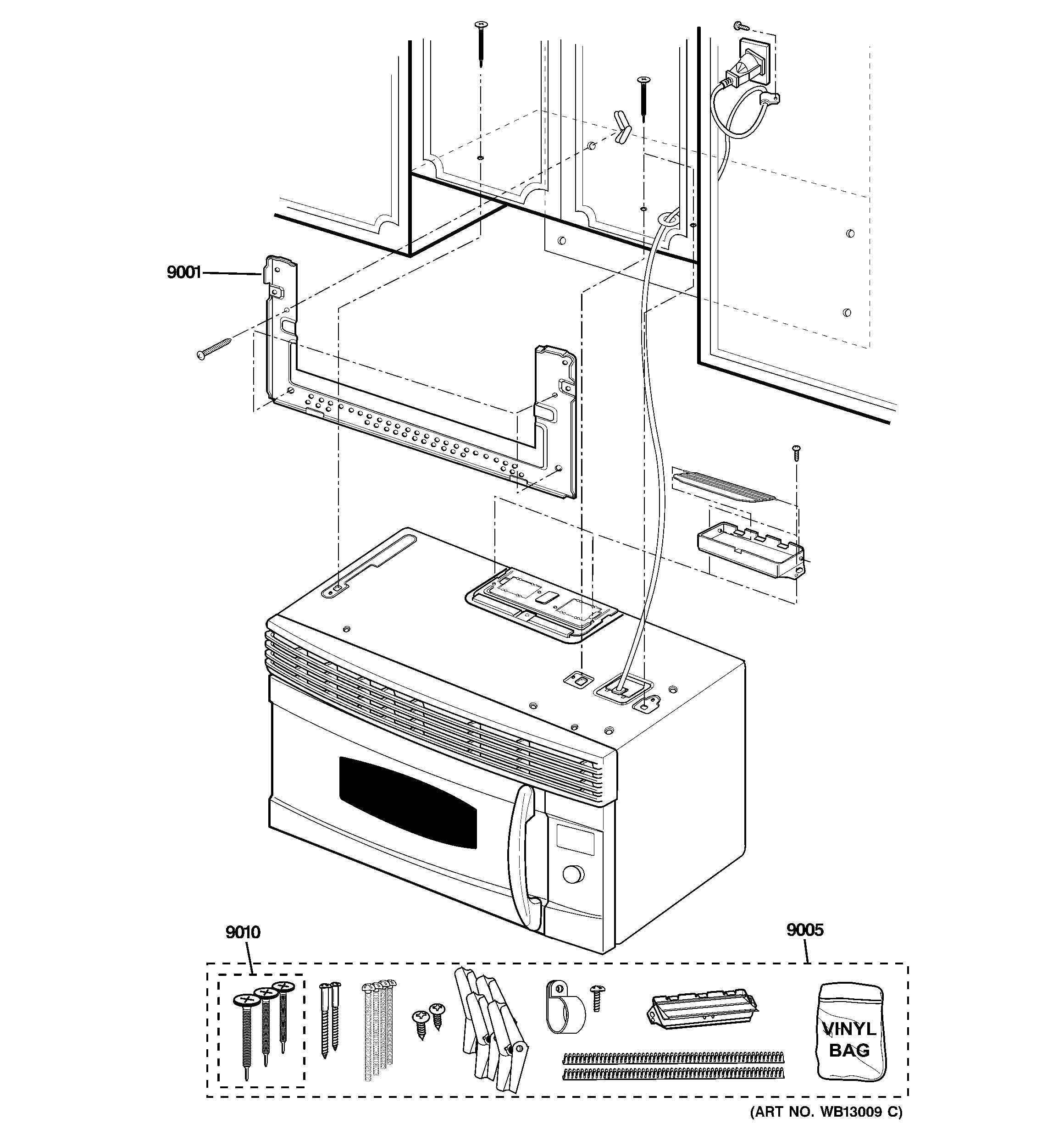

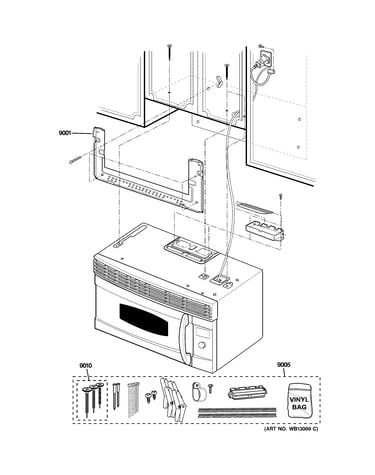

Installation parts diagram

Microwave mounting plate

Part #WB56X10204

Replaced by #WB56X35363

This item is not returnable

$20.80 |

22% OFF Phone Price : $26.80

In Stock

Qty

#1430

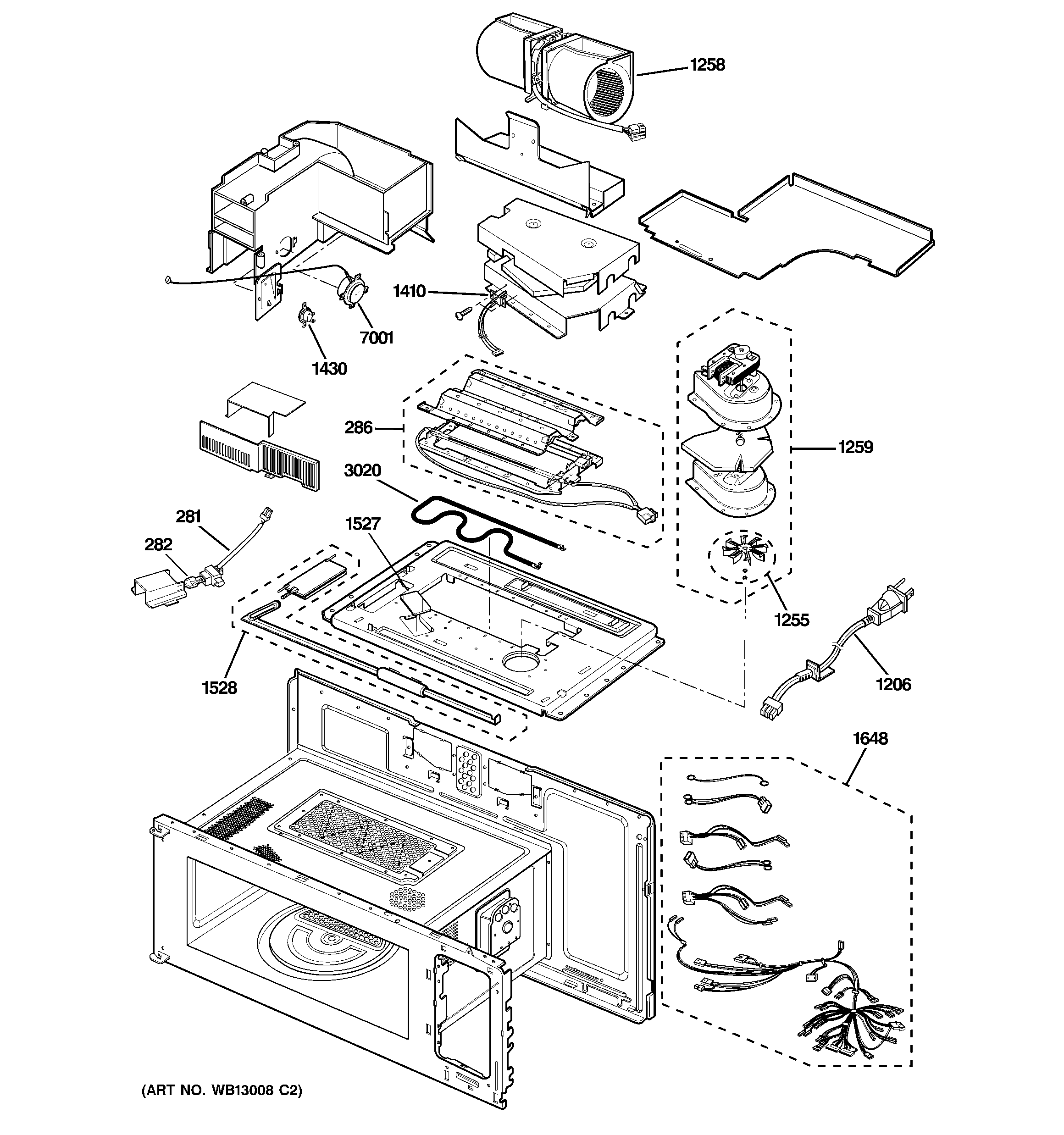

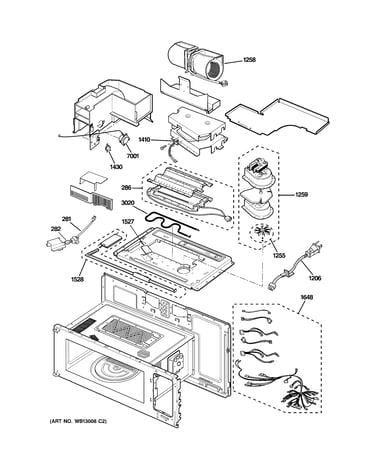

Interior parts (2) diagram

Microwave thermal cut-off

Part #WB21X10046

$26.84 |

18% OFF Phone Price : $32.84

In Stock

Qty

#1512

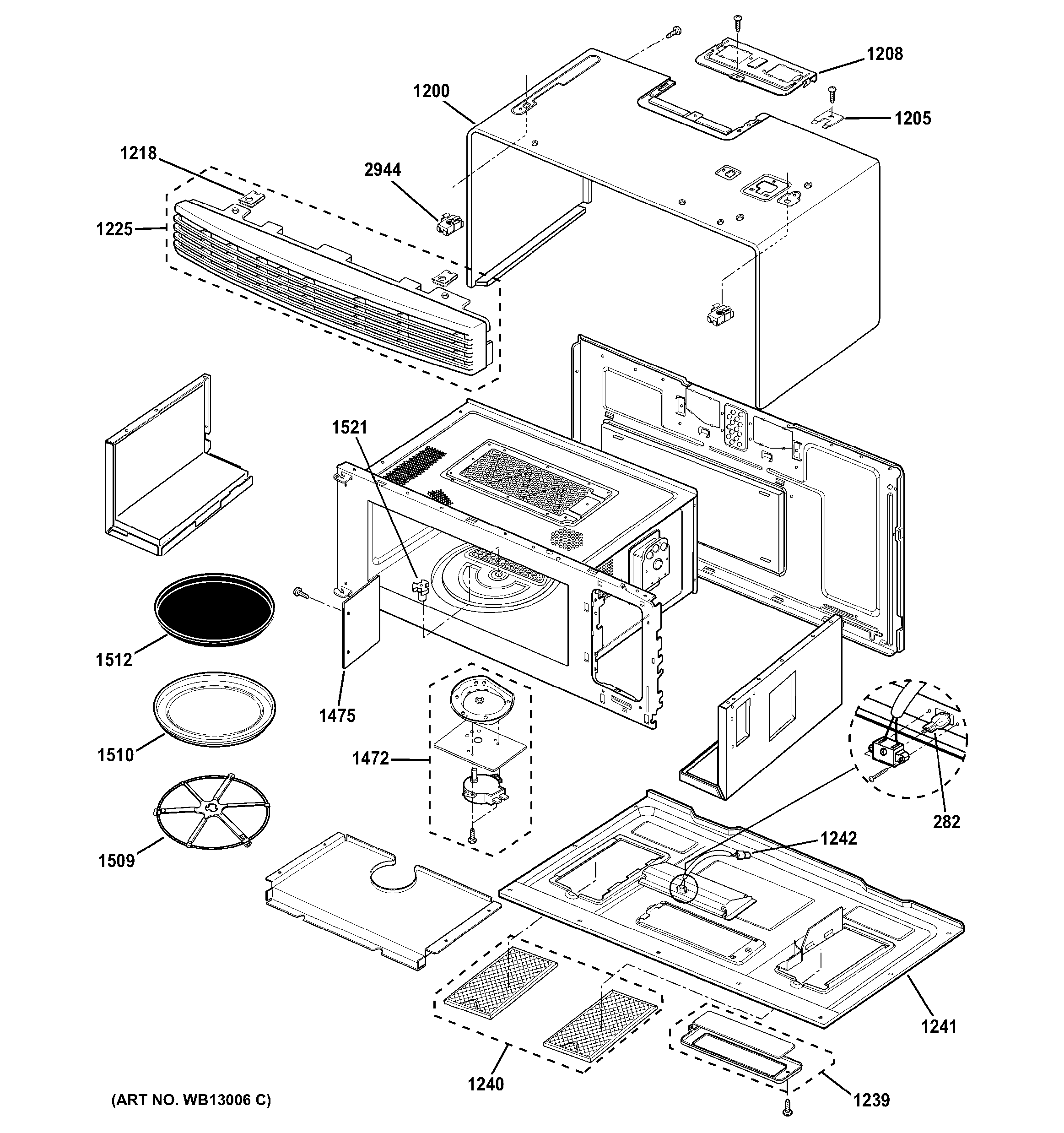

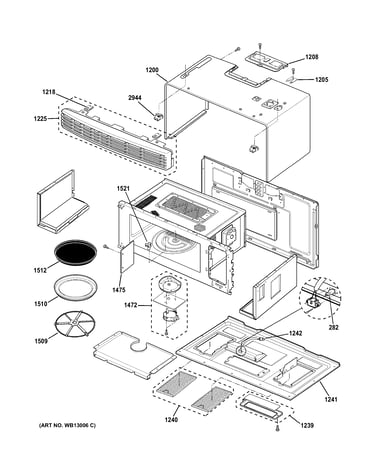

Oven cavity parts diagram

Metal tray

Part #WB49X10053

Replaced by #WB49X10240

$108.72 |

10% OFF Phone Price : $120.72

In Stock

Qty

#2944

Oven cavity parts diagram

Microwave nut

Part #WB01X10124

$7.83 |

11% OFF Phone Price : $8.83

In Stock

Qty

#1521

Oven cavity parts diagram

Microwave turntable shaft

Part #WB06X10312

$54.01 |

10% OFF Phone Price : $60.01

In Stock

Qty

#1242

Oven cavity parts diagram

Holder assembly

Part #WB06X10554

$22.89 |

21% OFF Phone Price : $28.89

In Stock

Qty

Microwave Door Latch And Spring WB10X10021

#1810

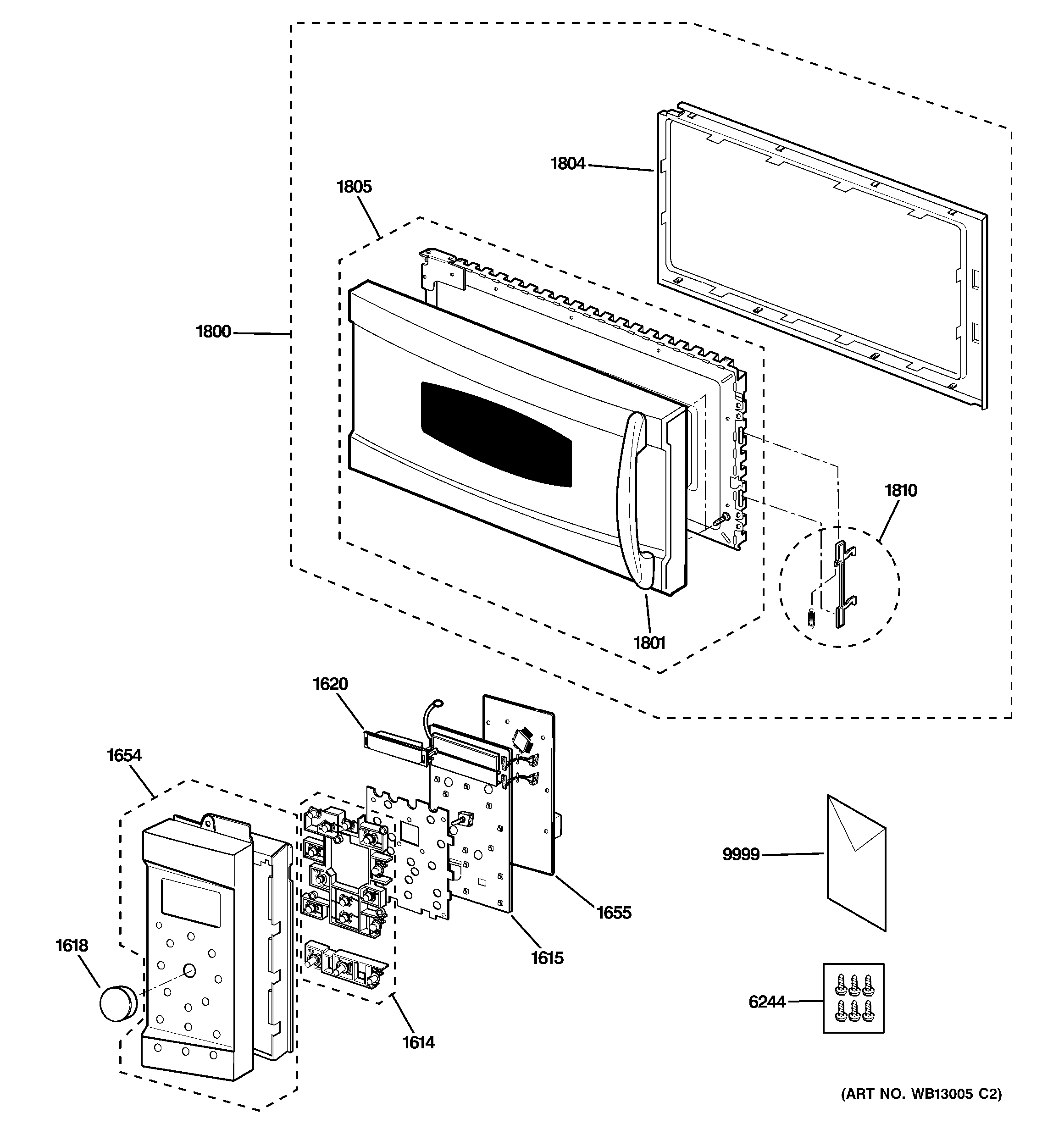

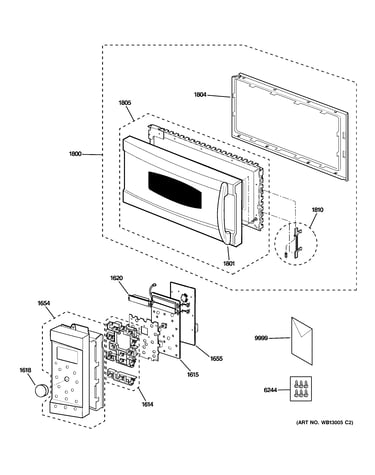

Control panel & door parts diagram

Microwave door latch and spring

Part #WB10X10021

This item is not returnable

$12.63 |

14% OFF Phone Price : $14.63

In Stock

Qty
