Whirlpool
Bottom-Mount Refrigerator

Model # WRF555SDHB08 Official Whirlpool bottom-mount refrigerator

Here are the diagrams and repair parts for Official Whirlpool WRF555SDHB08 bottom-mount refrigerator, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

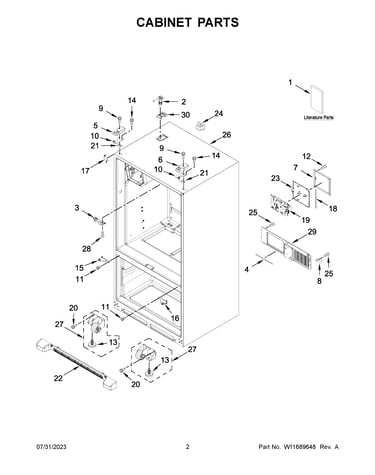

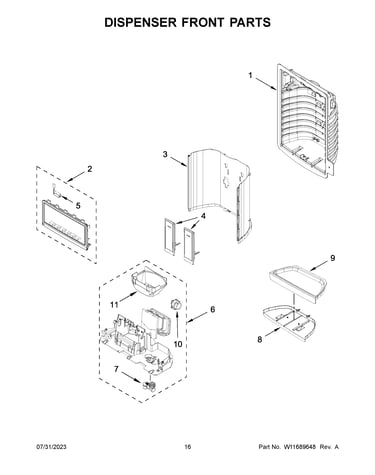

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 258 parts  |
Filter, Water W11256384
#14

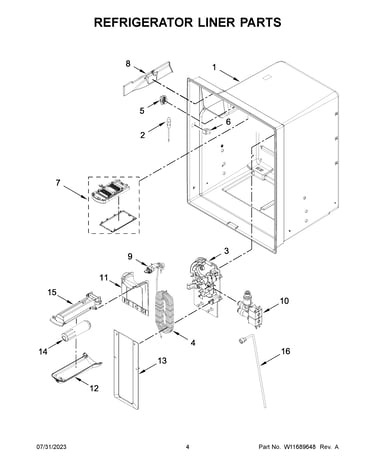

Refrigerator liner parts diagram

Filter, water

Part #W11256384

Replaced by #EDR4RXD1

?
Manufacturer substitution
This part replaces W11256384. Substitute parts can look different from the original.
BEST SELLER

Get free shipping with Automatic Reorder

$59.99
In Stock
Refrigerator Thermistor 12791417SP
Refrigerator thermistor

Part #12791417SP

Replaced by #W10316760

?
Manufacturer substitution
This part replaces 12791417SP. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Refrigerator Thermistor W10438761
#2

Refrigerator liner parts diagram

Refrigerator thermistor

Part #W10438761

Replaced by #W10316760

?
Manufacturer substitution
This part replaces W10438761. Substitute parts can look different from the original.
BEST SELLER
$44.27 |
12% OFF Phone Price : $50.27
In Stock
Hemera 30 De W11468934
#9

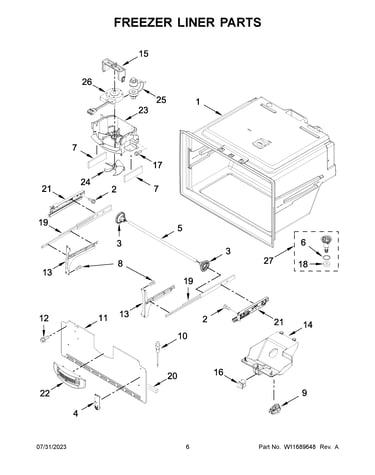

Freezer liner parts diagram

Hemera 30 de

Part #W11468934

Replaced by #W11602886

?
Manufacturer substitution
This part replaces W11468934. Substitute parts can look different from the original.
BEST SELLER
$19.61 |
9% OFF Phone Price : $21.61
In Stock
Light Assy-u W11387579
#7

Refrigerator liner parts diagram

Light assy-u

Part #W11387579

Replaced by #W11527432

?
Manufacturer substitution
This part replaces W11387579. Substitute parts can look different from the original.
BEST SELLER
$58.10 |
9% OFF Phone Price : $64.10
In Stock
Refrigerator Ice Bin Assembly W11097357
#1

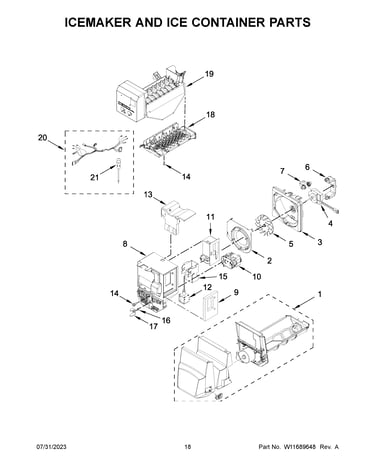

Icemaker and ice container parts diagram

Refrigerator ice bin assembly

Part #W11097357

Replaced by #W11185686

?
Manufacturer substitution
This part replaces W11097357. Substitute parts can look different from the original.
BEST SELLER
$151.96 |
7% OFF Phone Price : $163.96
In Stock
Refrigerator Run Capacitor W10350564
#5

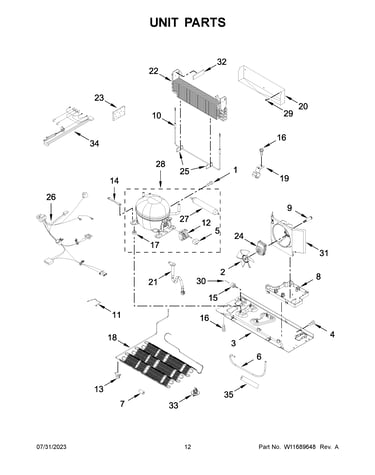

Unit parts diagram

Refrigerator run capacitor

Part #W10350564

Replaced by #WPW10350564

?
Manufacturer substitution
This part replaces W10350564. Substitute parts can look different from the original.
BEST SELLER
$46.40 |
11% OFF Phone Price : $52.40
In Stock
Refrigerator Door Gasket, Right (gray) (replaces W10443238) W10830055
#8A

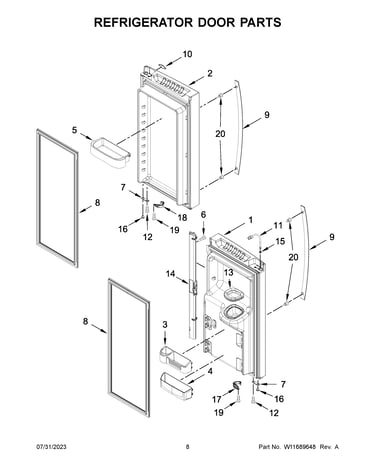

Refrigerator door parts diagram

Refrigerator door gasket, right (gray) (replaces w10443238)

Part #W10830055

BEST SELLER
$115.25 |
9% OFF Phone Price : $127.25
In Stock
Refrigerator Door Bin W10212139
#4

Refrigerator door parts diagram

Refrigerator door bin

Part #W10212139

Replaced by #WPW10212139

?
Manufacturer substitution
This part replaces W10212139. Substitute parts can look different from the original.
BEST SELLER
$43.61 |
12% OFF Phone Price : $49.61
In Stock
Pantry Lid 12656813
#9

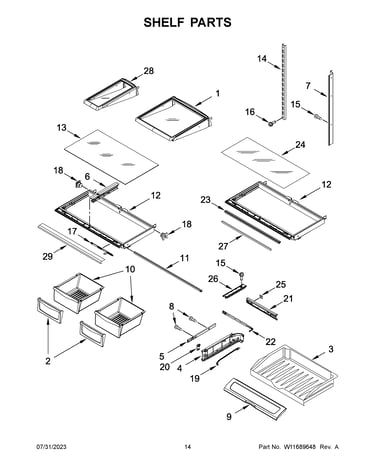

Shelf parts diagram

Pantry lid

Part #12656813

Replaced by #W10827015

?
Manufacturer substitution
This part replaces 12656813. Substitute parts can look different from the original.
BEST SELLER
$100.46 |
11% OFF Phone Price : $112.46
In Stock
