Model # PTC154A00GB/P1225420R Official Amana packaged terminal air conditioner

Here are the diagrams and repair parts for Official Amana PTC154A00GB-P1225420R packaged terminal air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

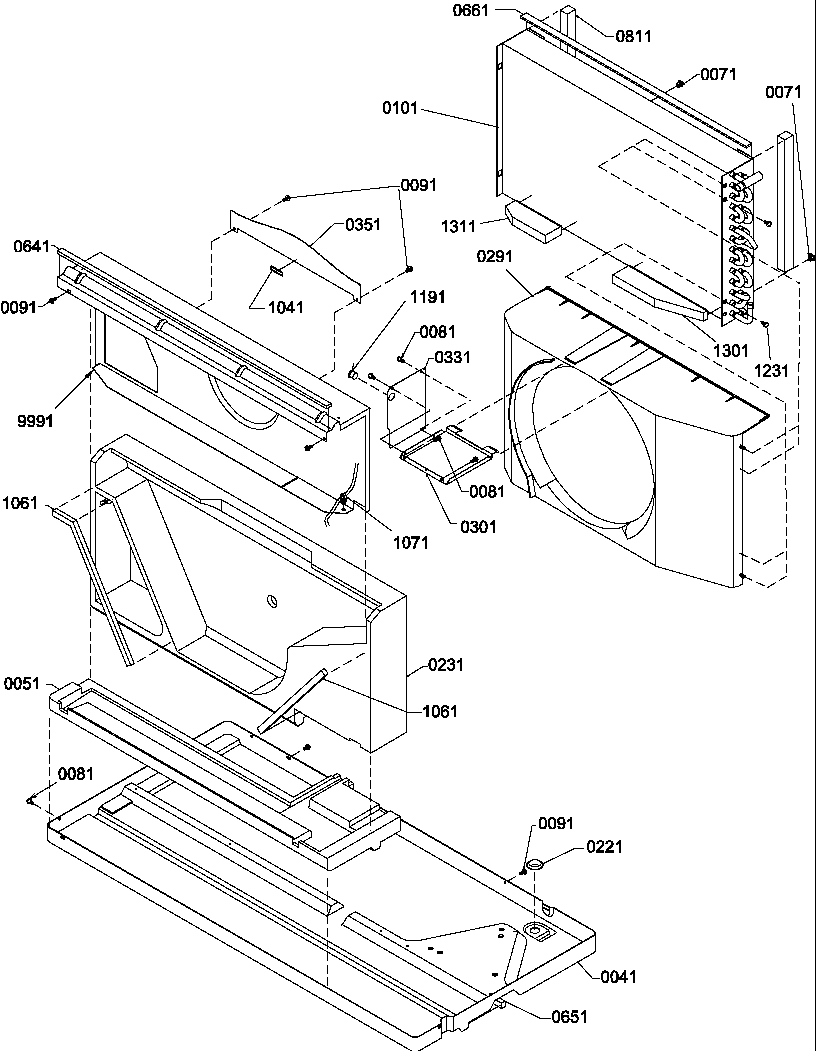

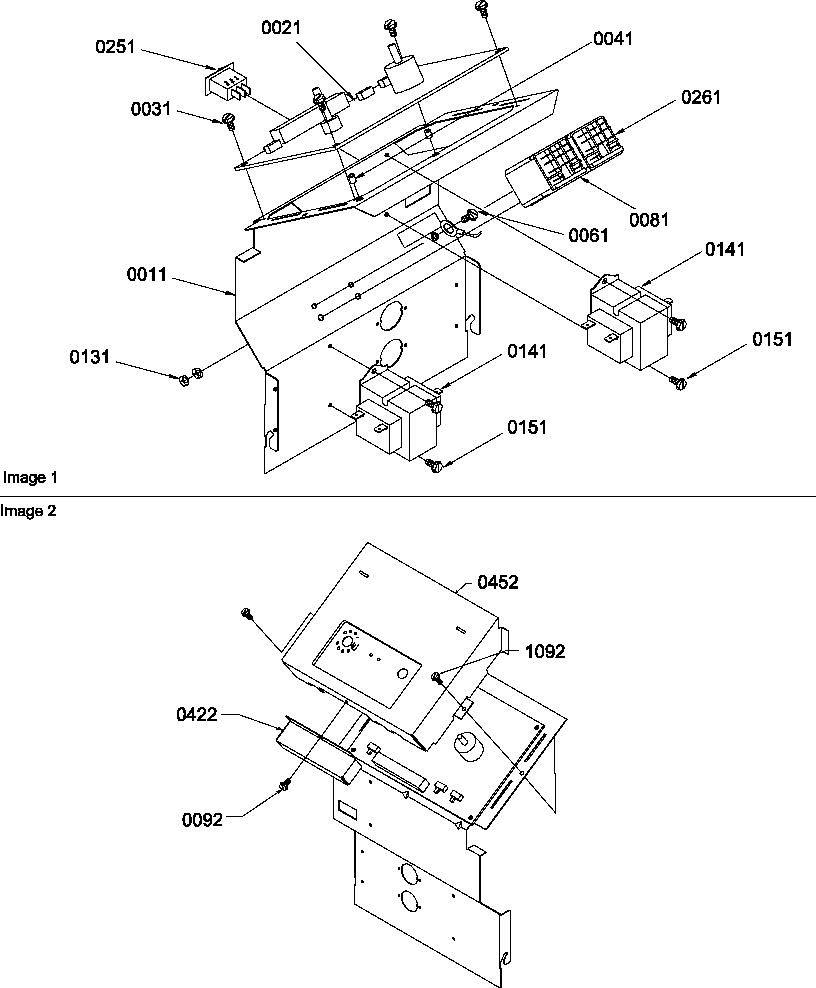

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 151 parts  |
Terminal Nut A3436601
#163

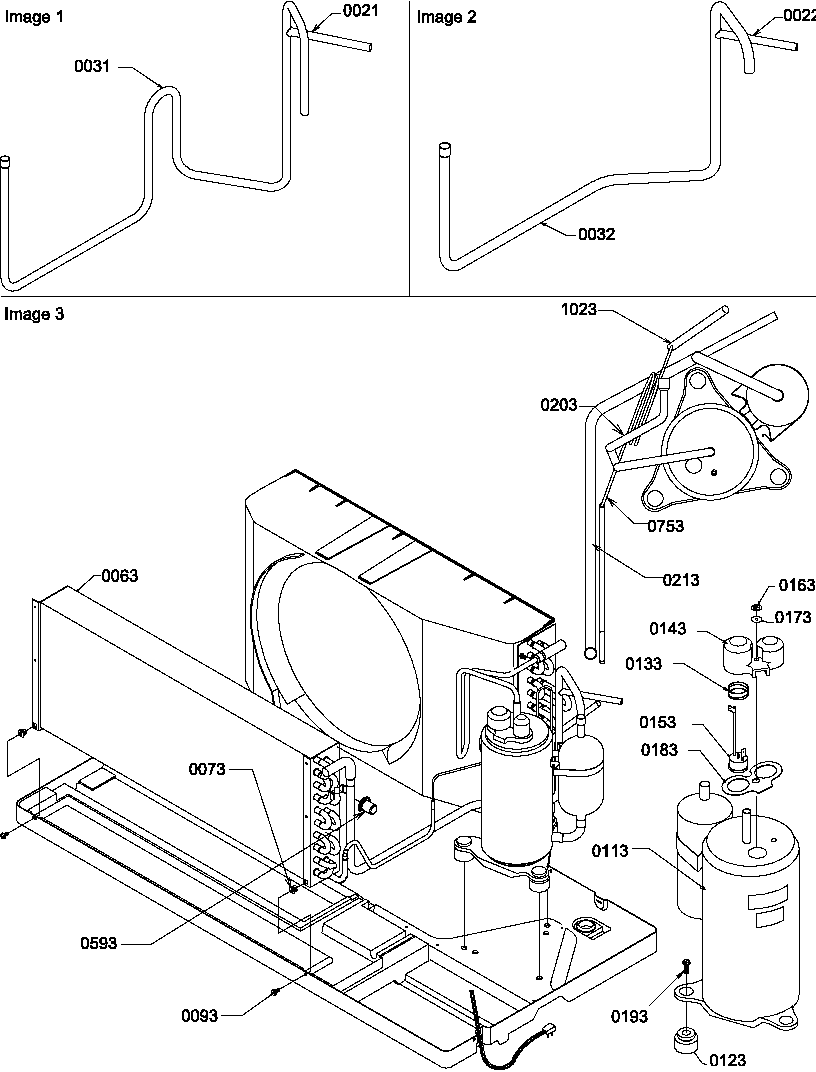

Compressor & tubing diagram

Terminal nut

Part #A3436601

Replaced by #WP776338

?
Manufacturer substitution
This part replaces A3436601. Substitute parts can look different from the original.
$11.34
In Stock
Screw M0213817
#81

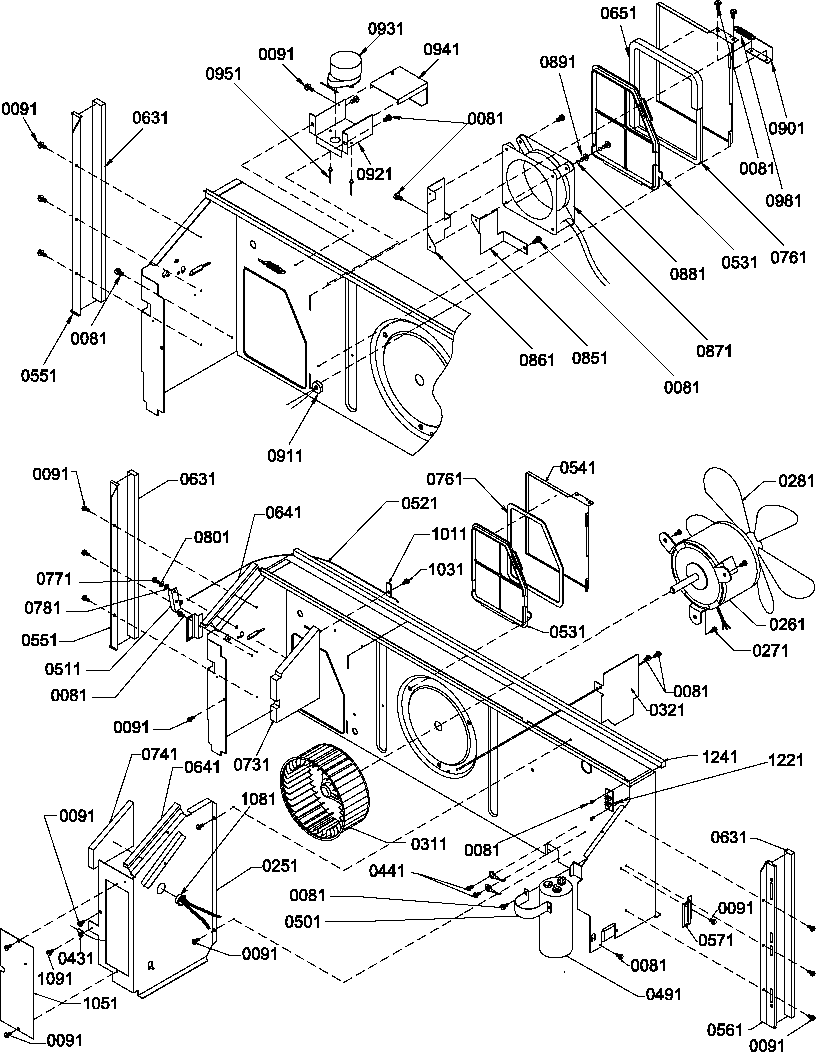

Chassis diagram

Screw

Part #M0213817

Replaced by #8169474

?
Manufacturer substitution
This part replaces M0213817. Substitute parts can look different from the original.
This item is not returnable
$5.24
In Stock
Sub D6789060 D6879842
#491

Chassis diagram

Sub d6789060

Part #D6879842

Replaced by #D6789060

?
Manufacturer substitution
This part replaces D6879842. Substitute parts can look different from the original.
$14.86
In Stock
Foam Gasket 10839808
Foam gasket

Part #10839808

Replaced by #10839808

?
Manufacturer substitution
This part replaces 10839808. Substitute parts can look different from the original.
This item is not returnable
$4.62
In Stock
Tap Screw M0224956
#271

Chassis diagram

Tap screw

Part #M0224956

Replaced by #WP489427

?
Manufacturer substitution
This part replaces M0224956. Substitute parts can look different from the original.
This item is not returnable
$6.60 |
13% OFF Phone Price : $7.60
In Stock
Foam Gasket 10839814
#1241

Chassis diagram

Foam gasket

Part #10839814

Replaced by #WP854334

?
Manufacturer substitution
This part replaces 10839814. Substitute parts can look different from the original.
$9.99 |
9% OFF Phone Price : $10.99
In Stock
Screw M0211016
#1031

Chassis diagram

Screw

Part #M0211016

Replaced by #M0211016

?
Manufacturer substitution
This part replaces M0211016. Substitute parts can look different from the original.
This item is not returnable
$3.40
In Stock
Use 20284904 11171505
#753

Compressor & tubing diagram

Use 20284904

Part #11171505

Replaced by #20284904

?
Manufacturer substitution
This part replaces 11171505. Substitute parts can look different from the original.
$59.19 |
9% OFF Phone Price : $65.19
In Stock
Screw M0211345
#0

Compressor & tubing diagram

Screw

Part #M0211345

Replaced by #W10841059

?
Manufacturer substitution
This part replaces M0211345. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock

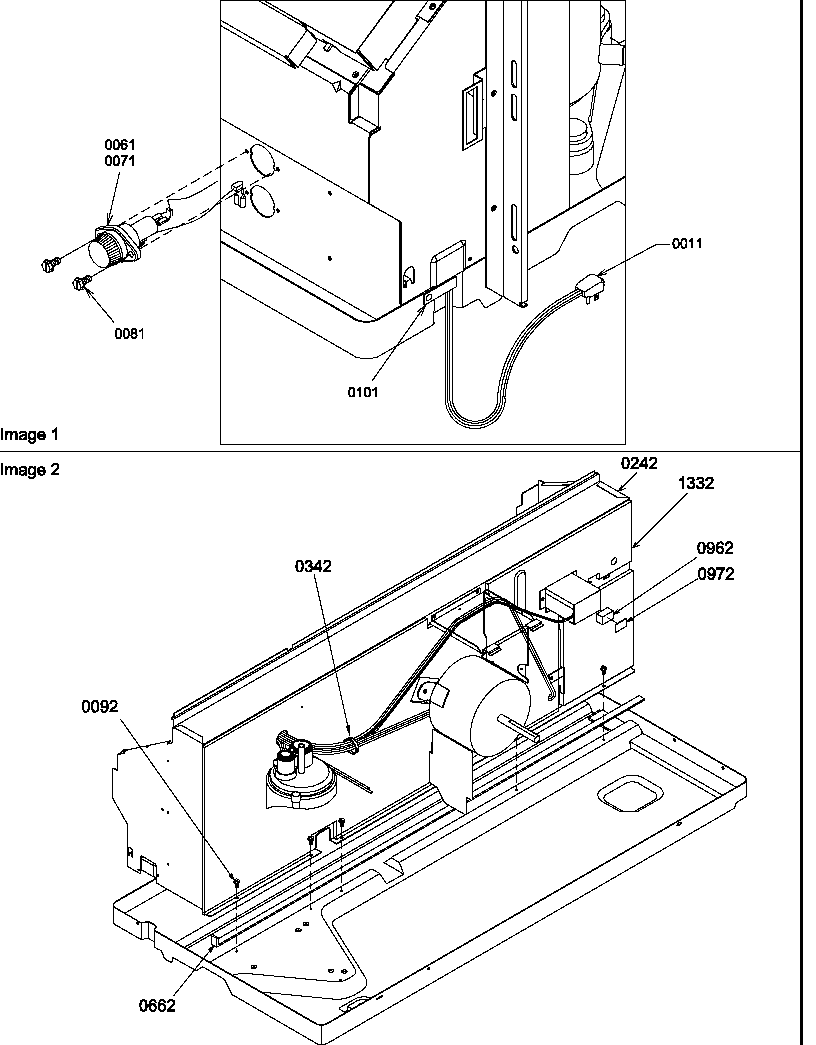

Insulation Part 20208601
#1332

Chassis diagram

Insulation part

Part #20208601

The manufacturer no longer makes this part, and there's no substitute part
