Craftsman
Reciprocating Saw

Model # 75827802 Official Craftsman 7" electric hand saw

Here are the diagrams and repair parts for Official Craftsman 75827802 7" electric hand saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 68 parts  |
Screw 1-930993-01
#15

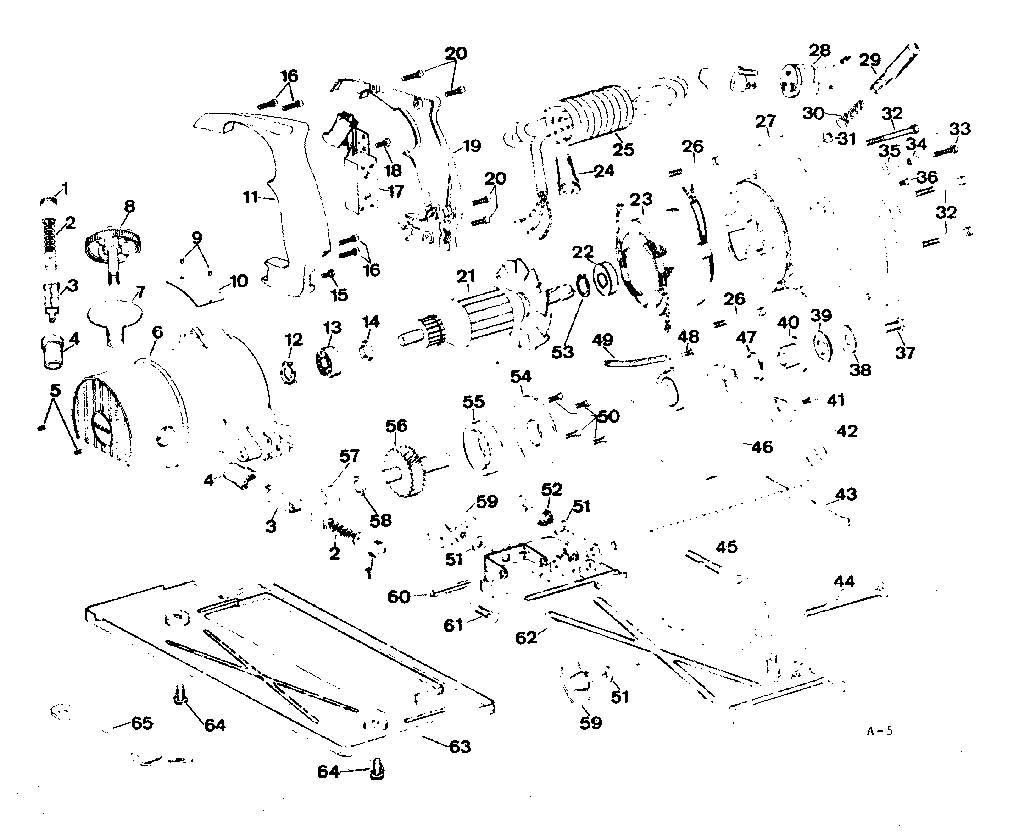

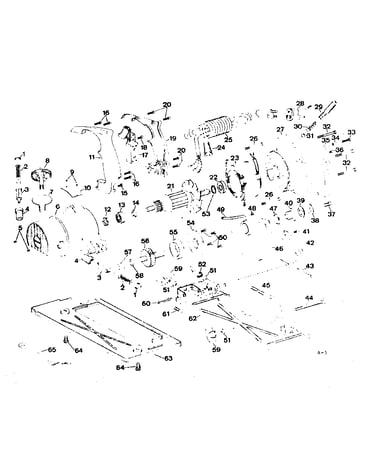

Unit parts diagram

Screw

Part #1-930993-01

The manufacturer no longer makes this part, and there's no substitute part

Knob-lower 2-717537-01
#7

Unit parts diagram

Knob-lower

Part #2-717537-01

The manufacturer no longer makes this part, and there's no substitute part

Armature 2-614757-02
#21

Unit parts diagram

Armature

Part #2-614757-02

The manufacturer no longer makes this part, and there's no substitute part

Car Bolt 1-621433-01
#61

Unit parts diagram

Car bolt

Part #1-621433-01

The manufacturer no longer makes this part, and there's no substitute part

Drive Stud 1-621752-00
#48

Unit parts diagram

Drive stud

Part #1-621752-00

The manufacturer no longer makes this part, and there's no substitute part

Screw 1-624023-01
#33

Unit parts diagram

Screw

Part #1-624023-01

The manufacturer no longer makes this part, and there's no substitute part

Handle 4-623118-03
#11

Unit parts diagram

Handle

Part #4-623118-03

The manufacturer no longer makes this part, and there's no substitute part

Spring Washer 1-623547-01
#38

Unit parts diagram

Spring washer

Part #1-623547-01

The manufacturer no longer makes this part, and there's no substitute part

Bind Stud 1-621347-00
#45

Unit parts diagram

Bind stud

Part #1-621347-00

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 2-614806-02
#10

Unit parts diagram

Nameplate

Part #2-614806-02

The manufacturer no longer makes this part, and there's no substitute part
