Crosley
Dryer

Model # CDE9505W Official Crosley dryer

Here are the diagrams and repair parts for Official Crosley CDE9505W dryer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

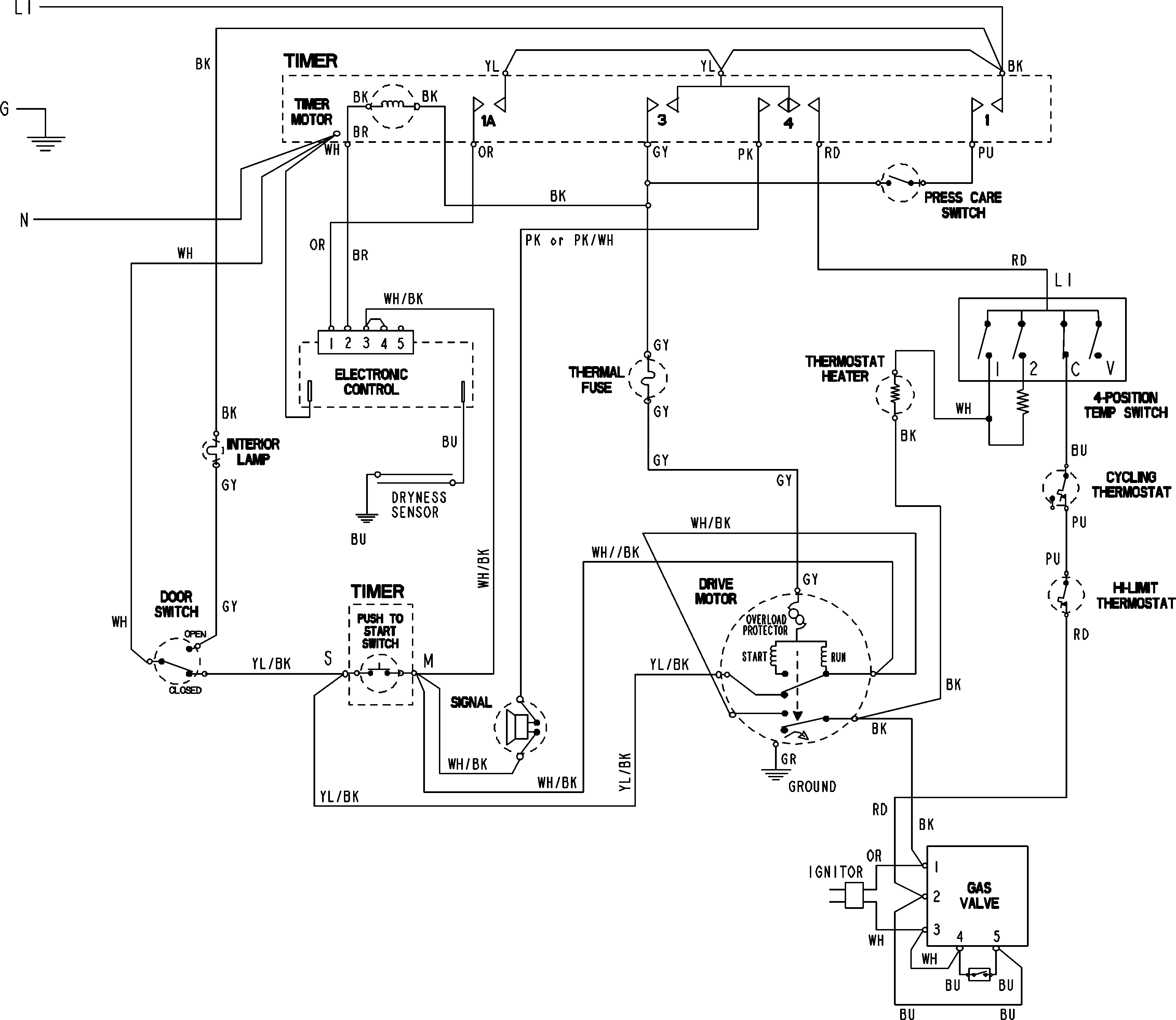

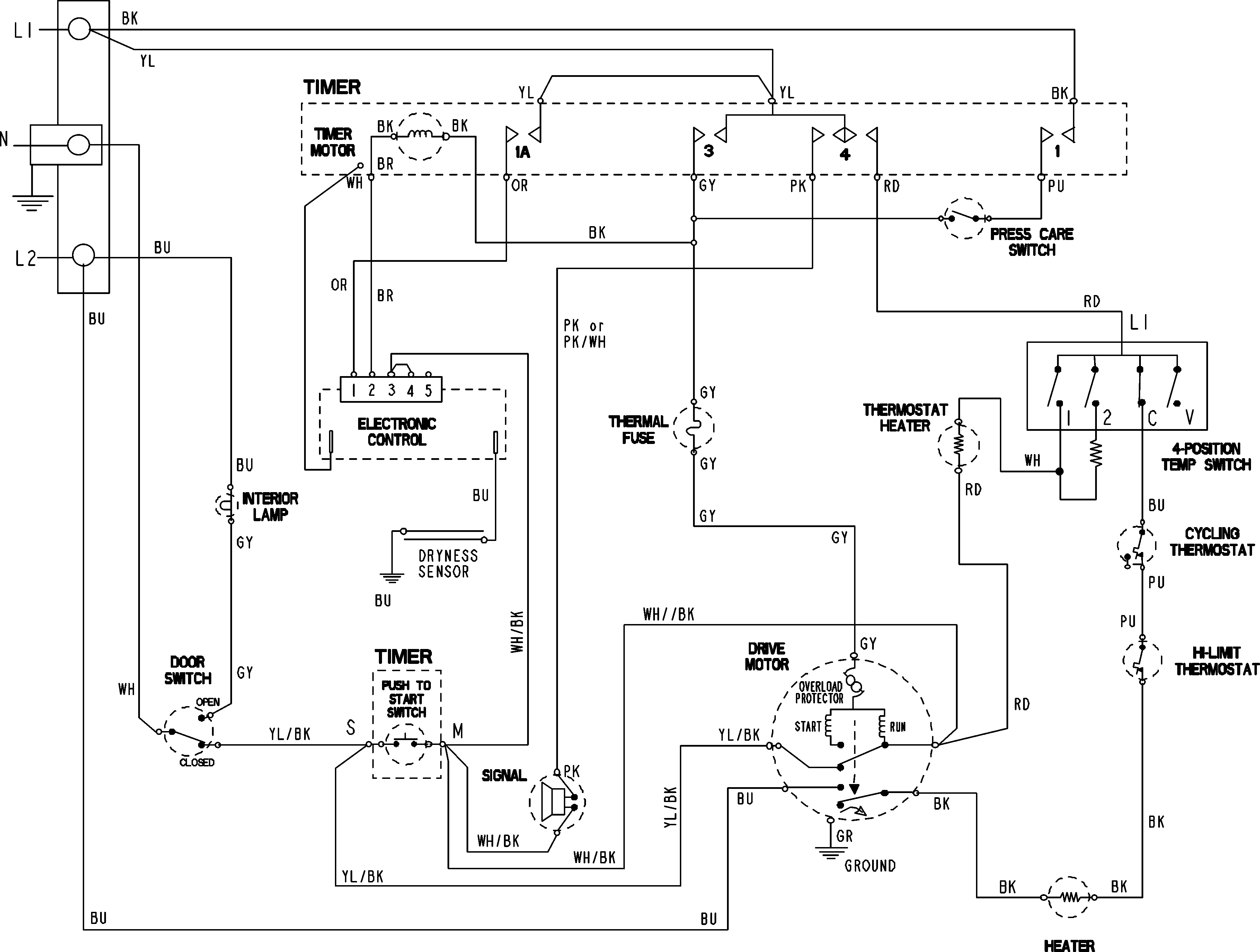

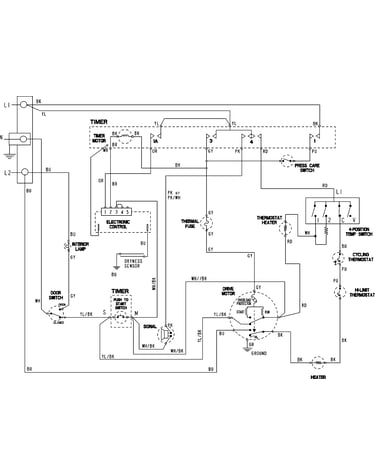

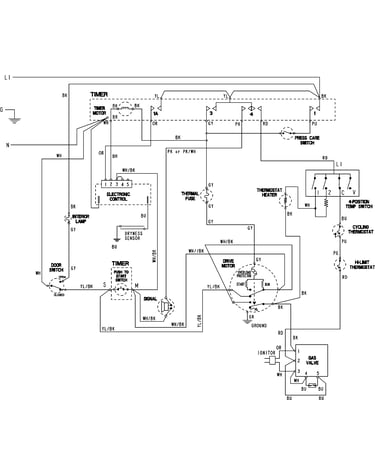

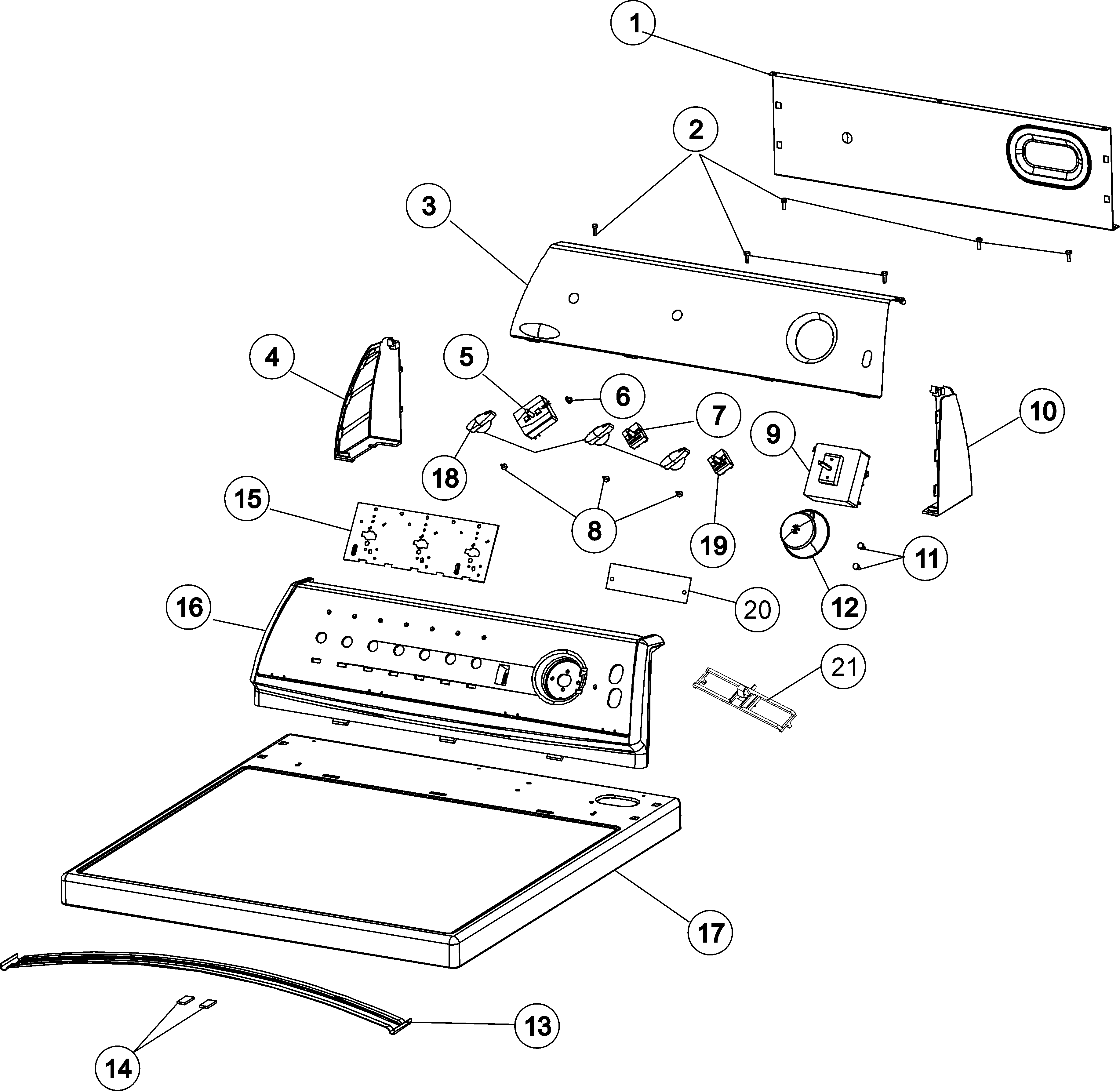

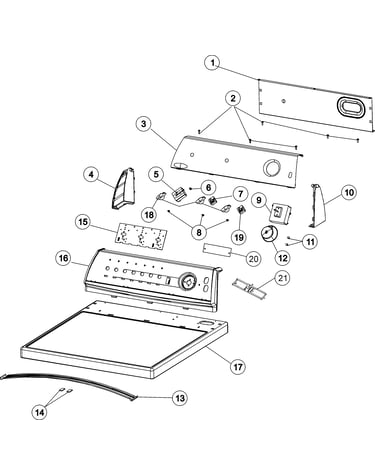

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 98 parts  |
Dryer Drum Belt 40111201
#21

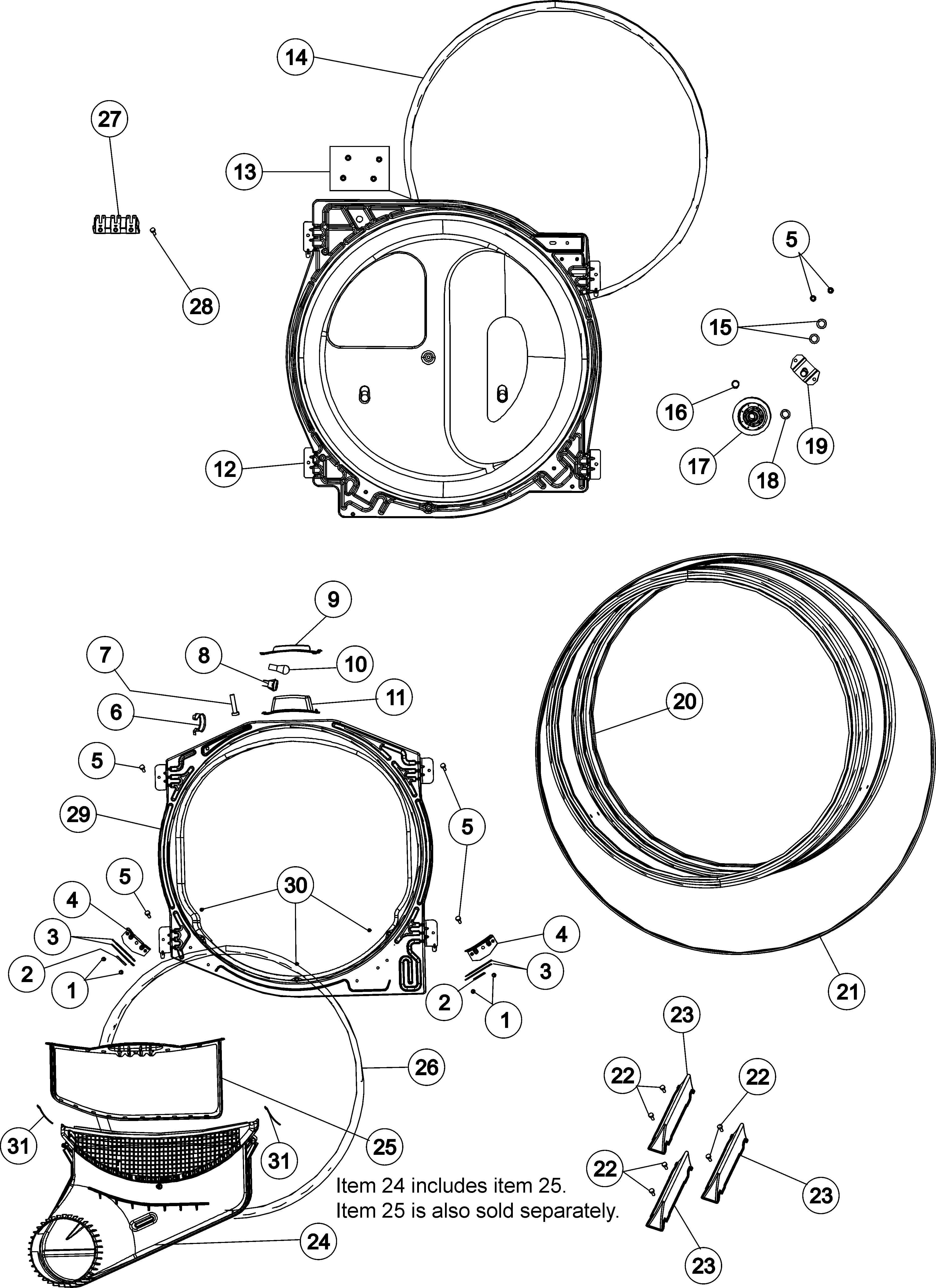

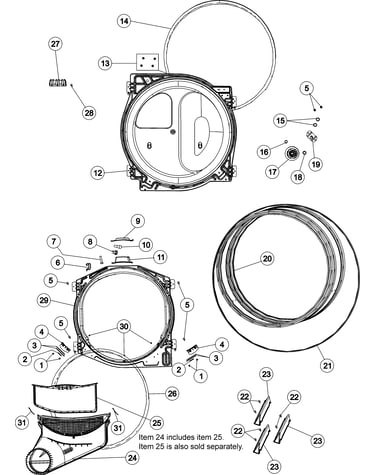

Tumbler diagram

Dryer drum belt

Part #40111201

Replaced by #WP40111201

?
Manufacturer substitution
This part replaces 40111201. Substitute parts can look different from the original.
BEST SELLER
$15.11 |
12% OFF Phone Price : $17.11
In Stock
Dryer Drive Motor 2200376
#7

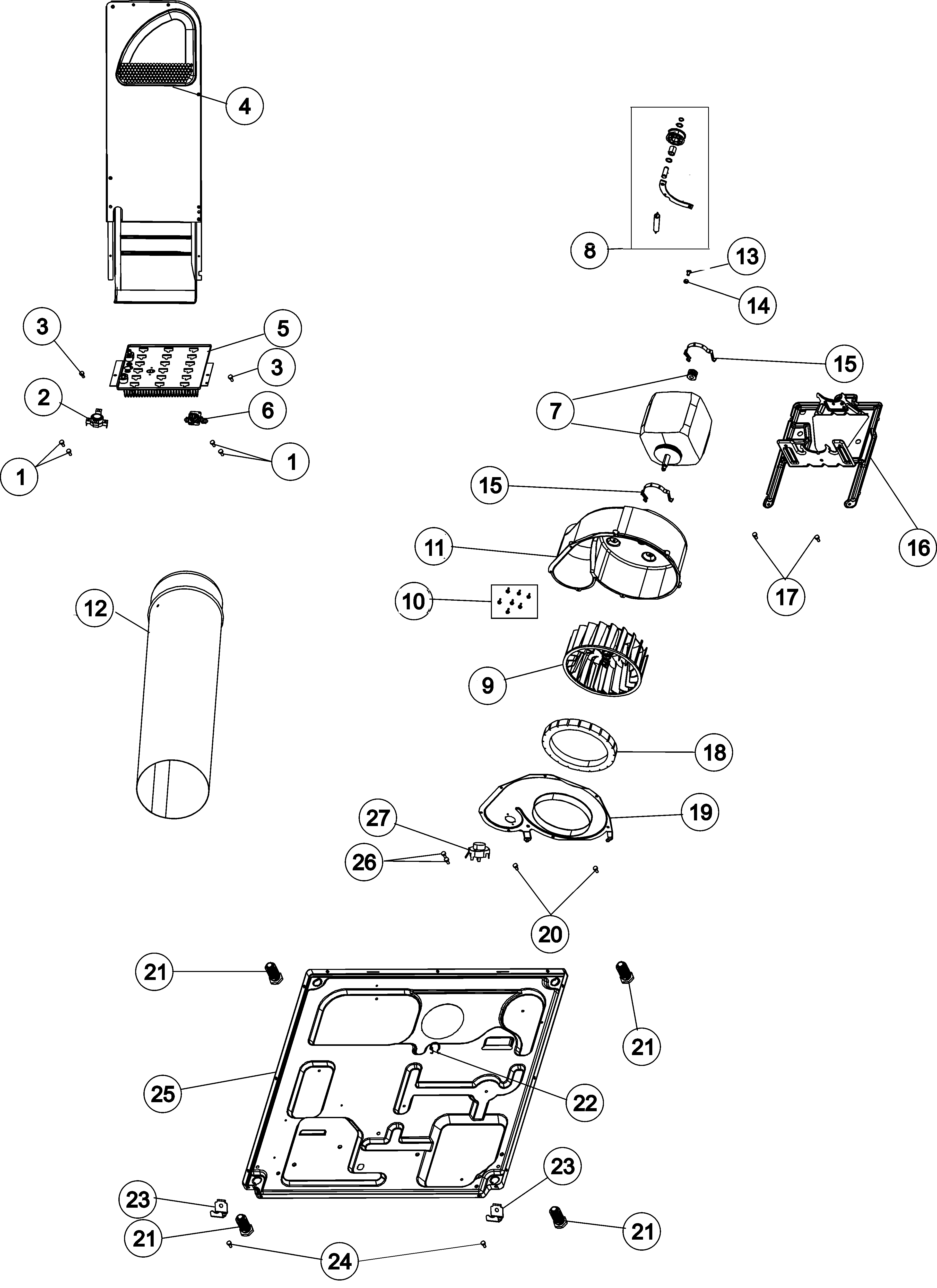

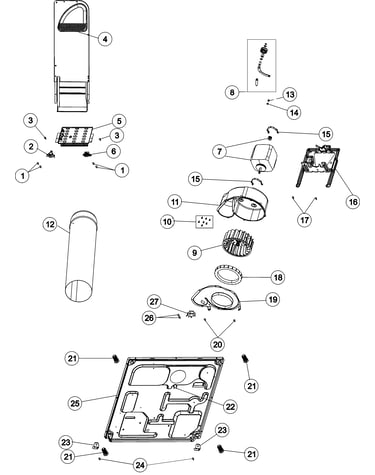

Base, heater & motor diagram

Dryer drive motor

Part #2200376

Replaced by #WP2200376

?
Manufacturer substitution
This part replaces 2200376. Substitute parts can look different from the original.
BEST SELLER
$132.01 |
8% OFF Phone Price : $144.01
In Stock
Speed Queen Dryer Blower Wheel (replaces 510139p, 56000p) 56000
#9

Base, heater & motor diagram

Speed queen dryer blower wheel (replaces 510139p, 56000p)

Part #56000

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Dryer Thermal Fuse, 352-degree F 40113801
#6

Base, heater & motor diagram

Dryer thermal fuse, 352-degree f

Part #40113801

Replaced by #WP40113801

?
Manufacturer substitution
This part replaces 40113801. Substitute parts can look different from the original.
BEST SELLER
$14.01 |
12% OFF Phone Price : $16.01
In Stock
Clamp 58047
#15

Base, heater & motor diagram

Clamp

Part #58047

Replaced by #WP660658

?
Manufacturer substitution
This part replaces 58047. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.49 |
13% OFF Phone Price : $7.49
In Stock
Cylinder Guide 40116501
#3

Tumbler diagram

Cylinder guide

Part #40116501

Replaced by #WP37001298

?
Manufacturer substitution
This part replaces 40116501. Substitute parts can look different from the original.
BEST SELLER
$8.94 |
10% OFF Phone Price : $9.94
In Stock
Screw 503688
Screw

Part #503688

Replaced by #WP3390631

?
Manufacturer substitution
This part replaces 503688. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Dryer Drum Rear Seal 37001132
Dryer drum rear seal

Part #37001132

Replaced by #WP37001132

?
Manufacturer substitution
This part replaces 37001132. Substitute parts can look different from the original.
$33.04 |
15% OFF Phone Price : $39.04
In Stock
Dryer Drum Glide Bracket 37001036
#4

Tumbler diagram

Dryer drum glide bracket

Part #37001036

Replaced by #WP37001036

?
Manufacturer substitution
This part replaces 37001036. Substitute parts can look different from the original.
$36.15 |
14% OFF Phone Price : $42.15
In Stock
Door Catch 54660
#22

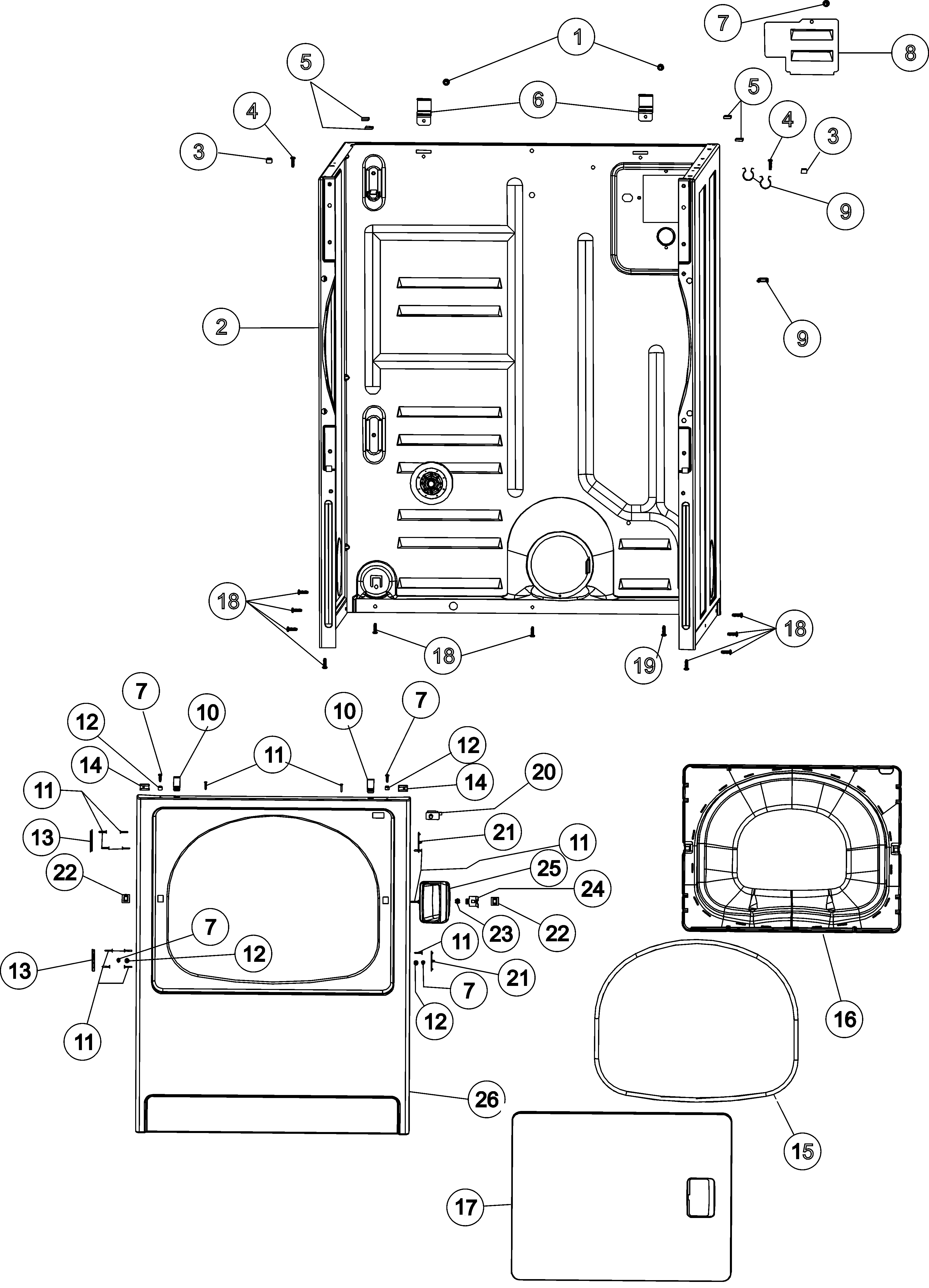

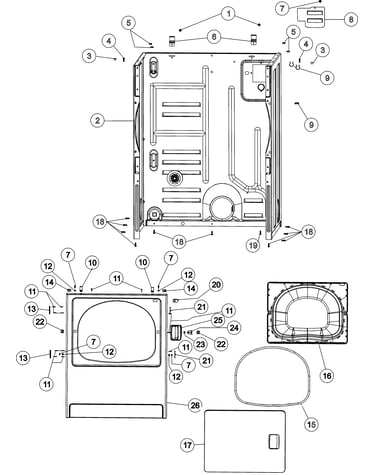

Cabinet & front panel diagram

Door catch

Part #54660

Replaced by #LA-1003

?
Manufacturer substitution
This part replaces 54660. Substitute parts can look different from the original.
This item is not returnable
$20.69 |
22% OFF Phone Price : $26.69
In Stock
