Craftsman
Gas Walk-Behind Mower

Model # 917374120 Official Craftsman lawn mower

Here are the diagrams and repair parts for Official Craftsman 917374120 lawn mower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual
  View engine

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 237 parts  |
Lawn & Garden Equipment Nut 409148
#33

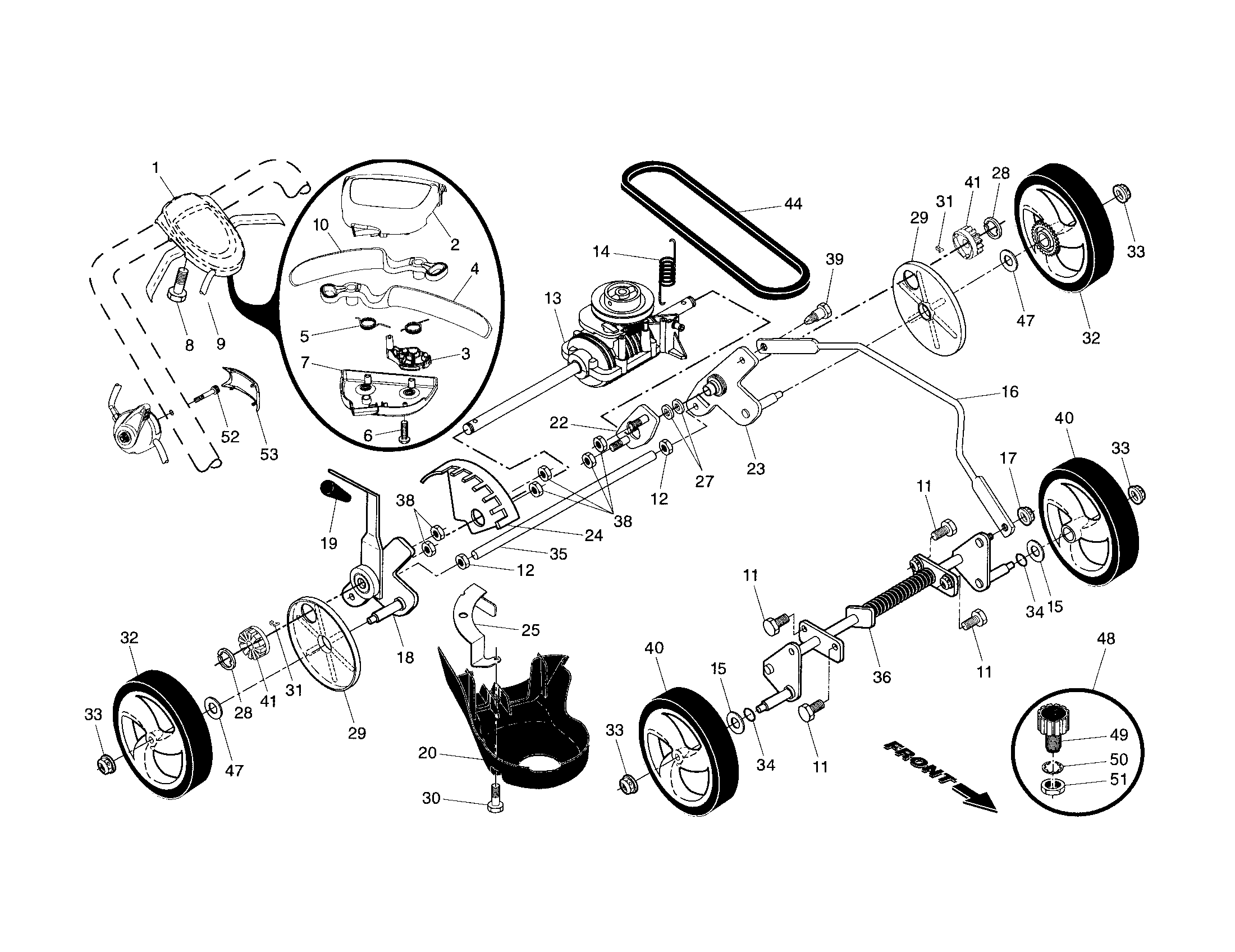

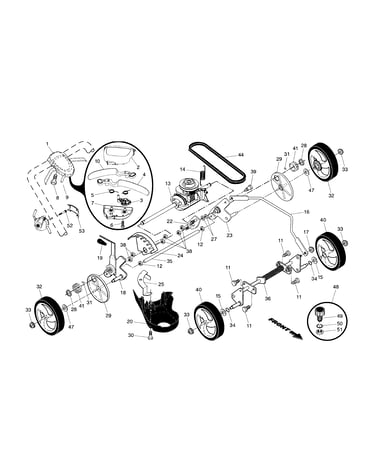

Drive control/gear case/wheels diagram

Lawn & garden equipment nut

Part #409148

Replaced by #532409149

?
Manufacturer substitution
This part replaces 409148. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.31 |
16% OFF Phone Price : $6.31
In Stock
Blade Adapter 421782
#46

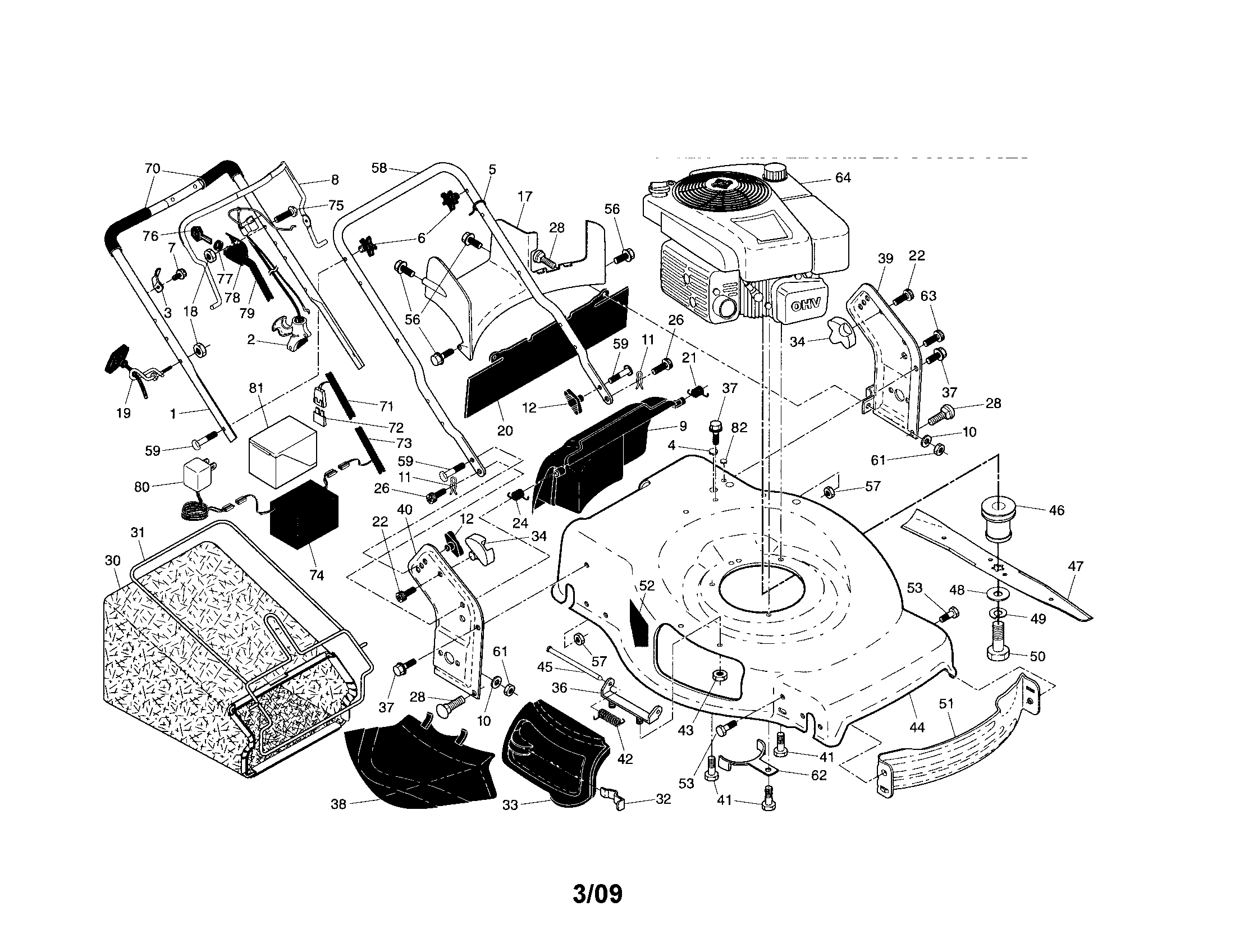

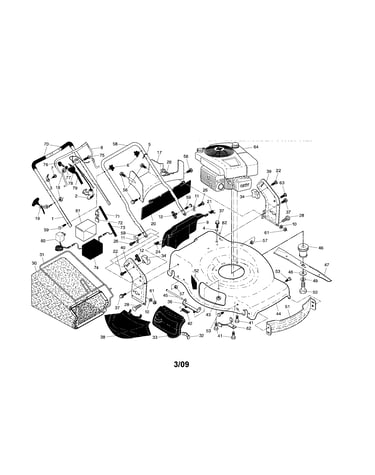

Handle/engine/housing diagram

Blade adapter

Part #421782

Replaced by #581473301

?
Manufacturer substitution
This part replaces 421782. Substitute parts can look different from the original.
BEST SELLER
$19.36 |
9% OFF Phone Price : $21.36
In Stock
Lawn Mower Wheel Dust Cover 189403
#29

Drive control/gear case/wheels diagram

Lawn mower wheel dust cover

Part #189403

Replaced by #581840401

?
Manufacturer substitution
This part replaces 189403. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Lawn Mower Grass Bag Frame 419951
#31

Handle/engine/housing diagram

Lawn mower grass bag frame

Part #419951

Replaced by #585054702

?
Manufacturer substitution
This part replaces 419951. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$23.98 |
20% OFF Phone Price : $29.98
In Stock
Lawn Mower Battery Charger 190097
#80

Handle/engine/housing diagram

Lawn mower battery charger

Part #190097

Replaced by #597186301

?
Manufacturer substitution
This part replaces 190097. Substitute parts can look different from the original.
BEST SELLER
$32.98 |
15% OFF Phone Price : $38.98
In Stock
Lawn Mower Wheel, 8 X 1.75-in 400249X460
#40

Drive control/gear case/wheels diagram

Lawn mower wheel, 8 x 1.75-in

Part #400249X460

Replaced by #583733801

?
Manufacturer substitution
This part replaces 400249X460. Substitute parts can look different from the original.
BEST SELLER
$26.89 |
18% OFF Phone Price : $32.89
In Stock
Mulch Door Assembly 423358
#33

Handle/engine/housing diagram

Mulch door assembly

Part #423358

Replaced by #532420019

?
Manufacturer substitution
This part replaces 423358. Substitute parts can look different from the original.
BEST SELLER
$19.98 |
9% OFF Phone Price : $21.98
In Stock
Lawn Mower Wheel 405745X460
#32

Drive control/gear case/wheels diagram

Lawn mower wheel

Part #405745X460

Replaced by #581685301

?
Manufacturer substitution
This part replaces 405745X460. Substitute parts can look different from the original.
BEST SELLER
$39.98 |
13% OFF Phone Price : $45.98
In Stock
Molded Ignition Key 180331
#76

Handle/engine/housing diagram

Molded ignition key

Part #180331

Replaced by #532180331

?
Manufacturer substitution
This part replaces 180331. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
Washer 67725
#47

Drive control/gear case/wheels diagram

Washer

Part #67725

Replaced by #532067725

?
Manufacturer substitution
This part replaces 67725. Substitute parts can look different from the original.
BEST SELLER
$7.98 |
11% OFF Phone Price : $8.98
In Stock
