Kelvinator
Side-By-Side Refrigerator

Model # FPK190EN2T Official Kelvinator side-by-side refrigerator - lk30588450

Here are the diagrams and repair parts for Official Kelvinator FPK190EN2T side-by-side refrigerator - lk30588450, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

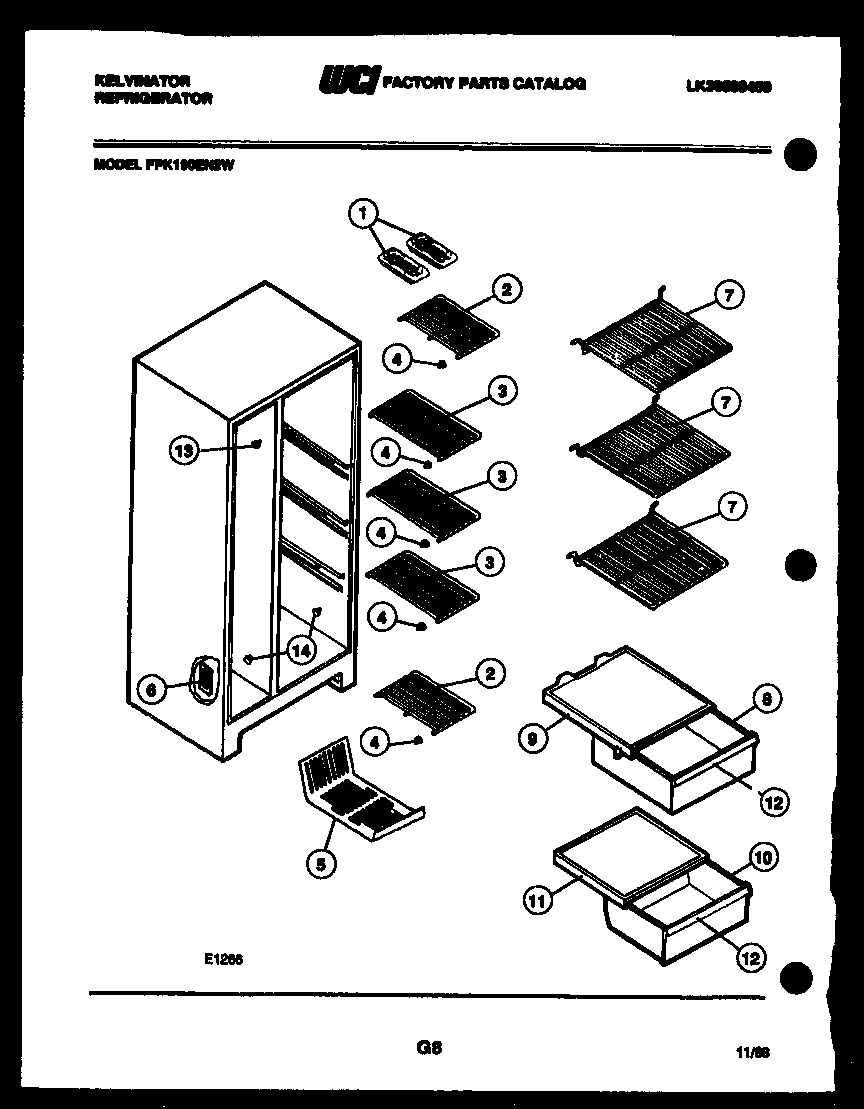

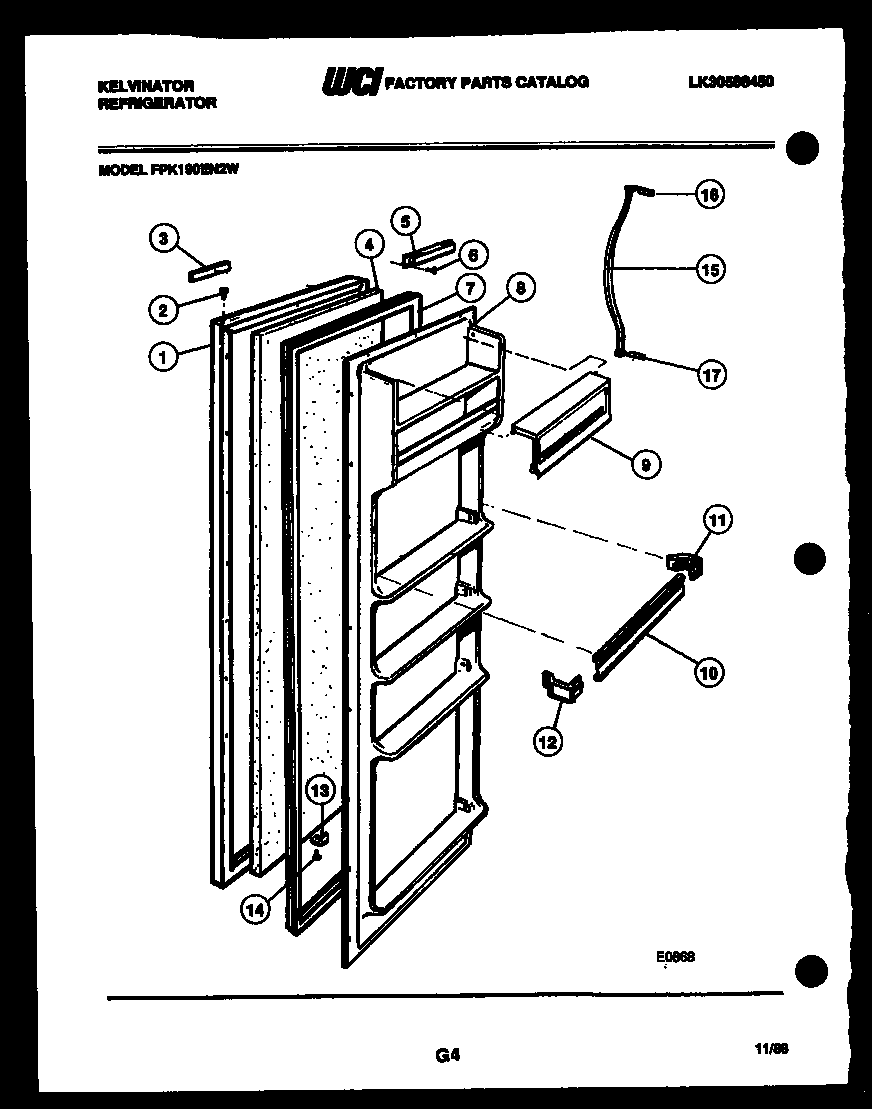

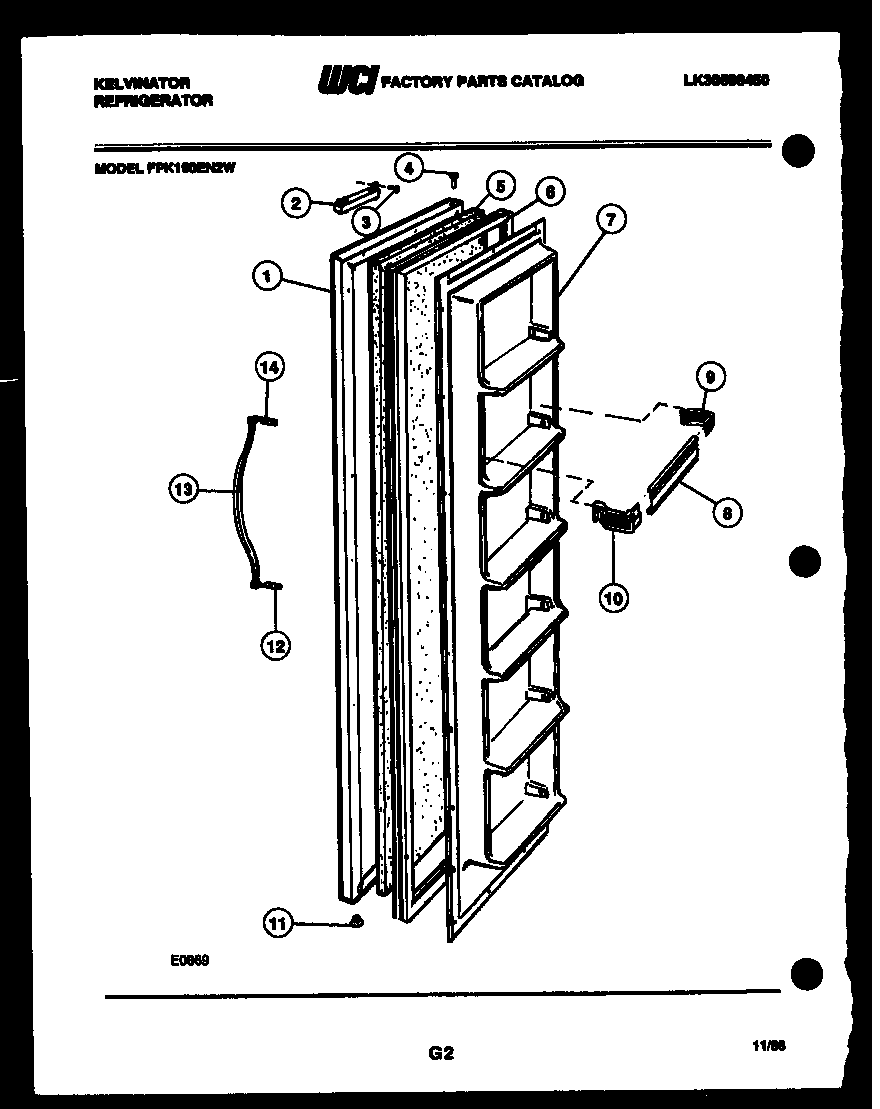

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 163 parts  |
Filter Drier G186717
#12

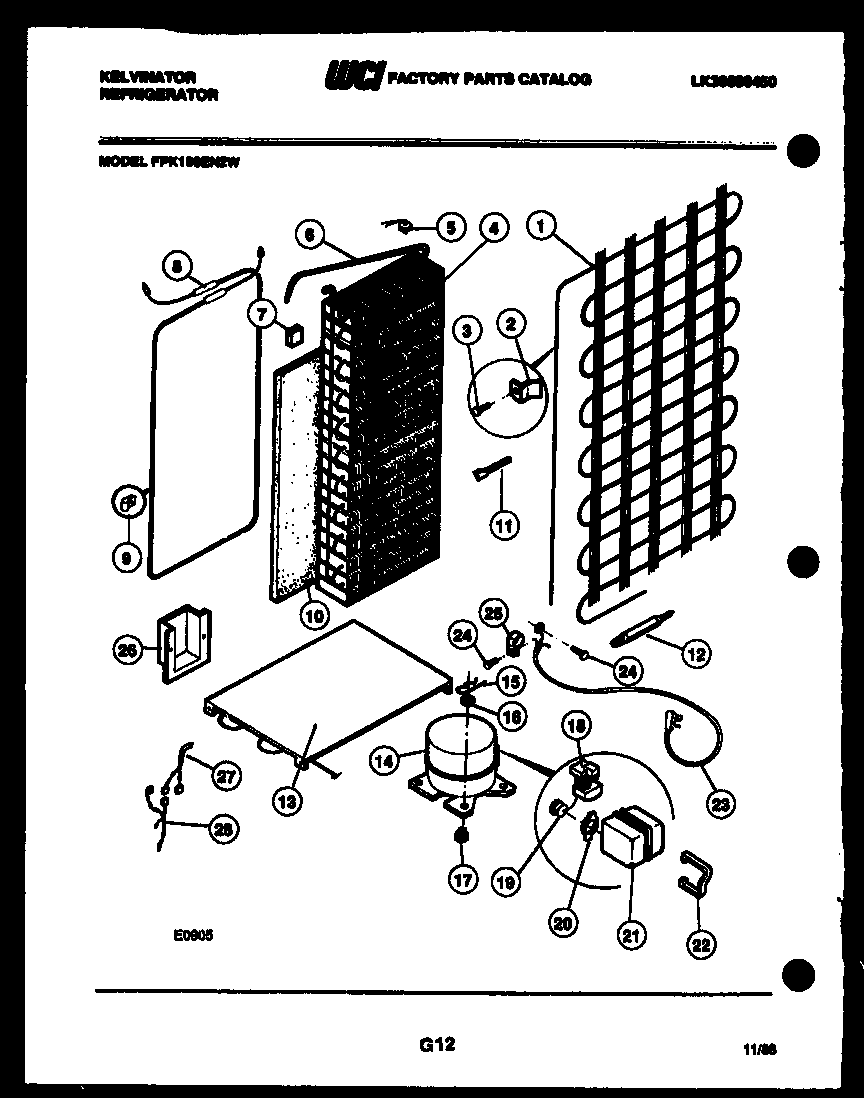

System and automatic defrost parts diagram

Filter drier

Part #G186717

Replaced by #5303305677

?
Manufacturer substitution
This part replaces G186717. Substitute parts can look different from the original.
BEST SELLER
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Thermostat G191652
#5

System and automatic defrost parts diagram

Thermostat

Part #G191652

Replaced by #5303917954

?
Manufacturer substitution
This part replaces G191652. Substitute parts can look different from the original.
BEST SELLER
$24.36 |
20% OFF Phone Price : $30.36
In Stock
Tube G142176-11
#6

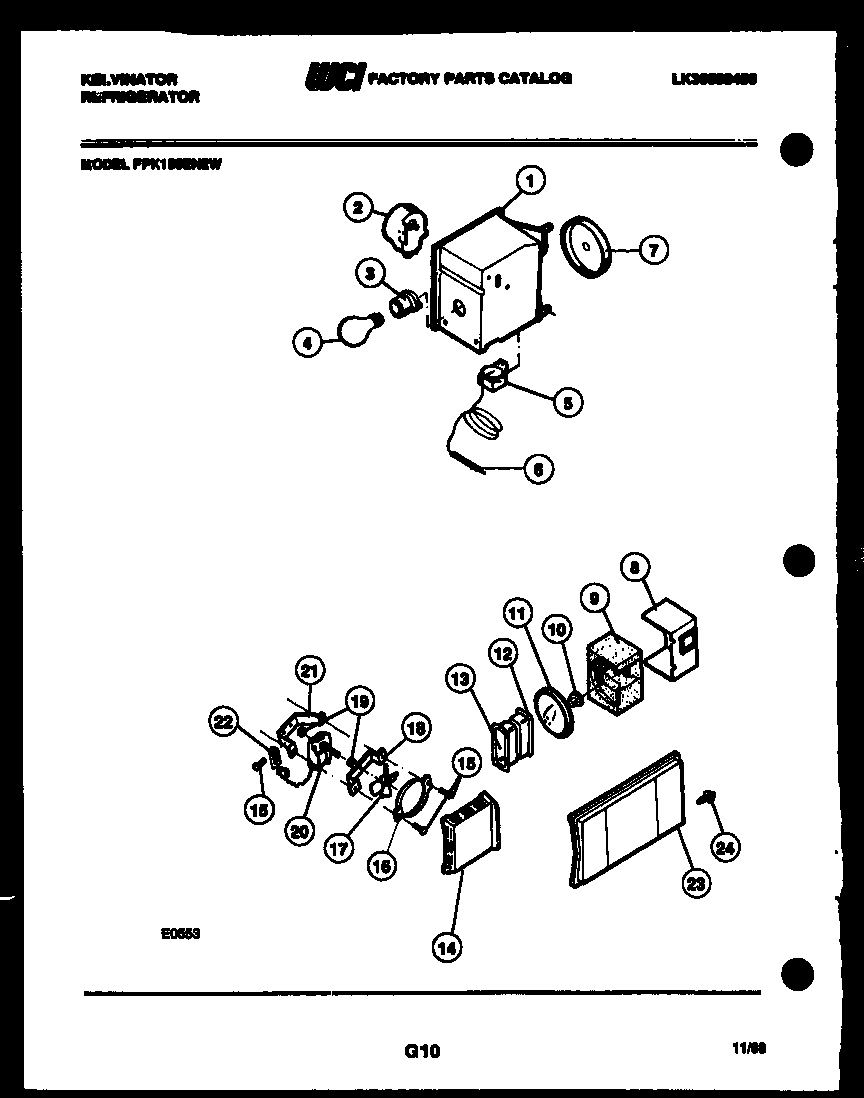

Refrigerator control assembly, damper control assembly and f diagram

Tube

Part #G142176-11

Replaced by #5303916855

?
Manufacturer substitution
This part replaces G142176-11. Substitute parts can look different from the original.
$47.89 |
11% OFF Phone Price : $53.89
In Stock
Refrigerator Drain Tube 3018640
#10

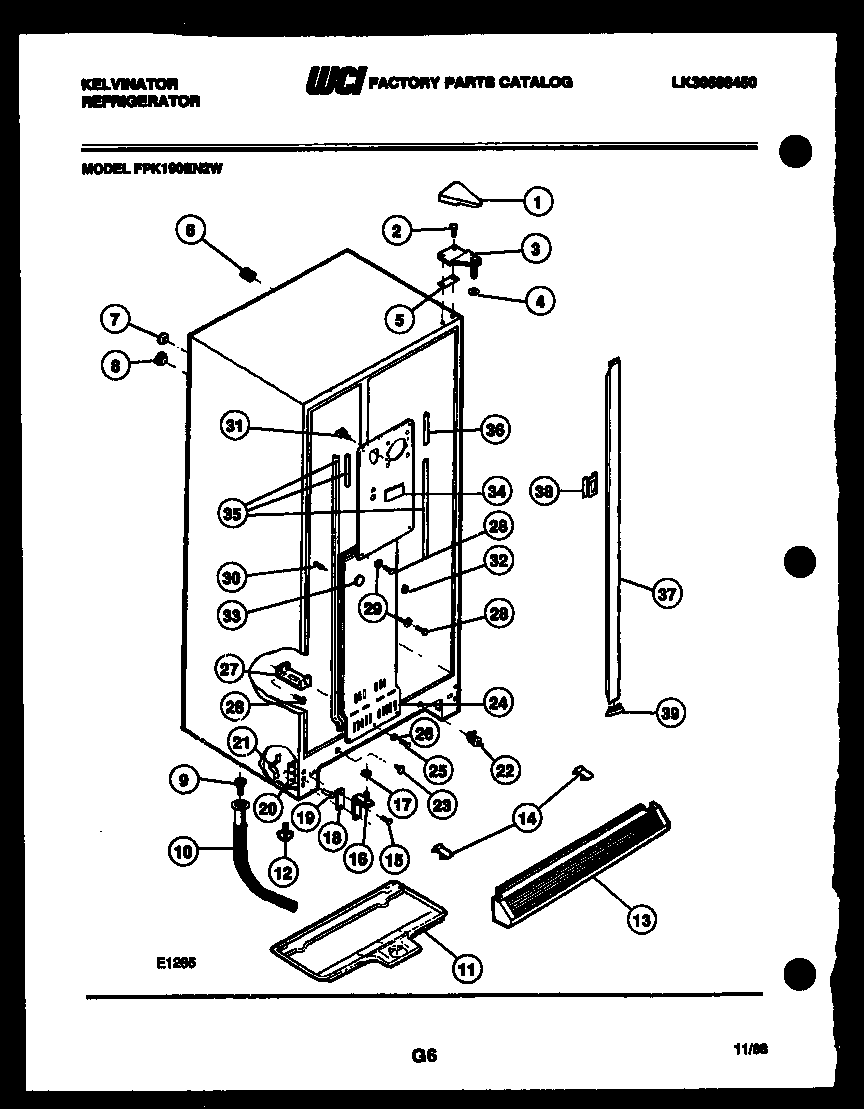

Cabinet parts diagram

Refrigerator drain tube

Part #3018640

Replaced by #241957901

?
Manufacturer substitution
This part replaces 3018640. Substitute parts can look different from the original.
$49.59 |
11% OFF Phone Price : $55.59
In Stock
Refrigerator Screw G187009
#24

System and automatic defrost parts diagram

Refrigerator screw

Part #G187009

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G187009. Substitute parts can look different from the original.
$13.26
In Stock
Screw G162585
Screw

Part #G162585

Replaced by #5304455651

?
Manufacturer substitution
This part replaces G162585. Substitute parts can look different from the original.
$13.26
In Stock
Refrigerator Screw G166567
#1A

Refrigerator control assembly, damper control assembly and f diagram

Refrigerator screw

Part #G166567

Replaced by #5304455852

?
Manufacturer substitution
This part replaces G166567. Substitute parts can look different from the original.
$12.57
In Stock
Light Switch G149762
#22

Cabinet parts diagram

Light switch

Part #G149762

Replaced by #5303289051

?
Manufacturer substitution
This part replaces G149762. Substitute parts can look different from the original.
$25.91
In Stock
Refrigerator Evaporator Fan Motor Grommet G187559
#19

Refrigerator control assembly, damper control assembly and f diagram

Refrigerator evaporator fan motor grommet

Part #G187559

$31.79 |
16% OFF Phone Price : $37.79
In Stock
Outer Ferrule G174734
#7

Cabinet parts diagram

Outer ferrule

Part #G174734

Replaced by #5303001287

?
Manufacturer substitution
This part replaces G174734. Substitute parts can look different from the original.
$9.89
In Stock
