Model # ZDW24AABB Official GE beverage center - a series

Here are the diagrams and repair parts for Official GE ZDW24AABB beverage center - a series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Dryer Filter WR86X0096
#740

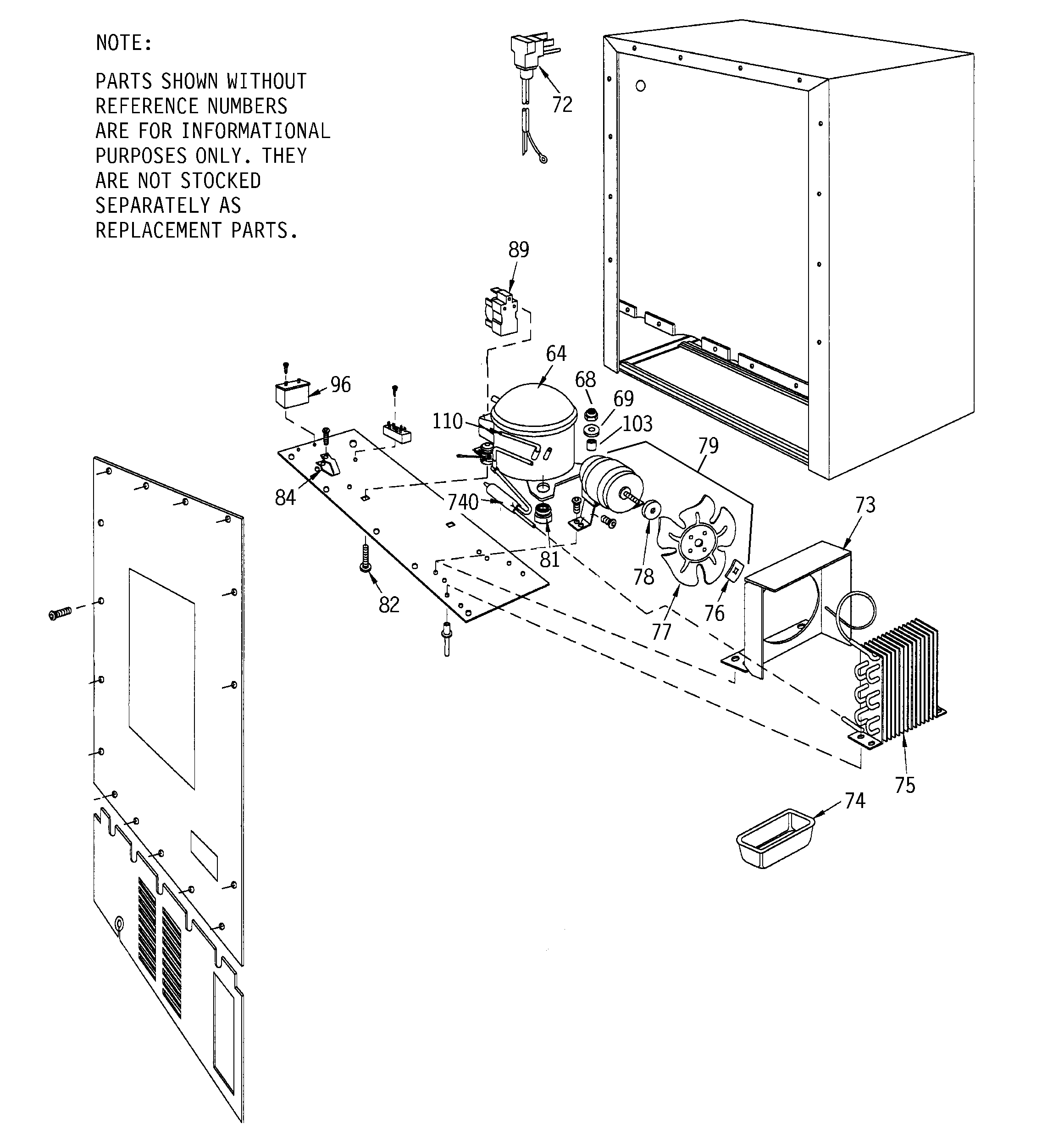

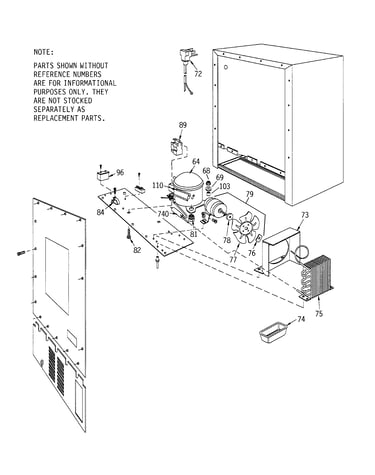

Unit parts diagram

Dryer filter

Part #WR86X0096

Replaced by #WR86X25269

?
Manufacturer substitution
This part replaces WR86X0096. Substitute parts can look different from the original.
BEST SELLER
$79.18 |
7% OFF Phone Price : $85.18
In Stock
Power Cord WR23X0108
#72

Unit parts diagram

Power cord

Part #WR23X0108

Replaced by #WR23X10300

?
Manufacturer substitution
This part replaces WR23X0108. Substitute parts can look different from the original.
$22.68 |
21% OFF Phone Price : $28.68
In Stock
Refrigerator Screw WR01X10057
#538

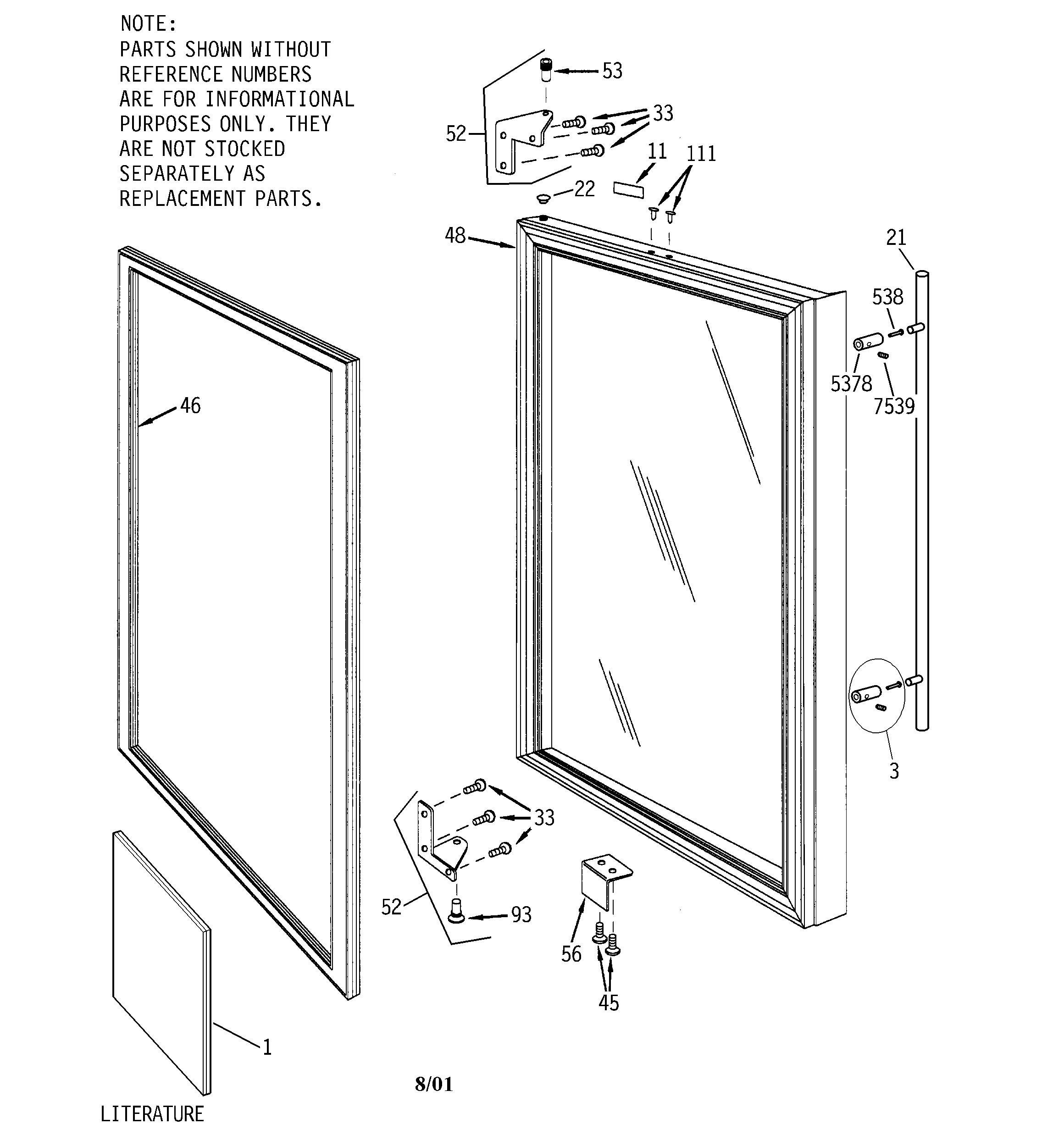

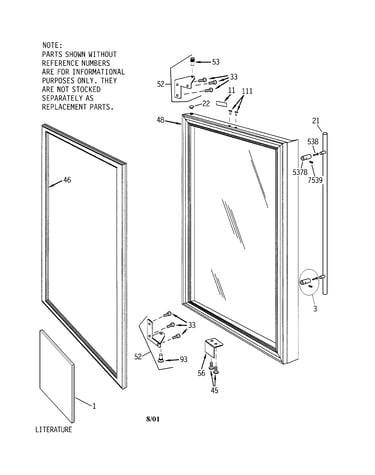

Door diagram

Refrigerator screw

Part #WR01X10057

$8.11
In Stock
Refrigerator Door Handle Mounting Set Screw WR01X10026
#7539

Door diagram

Refrigerator door handle mounting set screw

Part #WR01X10026

$8.11
In Stock
Charge Valve WR86X0097
#110

Unit parts diagram

Charge valve

Part #WR86X0097

Replaced by #WJ56X61

?
Manufacturer substitution
This part replaces WR86X0097. Substitute parts can look different from the original.
$23.46 |
20% OFF Phone Price : $29.46
In Stock
Handle Support WR01X10178
#3

Door diagram

Handle support

Part #WR01X10178

Replaced by #WR02X10056

?
Manufacturer substitution
This part replaces WR01X10178. Substitute parts can look different from the original.
$57.87
In Stock
Stand-off Ss WR02X10165
#5378

Door diagram

Stand-off ss

Part #WR02X10165

Replaced by #WR12X27598

?
Manufacturer substitution
This part replaces WR02X10165. Substitute parts can look different from the original.
$89.29 |
6% OFF Phone Price : $95.29
In Stock
Nameplate Motor WR04X10052
#11

Door diagram

Nameplate motor

Part #WR04X10052

Replaced by #WR04X24243

?
Manufacturer substitution
This part replaces WR04X10052. Substitute parts can look different from the original.
$64.18
In Stock
Light Plunger WR23X10070
#104

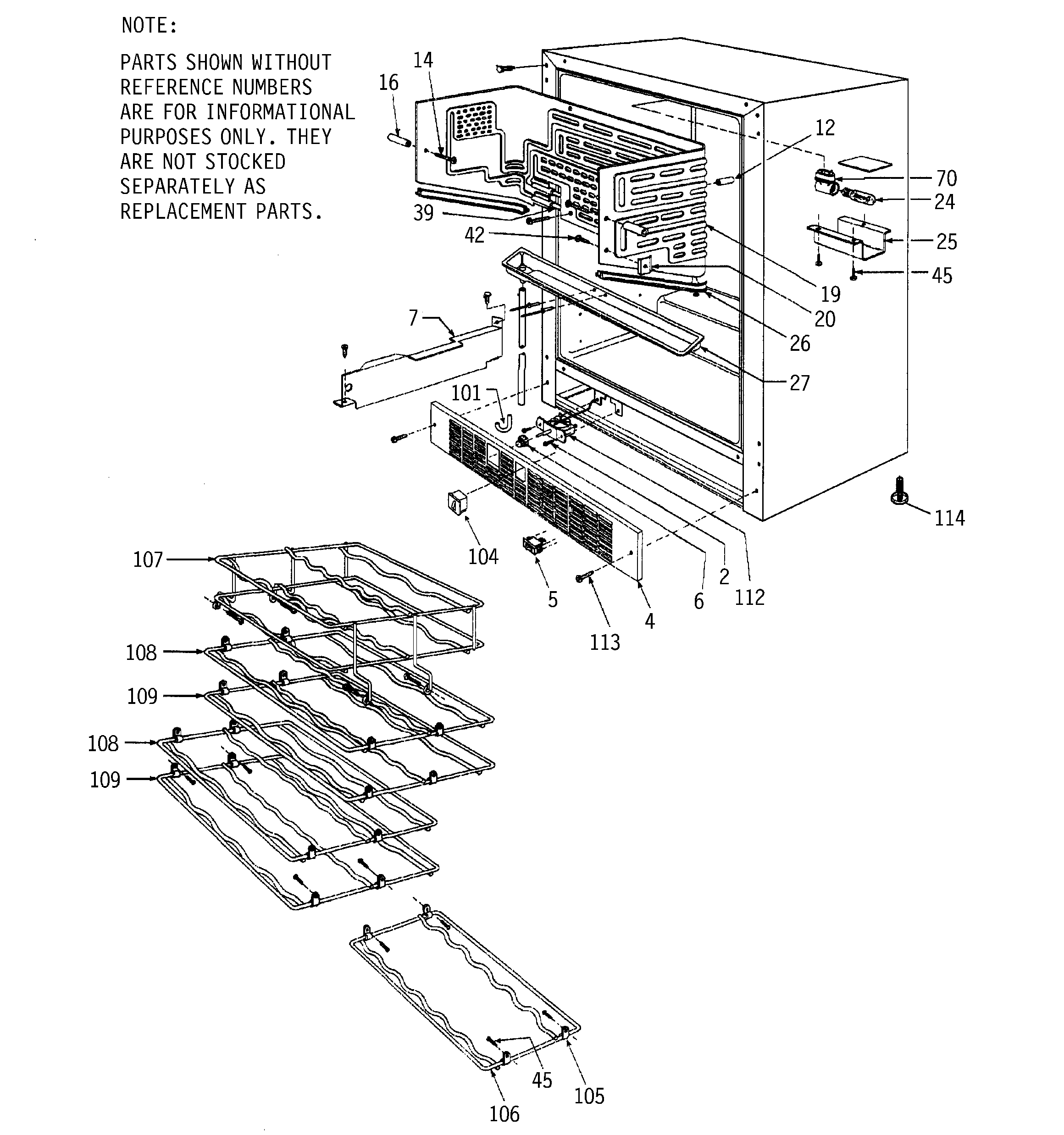

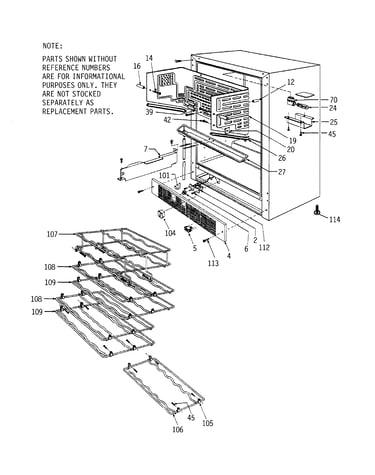

Cabinet parts diagram

Light plunger

Part #WR23X10070

The manufacturer no longer makes this part, and there's no substitute part

Button Plug WR01X10003
#111

Door diagram

Button plug

Part #WR01X10003

The manufacturer no longer makes this part, and there's no substitute part
